Update on cloud and storage development at NIIFI 8th TF-Storage Meeting February 4, 2011 Budapest, Hungary Szkelyi Szabolcs <szekelyi@niif.hu> Cloud Infrastructure as a Service Virtual machines, virtual networks, disk images,


slide-1
SLIDE 1

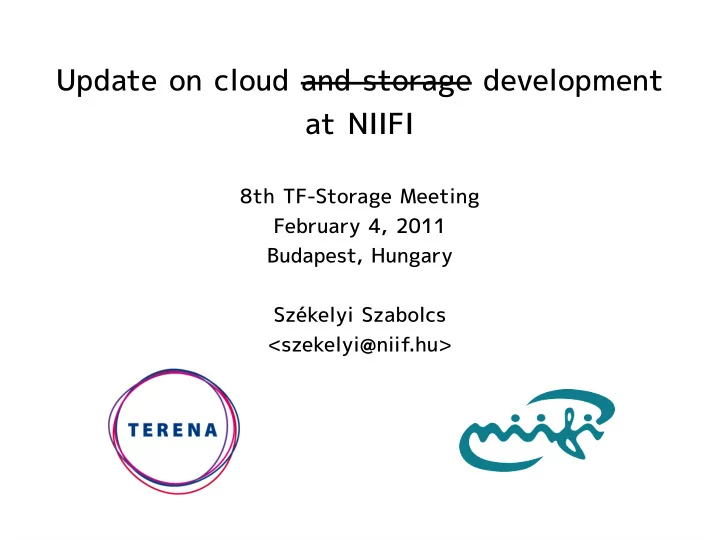

Update on cloud and storage development at NIIFI

8th TF-Storage Meeting February 4, 2011 Budapest, Hungary Székelyi Szabolcs <szekelyi@niif.hu>

slide-2
SLIDE 2

Cloud

  • Infrastructure as a Service
  • Virtual machines, virtual networks, disk images, etc.
  • Features
  • Self-service private virtual network management
  • Live migration of VMs between sites
  • Integrated storage management
  • Console access to VMs
  • Non-features (yet!)
  • VM config modification (hot-/coldplug)
  • Sophisticated image management
  • Sophisticated access control system
slide-3
SLIDE 3

A fundamental assumption

One virtual disk = One iSCSI target

slide-4
SLIDE 4

Software architecture

slide-5
SLIDE 5

Virtual network handling

host pub1 tag pub2 tag priv tag vm vm vm vm vm vm eth0 LAN

slide-6
SLIDE 6

Brand new backbone network ;)

slide-7
SLIDE 7

Dunaújváros

Backend storage (plan)

Sopron

slide-8
SLIDE 8

Virtual disk access

Multipath CLVM iSCSI target Volume iSCSI initiator KVM iSCSI initiator CLVM iSCSI target Virtual machine iSCSI initiator Multipath Multipath

slide-9
SLIDE 9

Tasks before release

  • Backend storage integration
  • Deployment
  • Access Control Lists
  • Monitoring
  • Internal operational manuals
  • (Minimalistic) GUI
slide-10
SLIDE 10

Questions
