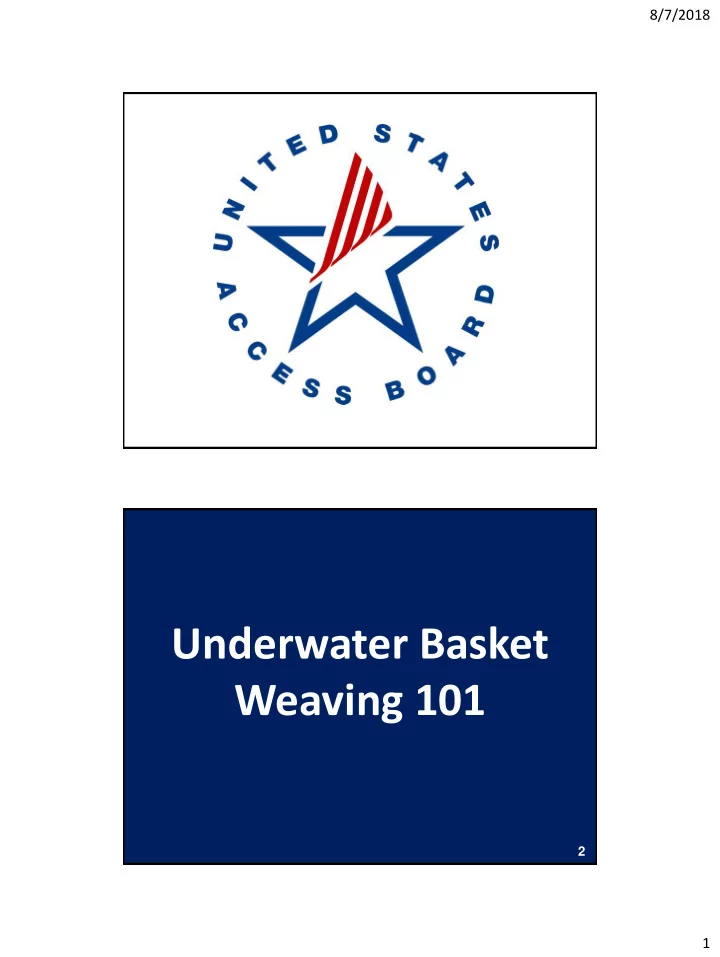

Underwater Basket Weaving 101 2 1 8/7/2018 Agenda Access onto - - PDF document

8/7/2018 1

Underwater Basket Weaving 101

2

8/7/2018 2

Agenda

• Access onto Sites
• Entrances & Doors
• Spaces Covered/ Work Areas
• Vertical Access
• Toilet Rooms
• Signs

3

ADA Standards

4

8/7/2018 3

5

• Apply to:
• State/ local gov’t facilities
• Places of public accommodation
• Commercial facilities
• Transportation facilities (DOT’s

2006 Standards)

• Federal facilities covered by ABA

Standards

ADA Standards (2010) Accessible Routes (§206)

parking & passenger loading zones streets & sidewalks transportation stops 6

At least one accessible route to building entrances from site arrival points provided

8/7/2018 4

Parking Spaces (§208)

AR must connect to access aisles at accessible parking spaces Recommended: connect AR to front of aisle to prevent travel behind parked cars

7

Curb Ramps (§406)

Landing 36” deep min. required at top

• f curb ramps in new construction

Curb ramps cannot protrude into access aisle

8

8/7/2018 5

Curb Ramps: Parallel

Parallel curb ramps can be used where top landing space is unavailable

9

Entrances & Doors

10

8/7/2018 6

Entrances (§206.4)

Minimum Number

At least 60% of public entrances At least 1 entrance serving each direct access from parking structures At least 1 entrance to each tenancy in a facility At least 1 entrance from each elevated walkway or pedestrian tunnel 11

Entrances

Bollards/ security barriers cannot obstruct AR At least one compliant door

• r doorway

ISA required - unless all public entrances comply) AR coincides with, or in same area as, general circulation path

12

8/7/2018 7

Entrances

Landings must accommodate door man. clearances

Recommended: locate clearances away from stair openings/ drop-offs Recommended: locate door swing

• utside ramp landing

13

Entrances

Exterior Doors: Automation Recommended

Required at GSA buildings (Public Building Service Standards)

14

8/7/2018 8

Doors, Doorways, Gates (§404)

• Clear Width (32” min.)
• Closing Speed
• Opening Force

(5 lbf max)

• Vision/ Side Lights
• Compliant Hardware
• Smooth Surface

(bottom, push side)

• Thresholds (1/2” max)
• Maneuvering Clearance

(both sides unless usable in 1 direction only) 15

Limited projections into door clear width Hardware height: 34” – 48”

Doors, Doorways, Gates

16

8/7/2018 9

Maneuvering Clearances

Minimum space for positioning/ maneuvering at doors

17

Maneuvering Clearances

Forward Approach

18

8/7/2018 10

Maneuvering Clearances

Required at each accessible door based

• n approach & swing

Door maneuvering clearances can overlap 19

Maneuvering clearance measured from the wall - cannot be offset more than 8” from the face of the door

Maneuvering Clearances

20

8/7/2018 11

8” max. offset from face of door

Maneuvering Clearances

21

Recess > 8”: maneuvering clearance for forward approach located 8” max. from face of door

Maneuvering Clearances

22

8/7/2018 12

Which rooms and spaces must comply?

23

New Construction (§201)

All areas must comply except:

• Exempted structures/ spaces
• Employee Work areas
• Partially scoped spaces

24

8/7/2018 13

General Exceptions (§203)

• construction sites
• areas raised for security, life/fire safety
• raised work areas
• machinery spaces
• spaces accessed by ladders, catwalks,

crawl spaces, narrow passageways

• certain single occupant structures

(e.g., toll booths)

• certain sports structures (e.g., referee

standards, boxing rings, diving platforms)

25

Example: Retail Facility

Sales Counter (at least 1 of each type accessible on public side) Fitting Rooms (at least 5% of each type) Employee Work Areas - Partial access if used only by employees for work Toilet rooms, including employee restrooms, must comply 26

8/7/2018 14

Example: Medical Care Suite

Toilet rooms – access to all (50%: clustered single user of same type) Dressing Rooms: access to at least 5% of each type Exams Rooms & Doctors’ Offices: 100% scoping (public access)

Public & Common Use Areas: Full Access

Break Room Waiting Room

27

Example: Medical Care Suite

Mechanical (exempt) Employee Only Work Areas Reception/ Files Nurses’ Station Janitor’s Closet

Employee Work Areas & Exempt Spaces

28

8/7/2018 15

What level of access is required for work areas?

29

Employee Work Areas (§203.9)

Minimum requirements:

• “approach, entry, & exit”
• circulation paths (in areas ≥ 1000 sq ft)
• means of egress
• visual alarm connection

30

8/7/2018 16

Employee Work Areas

Access for “approach, entry, & exit”

Connecting accessible route and means of egress Wheelchair space within the work area Accessible entry door/ gate (including exterior maneuvering clearances) 31

Employee Work Areas

Common use circulation paths not required to comply

Less than 1,000 SF

Access for approach, entry, and exit to work area required 32

8/7/2018 17

Employee Work Areas

size defined by permanent partitions, counters, casework

1,000 SF or more in size

common use circulation path 33

Employee Work Areas (§206.2.8)

Common use circulation paths must comply in work areas 1,000 SF or more in size Exempt:

• exterior areas fully exposed to weather
• portions of paths integral to equipment

34

8/7/2018 18

each accessible room and space

Accessible Routes

each level on a floor required to be accessible each story (unless an exception applies) each accessible element

Must connect to:

35

Accessible Routes Between Stories

36

8/7/2018 19

Multi-Story Facilities (§206.2.3)

At least one accessible route must connect each story and mezzanine unless an exception applies

37

Exceptions (§206.2.3)

AR between floors (“elevator exception”)

Private sector facilities only:

less than 3 stories OR less than 3,000 sf/ flr)

38

8/7/2018 20

Exceptions

Exception not allowed for:

• Shopping centers/ malls with 5 or

more sales or rental establishments)

• Professional offices of health care

providers

• Terminal, depots, or stations used

for public transportation

• Government Facilities

39

Exceptions

Accessible route required to upper story:

containing a health care facility

containing a sales/rental establishment (if facility contains at least 5 total)

40

8/7/2018 21

Exceptions

Accessible route not required to upper story without a health care facility or a sales/rental establishment

41

Exceptions

If facility qualifies for exception,

• all other provisions in the standards still apply

to stories/ mezzanines not served by AR

• elevators provided anyway must fully comply

(as standard or LULA elevators)

• vertical access still may be required by state
• r local code.

42

8/7/2018 22

Exception: Gov’t Buildings

Exception for public (government) buildings:

• 2 story only AND
• 1 floor has: no public space AND max.
• ccupancy of 5

43

Exceptions: Mezzanines

AR not required to mezzanines in buildings not required to have an elevator

Additional conditions for restaurants & cafeterias

44

8/7/2018 23

Exceptions

Additional exceptions:

• detention and correctional facilities
• residential facilities
• transient lodging (multi-story units)
• air traffic control tower cab
• qualified historic facilities
• press boxes

45

Toilet Rooms

46

8/7/2018 24

Toilet & Bathing Facilities (§213)

In new construction, all toilet and bathing facilities must be accessible, except:

• portable units (5% min)
• clustered single user toilet rooms (50% min)

47

Clustered Toilet Rooms

Access to at least 50% of single user toilet rooms clustered at 1 location & serving same users

48

8/7/2018 25

Toilet Rooms (§603)

49

Toilet Rooms

Door maneuvering clearance (exterior)

50

8/7/2018 26

Toilet Rooms

Wheelchair space beyond door swing

51

Toilet Rooms

Clear floor space at toilet for approach & transfer

52

8/7/2018 27

Toilet Rooms

Turning space (circular or T-shaped)

53

Toilet Rooms

Clear floor space at fixtures & elements

54

8/7/2018 28

Toilet Rooms

Interior door maneuvering clearance

55

Toilet Rooms

Size of toilet rooms determined by:

• Room layout
• Number & configuration of fixtures
• Swing of doors
• Other factors

Overall room dimensions not specified

56

8/7/2018 29

Toilet Rooms

Lavatory cannot overlap toilet clearance (except in dwelling units)

Shorter (24” min.) rear GB allowed when fixture recessed 57

Toilet Rooms

Keep swing outside fixture clearances or … … provide unobstructed clear floor space (30” x 48” min.) outside swing (location not specified)

Door maneuvering clearance

58

8/7/2018 30

Toilet Rooms

Turning Space: 60” diameter circle or “T” shaped space

Elements with knee/toe clearance can overlap turning space Door can always swing into turning space 59

Toilet Rooms

Doors: Out-swinging doors allow smaller room size (require less interior maneuvering clearance)

12” min. latch-side clearance required on push side (forward approach) if door has both a closer & latch 60

8/7/2018 31

Toilet Rooms

If out-swinging door does not have both a closer & latch, no additional clearance beyond

• pening required.

In this case, room depth is usually determined by turning space. 61

Toilet Rooms

These requirements apply to all types of layouts

Water closet clearance Lavatory clearance 62

8/7/2018 32

Toilet Rooms

Door maneuvering clearance (swing outside fixture clearances unless clear floor space beyond swing provided) Turning space (can overlap fixture clearances and door swing) 63

Toilet Rooms

These requirements also apply to less common layouts

Fixture clearances Door maneuvering clearance 64

8/7/2018 33

Signs

65

Signs (§216)

• Tactile/ visual – labels for permanent rooms

& spaces, exit doors

• Visual only – directional or informational signs
• Exempt: temporary signs, building menus,

directories, addresses, company names and logos

• Required access symbols

66

8/7/2018 34

Tactile Signs (§216.2)

Signs identifying “permanent” rooms & spaces:

• designations not likely to change over time (or

without significant alteration of room/space)

• typically located at doorways

67

Tactile Signs (§216.2)

• room and floor numbers/letters
• room names
• labels for restrooms, locker rooms, cafeterias,

libraries, conference rooms, mechanical rooms, and other permanent rooms/spaces

• doors at exit stairways, exit passageways, and

exit discharge (label required)

• signs identifying rail stations/entrances

68

8/7/2018 35

Tactile Signs (§703.2)

• Raised characters
• Grade 2 Braille
• Visual access (finish and contrast)
• Pictograms (designating room/space)

69

Tactile Signs: Location

Latch side placement

Measured to baseline of lowest and highest tactile characters

70

8/7/2018 36

Tactile Signs: Location

18” x 18” clear floor space centered on tactile characters

71

Tactile Signs: Location

No door can swing into this space when open to 45°

72

8/7/2018 37

Tactile Signs: Location

Sign can be located on push side of doors that have closers and don’t have hold-open devices

73

Tactile Signs: Location

Recessed doors

74

8/7/2018 38

Tactile Signs: Location

No space on latch side: on nearest adjacent wall

75

Tactile Signs: Location

Double doors (2 active leafs): right side

76

8/7/2018 39

Tactile Signs: Location

Double doors (1 active leaf): on inactive leaf

77

Tactile Signs: Pictograms

• text descriptors (raised &

braille)

• 6” min. field height
• non-glare finish
• contrast (dark-on-light or

light-on-dark) Pictogram is not required to be raised

Required for pictograms that designate a permanent room or space [§216.2]:

78

8/7/2018 40

Pictograms

Examples of pictograms that designate permanent rooms & spaces:

79

Exit Doors

Separate visual and tactile signs

Visual sign (§703.5) Tactile sign (§703.2 - §703.4 )

• no finish & contrast

requirements

• ½” min. cap height allowed

80

8/7/2018 41

Visual Access (§216.3)

Required for signs providing direction to, or information about, interior spaces and facilities

81

Visual v. Tactile Signs

Visual

• no tactile characters
• height: 40” min.
• upper & lower case
• “conventional” form
• character spacing
• character height based on

viewing distance and height

• stroke thickness: 10% - 30%

Tactile

• raised & braille characters
• height: 48” – 60”
• uppercase only
• sans serif
• character spacing
• character height: 5/8” – 2”
• stroke thickness: 15% max
• pictograms (text, field

height)

82

8/7/2018 42

Application

Tactile & Visual Visual Only “Room 123” “Exit →” “Restroom” “Employees Only” “Mechanical Room” “Visitors must sign in” “Exit” (at certain doors) “Floor B” Exempt “Ballroom A” building directory “C. Smith Room” “Mr. C. Smith, Accountant”

83

Example Sign

Exempt (occupant) Visual (Informational) Tactile (Room number)

84

8/7/2018 43

Questions?

85

Technical Guides on ADA Standards

Available on the Board’s website

86

8/7/2018 44

U.S. Access Board

(800) 872-2253 (voice) (800) 993-2822 (TTY) E-mail: ta@access-board.gov www.access-board.gov

87
