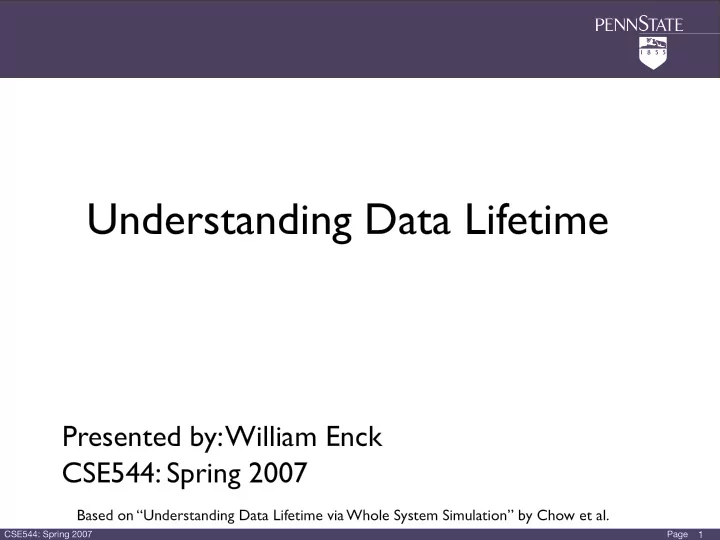

Understanding Data Lifetime

1

Presented by: William Enck CSE544: Spring 2007

Based on “Understanding Data Lifetime via Whole System Simulation” by Chow et al.

CSE544: Spring 2007 Page

Why Look at Data Lifetime?

• Have you ever programmed in Java?
• Which do you prefer to use?
• String
• char[]
• What about for password input?

2

CSE544: Spring 2007 Page

The Circle of Life

• Who allocates memory?
• Kernel (device drivers, etc)
• System Apps (login, su, etc)
• User Apps (Firefox, ssh, etc)
• Where does it end up?
• Kernel
• Any application
• System swap
• Hibernation storage

3

CSE544: Spring 2007 Page

Minimizing Lifetime is Hard

• Course-grained propagation control
• How can you determine what gets swapped out?
• Encrypt swap if you can (OS X.4 security option)
• Applications can use mmap and mlock to pin memory
• Program failure (core dump written to a file!)
• scrash (secure crash reporting)
• Fine-grained control is better (e.g., memset)
• Relies on smart programmers
• Not always possible
• Compiler optimizations (removes memset!)
• Language optimizations

4

CSE544: Spring 2007 Page

Whole System Simulation Approach

• General Idea:
• Run all code in a virtual machine and watch what happens
• Sensitive information is marked (“tainted”) and followed
• What is Taint Analysis?
• Typically refers to tracing low

integrity input

• Here, tainting is uses as a way

to mark data of interest and follow propagation

5

CSE544: Spring 2007 Page

Tradeoffs

• What are the tradeoffs of performing analysis at the

binary level?

6

Pros Cons

No need to worry about compiler optimizations Does not need source code Crosses application boundaries Difficult to determine what is sensitive Loss of code semantics

• Info Flow analysis (JiF)

Remember, memory pages pass between applications as well as the kernel

CSE544: Spring 2007 Page

Marking Sensitive Data

• Automate as much as possible
• Device drivers, e.g., NIC, keyboard
• Difficult to generalize
• Add to specific places in applications
• Manually change source code or binary image
• Difficult to find locations

7

CSE544: Spring 2007 Page

Recreating Semantics

• Taint analysis must follow implicit and

explicit flows

• Variable assignments/arithmetic
• Conditionals
• Lookup Tables
• One-way functions
• Is data still sensitive after a cryptographic hash?
• At the assembly level, some code may

appear to have flows, but really do not

• Constant functions

8

CSE544: Spring 2007 Page

Data Mining

• What do we do with all this information?
• Who has tainted data?
• How did they get it?
• When did that happen?
• Log traces capture flow of tainted memory
• Common places for tainted memory
• Kernel memory (RNG, I/O buffers)
• Application I/O buffers
• “String” datatype

9

CSE544: Spring 2007 Page

Take-away

• Applications, libraries, and the kernel do not

consider data lifetime.

• Secure deallocation methods are needed.
