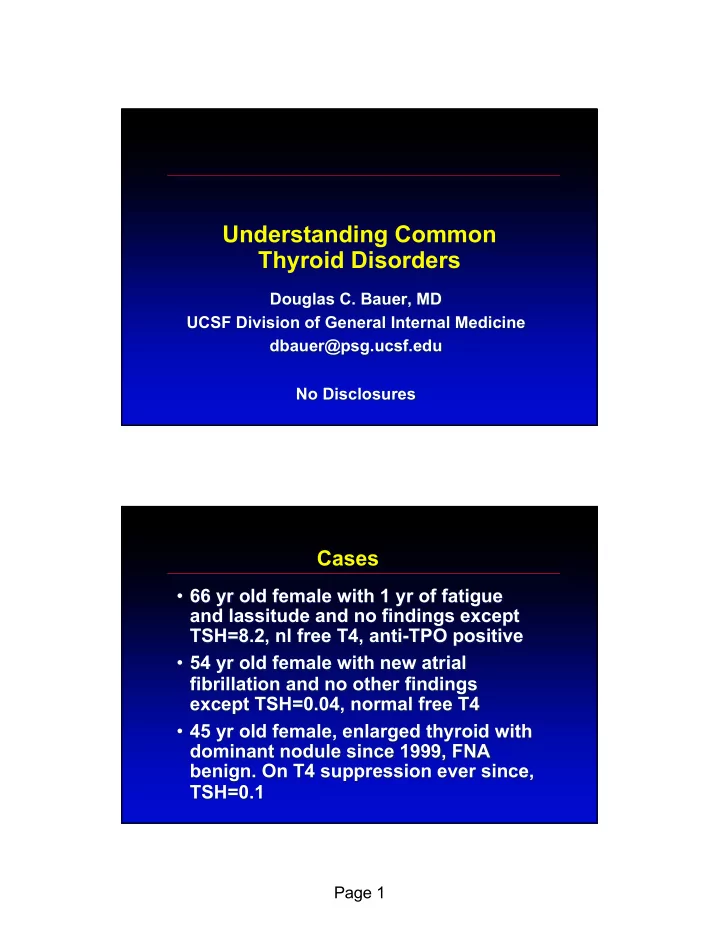

Understanding Common Thyroid Disorders Douglas C. Bauer, MD UCSF - - PDF document

Page 1

Understanding Common Thyroid Disorders

Douglas C. Bauer, MD UCSF Division of General Internal Medicine dbauer@psg.ucsf.edu No Disclosures

Cases

• 66 yr old female with 1 yr of fatigue

and lassitude and no findings except TSH=8.2, nl free T4, anti-TPO positive

• 54 yr old female with new atrial

fibrillation and no other findings except TSH=0.04, normal free T4

• 45 yr old female, enlarged thyroid with

dominant nodule since 1999, FNA

• benign. On T4 suppression ever since,

TSH=0.1

Page 2

Topics Covered

• Rational use of thyroid tests
• Subclinical thyroid disease
• Other common thyroid problems
• Screening and when to refer…

Page 3

Thyroid Tests: sTSH

• Excellent correlation with TRH stimulation

(sTSH < 0.1)

• Requires intact pituitary-hypothalamic axis;

4-6 weeks to equilibrate

• Falsely low: B vitamin biotin, severe illness,

corticosteroids, dopamine

• Normal range 0.5-4.4 mU/L (non-pregnant); $58

TSH Levels and Age

• TSH is higher in elderly: Normal or not?
• NHANEs: >13,000 people 12 to 80+ years

–Exclude anyone with known thyroid disease

• r drugs that could effect TSH
• Upper 97.5th Percentile

< 60 around 4.0 mIU/L 60-69 up to 4.3 mIU/L 70-79 up to 5.9 mIU/L 80+ up to 7.5 mIU/L

Surks, JCEM 2007

Page 4

Thyroid Tests: Free Thyroxine

• Measures unbound hormone
• Replacing “index” assays
• Gold standard: Equilibrium dialysis
• Other immunoassays: Improving
• Normal range, 9-24 pmol/L (non-

pregnant); $64

Are Both sTSH and Free T4 Necessary?

• American Thyroid Association says “Yes”
• Simultaneous ordering common
• Among outpatients without CNS surgery:

–If TSH normal, T4 and T3 will be normal –If TSH low or high, many will have normal T4 and T3…

Bauer, Archives Intern Med 2003

Page 5

“High Value” Thyroid Testing Strategy

In outpatients without suspicion of disrupted pituitary-thyroid axis:

– When sTSH is normal, STOP testing – When sTSH is low, measure T4 (consider T3 if T4 is normal) – When sTSH is high, measure T4 (consider TPO antibodies)

Subclinical Thyroid Disease

• Subclinical hypothyroidism

“Abnormally high sensitive TSH and normal thyroid hormone levels”

• Subclinical hyperthyroidism

“Abnormally low sensitive TSH and normal thyroid hormone levels”

Page 6

Thyroid Antibodies

• Anti-thyroperoxidase, TPO (titer<100, $78)

–Similar to “anti-microsomal” –Most sensitive thyroid autoantibody –Specificity a problem

• TSH receptor antibody (absent, $112)

–Causes Grave’s disease –Rarely found in normal individuals Thyroid Scans

• Technetium 99 ($450)

–Low radiation, quick –Useful for nodules in some circumstances –Useful to determine cause of hyperthyroidism

• High uptake: Grave’s, toxic nodule
• Low uptake: thyroiditis, thyroxine use

Page 7

Hypothyroidism: Etiology

• Autoimmune (Hashimoto’s)
• Iodine deficiency
• Iatrogenic
• A. Radioiodine/ surgery
• B. Drugs (lithium, amiodarone)
• Pituitary/ hypothalamic disease

Page 8

Billewicz Index*

Symptom/Sign Present Absent Bradykinesia +11

• 3

Cold interance +4

• 5

Coarse skin +7

• 7

Pulse <75 +4

• 4

Delayed AJ +15

• 6

*hypothyroid if > 30

Overt Hypothyroidism in the Elderly

• “Classic” features often missing
• Neuropsychiatric complaints common:

depression, weakness, memory loss

• Other clues: hypercholesterolemia,

elevated CK, pleural effusion

Page 9

Subclinical Hypothyroidism: Prevalence

• Population based prevalence of elevated TSH:

Author Age Men Women Tunbridge >65 6.0% 10.9% Bagchi >55 1.8% 2.7% Parle >60 2.9% 11.6% Bauer >55 5.4%

Subclinical Hypothyroidism: Symptoms

???

Multiple studies find “hypothyroid” symptoms are common among those with and without subclinical hypothyroidism

Page 10

Subclinical Hypothyroidism: A Real Problem or Just a Lab Abnormality?

• CV disease:

–Increased risk of of CHD, heart failure in some older observational studies –Small trials show no effects on lipids, EF

• Neuropsychiatric:

–Increased fatigue and depression in some but not all observational studies –Inconsistent results in 4 small randomized trials

• Cardiovascular

Health Study

• Health, Aging and

Body Composition Study Pisa cohort

• Leiden 85+ Study
• Birmingham Study
• Whickham Survey

HUNT Study Nagasaki Adult Health Study Busselton Health Study

Thyroid Studies Collaboration

22

Page 11

Meta-Analysis: Subclinical Hypothyroidism and CV Events and Mortality

• Individual level pooled data

–14 prospective cohorts (N=42,000 adults)

• 6% had subclinical hypothyroidism
• CHD and heart failure events:

–Trend toward more events if TSH 7-10 –Two-fold increase if TSH>10

• Similar trends for CVD mortality…

Rodondi, Jama 2010 Gencer, Circulation, 2012

The TRUST Study

• Double blind RCT of 785 untreated adults

>65 from 4 EU countries

–2 or more TSH between 5-20, normal T4

• Randomized to placebo or levothyroxine

(50 mcg/d unless existing heart disease)

• Titrated to normal TSH in T4 group, mock

titration in placebo group

• 1-3 years of follow-up for QOL and neuro-

psychiatric outcomes

Stott, NEJM 2017

Page 12

TRUST Results

• Baseline TSH=6.4, fell to 3.6 in treated group
• No effect on hypothyroid symptoms,

tiredness or quality-of-life

–Even among those with greater baseline symptoms

• Effect on CVD: RR=0.9, CI 0.5-1.7 (so too

small to reliably assess)

Stott, NEJM 2017

Subclinical Hypothyroidism: Natural History and When to Treat

• If persists >6 mo. spontaneous resolution rare
• Antibodies predict overt hypothyroidism

–3-5%/yr if TPO pos, 1-3%/yr if TPO neg

• When to treat? Associated with CVD, but

no trials that replacement helps…

–Treat if goiter or considering pregnancy –Many treat if +TPO, or TSH>10 –“hypo symptoms” not improved with treatment (most common reason for Rx…)

Page 13

Hypothyroidism: Treatment

• Replace with levothyroxine (T4)

–T3 + T4 benefit unproven

• Typical replacement dose 1.6 mcg/kg

–>65 or CHD: start lower (25-50 mcg/d) –Bedtime dosing equivalent

• Maintain TSH within the normal range

–Some data that TSH=1.0-2.5 optimal

–Wait 6 weeks after dose change

• Yearly TSH (compliance, T4 clearance)

Pregnancy and Thyroid Dysfunction

• Normal TSH during pregnancy: 1st 0.1-2.5; 2nd 0.2-

3.5: 3rd 0.3-3.0

• Thyroid replacement dose increases 30-50% (check

monthly in first trimester)

• Subclinical hypo (not hyper) associated with

pregnancy loss and neurodevelopmental deficits

–Maybe also be true for positive TPO

• Treatment indications unclear

–Large NIH trial neg negative. Yes if TPO positive?

Chan, Clin Endo 2014; Casey NEJM March 2017

Page 14

Hyperthyroidism: Etiology

• Iatrogenic

–Over replacement (30-50% given rx) –Suppression of CA, goiters, and nodules

• Autoimmune (Grave’s disease)

–Thyroid stimulating autoantibodies

• Autonomous nodule(s)

–Usually T4, occasionally T3

• TSH secreting tumors (rare)

Hyperthyroidism: Prevalence

• Population based prevalence of

suppressed TSH: Author age men women Bagchi >55 1.8% 2.7% Falkenberg >60 1.9% Parle >60 5.5 6.3% Bauer >55 5.8%

Page 15

Crook’s Index*

Symptom/Sign Present Absent Palpitation +2 Cold prefer. +5 Hyperkinetic +4

• 2

Weight loss +3 Lid lag +1

*hyperthyroid if 10 or more

Page 16

Overt Hyperthyroidism in the Elderly

• Weight loss, palpitations, and

nervousness less common

• Tachycardia, exophthalmos,

tremor less common

• Atrial fibrillation more common
• 8-10% are asymptomatic

Subclinical Hyperthyroidism: Cardiac Effects

• Shortened systolic time intervals

–Clinical significance uncertain

• Reduced exercise tolerance
• Increased incidence of atrial fibrillation

–Prospective cohort (N = 2000) –3-fold increase if sTSH < 0.1

Swain, Jama 1994

Page 17

Subclinical Hyperthyroidism: Skeletal Effects

• Florid hyperthyroidism causes fractures
• Effect on BMD, bone loss controversial
• Thyroid Studies Collaboration meta-analysis
• 13 cohorts, 73k patients
• TSH < 0.1 vs. normal
• 2-fold increase in hip fracture, 60% higher

risk of non-spine fracture

• Little effect on BMD (higher bone turnover?)

Blum, Jama 2015

Subclinical Hyperthyroidism: Natural History

• Exogenous: Dose and GFR dependent
• Endogenous: Few longitudinal data

–2024 untreated individuals, 7 yr F/U

–1% developed overt hyperthyroidism –TSH normalized in 17% after 2 yr, 36% after 7 years (particularly if TSH between 0.1 and 0.4)

Vadiveloo, JCEM 2011

Page 18

Hyperthyroidism: Who Should Be Treated?

• Exogenous (iatrogenic)

–Dose reduction unless contraindicated

• Endogenous-subclinical

–Repeat and follow if uncomplicated –Consider treatment (as if overt) when TSH<0.1 in setting of atrial fibrillation or

• steoporosis. No trials.
• Endogenous-overt

–Rule out thyroiditis. They get beta blocker –Everyone else gets beta blocker and...

Hyperthyroidism: Treatment

• Anti-thyroid drugs (PTU and methimazole)

–Remission: 30-50% after 12-18 mo –Side effects: rash, fever, arthritis, cytopenias (all rare). Use PTU in 1st trimester

• Radioiodine

–Best treatment for hot nodules –Remission: everyone –Side effects: transient thyroiditis (rare), hypothyroid (50%), worsening exophthalmous (steroids prevent), fetal hypothyroidism

Page 19

Thyroid Nodules: Epidemiology and Evaluation

• Nodules are common (cancer is rare, but

incidence is increasing in US) –90% women over age 60 have one or more thyroid nodules at autopsy –Common on neck imaging for other reasons

• Risk factors for cancer: neck irritation, FH
• Evaluation: TSH, sono, +/- FNA

–75% benign, 20% suspicious, 5% malignant –Best centers: false negative 2% false positive 1%

Thyroid Nodules: Treatment

• Cancer
• Histology is important (papillary best)
• Surgery +/- 131I ablation
• T4 suppression? If yes, TSH goal 0.1-0.4
• Benign nodules
• 15% grow, 18% shrink spontaneously
• T4 suppression has little effect
• T4 doesn’t prevent new nodules

Durante, Jama 2015

Page 20

Screening Cost-effectiveness

• Danese and Sawin, Jama 1995

– Cost-utility analysis, sTSH-based screening – Modeled progression, symptoms and CAD – Screening every 5 year from 35-65: $9,223 per QALY in women $22,595 per QALY in men – Sensitivity analysis: cost of TSH key ($25)

Screening for Subclinical Thyroid Disease

• American Collage of Physicians, 1998

“…reasonable to screen women older than 50 years

• f age for unsuspected but symptomatic thyroid

disease.”

• American Thyroid Association, 2000

“…all adults starting at age 35 and repeated every 5 years.”

• US Preventive Task Force, 2015

“…the current evidence is insufficient to assess the balance of benefits and harms of screening for thyroid dysfunction in nonpregnant asymptomatic adults.

Page 21

When to Refer to a Specialist? When Thyroid Tests are Confusing or…

• Hypothyroidism

–Pregnant women –Unstable CV disease –Possible hypothalamic-pituitary etiology

• Hyperthyroidism

–Overt disease (particularly thyroid storm) –Possible hypothalamic-pituitary etiology

• Nodules/Goiter

–Malignant or non-diagnostic FNA –Surgery required

Summary Take Home Points

• sTSH is best test in most patients
• Subclinical thyroid disease is common and

associated with morbidity

• Treatment of subclinical hypo does not

improve symptoms in patients >65. Tx if TSH>10, but CV benefits unproven…

• Treatment for subclinical hyper unclear.

Consider if TSH<0.1 plus a fib or fractures

• Screening with sTSH may be cost-effective

(but is not recommended)

Page 22

Cases

• 66 yr old female with 1 yr of fatigue and

lassitude and no findings except TSH=9.0, nl free T4, anti-TPO positive

• 54 yr old female with new atrial fibrillation

and no other findings except TSH=0.04, normal free T4

• 45 yr old female, enlarged thyroid with

dominant nodule since 2010, FNA benign. On T4 suppression ever since, TSH=0.1
