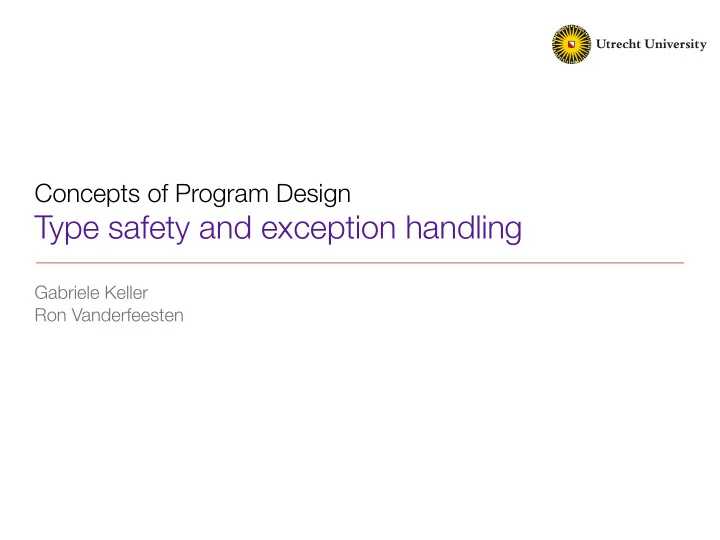

Concepts of Program Design

Type safety and exception handling

Gabriele Keller Ron Vanderfeesten

Overview

semantic features tools to talk about languages

static & dynamic scoping static & dynamic typing explicit & implicit typing

language concepts

functional procedural/imperative higher & first-order syntax big step and small step operational semantics abstract machines λ-calculus and de Bruijn indices inference rules, induction (algebraic) data types partial application/function closures value & type environments control stacks parametric polymorphism/ generics explicit & implicit typing

type safety

error/exception handling

Types in programming languages

statically vs dynamically typed strongly vs weakly typed type safe vs non type safe

Static and Dynamic Semantics

• MinHs (as discussed in the lecture) is a type-safe (or strongly typed) language
• What exactly do we mean by this?
• these terms are used by different authors to mean different things
• in general, it refers to guarantees about the run-time behaviour derived from

static properties of the program

• Robin Milner: “Well typed programs never go wrong”
• do not exhibit undefined behaviour
• we define type safety to be the following two properties:
• preservation
• progress
• we look at both preservation and progress in turn

Preservation and Progress

• Preservation:
• Idea: evaluation does not change the type of an expression
• Formally: If ⊢ e : τ and e ↦ e’ , then ⊢ e’ : τ
• Progress:
• Idea: a well-defined program can not get stuck
• Formally: If e is well typed, then either e is a final state, or there exists e’, with

e ↦ e’

• Together is means that a program will either evaluate to a value of the

promised type, or run forever

e1 : τ ↦ e2 : τ ↦ e3 : τ ↦ …

Type Safety

• For any language to be type safe, the progress and preservation properties need

to hold!

• Strictly speaking, the term type safety only makes sense in the context of a

formal static and dynamic semantics

• This is one reason why formal methods in programming languages are essential
• The more expressive a type system is, the more information and assertions the

type checker can derive at compile type

• type systems usually should be decidable
• but there are exceptions
• MinHs is type safe
• we can show that progress and preservation hold!
• but what if the language contains partial operations, like division?

Run-time Errors and Safety

• Stuck states: in a type safe language language, stuck states correspond to ill-

defined programs, e.g.,

• use (+) on values of function type, for example
• treat an integer value as a pointer
• use an integer as function

let x = 1 in x 5

• Unsafe languages/operations do not get stuck
• something happens, but its not predictable and/or portable:

void boom () { void (f*)(void) = 0xdeadbeef; f (); }

Type safe languages

• Which of these languages are type safe?
• C
• C++
• C#
• Haskell
• Python
• Rust

Run-time Errors and Safety

• How can we deal with partial functions, for example division by zero?

Problem: the expression 5/0 is well-typed, but does not evaluate to a value.

• There are two alternatives:

(1) Change static semantics: can we enhance the type system to check for division by zero?

• in general, such a type system would not be decidable
• there exist systems that approximate this

(2) Change dynamic semantics: can we modify the semantics such that the devision by zero does not lead to a stuck state

• this approach is widely used for type safe languages

Γ ⊢ t1 : Int Γ ⊢ t2 : Int Γ ⊢ Div t1 t2 : Int

Run-time Errors and Safety

• Application of a partial function can yield Error
• An Error interrupts any computation

Div v (Num 0) ↦ Error Plus Error e ↦ Error Plus e Error ↦ Error If Error e1 e2 ↦ Error

and so on.....

Run-time errors and Safety

• Typing the Error value:
• a run-time error can have any type

Γ ⊢ Error : ∀ τ. τ

• What type of situations lead to checked run-time errors in Haskell?

Exceptions

• Error handling so far:
• The Error expression to handle run-time errors deterministically aborts the

whole program

• For many applications, this is not the appropriate behaviour
• Exceptions permit a more fine grained response to run-time errors
• Error:
• result of a programming error (e.g., preconditions of a function not met), can be

fixed by fixing the program

• Exception:
• result of expected, but irregular occurrence, can possibly be handled in the

program

Exceptions

• Exceptions in MinHs:

(1) raising (or throwing) an exception: raise e

• e : information about handling of exception

(2) catching an exception: try e1 handle x => e2

• catch expression raised in e1
• exception handler is e2
• access to information about handling exception via x

Exceptions

• Abstract Syntax
• raise e Raise e
• try e1 handle x => e2 Try e1 (x.e2)
• Informal evaluation rules: on try e1 handle x => e2
• evaluate e1, and
• if (Raise v) is encountered during e1, bind x to v and then evaluate e2

Exceptions

• Example:

try

if (y <= 0) then raise -1 else x/y handle err => ....

• try expressions can be nested
• innermost try expression catches
• handler may re-raise an exception

Exceptions

• Observations:
• type of exception values (second argument of raise)
• in many programming languages, this is a fixed type τexc
• may simply be a string or integer (exception code)
• e.g., subclass Throwable in Java

Exceptions - Static Semantics

• Typing rules

Γ ⊢ Raise e: Γ ⊢ e1: τ Γ∪ {x : τexc} ⊢ e2 :τ Γ ⊢ Try e1, (x.e2):

∀ τ. τ

Γ ⊢ e : τexc τ

Exceptions - Dynamic Semantics

• We introduce a new machines state

s ⪻ (Raise v) the machine raises an exception with the exception value v

• First approach:
• n s ⪻ (Raise v)
• propagate exception upwards in the control stack s
• use first handler encountered

Exceptions - Dynamic Semantics

• Entering a try block
• Returning to a try block
• Evaluating a raise expression
• Raising an exception
• Catching an exception
• Propagating an exception

f ▷ s ⪻ Raise v s ≻ Try e1(x.e2) (Raise ☐) ▷s ≻ v s ≻ Raise e (Try ☐ (x.e2) ▷ s ≻ v1 ↦C (Try ☐ (x.e2) ▷ s)≻ e1

↦C (Raise ☐) ▷ s ≻ e

↦C s ≺ v1 ↦C s ≻ e2 [x:=v] Try ☐ x.e2 ▷ s ⪻ Raise v ↦C s ⪻ Raise v ↦C s ⪻ Raise v

Exceptions - Dynamic Semantics

• What is the problem here?
• efficiency: the frames are popped one by one when an exception is raised
• Second approach
• how can we jump directly to the appropriate handler?
• we use an extra handler stack h
• a handler frame contains
• a copy of the control stack
• the handler expression

Exceptions - Dynamic Semantics

• Entering a try block
• Returning to a try block
• Evaluating a raise expression
• Raising an exception
• Catching an exception

(h, k) ≻ Try e1 (x.e2) ↦C (h, k) ≺ v1 (h, k) ≻(Raise e) ↦C

(h, k) ⪻ (Raise v)

(h, k’) ≻ e2 [x:=v] (handle k’ (x.e2))▷ h, k) ⪻ (Raise v) ↦C (Handle k (x.e2) ▷ h,(Try ☐ )▷ k) ≻ e1 (Handle k (x.e2) ▷ h,(Try ☐) ▷ k) ≺ v1 ↦C

( h, (Raise ☐) ▷ k) ≻ e ( h, (Raise ☐) ▷ k) ≻ v ↦C
