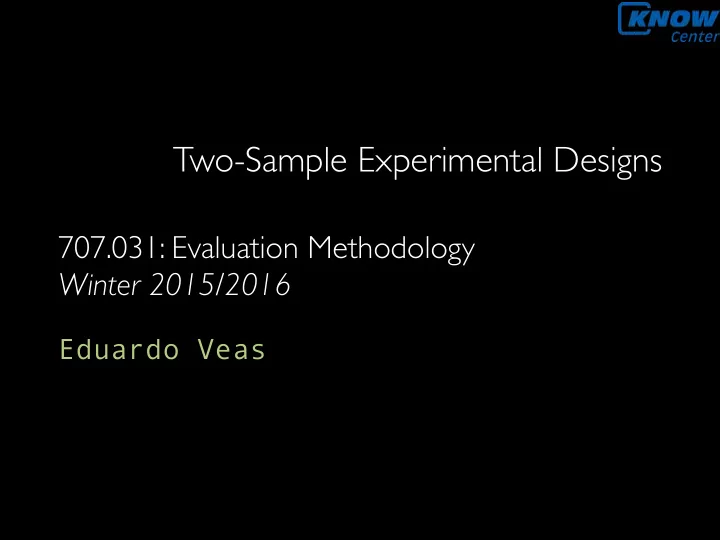

Two-Sample Experimental Designs

707.031: Evaluation Methodology Winter 2015/2016

Eduardo Veas

Modelling

2

General statistical model

Outcome = (model) / error

3

Calculating if a score will occur

• z scores: conversion to normal distribution with

a mean of 0 and sd =1.

• z = (X - X’) / sd
• z-scores: 1.96 cuts 2.5% off the top.
• 2.58 cuts 0.5% off the top
• 3.29 cuts 0.05% off the top

4

Beyond the data

5

Advanced descriptive stats

Beyond the data

6

Advanced descriptive statistics

• Goal:
• establish relationships between circumstances

and behaviors

• Fit these relationships into an orderly body of

knowledge

• we want to say something about the world

7

8

Advanced descriptive statistics

• sampling variation: different samples will have

means that differ from the population

• sampling distribution: the frequency distribution
• f the sample means from the same population
• standard error= standard deviation of sample

means represents h ow well the sample represents the population

9

Advanced descriptive statistics

• standard error of the mean (SE): the standard

deviation of sample means

• samples > 30
• samples < 30 (t-distribution)

10

Advance descriptive statistics

• effect size: how important is the effect?
• Cohen’s d
• Pearson correlation coefficient r
• .1 (small effect) explains 1% of the total

variance

• .3 (med effect) explains 9% of the total variance
• .5 (large effect) explains 25% of the total var.

11

Comparing two means

12

Comparing two means

13

null hypothesis

H0: the difference between condition A and condition B can be attributed to chance

14

t-test

• compare whether a correlation coefficient is

different from 0

• compare whether a regression coefficient is

different from 0

• compare whether two group means are

different

15

t-test experimental design

16

faster interaction input (multitouch) input (mouse+kbd) INDEPENDENT DEPENDENT H1: People will be faster at selecting and resizing a target with multitouch than with mouse+kbd Q: Are people actually faster with multitouch than with mouse and keyboard?

t-test experimental design

• one independent variable with two levels and a

measurable dependent variable

• often we compare one condition of the

independent variable against a baseline condition

• Is the movie scream 2 scarier than the original

scream? People who take 707.031 perform better experiments than those who don’t.

17

t-test rationale

• two samples are collected
• their means can differ by little or lot
• assumption: if the samples come from the same

population, their means will be roughly similar

• procedure: compare difference between

collected sample means and expected sample means with the standard error

• larger difference -> more confidence

18

t-test rationale

19

t = Observed difference between sample means Expected difference between population means Estimate of the standard error

• f the difference between two

sample means

t-test experimental design

• independent-means t-test: for independent

measures designs

• dependent-means t-test: for repeated measures

desings

20

independent t-test: assumptions

• the distribution is normally distributed
• data are measured at least at interval level
• scores in different conditions are independent
• homogeneity of variance *

21

independent t-test equation

22

t = Observed difference between sample means Expected difference between population means Estimate of the standard error

• f the difference between two

sample means

independent t-test equation

23

independent t-test reporting

An independent samples t-test indicated that the difference in anxiety experienced from real spiders (M=47.0, SE=3.18) and from a pictures of a spider (M=40.0, SE=2.68) was not significant t(21.39)=

• 1.68, p>.05, albeit representing a medium sized

effect r=.34

24

dependent t-test assumptions

• the distribution is normally distributed
• data are measured at least at interval level

25

dependent t-test equation

26

t = Observed difference between sample means Expected difference between population means standard error

• f the differences

dependent t-test equation

27

dependent t-test result

• df = N-1
• p = the exact probability that a value of t could
• ccur if the null hypothesis were true.
• t : when positive means that the first condition

had larger mean than the second

28

dependent t-test reporting

A paired samples t-test revealed that on average, participants experienced significantly greater anxiety from real spiders (M=47.0, SE=3.18), than from pictures of spiders (M=40.0, SE=2.68), t(11)=2.47, r=.60.

29

Non-parametric tests

30

When assumptions failed

Mann-Whitney U / Wilcoxon summed rank

31

for independent measures

Mann-Whitney U / Wilcoxon summed rank

• #1: no difference
• rank the data ignoring the groups
• expect a similar number of high and low

values

• #2: if there’s difference
• ranking the data
• expect higher ranks in one of the groups.

32

Mann-Whitney U / Wilcoxon summed rank

• sort all scores in ascending order
• rank them (1~n)
• tied ranks (where scores are the same) are

averaged

• add ranks for each group
• subtract the mean rank = N(N+1) / 2
• W = sum of ranks - mean rank
• calculate p-values (Monte Carlo or

approximation)

33

Mann-Whitney U / Wilcoxon summed rank

34

Mann-Whitney U / Wilcoxon summed rank

Depression levels in ecstasy users (Mdn 17.50) did not differ significantly from alcohol users (Mdn=16.00) the day after the drugs were taken, W=35.5, p=.286, r=-.25. However, by Wed, ecstasy users (Mdn=33.5) were significantly more depressed than alcohol users (Mdn=7.5), W=4, p<.001, r=-.78.

35

Wilcoxon signed-rank test

36

for repeated measures

Wilcoxon signed-rank test

• based upon differences between scores in the

two conditions

• rank the differences
• if the difference is 0, data are excluded
• get sum of negative and positive ranks for each

condition

37

Wilcoxon signed-rank test

• use mean (T) and SE to calculate significance
• both are functions of the sample size
• convert the test statistics to a z-score
• if the values are bigger than 1.96, then the test is

significant at p<0.05

38

Wilcoxon signed-rank test: reporting

A Wilcoxon signed rank test revealed that for ecstasy users, depression levels were significantly higher on Wed(Mdn=33.50) than on Sun (Mdn=17.50, p=.047, r=-.56). However, for alcohol users, the opposite was the opposite was true, depression levels were significantly lower on Wed(Mdn=7.50) than on Sun (Mdn=16.0, p=.012, r= -.45).

39

Readings

• Discovering statistics using R (Andy Field, Jeremy

Miles, Zoe Field)
