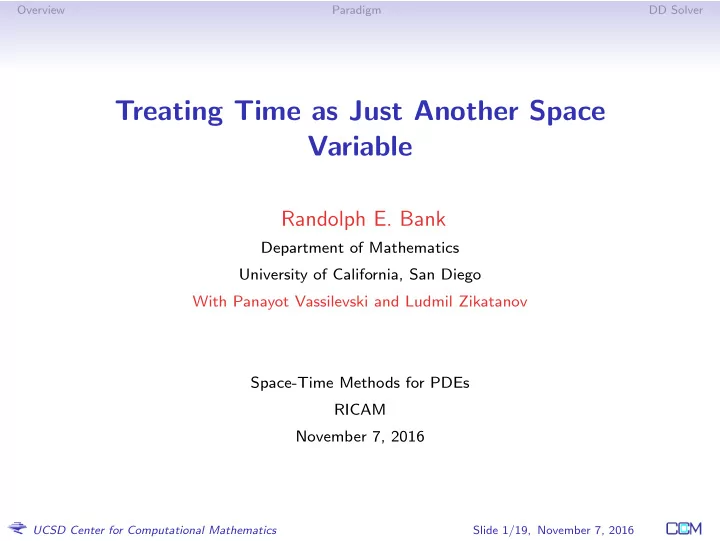

Overview Paradigm DD Solver Treating Time as Just Another Space Variable Randolph E. Bank Department of Mathematics University of California, San Diego With Panayot Vassilevski and Ludmil Zikatanov Space-Time Methods for PDEs RICAM November 7, 2016 UCSD Center for Computational Mathematics Slide 1/19, November 7, 2016

Overview Paradigm DD Solver Outline of Talk Overview 1 Parallel Adaptive Meshing Paradigm 2 Domain Decomposition Solver 3 UCSD Center for Computational Mathematics Slide 2/19, November 7, 2016

Overview Paradigm DD Solver Time as a Space Variable Think of this L u = u t − ∇ · ( a ∇ u ) + b · ∇ u + cu = f as this L u = − ˜ ∇ · ( A ˜ ∇ u ) + B · ˜ ∇ u + cu = f � ∇ u � ˜ ∇ u = u t � a � 0 A = 0 0 � b � B = 1 UCSD Center for Computational Mathematics Slide 3/19, November 7, 2016

Overview Paradigm DD Solver Why? This provides new and expanded opportunities for Discretization Adaptivity Parallel Computation but.... One now has a d + 1 space dimensional problem. UCSD Center for Computational Mathematics Slide 4/19, November 7, 2016

Overview Paradigm DD Solver PLTMG examples Discretization: Artificial Diffusion is inspired by Scharfetter-Gummel discretization Adaptivity: hp adaptivity based on interpolation error estimates, and recovered derivatives. Parallel Computation: Bank-Holst parallel adaptive meshing paradigm. UCSD Center for Computational Mathematics Slide 5/19, November 7, 2016

Overview Paradigm DD Solver Example I u t − u xx + 100 sin(2 π t ) u x = 1 in Ω = (0 , 1) × (0 , 2) u (0 , t ) = u (1 , t ) = 0 for 0 ≤ t ≤ 2 u ( x , 0) = 0 for 0 ≤ x ≤ 1 Weak form: Find u h ∈ S h such that B ( u h , v ) = (1 , v ) for all v ∈ S h , where � B ( u , v ) = u x v x + ǫ u t v t + 100 sin(2 π t ) u x v + u t v Ω and ǫ = 10 − 6 . UCSD Center for Computational Mathematics Slide 6/19, November 7, 2016

Overview Paradigm DD Solver Example II u t + uu x = 0 in Ω u (0 , t ) = 1 0 ≤ t ≤ 2  1 0 ≤ x ≤ . 25  u ( x , 0) = 1 . 5 − 2 x . 25 ≤ x ≤ . 75 0 . 75 ≤ x ≤ 2  where Ω = { ( x , y ) | x > 0 , y > 0 , x 2 + y 2 < 4 } . Weak form: Find u h ∈ S h , D such that B ( u h , v ) = 0 for all v ∈ S h , 0 , where � B ( u , v ) = ǫ ( u x v x + u t v t ) + u t v + uu x v Ω and ǫ = 10 − 3 . UCSD Center for Computational Mathematics Slide 7/19, November 7, 2016

Overview Paradigm DD Solver Some Remarks on Analysis Much analysis for static problems applies, possibly with minor technical challenges, eg � a � � a � 0 0 A = → 0 0 0 ǫ Rescale time if needed to avoid thin domains. Space length scale (0 , L ); Time scale (0 , T ). t = Lt ∂ u ∂ t = κ∂ u ˆ T = κ t ; ∂ ˆ t (see Bank, Vassilevski, Zikatanov, 2015). Possibly take VERY big time steps. UCSD Center for Computational Mathematics Slide 8/19, November 7, 2016

Overview Paradigm DD Solver Motivation for Parallel Adaptive Paradigm 1 Make existing sequential adaptive meshing codes parallel with minimal recoding. 2 Allow adaptive meshing with low load balancing and communication costs. UCSD Center for Computational Mathematics Slide 9/19, November 7, 2016

Overview Paradigm DD Solver Parallel Adaptive Mesh Paradigm joint with Michael Holst Step I: On coarse mesh, solve the entire problem. Compute a posteriori error estimates. Partition coarse mesh to achieve equal error. Step II: Each processor gets complete coarse mesh. Each processor independently solves the entire problem but adaptively refines mainly its subregion. Step III: Glue together meshes provided by each processor. Compute global solution using initial guess provided by local solutions. UCSD Center for Computational Mathematics Slide 10/19, November 7, 2016

Overview Paradigm DD Solver Load Balance - 16 Processors UCSD Center for Computational Mathematics Slide 11/19, November 7, 2016

Overview Paradigm DD Solver Dual Problem Weights in Step II thesis of Jeff Ovall We weight error estimates outside Ω i to discourage refinement there. Weights based on dual problems: Find ψ i ∈ S h (Ω − Ω i ) B ∗ ( ψ i , v ) ≡ B ( v , ψ i ) = 0 for all v ∈ S h (Ω − Ω i ) where ψ i ≡ 1 on ¯ Ω i . Provides some extra refinement outside inflow (upwind) part of ∂ Ω i The goal of Step II is to create a good adaptive mesh (accurate solution computed in Step III) UCSD Center for Computational Mathematics Slide 12/19, November 7, 2016

Overview Paradigm DD Solver Motivation for DD Solver An Embarrassment of Riches We follow the same philosophy as the adaptive meshing paradigm. 1 Want low communication. 2 Use existing partition generated by Steps I-II. 3 Use existing sequential multigraph solver on each processor. 4 Initial guess provided by fine grid part of solution on all processors. 5 Use meshes generated by adaptive refinement – built-in coarse grid (Maximum Overlap). UCSD Center for Computational Mathematics Slide 13/19, November 7, 2016

Overview Paradigm DD Solver Global Saddle Point System – 2 Subdomains thesis of Shaoying Lu  A 11 A 1 γ 0 0 0   δ U 1   R 1  A γ 1 A γγ 0 0 I δ U γ R γ             0 0 − I δ U ν = . A νν A ν 2 R ν             0 0 A 2 ν A 22 0 δ U 2 R 2       0 − I 0 0 Λ U ν − U γ I I appears because global mesh is conforming. A 11 , A 22 correspond to interior mesh points. A γγ , A νν correspond to interface. Λ is Lagrange multiplier (not computed or updated). UCSD Center for Computational Mathematics Slide 14/19, November 7, 2016

Overview Paradigm DD Solver Local Saddle Point System – 2 Subdomains       A 11 A 1 γ 0 0 0 δ U 1 R 1 0 0 A γ 1 A γγ I δ U γ R γ       ¯ ¯ δ ¯       0 0 A νν A ν 2 − I U ν = R ν        ¯ ¯   δ ¯    0 0 0 0 A 2 ν A 22 U 2       0 I − I 0 0 Λ U ν − U γ  0 − I 0 I 0   Λ   U ν − U γ  ¯ ¯ δ ¯ − I 0 0 A νν A ν 2 U ν R ν             0 0 A 11 A 1 γ 0 δ U 1 = R 1             I 0 A γ 1 A γγ 0 δ U γ R γ       ¯ ¯ δ ¯ 0 0 0 0 A 2 ν A 22 U 2 UCSD Center for Computational Mathematics Slide 15/19, November 7, 2016

Overview Paradigm DD Solver Local Schur Complement System – 2 Subdomains       A 11 A 1 γ 0 δ U 1 R 1 A γγ + ¯ ¯ R γ + R ν + ¯  =  . δ U γ A νν ( U ν − U γ ) A γ 1 A νν A γ 2     ¯ ¯ δ ¯ 0 + ¯ 0 A 2 ν A 22 U 2 A 2 ν ( U ν − U γ ) The matrix is the stiffness matrix for the conforming mesh on processor 1. We expect R 1 ≈ 0, R 2 ≈ 0 at all steps. This approximation substantially cuts communication and calculation costs. Processor 1 sends R γ , U γ , and receives R ν , U ν We use δ U 1 and δ U γ to update U 1 and U γ ; we discard δ ¯ U 2 . UCSD Center for Computational Mathematics Slide 16/19, November 7, 2016

Overview Paradigm DD Solver Summary of Calculation on Processor 1 1 locally compute R 1 and R γ . 2 exchange boundary data (send R γ and U γ ; receive R ν and U ν ). 3 locally compute the right-hand-side of Schur complement system. 4 locally solve Schur complement system via the multigraph iteration. 5 update U 1 and U γ using δ U 1 and δ U γ . The update could be local ( U 1 ← U 1 + δ U 1 ; U γ ← U γ + δ U γ ) or could require communication. Here we do a Newton line search. UCSD Center for Computational Mathematics Slide 17/19, November 7, 2016

Overview Paradigm DD Solver The Rate of Convergence joint with Panayot Vassilevski Theorem: Under suitable hypotheses, the rate of convergence of the DD algorithm is bounded by � 2 � H γ ≤ C d where C is independent of N , p , h , H , and d . In practice, H ∼ d and the observed rate of convergence is constant. (at least for p ≤ 256 and N ≤ 25 m ) The proof makes heavy use of interior estimates . UCSD Center for Computational Mathematics Slide 18/19, November 7, 2016

Overview Paradigm DD Solver Global Solution N = 14095115 UCSD Center for Computational Mathematics Slide 19/19, November 7, 2016
