Tracing While Loops 7 January 2019 OSU CSE 1 Consider... int i = - PowerPoint PPT Presentation

Jan 10, 2024 •162 likes •367 views

Tracing While Loops 7 January 2019 OSU CSE 1 Consider... int i = 4, j = 1, n = 0; while (i > j) { if (n % 2 == 0) { i--; } else { j++; } n++; } 7 January 2019 OSU CSE 2 Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while

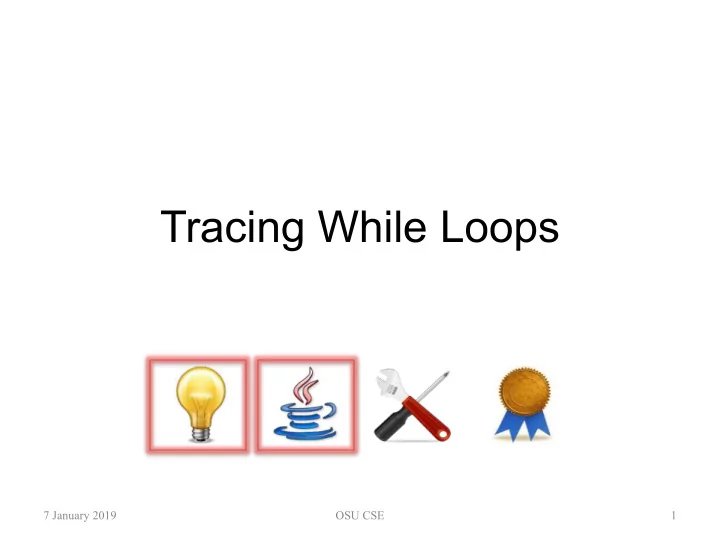

  1. Tracing While Loops 7 January 2019 OSU CSE 1

  2. Consider... int i = 4, j = 1, n = 0; while (i > j) { if (n % 2 == 0) { i--; } else { j++; } n++; } 7 January 2019 OSU CSE 2

  3. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { if (n % 2 == 0) { i--; } else { j++; } n++; } 7 January 2019 OSU CSE 3

  4. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 j = 1 n = 0 if (n % 2 == 0) { i--; } else { j++; } n++; } 7 January 2019 OSU CSE 4

  5. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 j = 1 n = 0 if (n % 2 == 0) { i = 4 j = 1 n = 0 i--; } else { j++; } n++; } 7 January 2019 OSU CSE 5

  6. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 j = 1 n = 0 if (n % 2 == 0) { i = 4 j = 1 n = 0 i--; i = 3 j = 1 n = 0 } else { j++; } n++; } 7 January 2019 OSU CSE 6

  7. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 j = 1 n = 0 if (n % 2 == 0) { i = 4 j = 1 n = 0 i--; i = 3 j = 1 n = 0 } else { i = — j = — n = — j++; i = — j = — n = — } i = 3 j = 1 n = 0 n++; } 7 January 2019 OSU CSE 7

  8. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 j = 1 n = 0 if (n % 2 == 0) { i = 4 j = 1 n = 0 i--; i = 3 j = 1 n = 0 } else { i = — j = — n = — j++; i = — j = — n = — } i = 3 j = 1 n = 0 n++; i = 3 j = 1 n = 1 } 7 January 2019 OSU CSE 8

  9. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 j = 1 1 n = 0 1 if (n % 2 == 0) { i = 4 j = 1 n = 0 i--; i = 3 j = 1 n = 0 } else { i = — j = — n = — j++; i = — j = — n = — } i = 3 j = 1 n = 0 n++; i = 3 j = 1 n = 1 } 7 January 2019 OSU CSE 9

  10. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 j = 1 1 n = 0 1 if (n % 2 == 0) { i = 4 — j = 1 — n = 0 — i--; i = 3 — j = 1 — n = 0 — } else { i = — 3 j = — 1 n = — 1 j++; i = — j = — n = — } i = 3 j = 1 n = 0 n++; i = 3 j = 1 n = 1 } 7 January 2019 OSU CSE 10

  11. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 j = 1 1 n = 0 1 if (n % 2 == 0) { i = 4 — j = 1 — n = 0 — i--; i = 3 — j = 1 — n = 0 — } else { i = — 3 j = — 1 n = — 1 j++; i = — 3 j = — 2 n = — 1 } i = 3 j = 1 n = 0 n++; i = 3 j = 1 n = 1 } 7 January 2019 OSU CSE 11

  12. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 j = 1 1 n = 0 1 if (n % 2 == 0) { i = 4 — j = 1 — n = 0 — i--; i = 3 — j = 1 — n = 0 — } else { i = — 3 j = — 1 n = — 1 j++; i = — 3 j = — 2 n = — 1 } i = 3 3 j = 1 2 n = 0 1 n++; i = 3 j = 1 n = 1 } 7 January 2019 OSU CSE 12

  13. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 j = 1 1 n = 0 1 if (n % 2 == 0) { i = 4 — j = 1 — n = 0 — i--; i = 3 — j = 1 — n = 0 — } else { i = — 3 j = — 1 n = — 1 j++; i = — 3 j = — 2 n = — 1 } i = 3 3 j = 1 2 n = 0 1 n++; i = 3 3 j = 1 2 n = 1 2 } 7 January 2019 OSU CSE 13

  14. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 3 j = 1 1 2 n = 0 1 2 if (n % 2 == 0) { i = 4 — j = 1 — n = 0 — i--; i = 3 — j = 1 — n = 0 — } else { i = — 3 j = — 1 n = — 1 j++; i = — 3 j = — 2 n = — 1 } i = 3 3 j = 1 2 n = 0 1 n++; i = 3 3 j = 1 2 n = 1 2 } 7 January 2019 OSU CSE 14

  15. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 3 j = 1 1 2 n = 0 1 2 if (n % 2 == 0) { i = 4 — 3 j = 1 — 2 n = 0 — 2 i--; i = 3 — j = 1 — n = 0 — } else { i = — 3 j = — 1 n = — 1 j++; i = — 3 j = — 2 n = — 1 } i = 3 3 j = 1 2 n = 0 1 n++; i = 3 3 j = 1 2 n = 1 2 } 7 January 2019 OSU CSE 15

  16. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 3 j = 1 1 2 n = 0 1 2 if (n % 2 == 0) { i = 4 — 3 j = 1 — 2 n = 0 — 2 i--; i = 3 — 2 j = 1 — 2 n = 0 — 2 } else { i = — 3 j = — 1 n = — 1 j++; i = — 3 j = — 2 n = — 1 } i = 3 3 j = 1 2 n = 0 1 n++; i = 3 3 j = 1 2 n = 1 2 } 7 January 2019 OSU CSE 16

  17. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 3 j = 1 1 2 n = 0 1 2 if (n % 2 == 0) { i = 4 — 3 j = 1 — 2 n = 0 — 2 i--; i = 3 — 2 j = 1 — 2 n = 0 — 2 } else { i = — 3 — j = — 1 — n = — 1 — j++; i = — 3 — j = — 2 — n = — 1 — } i = 3 3 2 j = 1 2 2 n = 0 1 2 n++; i = 3 3 j = 1 2 n = 1 2 } 7 January 2019 OSU CSE 17

  18. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 3 j = 1 1 2 n = 0 1 2 if (n % 2 == 0) { i = 4 — 3 j = 1 — 2 n = 0 — 2 i--; i = 3 — 2 j = 1 — 2 n = 0 — 2 } else { i = — 3 — j = — 1 — n = — 1 — j++; i = — 3 — j = — 2 — n = — 1 — } i = 3 3 2 j = 1 2 2 n = 0 1 2 n++; i = 3 3 2 j = 1 2 2 n = 1 2 3 } 7 January 2019 OSU CSE 18

  19. Trace It int i = 4, j = 1, n = 0; i = 4 j = 1 n = 0 while (i > j) { i = 4 3 3 j = 1 1 2 n = 0 1 2 if (n % 2 == 0) { i = 4 — 3 j = 1 — 2 n = 0 — 2 i--; i = 3 — 2 j = 1 — 2 n = 0 — 2 } else { i = — 3 — j = — 1 — n = — 1 — j++; i = — 3 — j = — 2 — n = — 1 — } i = 3 3 2 j = 1 2 2 n = 0 1 2 n++; i = 3 3 2 j = 1 2 2 n = 1 2 3 } i = 2 j = 2 n = 3 7 January 2019 OSU CSE 19

  20. What Does It Do? • Describe in one short sentence what the snippet of code we just traced does. • Don’t repeat the code in English… 7 January 2019 OSU CSE 20
