Bow Concord I-93 Improvements T-A000(018) 13742 Town of Bow June 7, 2019 Project Overview I-93 Typical Sections Existing Interstate 93 Proposed Interstate 93 Project Goals Red List Bridges Pedestrian/Bicycle Accommodation

slide-1
SLIDE 1

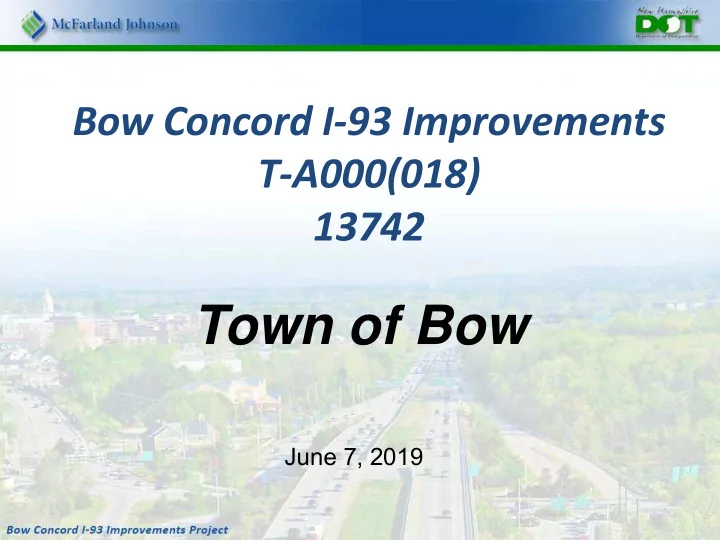

Bow Concord I-93 Improvements T-A000(018) 13742

Town of Bow

June 7, 2019

slide-2
SLIDE 2

Project Overview

slide-3
SLIDE 3

I-93 Typical Sections

Existing Interstate 93 Proposed Interstate 93

slide-4
SLIDE 4

Project Goals

  • Red List Bridges
  • Address Geometric Issues
  • Address Operational Issues
  • Maintain Access
  • Pedestrian/Bicycle Accommodation
  • Provide Stormwater Treatment
  • Minimize Resource Impacts
  • Minimize Property Impacts
slide-5
SLIDE 5

Recommended Preferred Alternative

I-89 Area Concept K Exit 12 Area Concept F Exit 13 Area Concept B Exit 14/15 Area Concept F2

slide-6
SLIDE 6

I-89 / Exit 1 Area - Existing

Bow Junction

slide-7
SLIDE 7

WEAVING ISSUE WEAVING ISSUE RED LIST BRIDGE WEAVING ISSUE

I-89 / Exit 1 Area - Existing

slide-8
SLIDE 8

I-89 / Exit 1 Area - Proposed

slide-9
SLIDE 9

I-89 / Exit 1 Area - Proposed

Benefits:

  • Replaces Red List Bridge.
  • Eliminates 2 weaves between Exit 1 & I-93.
  • Improves weave at I-93/I-89 Interchange.
  • Provides Access to Route 3A from NB I-93.
slide-10
SLIDE 10

Bow Comments / Concerns

  • 1. NHDOT Modeling has inaccurate assumptions
  • 2. NHDOT Modeling failed to consider impact on

Business corridor

  • 3. The design ignores local impact
  • 4. Lack of Sound Barriers
  • 5. Photosimulations needed to evaluate impact
slide-11
SLIDE 11
  • 1a. NHDOT Modeling has inaccurate assumptions
  • Central NH Traffic Model and the Project Microsimulation

Traffic Model developed in 2014.

  • In 2017, Town of Bow approved zoning changes near

I-89 Exit 1.

  • Re-zoning allows for mixed use including multi-family

residential and commercial/retail.

  • Traffic Analysis conducted to

determine potential impact re-zoning would have on the Preferred Alternative.

slide-12
SLIDE 12
  • 1a. NHDOT

Modeling has inaccurate assumptions

slide-13
SLIDE 13
  • 1a. NHDOT Modeling has inaccurate assumptions
slide-14
SLIDE 14
  • 1a. NHDOT

Modeling has inaccurate assumptions

  • Preferred Alternative is valid

and achieves project goals.

  • South St/Logging Hill Road

would be re-evaluated during Final Design.

  • All Bridges over South

Street & Logging Hill Road would be constructed to accommodate future potential widening.

slide-15
SLIDE 15
  • 1b. NHDOT

Modeling has inaccurate assumptions

  • Concept K.
  • Retains Exit 1 access to

South Street and Logging Hill Road.

slide-16
SLIDE 16
  • 1b. NHDOT

Modeling has inaccurate assumptions

  • Concept K Modified.
  • Retains Exit 1 access to South

Street and Logging Hill Road.

  • Accommodates future

connection to undeveloped land adjacent to Logging Hill Road.

  • Additional property impacts,

including Historic Property.

Interim Configuration Future Configuration

slide-17
SLIDE 17
  • 2. NHDOT Modeling failed to Consider Impact on

Business Corridor

slide-18
SLIDE 18

Path A:

  • Least travel time
  • Uses South St & Logging Hill Road
  • Not Supported by Town
slide-19
SLIDE 19

Path B:

  • Uses State roads
  • Recommended Path to Route 3A
  • Signing to Support
slide-20
SLIDE 20

Concept K2:

  • Retains Access to Route 3A
  • Requires 3rd Level Flyover
  • 1,700’ Long Flyover Bridge
  • Additional $20-$25 M
slide-21
SLIDE 21

I-89 Area Concept K2

I-93 I-89 Turkey River Turkey River

Ramp

Flyover Profile

I-93 I-89

slide-22
SLIDE 22
  • 3. The Design

Ignores Local Impact

slide-23
SLIDE 23

NB Ramp Intersection SB Ramp Intersection

slide-24
SLIDE 24
  • 4. Lack of Sound Barriers
slide-25
SLIDE 25
  • 4. Lack of

Sound Barriers

slide-26
SLIDE 26

EA Table 4.22

  • 4. Lack of Sound Barriers

Note: To be considered effective, the barrier cannot exceed 1,500 SF per benefitted receptor.

Noise Barrier Barrier Barrier Barrier No. Barrier Area Effective? Sensitive Name Height Length Area (SF) Benefitted Per Benefitted (Reasonable) Area

  • Ave. (FT)

(FT) Receptors Receptor (SF) 1A 1B Grandview Road North 20 2,723 54,460 12 4,538 N 1B Logging Hill Road 16 713 11,408 2 5,704 N 1C Grandview Road South 20 4,972 99,440 12 8,287 N 1D Carriage Road North 25 1,962 49,050 6 8,175 N 1D Carriage Road South 25 4,758 118,950 7 16,993 N 1E NA 2A NA 2B NA 2C Basin Street Barrier 14 1,806 25,284 14 1,806 N 2D NA 2E Hall Street Barrier 14 2,997 41,958 9 4,662 N 2F 74 Basin Street Barrrier 16 1,012 16,192 1 16,192 N 2G West Terrill Park Barrier 16 980 15,680 6 2,613 N 2H Common Man Barrier 16 829 13,264 1 13,264 N 3A Uno's Outside Barrier 16 720 11,520 1 11,520 N 3B Kimball Jenkins Barrier 25 531 13,275 1 13,275 N 3C Higgins Place Barrier 25 480 12,000 4 3,000 N 3D NA 3E NA 3F NHTI Barrier 16' 16 1,610 25,760 50 515 Y 3F NHTI Barrier 25' 25 1,610 40,250 102+ 395 Y 3G Delta Dental Field Barrier 16 373 5,968 1 5,968 N

slide-27
SLIDE 27
  • 4. Photosimulations Needed to Evaluate Impact
slide-28
SLIDE 28
  • 4. Photosimulations Needed to Evaluate Impact
slide-29
SLIDE 29

Existing View from Grandview Road

slide-30
SLIDE 30

Rendered View from Grandview Road

slide-31
SLIDE 31

Examples of “aesthetic” treatments

slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35

Schedule

  • Final Environmental Document – Summer 2019
  • Final Design / Right of Way Acquisition – 2019 to 2023
  • Construction – Begin 2024 with current funding
  • Completion – 2033 or sooner
slide-36
SLIDE 36

Questions

www.i93bowconcord.com
