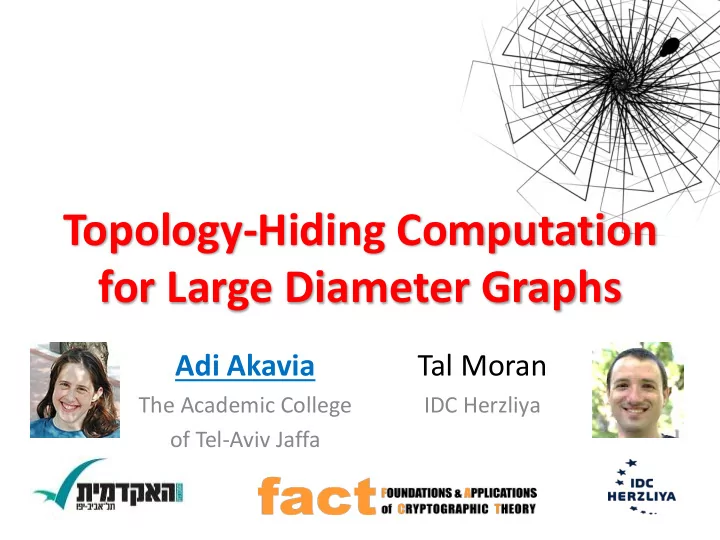

Topology-Hiding Computation for Large Diameter Graphs

Tal Moran

IDC Herzliya

Adi Akavia

The Academic College

• f Tel-Aviv Jaffa

MPC [Yao’86, GMW’87]: multiple parties can jointly compute a function of their private inputs, while revealing nothing beyond the output

MPC [Yao’86, GMW’87]: multiple parties can jointly compute a function of their private inputs, while revealing nothing beyond the output Many applications

MPC [Yao’86, GMW’87]: multiple parties can jointly compute a function of their private inputs, while revealing nothing beyond the output Many applications

Today: protect also meta-data!

Motivation: Private social network

Today: Facebook = “trusted third party”.

• Holds:

personal data & “social graph”

• Computes:

functions on data & graph

Motivation: Private social network

Today: Facebook = “trusted third party”.

• Holds:

personal data & “social graph”

• Computes:

functions on data & graph

Goal: Privacy preserving social network

No trusted third party!

Privacy for data & graph

MPC does NOT Suffice

MPC does NOT Suffice

• MPC:

Communication topology is public

MPC does NOT Suffice

• MPC:

Communication topology is public

– Typically: Complete graph – Also: General topologies (publicly known)

[ …. Halevi-Ishai-Jain-Kushilevitz-Rabin’2016]

MPC does NOT Suffice

• MPC:

Communication topology is public

– Typically: Complete graph – Also: General topologies (publicly known)

[ …. Halevi-Ishai-Jain-Kushilevitz-Rabin’2016]

• Social network:

Communication topology ≈ social graph

MPC does NOT Suffice

• MPC:

Communication topology is public

– Typically: Complete graph – Also: General topologies (publicly known)

[ …. Halevi-Ishai-Jain-Kushilevitz-Rabin’2016]

• Social network:

Communication topology ≈ social graph

 topology is private

MPC does NOT Suffice

• MPC:

Communication topology is public

– Typically: Complete graph – Also: General topologies (publicly known)

[ …. Halevi-Ishai-Jain-Kushilevitz-Rabin’2016]

• Social network:

Communication topology ≈ social graph

 topology is private Not protected by MPC!

Want: Topology Hiding MPC [MOR’15]

Topology hiding MPC is MPC that hides both inputs and communication graph.

More Motivation: Private Topology

• Mobile Networks
• Vehicle-to-Vehicle communication
• Mesh networks
• Internet-of-things

Topology Hiding MPC [MOR’15]

Settings:

• Parties (=nodes) have private inputs,
• Parties know their neighbors,

communicate directly only with neighbors.

d e f b c a g h

Topology Hiding MPC [MOR’15]

Settings:

• Parties (=nodes) have private inputs,
• Parties know their neighbors,

communicate directly only with neighbors.

The Goal: Compute any function of the inputs while revealing nothing beyond function’s output Reveal no info about the graph*

d e f b c a g h

Topology Hiding MPC [MOR’15]

Settings:

• Parties (=nodes) have private inputs,
• Parties know their neighbors,

communicate directly only with neighbors.

The Goal: Compute any function of the inputs while revealing nothing beyond function’s output Reveal no info about the graph*

*Need minimal info about the graph (e.g. bounds on diameter / #nodes)

d e f b c a g h

Topology Hiding MPC [MOR’15]

Settings:

• Parties (=nodes) have private inputs,
• Parties know their neighbors,

communicate directly only with neighbors.

The Goal: Compute any function of the inputs while revealing nothing beyond function’s output Reveal no info about the graph*

*Need minimal info about the graph (e.g. bounds on diameter / #nodes)

d e f b c a g h

Broadcast suffices

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

• Not topology hiding

– E.g. reveals distance to broadcaster

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

• Not topology hiding

– E.g. reveals distance to broadcaster

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

• Not topology hiding

– E.g. reveals distance to broadcaster

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

• Not topology hiding

– E.g. reveals distance to broadcaster

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

• Not topology hiding

– E.g. reveals distance to broadcaster – Not hiding even with encrypted messages

d e f b c a g h

Is Topology Hiding MPC Possible?

Some Challenges:

• Consider Naïve protocol:

“OR and forward”

• Not topology hiding

– E.g. reveals distance to broadcaster – Not hiding even with encrypted messages

• Who has the private key?

d e f b c a g h

Impossible against Active Adversary

Impossible against Active Adversary

Active (=malicious) adversary: Can deviate from the protocol (e.g., abort).

Theorem [MOR’15]: Against an active adversary, Topology-hiding broadcast is impossible

Impossible against Active Adversary

Active (=malicious) adversary: Can deviate from the protocol (e.g., abort).

Theorem [MOR’15]: Against an active adversary, Topology-hiding broadcast is impossible Impossible already for simple graphs (chains) weak adversary (fail-stop)

Feasible against Passive Adversary

Feasible against Passive Adversary

Passive (=honest-but-curious) adversary: Follows the protocol (but tries to learn secrets).

Small diameter network graph: Distance between nodes at most logarithmic.

Feasible against Passive Adversary

Passive (=honest-but-curious) adversary: Follows the protocol (but tries to learn secrets).

Small diameter network graph: Distance between nodes at most logarithmic. Theorem [MOR’15, HMTZ’16]: Topology-hiding broadcast exists

• n small-diameter network graphs

against passive adversary

(assuming trapdoor permutations exist / DDH)

Feasible against Passive Adversary

Passive (=honest-but-curious) adversary: Follows the protocol (but tries to learn secrets).

Small diameter network graph: Distance between nodes at most logarithmic. Theorem [MOR’15, HMTZ’16]: Topology-hiding broadcast exists

• n small-diameter network graphs

against passive adversary

(assuming trapdoor permutations exist / DDH) given bounds on diameter & degree

This Work

Our question: Is small-diameter necessary?

This Work

Our question: Is small-diameter necessary? Our Main Result: Topology-hiding broadcast exists

• n large-diameter network graphs

against passive adversary

(under standard assumptions, e.g., DDH)

This Work

Our question: Is small-diameter necessary? Our Main Result: Topology-hiding broadcast exists

• n large-diameter network graphs

against passive adversary

(under standard assumptions, e.g., DDH)

given number

• f nodes*

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

d e f c

chains

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

d e b a g d e f c

chains cycles

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

d e b a g d e f b c a g h d e f c

chains cycles trees

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

d e b a g d e f b c a g h d e f c

chains cycles trees Small- circumference graphs

d e f b c a g h

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

d e b a g d e f b c a g h d e f c

chains cycles trees Small- circumference graphs

d e f b c a g h

This Work: Results

Result 1: Topology-hiding broadcast is feasible for large-diameter graphs, including:

d e b a g d e f b c a g h d e f c

chains cycles trees Small- circumference graphs

d e f b c a g h

This Work: Results

Result 2: Topology hiding broadcast on cycles Topology hiding broadcast on trees

This Work: Results

Result 3: Topology hiding broadcast for 1) cycles and 2) small-diameter graphs Topology hiding broadcast for small-circumference graphs

This Work: Results

Result 3: Topology hiding broadcast for 1) cycles and 2) small-diameter graphs Topology hiding broadcast for small-circumference graphs Extensions:

We define: A distributed algorithm is “info-local” if output

• f each party depends only on k-local neighborhood

We show: Our reductions hold for arbitrary graph with “info-local” algorithm for spanning-tree neighbors

Remarks

• Even with known overall topology,

topology-hiding is still non-trivial

– Example – Cycles: nodes order may be sensitive.

Remarks

• Even with known overall topology,

topology-hiding is still non-trivial

– Example – Cycles: nodes order may be sensitive.

• Voting  parallel broadcast:

– voting & mix-networks inspiration

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

PKCR-enc exists under DDH assumption.

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

Notation: [m]k = Enck(m). PKCR-enc exists under DDH assumption.

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

– Public keys are a group with efficiently computable k1*k2, k–1 Notation: [m]k = Enck(m). PKCR-enc exists under DDH assumption.

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

– Public keys are a group with efficiently computable k1*k2, k–1 – Given secret key sk can efficiently: Notation: [m]k = Enck(m). PKCR-enc exists under DDH assumption.

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

– Public keys are a group with efficiently computable k1*k2, k–1 – Given secret key sk can efficiently: a) Computed corresponding public-key pk(sk).

b)

Notation: [m]k = Enck(m). PKCR-enc exists under DDH assumption.

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

– Public keys are a group with efficiently computable k1*k2, k–1 – Given secret key sk can efficiently: a) Computed corresponding public-key pk(sk).

b) AddLayer( [m]k , sk ) = [m]k*pk(sk)

Notation: [m]k = Enck(m). PKCR-enc exists under DDH assumption.

Tool: PKCR-encryption

Public key encryption, which is:

• 1. Rerandomizable:

Given pk and c  [m]k Can produce fresh ciphertext c’  [m]k.

• 2. Privately key-commutative:

– Public keys are a group with efficiently computable k1*k2, k–1 – Given secret key sk can efficiently: a) Computed corresponding public-key pk(sk).

b) AddLayer( [m]k , sk ) = [m]k*pk(sk) c) DelLayer ( [m]k , sk ) = [m]k*pk(sk)

• 1

Notation: [m]k = Enck(m). PKCR-enc exists under DDH assumption.

Our Techniques: Topology-Hiding Voting on Cycles

Phase 1. Aggregate Encrypted Votes: Phase 2. Mix & Decrypt:

4 3 5 1 2

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

v1

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1 , v1

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1 , [v1]k1

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1 , [v1]k1

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1 , [v1]k1 *k2

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1*k2, [v1]k1*k2

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1*k2, [v1]k1*k2 [v2]k1*k2

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k1*k2, [v1]k1*k2 [v2]k1*k2

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k=k1*k2*k3, [v1]k [v2]k [v3]k

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k=k1*…*k4*k5, [v1]k … [v5]k

…

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 1. Aggregate Encrypted Votes:

4 3 5 1 2

k=k1*…*k4*k5, [v1]k … [v5]k

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k=k1*…*k4*k5, [v1]k … [v5]k

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k=k1*…*k4*k5, [v1]k … [v5]k [v(1)]k … [v (5)]k

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k’=k1*…*k4, [v(1)]k’ … [v (5)]k’

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k’=k1*…*k4, [v(1)]k’ … [v (5)]k’

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k‘=k1*…*k4, [v(1)]k’ … [v (5)]k’

…

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k‘=k1*…*k4, [v(1)]k’ … [v (5)]k’ k1, [v’(1)]k1 … [v’(5)]k1

…

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k1, [v’(1)]k1 … [v’(5)]k1

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

k1, [v’(1)]k1 … [v’(5)]k1

Our Techniques: Topology-Hiding Voting on Cycles

Protocol Phase 2. Mix & Decrypt:

4 3 5 1 2

v’’(1) … v’’(5)

Toy Problem:

Our Techniques: Reductions

Toy Problem: Settings: Arbitrary graph,

Our Techniques: Reductions

4 3 5 1 2

Toy Problem: Settings: Arbitrary graph, with cycle traversing the nodes.

Our Techniques: Reductions

4 3 5 1 2

Toy Problem: Settings: Arbitrary graph, with cycle traversing the nodes. Nodes know their local-view on cycle.

Our Techniques: Reductions

4 3 5 1 2 4

Toy Problem: Settings: Arbitrary graph, with cycle traversing the nodes. Nodes know their local-view on cycle. Observe: Topology-hiding voting on cycle-traversal Topology-hiding voting on underlying graph.

Our Techniques: Reductions

4 3 5 1 2 4

Toy Problem: Settings: Arbitrary graph, with cycle traversing the nodes. Nodes know their local-view on cycle. Observe: Topology-hiding voting on cycle-traversal Topology-hiding voting on underlying graph.

Our Techniques: Reductions

4 3 5 1 2

Reductions Outline (simplified):

• 1. Find cycle-traversal (local views) while hiding topology
• 2. Run topology-hiding voting on this cycle-traversal

4

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist?

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist? Can it be found efficiently?

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist? Can it be found efficiently? Can it be found topology-hiding?

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist? Can it be found efficiently? Can it be found topology-hiding? Yes, in every

(connected) graph.

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist? Can it be found efficiently? Can it be found topology-hiding? Yes, in every

(connected) graph.

Yes, in every

(connected) graph.

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist? Can it be found efficiently? Can it be found topology-hiding? Yes, in every

(connected) graph.

Yes, in every

(connected) graph.

Yes, in trees.

Finding Cycle-Traversal

Questions: Does a cycle-traversal always exist? Can it be found efficiently? Can it be found topology-hiding? Yes, in every

(connected) graph.

Yes, in every

(connected) graph.

Yes, in trees. Roughly, in small-circ.

Finding Cycle-Traversal in Trees

Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 d e f b c a g h a g d e e e 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h Convert-to-Cycle(N(v)=(u1,…,ud)) Forward messages arriving from ui to ui+1 d e f b c a g h a g d e e e 1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h d e f b c a g h a g d e e e

What’s the cycle’s length?

1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h d e f b c a g h a g d e e e

What’s the cycle’s length?

• #(copies of v) = deg(v)

1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h d e f b c a g h a g d e e e

What’s the cycle’s length?

• #(copies of v) = deg(v)
• Cycle’s length = sum of degrees

1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h d e f b c a g h a g d e e e

What’s the cycle’s length?

• #(copies of v) = deg(v)
• Cycle’s length = sum of degrees

= 2|E|

1 2 4 3

Finding Cycle-Traversal in Trees

d e f b c a g h d e f b c a g h a g d e e e

What’s the cycle’s length?

• #(copies of v) = deg(v)
• Cycle’s length = sum of degrees

= 2|E| = 2(n-1) (for trees)

1 2 4 3

Finding Cycle-Traversal in k-Circumference Graphs

Main Steps:

• I. Devise info-local algorithm for finding cycle-traversal.

Finding Cycle-Traversal in k-Circumference Graphs

Main Steps:

• I. Devise info-local algorithm for finding cycle-traversal.
• 1. Find spanning-tree T, info-locally
• 2. Find cycle-traversal on T.

Finding Cycle-Traversal in k-Circumference Graphs

Main Steps:

• I. Devise info-local algorithm for finding cycle-traversal.
• 1. Find spanning-tree T, info-locally
• 2. Find cycle-traversal on T.
• II. Hide-topology:

Finding Cycle-Traversal in k-Circumference Graphs

Main Steps:

• I. Devise info-local algorithm for finding cycle-traversal.
• 1. Find spanning-tree T, info-locally
• 2. Find cycle-traversal on T.
• II. Hide-topology:

Run “under-the-hood” using topology-hiding MPC: “find cycle-traversal & topology-hiding voting on it”

Finding Cycle-Traversal in k-Circumference Graphs

Main Steps:

• I. Devise info-local algorithm for finding cycle-traversal.
• 1. Find spanning-tree T, info-locally
• 2. Find cycle-traversal on T.
• II. Hide-topology:

Run “under-the-hood” using topology-hiding MPC: “find cycle-traversal & topology-hiding voting on it”

On k-neighborhood  k-diameter graph

Conclusions & Subsequent Works

This work: Topology-hiding broadcast is feasible for large-diameter graphs, including:

cycles, trees, low-circumference graphs.

Conclusions & Subsequent Works

This work: Topology-hiding broadcast is feasible for large-diameter graphs, including:

cycles, trees, low-circumference graphs.

Open Questions (summer 2016): –Fail-stop / Active Adversary? –Other large-diameter graphs?

Peek Preview: Subsequent Works

• Ball-Boyle-Malkin-Moran (to appear):

Topology-hiding computation against fail-stop adversary for all graphs* using secure hardware

*with (unavoidable) bounded leakage

• Akavia-LaVigne-Moran (to appear):

Topology-hiding computation against passive adversary for all graphs without secure hardware!

Open Questions

Spring 2017

• Fail-stop / Active Adversary

without secure hardware?

• Dynamic graphs?

(work in progress)

T h a n k Y

• u

!

T u
