Chair of Network Architectures and Services Department of Informatics Technical University of Munich TLS Fingerprinting Techniques Zlatina Gancheva advised by Patrick Sattler, Lars Wstrich Friday 24 th January, 2020 Chair of Network

slide-1

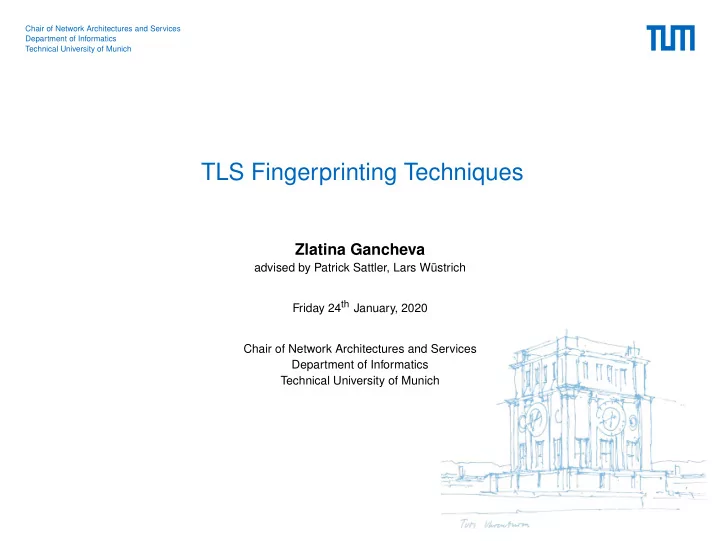

SLIDE 1

Chair of Network Architectures and Services Department of Informatics Technical University of Munich

TLS Fingerprinting Techniques

Zlatina Gancheva

advised by Patrick Sattler, Lars Wüstrich Friday 24th January, 2020 Chair of Network Architectures and Services Department of Informatics Technical University of Munich

slide-2
SLIDE 2

Introduction to TLS Fingerprinting

Agenda

  • Introduction
  • Background
  • TLS Basics: Deploying TLS
  • TLS Basics: Establishing a TLS Session, TLS Handshake Protocol
  • Client and Server Hello Parameters
  • Creating a TLS Fingerprint
  • TLS Fingerprinting
  • Network-based HTTPS Client identification
  • JA3/JA3S Fingerprinting
  • Markov Chain Fingerprinting
  • Discussion
  • Conclusion

Zlatina Gancheva — TLS Fingerprinting Techniques 2

slide-3
SLIDE 3

Introduction to TLS Fingerprinting

Transport Layer Security Protocol Fingerprinting Why do we need TLS Fingerprinting?

  • It is passive
  • It is payload-based
  • It requires no endpoint agent data
  • Motivation: It can successfully detect obsolete or malicious software

Zlatina Gancheva — TLS Fingerprinting Techniques 3

slide-4
SLIDE 4

Introduction to TLS Fingerprinting

TLS Fingerprinting Goals TLS Fingerprinting aims to improve traffic analysis by providing [1]

  • Efficiency - successful identification of clients
  • Performance - quick to find a match
  • Flexibility - compatibility with existing technologies

Zlatina Gancheva — TLS Fingerprinting Techniques 4

slide-5
SLIDE 5

Background: Transport Security Layer Protocol

TLS Basics: How does it work What does the Transport Layer Security (TLS) Protocol do?

  • provides end-to-end security
  • encrypts information from the Application Layer

The TLS Protocol strives to provide the following security capabilities[10, 15]:

  • Data Integrity
  • Authentication
  • Data Confidentiality

Zlatina Gancheva — TLS Fingerprinting Techniques 5

slide-6
SLIDE 6

Background: Transport Security Layer Protocol

TLS Basics: Deploying TLS Placed between the Application and TCP/IP layer

  • TLS Handshake Protocol [4, 11]

is responsible for:

  • negotiating encryption para-

meters

  • TLS Record Protocol [4, 12] is

responsible for:

  • traffic protection

Figure 1: TLS Protocol Structure [16, 10]

Zlatina Gancheva — TLS Fingerprinting Techniques 6

slide-7
SLIDE 7

Background: Transport Security Layer Protocol

TLS Basics: Establishing a TLS Session, TLS Handshake Protocol

Figure 2: TLS V 1.3 Handshake Scheme [7]

Zlatina Gancheva — TLS Fingerprinting Techniques 7

slide-8
SLIDE 8

Background: Transport Security Layer Protocol

Client and Server Hello Parameters

  • Client Hello [7]
  • Preferred TLS version (TLS 1.0, 1.2, 1.3, etc.)
  • Client random variable
  • Session ID
  • Cipher suites list (e.g. ECDHE, RSA), ordered by preference
  • Compression methods
  • List of Extensions
  • Server Hello [7]
  • Negotiated TLS version
  • Server random variable
  • Session ID
  • Selected Cipher Suite
  • Compression Method
  • Extensions

Zlatina Gancheva — TLS Fingerprinting Techniques 8

slide-9
SLIDE 9

Background: Transport Security Layer Protocol

Creating a Fingerprint

Figure 3: Fingerprinting parameters

Zlatina Gancheva — TLS Fingerprinting Techniques 9

slide-10
SLIDE 10

Fingerprinting Techniques

Network-based HTTPS Client identification This is done by creating a dictionary, where Cipher suite list is paired with a User-Agent[3]1 [15, 14].

  • Host-based method
  • measures connections on the server side
  • uses the decrypted information from an HTTPS connection
  • Advantages:
  • accurate
  • Disadvantages:
  • limited to a single server

1User-Agent - a string used to identify client’s browser and OS version Zlatina Gancheva — TLS Fingerprinting Techniques 10

slide-11
SLIDE 11

Fingerprinting Techniques

Network-based HTTPS Client identification This is done by creating a dictionary, where Cipher suite list is paired with a User-Agent[3]2 [15, 14].

  • Flow-based method
  • simultaneously monitors HTTP and HTTPS connections with the same IP source address
  • pairs a cipher suite list with the User-Agent
  • Advantages:
  • not limited to a single server
  • Disadvantages:
  • less accurate

2User-Agent - a string used to identify client’s browser and OS version Zlatina Gancheva — TLS Fingerprinting Techniques 11

slide-12
SLIDE 12

Fingerprinting Techniques

JA3/JA3S Fingerprinting JA3 Fingerprinting on the Client Side

  • joins values taken from the Client Hello

packet [2, 8, 5] into a string.

  • MD5 hashes the string into a 32 character

fingerprint

  • Advantages:
  • easy to share
  • more effective than IoCs
  • always creates a 32 character fingerprint
  • Disadvantages:
  • application collisions
  • up to 5 JA3 for the same application

Figure 4: Example of JA3 Fingerprint [9]

Zlatina Gancheva — TLS Fingerprinting Techniques 12

slide-13
SLIDE 13

Fingerprinting Techniques

JA3/JA3S Fingerprinting JA3S Fingerprinting on the Server Side

  • same as JA3 but with values from the Server Hello
  • useful when client applications use common libraries or OS sockets

Advantages:

  • combined with JA3 efficiently identifies malicious communication

Zlatina Gancheva — TLS Fingerprinting Techniques 13

slide-14
SLIDE 14

Fingerprinting Techniques

Markov Chain Fingerprinting This technique creates stochastic TLS fingerprints, using first-order homogeneous Markov chains [16]. It is conducted on the server side Advantages: Successfully recognizes

  • incorrect implementations
  • misuse of TLS (TLS tunneling)

Disadvantages:

  • Fingerprint database must be updated periodically

Zlatina Gancheva — TLS Fingerprinting Techniques 14

slide-15
SLIDE 15

Discussion

Defenses against TLS Fingerprinting

  • Defenses:
  • Using Proxy to redirect the Cipher suite list [15]
  • Manual changes in the Cipher suite list [15]
  • Mimicking TLS implementations [13]

Zlatina Gancheva — TLS Fingerprinting Techniques 15

slide-16
SLIDE 16

Discussion

Defenses against TLS Fingerprinting

  • Defenses:
  • Using Proxy to redirect the Cipher suite list [15]
  • Manual changes in the Cipher suite list [15]
  • Mimicking TLS implementations [13]
  • Problems:
  • Problem: A Fingerprint collisions [6] may also possibly occur

Zlatina Gancheva — TLS Fingerprinting Techniques 15

slide-17
SLIDE 17

Discussion

Defenses against TLS Fingerprinting

  • Defenses:
  • Using Proxy to redirect the Cipher suite list [15]
  • Manual changes in the Cipher suite list [15]
  • Mimicking TLS implementations [13]
  • Problems:
  • Problem: A Fingerprint collisions [6] may also possibly occur
  • Solution: Take as many parameters of the Client Hello as possible [6]

Zlatina Gancheva — TLS Fingerprinting Techniques 15

slide-18
SLIDE 18

Conclusion

TLS Fingerprinting Techniques TLS Fingerprinting is:

  • effectively recognizing malicious and outdated software
  • quick to keep up with network traffic
  • a passive approach, sustaining user’s privacy

We discussed 3 main different Fingerprinting techniques

  • Network-based HTTPS Client identification
  • JA3/JA3S Fingerprinting
  • Markov Chain Fingerprinting

Zlatina Gancheva — TLS Fingerprinting Techniques 16

slide-19
SLIDE 19

Bibliography

[1] The generation and use of TLS fingerprints. [2] Open sourcing JA3 - salesforce engineering. [3] An overview of the SSL or TLS handshake. [4] RFC 8446 - the transport layer security (TLS) protocol version 1.3. [5] salesforce/ja3.

  • riginal-date: 2017-06-13T22:54:10Z.

[6] SquareLemon. [7] TLS fingerprinting in the real world. [8] TLS fingerprinting with JA3 and JA3s - salesforce engineering. [9]

  • B. Anderson, S. Paul, and D. McGrew.

Deciphering malware’s use of TLS (without decryption). [10]

  • L. Brotherston.

Lee brotherston’s work.

  • riginal-date: 2016-02-18T14:40:19Z.

[11]

  • M. D. Center.

TLS handshake protocol - win32 apps. [12]

  • M. D. Center.

TLS record protocol - win32 apps. [13]

  • S. Frolov and E. Wustrow.

The use of TLS in censorship circumvention. In Proceedings 2019 Network and Distributed System Security Symposium. Internet Society.

Zlatina Gancheva — TLS Fingerprinting Techniques 17

slide-20
SLIDE 20

Bibliography

[14]

  • M. Husak, M. Cermak, T. Jirsik, and P

. Celeda. Network-based HTTPS client identification using SSL/TLS fingerprinting. In 2015 10th International Conference on Availability, Reliability and Security, pages 389–396. IEEE. [15]

  • M. Husák, M. ˇ

Cermák, T. Jirsík, and P . ˇ Celeda. HTTPS traffic analysis and client identification using passive SSL/TLS fingerprinting. 2016(1):6. [16]

  • M. Korczynski and A. Duda.

Markov chain fingerprinting to classify encrypted traffic. In IEEE INFOCOM 2014 - IEEE Conference on Computer Communications, pages 781–789. IEEE.

Zlatina Gancheva — TLS Fingerprinting Techniques 18
