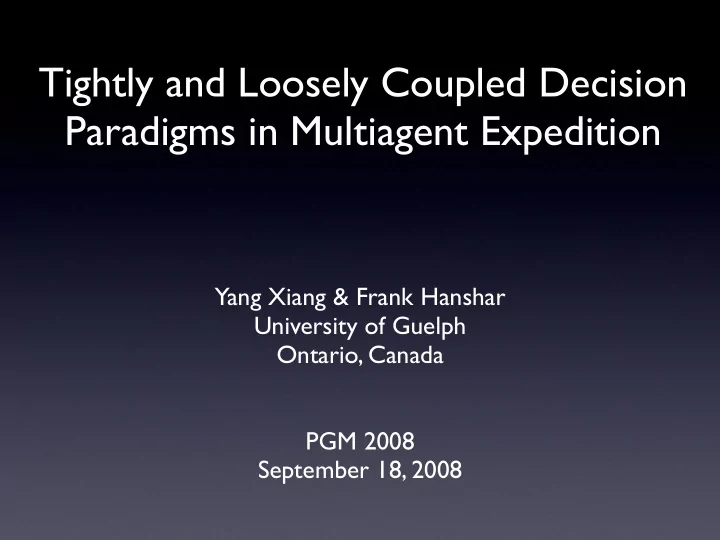

Tightly and Loosely Coupled Decision Paradigms in Multiagent Expedition

Yang Xiang & Frank Hanshar University of Guelph Ontario, Canada PGM 2008 September 18, 2008

slide-2
SLIDE 2

Outline

  • Introduction
  • What is Multiagent Expedition?
  • Collaborative Design Network
  • Graphical Model for Multiagent Expedition
  • Recursive Model for Multiagent Expedition
  • Experimental Results & Discussion
  • Conclusion

2

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-3
SLIDE 3

Introduction

  • We consider frameworks for online decision making:
  • Loosely-coupled frameworks (LCF): do not

communicate, rely on observing other agents actions to discern state and coordinate with each other

  • Tightly-coupled frameworks (TCF): agents

communicate through messages over interfaces that are rigourously defined

3

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-4
SLIDE 4

Introduction cont.

  • Relevant computational advantages of each

paradigm are poorly understood.

  • We wish to understand the tradeoffs in LCFs

and TCFs for multiagent planning.

  • In this work we select one example framework

from LCFs (RMM) and one from TCFs (CDN).

  • We resolve technical issues encountered, and

compare them experimentally on a test problem called multiagent expedition.

4

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-5
SLIDE 5

What is Multiagent Expedition (MAE)?

  • Agents have no prior knowledge of how rewards are

distributed in the environment.

  • Multiple alternative goals with varying rewards are

present.

  • Coordination problem - objective is for agents to

cooperate to maximize team reward.

  • Possible applications: multi-robot exploration of Mars,

sea-floor exploration, disaster rescue, ...

5

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-6
SLIDE 6

Instance of MAE

  • Each cell has a reward pair (a).
  • Observations are local (b).
  • Agent can observe the 13 cells around it.
  • Effect of an action uncertain (c).

6 (b) (a) (c)

0.025 0.025 0.025 0.9 0.025

0.3 0.4 0.1 0.1 0.2 0.8 0.9 0.4 0.5 0.5 0.3 0.4 0.1 0.2 0.4 0.7 0.9 0.3 0.5 0.9 0.3 0.1 0.4 0.2 0.2 0.7 0.3 0.9 0.7 0.7 0.1 0.4 0.2 0.4 0.1 0.9 0.9 0.5 0.9 0.5 0.1 0.3 0.3 0.2 0.3 0.3 0.7 0.7 0.5 0.6

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-7
SLIDE 7

Instance of MAE

  • Each cell has a reward pair (a).
  • Observations are local (b).
  • Agent can observe the 13 cells around it.
  • Effect of an action uncertain (c).

6 (b) (a) (c)

0.025 0.025 0.025 0.9 0.025

0.3 0.4 0.1 0.1 0.2 0.8 0.9 0.4 0.5 0.5 0.3 0.4 0.1 0.2 0.4 0.7 0.9 0.3 0.5 0.9 0.3 0.1 0.4 0.2 0.2 0.7 0.3 0.9 0.7 0.7 0.1 0.4 0.2 0.4 0.1 0.9 0.9 0.5 0.9 0.5 0.1 0.3 0.3 0.2 0.3 0.3 0.7 0.7 0.5 0.6

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-8
SLIDE 8

Instance of MAE

  • Each cell has a reward pair (a).
  • Observations are local (b).
  • Agent can observe the 13 cells around it.
  • Effect of an action uncertain (c).

6 (b) (a) (c)

0.025 0.025 0.025 0.9 0.025

0.3 0.4 0.1 0.1 0.2 0.8 0.9 0.4 0.5 0.5 0.3 0.4 0.1 0.2 0.4 0.7 0.9 0.3 0.5 0.9 0.3 0.1 0.4 0.2 0.2 0.7 0.3 0.9 0.7 0.7 0.1 0.4 0.2 0.4 0.1 0.9 0.9 0.5 0.9 0.5 0.1 0.3 0.3 0.2 0.3 0.3 0.7 0.7 0.5 0.6

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-9
SLIDE 9

Instance of MAE

  • Each cell has a reward pair (a).
  • Observations are local (b).
  • Agent can observe the 13 cells around it.
  • Effect of an action uncertain (c).

6 (b) (a) (c)

0.025 0.025 0.025 0.9 0.025

0.3 0.4 0.1 0.1 0.2 0.8 0.9 0.4 0.5 0.5 0.3 0.4 0.1 0.2 0.4 0.7 0.9 0.3 0.5 0.9 0.3 0.1 0.4 0.2 0.2 0.7 0.3 0.9 0.7 0.7 0.1 0.4 0.2 0.4 0.1 0.9 0.9 0.5 0.9 0.5 0.1 0.3 0.3 0.2 0.3 0.3 0.7 0.7 0.5 0.6

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-10
SLIDE 10

MAE Rewards

  • Agents move and collect utility.
  • Cells revert to default rewards

after they are visited.

d = (r1, r2) = (0.1, 0.2) d

7

  • Physical interaction between agents has some optimal level.
  • Above or below this level will reduce the reward.
  • We set this level at 2 agents, but other levels could be

used.

  • Thus each cell has a reward pair
  • denotes unilateral reward, bilateral reward.

r1 r2 (r1, r2), r1, r2 ∈ [0, 1]

0.2 0.3 0.1

A

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-11
SLIDE 11

MAE Rewards

  • Agents move and collect utility.
  • Cells revert to default rewards

after they are visited.

d = (r1, r2) = (0.1, 0.2) d

7

  • Physical interaction between agents has some optimal level.
  • Above or below this level will reduce the reward.
  • We set this level at 2 agents, but other levels could be

used.

  • Thus each cell has a reward pair
  • denotes unilateral reward, bilateral reward.

r1 r2 (r1, r2), r1, r2 ∈ [0, 1]

0.2 0.3 0.1

A

0.2 0.1 0.1

A

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-12
SLIDE 12

MAE Rewards

  • Agents move and collect utility.
  • Cells revert to default rewards

after they are visited.

d = (r1, r2) = (0.1, 0.2) d

7

  • Physical interaction between agents has some optimal level.
  • Above or below this level will reduce the reward.
  • We set this level at 2 agents, but other levels could be

used.

  • Thus each cell has a reward pair
  • denotes unilateral reward, bilateral reward.

r1 r2 (r1, r2), r1, r2 ∈ [0, 1]

0.2 0.3 0.1

A

0.2 0.1 0.1

A

0.1 0.1 0.1

A

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-13
SLIDE 13

Unilateral / Bilateral Rewards

8

A ➙ North B ➙ South A Reward = 0.3 B Reward = 0.3 Total = 0.6 A ➙ North B ➙ West A Reward = 0.7/2=0.35 B Reward = 0.7/2=0.35 Total = 0.7

Initial Unilateral Bilateral

0.3 0.7 0.3 0.7

A B

0.3 0.7 0.3 0.7

A B

0.3 0.7 0.3 0.7

A B

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-14
SLIDE 14

Unilateral / Bilateral Rewards

8

A ➙ North B ➙ South A Reward = 0.3 B Reward = 0.3 Total = 0.6 A ➙ North B ➙ West A Reward = 0.7/2=0.35 B Reward = 0.7/2=0.35 Total = 0.7

  • If 3 agents cooperate
  • Two receive bilateral reward
  • One receives default unilateral reward

Initial Unilateral Bilateral

0.3 0.7 0.3 0.7

A B

0.3 0.7 0.3 0.7

A B

0.3 0.7 0.3 0.7

A B

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-15
SLIDE 15

MAE (DEC-W-POMDP)

9

  • Instance of DEC-W-POMDP (NEXP-complete)
  • stochastic since effects uncertain.
  • Markovian since new state is conditionally

independent of the history given the current state and joint action of agents.

  • partially observable agents cannot perceive
  • ther agents neighbourhoods
  • w-weakly agents can perceive absolute location

and their own local neighbourhood.

  • For agents, and horizon , each agent needs to

evaluate = possible effects.

B C

524 6 2 6 × 1016

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-16
SLIDE 16

Outline

  • Introduction
  • What is Multiagent Expedition?
  • Collaborative Design Network
  • Graphical Model for Multiagent

Expedition

  • Recursive Model for Multiagent Expedition
  • Experimental Results & Discussion
  • Conclusion & Future Work

10

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-17
SLIDE 17

Collaborative Design Network (CDN) [Xiang, Chen and Havens, AAMAS 05]

  • A multiagent component-based design paradigm.
  • CDN gives optimal design based on preferences
  • f all agents.
  • Scales linearly with the addition of agents.
  • Efficient when the overall dependency structure

is sparse.

  • We use CDN in this work as a collaborative

decision network.

11

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-18
SLIDE 18

Design Network (DN)

  • is a DAG, where
  • the set of design nodes.
  • design decisions
  • the set of environmental nodes.
  • uncertainty over working environment of the product under

design

  • the set of performance nodes.
  • refers to objective measures of functionality of the design.
  • the set of utility nodes.
  • subjective measures dependent strictly on performance nodes.

12

G = (V, E) V = D ∪ T ∪ M ∪ U D T M U

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-19
SLIDE 19

DN Continued...

  • Syntactically each node is associated with a conditional

probability distribution.

  • Semantically, the nodes differ. E.g encodes a

design constraint.

  • The goal is to find a design which is

maximal.

13

d∗ EU(d∗) P(d|π(d))

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-20
SLIDE 20

Collaborative Design Network (CDN)

  • Collaborative design network extends multiply sectioned

Bayesian networks to multiagent decision making.

  • DAG domain structuring.
  • Hypertree agent organization.
  • Belief over private and shared variables.
  • Partial evaluation of partial design communicated over

small set of shared variables btw agents.

  • Design is globally optimal.
  • Local design at each agent remains private.

14

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-21
SLIDE 21

CDN for MAE

  • Each time-step an agent:
  • Utilizes a dynamic graphical model.
  • Updates domains for movement and

position nodes.

  • Updates utility distributions from locally
  • bserved rewards.
  • Communicates with other agents to find

globally optimal joint action.

15

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-22
SLIDE 22

Position Nodes

  • Encode probability of uncertain location

given agent movement .

mvx,i psx,1 = (0, 0) psx,1 = (1, 0) psx,1 = (−1, 0) psx,1 = (0, 1) psx,1 = (0, −1) north 0.025 0.025 0.025 0.9 0.025 south 0.025 0.025 0.025 0.025 0.9 east 0.025 0.9 0.025 0.025 0.025 west 0.025 0.025 0.9 0.025 0.025 halt 0.9 0.025 0.025 0.025 0.025

mvx,i psx,1

16

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-23
SLIDE 23

Utility Nodes

17

  • Y. Xiang and F. Hanshar

PGM ‘08

psx,1

A

psx,1

B

psx,1

C

P(rwABC,1 = y|psx,1

A , psx,1 B , psx,1 C )

(0,0) (0,0) (0,0) 0.4 (0,0) (0,0) (1,0) 0.2 (0,0) (0,0) (2,0) 0.1 . . . . . . (-2,-2) (-2,-2) (-2,0) (-2,-2) (-2,-2) (-2,-1) 0.3 (-2,-2) (-2,-2) (-2,-2) 1.0

slide-24
SLIDE 24

Applying CDN to MAE

  • Encode movements {N, S, E, W, H} in design

nodes.

  • Encode uncertain locations given agent movements

through performance nodes.

  • Encode reward in utility nodes.
  • Communicate EU over design nodes btw agents to

find maximal utility design which corresponds to the globally optimal joint plan.

18

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-25
SLIDE 25

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-26
SLIDE 26

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

Design

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-27
SLIDE 27

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

Design

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Performance

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-28
SLIDE 28

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

Design

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Performance

Utility

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-29
SLIDE 29

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

Design

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Performance

Utility

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-30
SLIDE 30

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

Design

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Performance

Utility

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-31
SLIDE 31

psA,1 psC,2 psC,2 mvB,2 mvB,1 mvB,1 mvB,2 mvB,1 mvB,2 psB,1 psB,2 psB,1 psB,2 rwAB,1 rwAB,2 rwBC,1 rwBC,2 psA,1 psA,2 psB,1 psB,2 rwBC,2 rwBC,1 rwAB,1 rwAB,2 A B C A B C Ψ mvA,1 mvA,2 psC,1 psC,1 psA,2 mvA,1 mvA,2 mvC,1 mvC,2 mvC,1 mvC,2

Graphical Model

Design

19

CDN of a 3 agent group (A,B,C) for expedition/planning, where is the hypertree.

Performance

Utility

Ψ

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-32
SLIDE 32

Outline

  • Introduction
  • What is Multiagent Expedition?
  • Collaborative Design Network
  • Graphical Model for Multiagent Expedition
  • Recursive Model for Multiagent Expedition
  • Experimental Results & Discussion
  • Conclusion & Future Work

20

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-33
SLIDE 33

Recursive Modeling Method (RMM) [Gmytrasiewicz et al. IEEE 98]

  • Loosely-coupled multiagent decision making

paradigm.

  • No explicit communication btw agents.
  • Matrix-based agent representation.
  • Agents model other agents in order to coordinate

actions.

  • Agents have probability distributions over other

agent’s models.

21

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-34
SLIDE 34

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-35
SLIDE 35

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-36
SLIDE 36

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-37
SLIDE 37

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-38
SLIDE 38

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-39
SLIDE 39

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-40
SLIDE 40

A1 A2 A3 Utility

0.5 {N, N} {N, S} {H, W} {H, H}

Actions

Payoff Matrix Representation

22

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-41
SLIDE 41

RMM for MAE

  • Observations are local to each agent in MAE.
  • How does RMM evaluate joint actions of

agents when some payoffs of other agents are unknown?

23

A

B

A’s Private Observations

Shared Observations B’s Private Observations

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-42
SLIDE 42

RMM for MAE cont.

  • Knowing the correct state that an agent is

in allows for successful planning.

  • Idea: Agents model other agents states in

the RMM tree.

  • A state categorizes a neighbourhood payoff.
  • Based on past observations of agent

actions, update belief on the state of neighbouring agents.

24

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-43
SLIDE 43

Recursive Model Structure

A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.70 (N,N) (N,S) (N,N) 0.70 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72

P(nbpB

A = allLow, nbpB C = ¬allLow)

P(nbpB

A = ¬allLow, nbpB C = allLow)

P(nbpB

A = allLow, nbpB C = allLow)

P(nbpB

A = ¬allLow, nbpB C = ¬allLow)

25

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-44
SLIDE 44

Recursive Model Structure

A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.70 (N,N) (N,S) (N,N) 0.70 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72

P(nbpB

A = allLow, nbpB C = ¬allLow)

P(nbpB

A = ¬allLow, nbpB C = allLow)

P(nbpB

A = allLow, nbpB C = allLow)

P(nbpB

A = ¬allLow, nbpB C = ¬allLow)

25

Payoff Matrix

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-45
SLIDE 45

Recursive Model Structure

A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.70 (N,N) (N,S) (N,N) 0.70 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72

P(nbpB

A = allLow, nbpB C = ¬allLow)

P(nbpB

A = ¬allLow, nbpB C = allLow)

P(nbpB

A = allLow, nbpB C = allLow)

P(nbpB

A = ¬allLow, nbpB C = ¬allLow)

25

Payoff Matrix models for missing observations

2n

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-46
SLIDE 46

Recursive Model Structure

A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.50 (N,N) (N,S) (N,N) 0.50 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.40 (N,N) (N,S) (N,N) 0.40 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72 A B C u (N,N) (N,N) (N,N) 0.85 (N,N) (N,N) (N,S) 0.70 (N,N) (N,S) (N,N) 0.70 . . . . . . (H,H) (H,H) (H,E) 0.30 (H,H) (H,H) (H,W) 0.41 (H,H) (H,H) (H,H) 0.72

P(nbpB

A = allLow, nbpB C = ¬allLow)

P(nbpB

A = ¬allLow, nbpB C = allLow)

P(nbpB

A = allLow, nbpB C = allLow)

P(nbpB

A = ¬allLow, nbpB C = ¬allLow)

25

Payoff Matrix models for missing observations

2n

Model probabilities

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-47
SLIDE 47

RMM Update Issues

Need to compute: Can compute: (1) (2)

  • Specifying joint probabilities is difficult in RMM.
  • More difficult as the number of agents increases.
  • Each joint probability distribution is larger.
  • Number of distributions is exponential .
  • Strong independence assumptions are needed to

equate (1) & (2).

26

mn

  • Y. Xiang and F. Hanshar

PGM ‘08

P(areaA|moveA) · P(area|moveC) P(areaA, areaC|moveA, moveC)

slide-48
SLIDE 48

Outline

  • Introduction
  • What is Multiagent Expedition?
  • Collaborative Design Network
  • Graphical Model for Multiagent Expedition
  • Recursive Model for Multiagent Expedition
  • Experimental Results & Discussion
  • Conclusion & Future Work

27

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-49
SLIDE 49

Agent teams

  • CDN
  • Agents communicate over agent interfaces
  • RMM (No communication)
  • Agents update belief about state of other

agents

  • Greedy (No communication)
  • GRDU: agent maximizes unilateral utility
  • GRDB: agent maximizes bilateral + unilateral utility

28

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-50
SLIDE 50

Experimental Instances

29

(b) (a)

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-51
SLIDE 51

Experimental Instances

29

Dense

(b) (a)

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-52
SLIDE 52

Experimental Instances

29

Dense Path

(b) (a)

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-53
SLIDE 53

Experimental Results

30

Reward collected

  • 30 runs for RMM,CDN,GRDU & GRDB
  • 40 time-steps per run

Table 1: Experimental results. Highest means bolded.

Barren Dense Path µ σ µ σ µ σ CDN 55.84 4.21 25.14 3.27 20.41 3.39 GRDU 48.56 0.56 12.32 0.20 12.20 0.15 GRDB 48.64 0.62 18.57 1.10 16.80 2.39 RMM 50.35 5.95 18.50 3.39 18.71 2.79

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-54
SLIDE 54

Experimental Results

30

Reward collected

  • 30 runs for RMM,CDN,GRDU & GRDB
  • 40 time-steps per run

Table 1: Experimental results. Highest means bolded.

Barren Dense Path µ σ µ σ µ σ CDN 55.84 4.21 25.14 3.27 20.41 3.39 GRDU 48.56 0.56 12.32 0.20 12.20 0.15 GRDB 48.64 0.62 18.57 1.10 16.80 2.39 RMM 50.35 5.95 18.50 3.39 18.71 2.79

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-55
SLIDE 55

Experimental Results

30

Reward collected

  • 30 runs for RMM,CDN,GRDU & GRDB
  • 40 time-steps per run

Table 1: Experimental results. Highest means bolded.

Barren Dense Path µ σ µ σ µ σ CDN 55.84 4.21 25.14 3.27 20.41 3.39 GRDU 48.56 0.56 12.32 0.20 12.20 0.15 GRDB 48.64 0.62 18.57 1.10 16.80 2.39 RMM 50.35 5.95 18.50 3.39 18.71 2.79

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-56
SLIDE 56

Experimental Results

30

Reward collected

  • 30 runs for RMM,CDN,GRDU & GRDB
  • 40 time-steps per run

Table 1: Experimental results. Highest means bolded.

Barren Dense Path µ σ µ σ µ σ CDN 55.84 4.21 25.14 3.27 20.41 3.39 GRDU 48.56 0.56 12.32 0.20 12.20 0.15 GRDB 48.64 0.62 18.57 1.10 16.80 2.39 RMM 50.35 5.95 18.50 3.39 18.71 2.79

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-57
SLIDE 57

Significance Testing

Comparison between CDN and each other method.

31

Table 1: The t-test results. CDN GRDU GRDB RMMBU Barren √ 99.99 √ 99.99 √ 99.99 Dense √ 99.99 √ 99.99 √ 99.99 Path √ 99.99 √ 99.99 √ 96.20

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-58
SLIDE 58
  • CDN has higher mean reward collected on all instances

than RMM. Why?

  • RMM has no communication.
  • If multiple local optimal plans exist that involve bilateral

action:

  • No way for agents to agree which to take.
  • What about adopting a social convention?

Performance Discussion

32

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-59
SLIDE 59

Social Convention

  • A social convention defines, for each agent what

action to take when multiple optimal actions exist.

  • Lexicographic ordering as social convention:
  • Assume: u < b

33

(0, 0) (1, 0) (2, 0) (3, 0) (4, 0) (5, 0) (6, 0)

A B C u b, u b, u u S1 : S2 : A B C u b, u b, u

b + u 2

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-60
SLIDE 60

Discussion / Conclusion

  • Work motivated by lack of comparative LCF - TCF research
  • Setup level
  • The agent organization is easier to set-up in LCF.
  • TCF more involved.
  • Modeling level
  • RMM and LCFs are limited by the need to model agent interactions

without sufficient information.

  • In TCF we design agent interfaces such that the agent sub-domains are

rendered conditionally independent to take advantage of communication.

  • RMM uses an exponentially complex matrix-based representation. A

MAID could be adopted, but the above limitation stands.

34

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-61
SLIDE 61

Discussion / Conclusion

  • Decision-making level
  • RMM and LCFs must guess about the states of other

agents based on observation.

  • RMM may misjudge states and may misjudge when

multiple optimal joint plans exist.

  • Social convention cannot alleviate this difficulty.
  • In TCFs conditional independence rendering interfaces

convey sufficient states and decisions and lead to better coordination.

35

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-62
SLIDE 62

Discussion / Conclusions

  • Generality
  • Both RMM and CDN are decision-theoretic.
  • The difference lies in the agent coupling, and promises

that our empirical results can generalize to other domains.

36

  • Y. Xiang and F. Hanshar

PGM ‘08

slide-63
SLIDE 63

Thanks for listening.

37

slide-64
SLIDE 64

References

  • [Pollock90] M. Pollock and M. Ringuette. Introducing the tileworld: experimentally evaluating agent architectures. In
  • T. Dietterich and W. Swartout, editors, Proc. of the 8th National Conf. on Artificial Intelligence, pages 183–189,

Menlo Park, CA, 1990. AAAI Press.

  • [Noh98] S. Noh and P. J. Gmytrasiewicz. Coordination and belief update in a distributed anti-air environment. In

Proceedings of the 31st Hawaii International Conference on System Sciences, volume 5, pages 142–151, Los Alamitos, CA, January 1998. IEEE Computer Society.

  • [Bern02] The Complexity of Decentralized Control of Markov Decision Processes. D.S. Bernstein, R. Givan, N.

Immerman, and S. Zilberstein. Mathematics of Operations Research, 27(4):819-840, 2002.

  • [Blythe99] Decision-Theoretic Planning, Jim Blythe, AI Magazine, Summer 1999.
  • [Lee02] A Multi-agent Q-learning Framework for Optimizing Stock Trading Systems, Jae Won Lee, Jangmin O,

Database and Expert Systems Applications : 13th International Conference, DEXA 2002 Aix-en-Provence, France, September 2-6, 2002. Proceedings, Lecture Notes in Computer Science, 2002.

  • [Bexker04] R. Becker, S. Zilberstein, V. Lesser, and C. V. Goldman. Solving transition independent decentralized

markov decision processes, Journal of Artificial Intelligence Research, 22:423-455, 2004.

  • [Xiang04] A Decision-Theoretic Graphical Model for Collaborative Design on Supply Chains, Y. Xiang, J. Chen, and
  • A. Deshmukh. Canadian AI 2004, LNAI 3060, pp. 355-369, 2004.
  • [Thrun05] S. Thrun, W. Burgard, and D. Fox. Probabilistic Robotics. MIT Press, 2005.
  • [Xiang05] Optimal Design in Collaborative Design Network, Y. Xiang, J. Chen and W.S. Havens, Fourth International

Joint Conference on Autonomous Agents and Multiagent Systems, July 2005.

38

  • Y. Xiang and F. Hanshar

PGM ‘08
