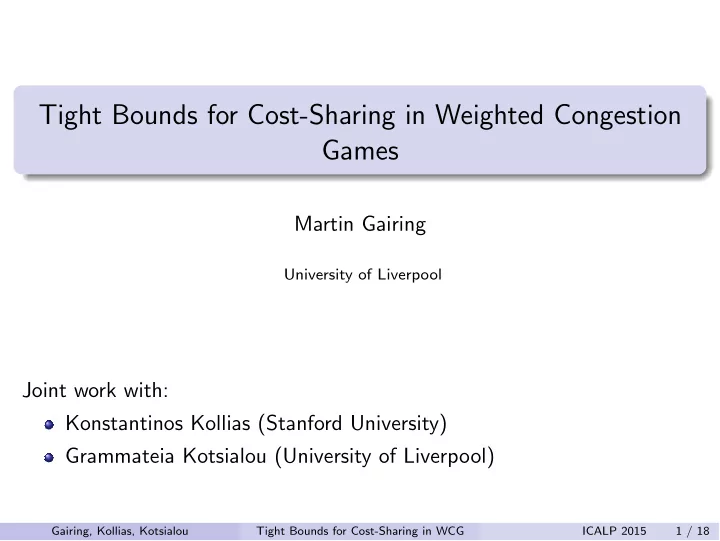

Tight Bounds for Cost-Sharing in Weighted Congestion Games

Martin Gairing

University of Liverpool

Joint work with: Konstantinos Kollias (Stanford University) Grammateia Kotsialou (University of Liverpool)

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 1 / 18

Weighted Congestion Games

Setting: Players with asymmetric demands (weights) compete for resources Each one selects which resources she will use A joint cost Ce(x) = x · ce(x) is induced on resource e (x = total users weight) The joint cost is paid for by the users of e Players try to minimize their individual costs Applications: Scheduling Network design Selfish routing

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 2 / 18

Example: A Routing Game

3 t s 16 · x x3 → 64

1

Players: The two s-t flows with weights 1 and 3 Resources: The two edges with cost functions x3 and 16 · x Joint cost on top edge is 64. How is it shared between red and blue?

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 3 / 18

Cost-Sharing and Equilibria

Cost-Sharing Method: Input: Weights of edge users and a cost function Output: Cost shares for the users Interpretation in Delay Settings: Flows of packets with Poisson rates equal to players’ weights Cost functions are M/M/1 aggregate queueing delays Messing around with packets in the queue changes the aggregate delays of individual players but not the overall aggregate delay Pure Nash Equilibrium (PNE): Focus on each i, fix the paths of others We have a PNE if every i is already using her best path

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 4 / 18

Proportional Sharing

Informal Definition (Proportional Sharing)

α fraction of the total weight → α fraction of the cost

3 t s 16 · x x3 → 16 + 48

1

This is a PNE

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 5 / 18

Proportional Sharing

Informal Definition (Proportional Sharing)

α fraction of the total weight → α fraction of the cost

16 · x → 16 + 48 t s

1

3 x3

This is not a PNE, both want to deviate

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 6 / 18

Proportional Sharing

Informal Definition (Proportional Sharing)

α fraction of the total weight → α fraction of the cost

16 · x → 48 t s

1

3 x3 → 1

This is a PNE

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 7 / 18

Proportional Sharing

Informal Definition (Proportional Sharing)

α fraction of the total weight → α fraction of the cost

16 · x → 16 t s

1

3 x3 → 27

Optimal paths (also a PNE)

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 8 / 18

Shapley Value

Informal Definition (Shapley Value)

The cost share of a player is the average joint cost jump she causes over all possible orderings.

3 t s 16 · x x3 → 64

1

Order: 1 3 c0(x) 1 2 3 4 x 1 63 Order: 1 3 c0(x) 1 2 3 4 x 37 27

Resulting cost shares for x3 are 19 and 45

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 9 / 18

Weighted Shapley Value

Informal Definition (Weighted Shapley Value)

Shapley Value with distribution over orderings. Players have sampling weights and the last one is repeatedly drawn from the remaining set.

3 t s 16 · x x3 → 64

1

Order: 1 3 c0(x) 1 2 3 4 x 1 63 Order: 1 3 c0(x) 1 2 3 4 x 37 27

Suppose sampling weights = weights. Cost shares become 7.5 and 56.5

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 10 / 18

Price of Anarchy and Price of Stability

Price of Anarchy (PoA)

PoA(Ξ,C) = worst case total cost in equilibrium

• ptimal total cost

Price of Stability (PoS)

PoS(Ξ,C) = best case total cost in equilibrium

• ptimal total cost

with Ξ = cost-sharing method, C = set of allowable cost functions

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 11 / 18

Price of Anarchy and Price of Stability

Price of Anarchy (PoA)

PoA(Ξ,C) = worst case total cost in equilibrium

• ptimal total cost

Price of Stability (PoS)

PoS(Ξ,C) = best case total cost in equilibrium

• ptimal total cost

with Ξ = cost-sharing method, C = set of allowable cost functions Thought process:

1 The application gives us C 2 We decide on a cost-sharing method Ξ 3 How bad is the worst cast and best case equilibrium outcome? I for the worst-case network (given Ξ, C) Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 11 / 18

What We Know

Proportional Sharing: PoA

I polynomial costs: PoA = Θ(d/ ln d)d+1

[Awerbuch et al.’05, Christodoulou & Koutsoupias’05, Aland et al.’06]

I Recipe for general C.

[Roughgarden’09, Bhawalkar et al.’10]

unweighted: d ≤ PoS ≤ d + 1

[Christodoulou & Koutsoupias’05, Caragiannis et al.’06, Christodoulou & Gairing’13]

There are games with no PNE

[Libman & Orda’01, Fotakis et al.’04, Goemans et al.’05]

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 12 / 18

What We Know

Proportional Sharing: PoA

I polynomial costs: PoA = Θ(d/ ln d)d+1

[Awerbuch et al.’05, Christodoulou & Koutsoupias’05, Aland et al.’06]

I Recipe for general C.

[Roughgarden’09, Bhawalkar et al.’10]

unweighted: d ≤ PoS ≤ d + 1

[Christodoulou & Koutsoupias’05, Caragiannis et al.’06, Christodoulou & Gairing’13]

There are games with no PNE

[Libman & Orda’01, Fotakis et al.’04, Goemans et al.’05]

Weighted Shapley Values: PoA

[Kollias & Roughgarden’11, Gkatzelis et al.’14]

Existence of PNE only guaranteed by weighted Shapley values

[Gopalakrishnan et al.’13]

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 12 / 18

Our Results: PoA

Assumptions:

1 Convexity: Every cost function c ∈ C is continuous, nondecreasing,

and convex.

2 Closure under dilation: If c(x) ∈ C → c(ax) ∈ C. 3 Consistency: Cost shares depend only on how players contribute to

the joined cost.

4 Fairness: The cost share of a player on a resource is a convex

function of her weight.

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 13 / 18

Our Results: PoA

Assumptions:

1 Convexity: Every cost function c ∈ C is continuous, nondecreasing,

and convex.

2 Closure under dilation: If c(x) ∈ C → c(ax) ∈ C. 3 Consistency: Cost shares depend only on how players contribute to

the joined cost.

4 Fairness: The cost share of a player on a resource is a convex

function of her weight.

Main result 1: General PoA bounds

A recipe for computing the PoA given:

I the set of allowable cost functions, and I the cost sharing method.

Matching upper and lower bounds.

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 13 / 18

Recipe (sketch) for PoA

Smoothness argument: P is NE; P ∗ is optimum C(P) = X

i∈N

X

e∈Pi

ξce(i, Se(P))

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 14 / 18

Recipe (sketch) for PoA

Smoothness argument: P is NE; P ∗ is optimum C(P) = X

i∈N

X

e∈Pi

ξce(i, Se(P)) ≤ X

i∈N

X

e∈P ⇤

i

ξce(i, Se(P) ∪ {i})

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 14 / 18

Recipe (sketch) for PoA

Smoothness argument: P is NE; P ∗ is optimum C(P) = X

i∈N

X

e∈Pi

ξce(i, Se(P)) ≤ X

i∈N

X

e∈P ⇤

i

ξce(i, Se(P) ∪ {i}) = X

e∈E

X

i∈Se(P ⇤)

ξce(i, Se(P) ∪ {i})

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 14 / 18

Recipe (sketch) for PoA

Smoothness argument: P is NE; P ∗ is optimum C(P) = X

i∈N

X

e∈Pi

ξce(i, Se(P)) ≤ X

i∈N

X

e∈P ⇤

i

ξce(i, Se(P) ∪ {i}) = X

e∈E

X

i∈Se(P ⇤)

ξce(i, Se(P) ∪ {i}) ≤ λ · C(P ∗) + µ · C(P)

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 14 / 18

Recipe (sketch) for PoA

Smoothness argument: P is NE; P ∗ is optimum C(P) = X

i∈N

X

e∈Pi

ξce(i, Se(P)) ≤ X

i∈N

X

e∈P ⇤

i

ξce(i, Se(P) ∪ {i}) = X

e∈E

X

i∈Se(P ⇤)

ξce(i, Se(P) ∪ {i}) ≤ λ · C(P ∗) + µ · C(P)

Convex Program

min λ 1 − µ s.t. µ ≤ 1 X

i∈T ⇤

ξc(i, T ∪ {i}) ≤ λ · wT ⇤ · c(wT ⇤) + µ · wT · c(wT ), ∀c, T, T ∗

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 14 / 18

Recipe (sketch) for PoA

Smoothness argument: P is NE; P ∗ is optimum C(P) = X

i∈N

X

e∈Pi

ξce(i, Se(P)) ≤ X

i∈N

X

e∈P ⇤

i

ξce(i, Se(P) ∪ {i}) = X

e∈E

X

i∈Se(P ⇤)

ξce(i, Se(P) ∪ {i}) ≤ λ · C(P ∗) + µ · C(P)

Convex Program

min λ 1 − µ s.t. µ ≤ 1 X

i∈T ⇤

ξc(i, T ∪ {i}) ≤ λ · wT ⇤ · c(wT ⇤) + µ · wT · c(wT ), ∀c, T, T ∗ Primal solution ⇒ upper bound Lagrangian Dual solution ⇒ construction of matching lower bound

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 14 / 18

Our Results: PoS

Class of weighted shapley values; sampling parameter: λi = wγ

i

Only class of cost sharing method that

I is consistent and I guarantees existence of pure NE. Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 15 / 18

Our Results: PoS

Class of weighted shapley values; sampling parameter: λi = wγ

i

Only class of cost sharing method that

I is consistent and I guarantees existence of pure NE.

Upper bound for γ = 0 (Shapley cost sharing)

For arbitrary C, we have PoS ≤ maxc∈C,x>0

x·c(x) R x

0 c(x0)dx0 .

x

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 15 / 18

Our Results: PoS

Class of weighted shapley values; sampling parameter: λi = wγ

i

Only class of cost sharing method that

I is consistent and I guarantees existence of pure NE.

Upper bound for γ = 0 (Shapley cost sharing)

For arbitrary C, we have PoS ≤ maxc∈C,x>0

x·c(x) R x

0 c(x0)dx0 .

x

Corollary: polynomials with non-negative coefficients and degree at most d PoS ≤ d + 1 asymptotically matches lower bound for unweighted congestion games with proportional sharing

[Christodoulou, Gairing’13]

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 15 / 18

Our Results: PoS

polynomials with non-negative coefficients and degree at most d sampling parameters: λi = wγ

i

Theorem

PoS is at least (a) (2

1 d+1 − 1)−(d+1), for all γ > 0, and

(b) (d + 1)d+1, for all γ < 0.

γ

(2

1 d+1 1)−(d+1)

(d + 1)d+1 d + 1

PoS

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 16 / 18

Our Results: PoS

polynomials with non-negative coefficients and degree at most d sampling parameters: λi = wγ

i

Theorem

PoS is at least (a) (2

1 d+1 − 1)−(d+1), for all γ > 0, and

(b) (d + 1)d+1, for all γ < 0.

γ

(2

1 d+1 1)−(d+1)

(d + 1)d+1 d + 1

PoS PoA Gkatzelis et al.’14

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 16 / 18

Sketch: PoA ≤ maxc∈C,x>0

x·c(x) R x

0 c(x0)dx0

potential function (arbitrary ordering)

[Kollias & Roughgarden’11]

Φ(P) = X

e∈E

Φe(P) = X

e∈E

X

i∈Se(P)

ξce(i, {j : j ≤ i, j ∈ Se(P)}) Key point:

I Split player i into two players of weight wi/2. I We show that this can only reduce the potential. Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 17 / 18

Sketch: PoA ≤ maxc∈C,x>0

x·c(x) R x

0 c(x0)dx0

potential function (arbitrary ordering)

[Kollias & Roughgarden’11]

Φ(P) = X

e∈E

Φe(P) = X

e∈E

X

i∈Se(P)

ξce(i, {j : j ≤ i, j ∈ Se(P)}) Key point:

I Split player i into two players of weight wi/2. I We show that this can only reduce the potential.

We get Φ(P) ≥ X

e∈E

Z fe(P) ce(x)dx ≥ min

e∈E

R fe(P) ce(x)dx fe(P) · ce(fe(P)) · C(P) Combining this with C(P ∗) ≥ Φ(P ∗) ≥ Φ(P) gives the result.

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 17 / 18

Conclusion

Take home point

General tight PoA bounds based on

I set of allowed cost functions I cost sharing method

Shapley cost sharing minimises PoS

I under all cost sharing methods that guarantee pure NE I weight dependent priorities make PoS as bad as PoA Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 18 / 18

Conclusion

Take home point

General tight PoA bounds based on

I set of allowed cost functions I cost sharing method

Shapley cost sharing minimises PoS

I under all cost sharing methods that guarantee pure NE I weight dependent priorities make PoS as bad as PoA

Some open problems: further relax the assumptions does symmetry change things PoS bounds without using potential function Games where weighted Shapley beats Shapley?

Gairing, Kollias, Kotsialou Tight Bounds for Cost-Sharing in WCG ICALP 2015 18 / 18

Conclusion

Take home point

General tight PoA bounds based on

I set of allowed cost functions I cost sharing method

Shapley cost sharing minimises PoS

I under all cost sharing methods that guarantee pure NE I weight dependent priorities make PoS as bad as PoA

Some open problems: further relax the assumptions does symmetry change things PoS bounds without using potential function Games where weighted Shapley beats Shapley? Thanks! Are there any questions?
