The Interoperable Message Passing Interface (IMPI) Extensions to LAM/MPI Jeffrey M. Squyres, Andrew Lumsdaine Department of Computer Science and Engineering University of Notre Dame William L. George, John G. Hagedorn, Judith E. Devaney

slide-1
SLIDE 1

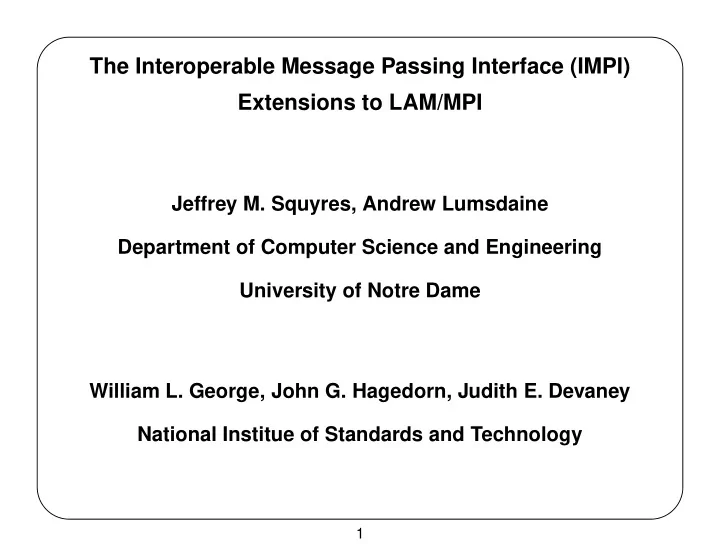

The Interoperable Message Passing Interface (IMPI) Extensions to LAM/MPI

Jeffrey M. Squyres, Andrew Lumsdaine Department of Computer Science and Engineering University of Notre Dame William L. George, John G. Hagedorn, Judith E. Devaney National Institue of Standards and Technology

1

slide-2
SLIDE 2

Overview

  • Introduction
  • IMPI Overview
  • LAM/MPI Overview
  • IMPI Implementation in LAM/MPI
  • Results
  • Conclusions / Future Work

2

slide-3
SLIDE 3

Introduction to IMPI

  • Many high quality implementations of MPI are available

– Both freeware and commercial – Freeware implementations tend to concentrate on portability and heterogeneity – Commercial implementations focus on tuning latency and bandwidth

  • Allows for a high degree of portability between parallel systems

3

slide-4
SLIDE 4

The Problem

  • Each implementation of MPI is unique

– Underlying assumptions and abstractions are different – Messaging protocols are custom-written for hardware

  • Different MPI implementations cannot interoperate

– Cannot run a parallel job on multiple machines while utilizing each vendor’s highly-tuned MPI

4

slide-5
SLIDE 5

A Solution

  • The IMPI Steering Committee was formed to address these

issues

  • The Committee consisted of vendors who already had

high-performance MPI implementations

  • Main idea: propose a small set of protocols for starting a

multi-implementation MPI job, passing user messages between the implementations, and shutting the job down

  • Proposed standard: http://impi.nist.gov/IMPI/

5

slide-6
SLIDE 6

LAM’s Role in IMPI

  • The LAM/MPI Team was asked to join as a non-voting member
  • Continues a history of providing a freeware “proof of concept”

implementation of proposed standards

  • LAM/MPI Team provided both a first implementation of the IMPI

protocol, but also an MPI-independent implementation of the IMPI server (described shortly)

6

slide-7
SLIDE 7

Related Work

  • PVMPI / MPI Connect: University of Tennessee

– Use PVM as a bridge between multiple MPI implementations

  • Unify: Eng. Research Center / Mississippi State University

– Allows both PVM and MPI in a single program

  • Problems with previous approaches

– Use of non-MPI functions – Subset of MPI-1 (e.g., no INTERCOMM MERGE) – Incomplete MPI COMM WORLD

7

slide-8
SLIDE 8

Overview

  • Introduction
  • IMPI Overview
  • LAM/MPI Overview
  • IMPI Implementation in LAM/MPI
  • Results
  • Conclusions / Future Work

8

slide-9
SLIDE 9

IMPI Goals

  • User goals

– Same MPI-1 interface and functionality; any MPI-1 program should function correctly under IMPI. – Provide a “complete” MPI COMM WORLD

  • Implementation goals

– Standard way to start and finish multiple MPI jobs – Common data passing protocols between implementations – Distributed algorithms for collectives

9

slide-10
SLIDE 10

Complete MPI COMM WORLD

MPI Implementation B

MPI_COMM_WORLD

Rank 6 Rank 8 Rank 7 Rank 9 Rank 1 Rank 3 Rank 5 Rank 4 Rank 2 MPI Implementation A Rank 0

10

slide-11
SLIDE 11

Terminology

  • Four main IMPI entities

– Server: Rendezvous point for starting jobs – Client: One client per MPI implementation; connects to server to exchange startup/shutdown data – Host: Subset of MPI ranks within an implementation – Proc: Individual rank in MPI COMM WORLD

11

slide-12
SLIDE 12

The Big Picture

Host 0 Host 1 Host 0 Server Proc 0 Proc 1 Proc 3 Proc 2 Proc 0 Proc 1 Proc 0 Proc 1 Proc 3 Proc 2 Client 0 Client 1

12

slide-13
SLIDE 13

Startup Protocol

  • A two step process used to launch IMPI jobs:
  • 1. Launch the server
  • 2. Launch the individual MPI jobs
  • The clients connect to the server and send startup information
  • Server collates all information and re-broadcasts to all clients
  • Clients use this data to form a complete MPI COMM WORLD

13

slide-14
SLIDE 14

Connecting Hosts

  • After the clients have received the server data, hosts make a

fully-connected mesh of TCP/IP sockets

  • User data will travel across these sockets (e.g., MPI SEND)

Host MPI implementation A MPI implementation B Host proc proc Dest Source

14

slide-15
SLIDE 15

Data Transfer Protocol

  • Only messages between implementations are regulated in IMPI
  • Messages within a single implementation are not standardized
  • User data is passed between procs on different

implementations via hosts – This causes a potential communication bottleneck – But IMPI communication is expected to be slow anyway – Note that a single implementation may have multiple hosts; those messages are not regulated

15

slide-16
SLIDE 16

Message Packetization

  • Messages between hosts are packetized
  • Several values are negotiated during startup

– maxdatalen: Maximum length of payload in IMPI packets – ackmark: Between each host pair, an ACK must be sent for every ackmark received packets – hiwater: Messages can continue to be sent until hiwater packets have not been acknowledged

ackmark hiwater messages number of stop sending send ACK

16

slide-17
SLIDE 17

Data Protocols

  • Short message protocol

– Non-synchronous messages ≤ maxdatalen bytes are sent eagerly in one packet

  • Long message protocol

– Messages > maxdatalen bytes are fragmented into packets of maxdatalen bytes – The first packet is sent eagerly (like short messages) – The receiver will send an ACK when it has allocated resources to receive the rest of the message

17

slide-18
SLIDE 18

Synchronous Messages

  • MPI SSEND: Returns when message has begun to be received

– Always uses the long message protocol – Can use the ACK in the long protocol

MPI_SSEND return MPI_RECV Message ACK

18

slide-19
SLIDE 19

Collective Algorithms

  • IMPI implementations must share common collective

algorithms so that they know their role in the larger computation

  • Affects both data-passing collectives (e.g., MPI BCAST) and

communicator constructor / destructors (e.g., MPI COMM SPLIT)

  • Pseudocode for all MPI collectives are in the IMPI standard

– Utilizes very low cross-implementation communication – Usually has “local” and “global” phases

19

slide-20
SLIDE 20

MPI BARRIER Collective Algorithm

  • Global

Barrier Implementation D Implementation C Implementation B Implementation A 15 12 13 14 10 8 9 5 4 7 6 3 11 1 2 Barrier Local Barrier Local Barrier Local Barrier Local

20

slide-21
SLIDE 21

NIST Conformance Tester

  • NIST has implemented a Java applet to test IMPI

implementations – Emulates IMPI server, clients, hosts, and procs – C source code provided to compile / link against the IMPI implementation being tested – Run the resulting program, link up to the Java applet – A series of tests can be run from the Java client

  • Available on the NIST IMPI web site

21

slide-22
SLIDE 22

Shutdown Protocol

proc host client server shutdown message shutdown message shutdown message

  • As each proc enters MPI FINALIZE, it sends a message to its

host indicating that it is finished

  • When a host gets finalize messages from all of its procs, it

sends a message to its client

  • Similarly, the client sends a message to the server when its

hosts are finished

  • The server quits when it receives a message from each client

22

slide-23
SLIDE 23

Overview

  • Introduction
  • IMPI Overview
  • LAM/MPI Overview
  • IMPI Implementation in LAM/MPI
  • Results
  • Conclusions / Future Work

23

slide-24
SLIDE 24

LAM/MPI Overview

  • Multiple original LAM developers were on the IMPI Steering

Committee; the design of IMPI is similar to that of LAM/MPI

  • Originally written at OSC as part of the Trollius project, now

developed and maintained at Notre Dame – Full MPI-1.2 implementation, much of MPI-2 – Multi-protocol shared memory / network protocols – Persistent daemon-based run-time environment, used for process control and out-of-band messaging of meta data

24

slide-25
SLIDE 25

Code Structure

  • Divided into three main parts: MPI layer, Request Progression

Interface (RPI), and the Trollius core

User code RPI Trollius Operating system MPI Layer

25

slide-26
SLIDE 26

Code Structure

  • MPI Layer

– Every communication is a request (i.e., MPI Request) – Creates and maintains communication queues of requests – e.g, MPI SEND generates a request and places it on the appropriate queue

  • Trollius Core

– Provides a backbone for most services, including the LAM daemons – Contains most of the “kitchen sink” functions for LAM/MPI

26

slide-27
SLIDE 27

Request Progression Interface (RPI)

  • Responsible for all aspects of communication; the RPI

progresses the queues created in the MPI layer

  • Rigidly defined layer – has a published API
  • Two classifications of RPIs: lamd and c2c

– lamd: Daemons based – slower, but more monitoring and debugging capabilities available – c2c: Client-to-client – faster, no extra hops

27

slide-28
SLIDE 28

lamd and c2c RPI Diagrams

LAM daemon LAM daemon A B Node n0 Node n1

Internet domain socket Unix domain sockets

LAM daemon LAM daemon A B Node n0 Node n1

Direct connection between ranks

28

slide-29
SLIDE 29

c2c RPIs

  • LAM currently includes three c2c RPIs:
  • 1. tcp: Uses internet domain sockets between all ranks
  • 2. sysv: Same as tcp, but uses shared memory to

communicate between ranks on the same node; SYSV semaphores used to lock memory

  • 3. usysv: Same as sysv, but spin locks used to lock memory

29

slide-30
SLIDE 30

Overview

  • Introduction
  • IMPI Overview
  • LAM/MPI Overview
  • IMPI Implementation in LAM/MPI
  • Results
  • Conclusions / Future Work

30

slide-31
SLIDE 31

Overall Goals

  • 1. The IMPI client and host will be implemented in a separate

daemon, (the impid)

  • 2. There will only be one impid per IMPI job; only one IMPI host

will be supported

  • 3. The impid must be transparent to the user; it will automatically

be started, die gracefully when the program finishes, and be able to be killed by the lamclean command on error

  • 4. The impid must be able to use any of the four existing RPIs

31

slide-32
SLIDE 32

How the impid Fits In

program User impid Node n0 LAM daemon program User LAM daemon Node n1

Connections to other IMPI hosts

32

slide-33
SLIDE 33

IMPI Job Startup

  • Start the IMPI server somewhere
  • mpirun -np 4 -client <server-ip> <server-rank> a.out
  • impid is an “almost MPI” process

– Is started via MPI COMM SPAWN during a.out’s MPI INIT – Invokes MPI INIT / MPI FINALIZE itself – Uses MPI calls for the majority of message passing between local LAM ranks – Receives <server-ip> and <server-rank> from mpirun

33

slide-34
SLIDE 34

The impid

  • Provides some degree of asynchronous communication since it

is a separate process – For example, MPI SEND to a remote proc can return long before the message is actually received – Can allow for overlap of communication / computation – Especially important over high latency links

  • Communicates with local LAM ranks using the current RPI
  • Allows for multiple simultaneous IMPI jobs within a single LAM

34

slide-35
SLIDE 35

impid Design

  • impid is split in half: one side communicates with the local LAM

ranks, the other side communicates with the other IMPI hosts

  • Could not use threads; spinning necessary

– Use blocking poll(2) system call to check for messages on host side, and MPI TESTANY to check for completion on local LAM side – Cannot block while communicating; persistent / non-blocking modes used to communicate with local LAM ranks

  • Host side must obey flow control rules

35

slide-36
SLIDE 36

impid Design (continued)

  • Messages that enter one side generally exit the other
  • Queuing system used on host side because of long message

protocol and flow control

side side Local LAM IMPI host impid Connections to local LAM ranks Connections to IMPI hosts Incoming message Outgoing queue

36

slide-37
SLIDE 37

General Operation

  • Sending messages

– If a message is destined for a proc on a remote host, its request is re-routed in the MPI layer to the impid – The impid then sends the message to the remote host according to the long / short protocols

  • Receiving messages

– Similarly, if receiving from a remote proc, MPI layer redirects the request to receive from the impid – Complications arise for synchronous mode sends

37

slide-38
SLIDE 38

Shadow Requests

  • No way for MPI RECV to know if incoming message will be

synchronous before message is received; must send ACK if so – Post two receives; second receive is a “shadow”

impid request request shadow receive ACK Message ping Message ACK

  • If message was not synchronous, shadow receive is canceled

after message is received

38

slide-39
SLIDE 39

Synchronous Sends

  • Similarly, synchronous sends must post a shadow receive

impid ssend request shadow request Message Message ACK ACK

  • Shadow requests are new for IMPI – added significant

complexity in MPI WAIT and MPI TEST

39

slide-40
SLIDE 40

Example: Sending a Long Message

  • side

LAM side IMPI side IMPI side LAM side LAM side IMPI side IMPI side LAM side LAM side IMPI side IMPI side LAM

  • 4

5 1 2 3 Source Destination Ack

  • nly

Sync mode (6) 7 8 Ack

  • Ack

40

slide-41
SLIDE 41

Limitations of Implementation

  • Except for MPI BARRIER, no MPI collectives implemented

– Data-passing collectives not hard to implement – Communicator constructor / destructor collectives will probably require a redesign

  • MPI CANCEL is not implemented for sends of messages

41

slide-42
SLIDE 42

Overview

  • Introduction
  • IMPI Overview
  • LAM/MPI Overview
  • IMPI Implementation in LAM/MPI
  • Results
  • Conclusions / Future Work

42

slide-43
SLIDE 43

Experimental Setup

  • Two unloaded 400Mhz Pentium-II machines, Linux 2.2.12

– One located at Notre Dame (Indiana, USA) – Other located at Lawrence Berkeley Labs (California, USA)

  • Each on local 100Mbps switched networks
  • Aggregate bandwidth at time of test was 2.3Mbps
  • Standard ping-pong test (messages of 100 bytes to 1Mbyte)

– Test one: two LAMs connected via IMPI – Test two: one LAM spanning both machines

43

slide-44
SLIDE 44

Round Trip Times (ms) vs. Message Size

Green: times for IMPI (2 LAMs) Blue: times for one LAM

10

3

10

4

10

5

10

1

10

2

10

3

Size of message (bytes) Round trip time (ms)

44

slide-45
SLIDE 45

Is This Bad?

  • It’s not good, but it’s not bad
  • IMPI communication is supposed to be slow (by design)
  • The value is that it works and is not horrendous

– Can connect highly tuned MPI implementations – Well written MPI codes can utilize high-latency links properly, and overlap communication and computation – Need at least one vendor-tuned IMPI to see true benefits

45

slide-46
SLIDE 46

Overview

  • Introduction
  • IMPI Overview
  • LAM/MPI Overview
  • IMPI Implementation in LAM/MPI
  • Results
  • Conclusions / Future Work

46

slide-47
SLIDE 47

Conclusions

  • IMPI works
  • Now we need support for IMPI in other MPI implementations
  • Future work for LAM:

– Finish data-passing and constructor collectives – Optimize collectives over distributed links – Restructure LAM/MPI for generic multi-protocols – Thread support

http://www.mpi.nd.edu/lam/

47
