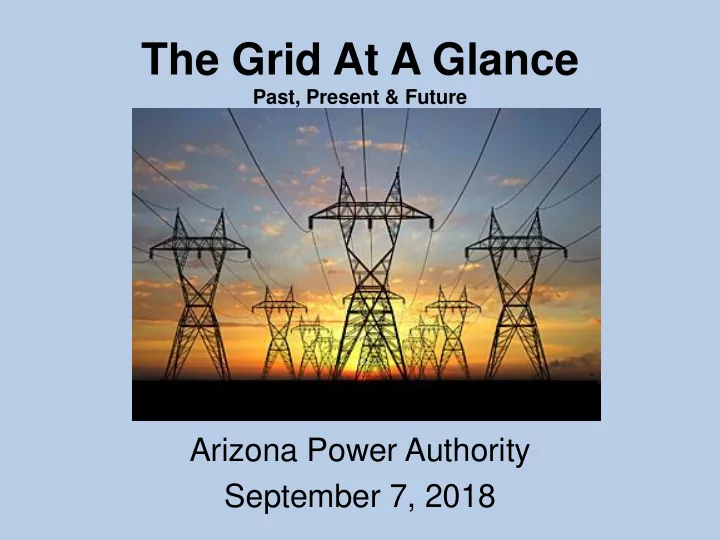

The Grid At A Glance Past, Present & Future Arizona Power Authority September 7, 2018 Personal Background Electric Industry Dave Slick Resource Planning Transmission Planning Career Supply & Trading SRP: 31 Years

slide-1
SLIDE 1

The Grid At A Glance

Past, Present & Future

Arizona Power Authority September 7, 2018

slide-2
SLIDE 2

Personal Background

Career SRP: 31 Years APS: 11 Years Bechtel: 2 Years

APA Transmission Presentation - 7 Sept 2018

2

Electric Industry

  • Resource Planning
  • Transmission Planning
  • Supply & Trading
  • Regulatory Affairs
  • Contract Management
  • Industry Organization Groups
  • Nuclear Project Development

Dave Slick

slide-3
SLIDE 3

Tony Seba Presentation

  • Stanford University Futurist
  • Clean Disruption of Energy & Transportation
  • April 9, 2018 presentation
  • Disruption Attributes:

– Significant cost decrease – Low utilization factors – Multiple drivers or technologies – Adoption rate very high

APA Transmission Presentation - 7 Sept 2018

3

slide-4
SLIDE 4

North American Electric Grid

APA Transmission Presentation - 7 Sept 2018

4

slide-5
SLIDE 5

Arizona EHV Transmission

APA Transmission Presentation - 7 Sept 2018

5 Phoenix Metro Area System Tucson Area Kyrene Pinnacle Peak Liberty Glen Canyon Navajo Four Corners Moenkopi Mead Cholla Vail South Saguaro McCullough El Dorado

Voltage 500 kV 345 kV Owners APS SRP TEP USBR SCE Jointly Owned

“Then”

San Juan Westwing

“Then” = 1975

slide-6
SLIDE 6

Arizona EHV Transmission

APA Transmission Presentation - 7 Sept 2018

6 Phoenix Metro Area System Tucson Area Kyrene Pinnacle Peak Westwing Liberty Browning Rudd Glen Canyon Navajo Four Corners Moenkopi Morgan Palo Verde Hassayampa Mead Cholla Coronado Springerville Vail South Saguaro Tortolita Pinal Central Pinal West Duke North Gila McCullough El Dorado Jojoba Gila River

Voltage 500 kV 345 kV Owners APS SRP TEP WAPA SCE Jointly Owned

“Now”

San Juan

slide-7
SLIDE 7

Perspectives in Viewing the Electric Utility Business

APA Transmission Presentation - 7 Sept 2018

7

  • Customer
  • Economic
  • Employee
  • Environmental
  • Financial
  • Legal
  • Regulatory
  • Reliability
  • Shareholder
  • Stakeholder
  • Technological Innovation
  • Other
slide-8
SLIDE 8

APA Transmission Presentation - 7 Sept 2018

8

Other Utilities Utility Owned Generation Utility Owned Transmission Distribution Retail Customer

Energy Business Framework

Vertically Integrated Utility

slide-9
SLIDE 9

APA Transmission Presentation - 7 Sept 2018

9

Merchant Generation Merchant Transmission Other Utilities Utility Owned Generation Utility Owned Transmission Distribution Retail Customer

Energy Business Transformation – 1

slide-10
SLIDE 10

APA Transmission Presentation - 7 Sept 2018

10

Merchant Generation Merchant Transmission Other Utilities Utility Owned Generation Utility Owned Transmission Distribution Retail Customer

Centralized Market Mechanisms (RTO, ISO, EIM)

Energy Business Transformation – 2

Customer Owned Generation

slide-11
SLIDE 11

Community Choice Aggregators

APA Transmission Presentation - 7 Sept 2018

11

Merchant Generation Merchant Transmission Other Utilities Utility Owned Generation Utility Owned Transmission Distribution Retail Customer

Centralized Market Mechanisms (RTO, ISO, EIM)

Generation Electric Consumption Micro Grids

Energy Business Transformation – 3

Customer Owned Generation Customer Owned Storage Community Choice Generation

slide-12
SLIDE 12

Federal Regulation

APA Transmission Presentation - 7 Sept 2018

12

Federal Energy Regulatory Commission Imposes mandatory reliability standards on the bulk transmission system

FERC NERC WECC Peak

North American Electric Reliability Corp Ensures the reliability of the North American bulk power system Western Electricity Coordinating Council Monitors and enforces compliance with mandatory reliability standards in the Western Interconnection Peak Reliability Provides reliability coordination service, tools and analysis in the Western Interconnection

slide-13
SLIDE 13

Regulated by FERC?

APA Transmission Presentation - 7 Sept 2018

13

Mostly Yes

Shareholders

Investor Owned Utilities Wind Developers Solar Developers Merchant Generators Merchant Transmission

Profit Non Profit

Public Power Utilities Consumer Owned Entities Rural Cooperatives Municipal Utilities Irrigation Districts Electrical Districts Joint Action Agencies Indian Tribes Federal Power Marketing Administrations BPA SEPA SWPA WAPA

Customers Customers Wholesale Power Customers

Mostly No

slide-14
SLIDE 14

State Regulation

APA Transmission Presentation - 7 Sept 2018

14

  • Arizona Corporation Commission (ACC)

– Transmission line siting (115 kV and above) – Generation siting (100 MW and above)

slide-15
SLIDE 15

Transmission Concepts

  • Ownership
  • Capability
  • Reservations / Rights
  • Schedule
  • Flow
  • Congestion
  • Pancaking
  • Losses

APA Transmission Presentation - 7 Sept 2018

15

slide-16
SLIDE 16

Ownership & Capability

APA Transmission Presentation - 7 Sept 2018

16

A B

Transmission Line Rating or Maximum Capability

  • May be referred to as Total Transfer Capability (TTC)
  • Established by transmission planning studies
  • May be subject to a WECC approval process
  • Continuous & emergency ratings are directional
  • Maximum capability rating may persist for years
  • Inside centralized markets: revisited more frequently / more seasonally

Line Rating or Maximum Capability: 1,000 MW Ownership: Entity A: 500 MW Entity B: 500 MW Total 1,000 MW

slide-17
SLIDE 17

Reservations / Rights

APA Transmission Presentation - 7 Sept 2018

17

A B

Transmission Reservations / Rights

  • The “contract path” world
  • A result of FERC 888
  • Implementation via OASIS
  • Path, quantity, direction, time and

price specific

  • Long term reservations may be

renewable

  • Not reserved may be referred to as

Available Transfer Capability (ATC)

Maximum Capability: 1,000 MW Reservations: Entity A: 400 MW Entity B: 300 MW Entity C: 200 MW Total 900 MW Not Reserved: 100 MW

slide-18
SLIDE 18

Schedule

APA Transmission Presentation - 7 Sept 2018

18

A B

Transmission Schedule

  • Applies to a specific future

period of time

  • Usually arranged one or

more days in advance

Schedule: Entity A: 200 MW Entity B: 200 MW Entity C: 100 MW Total 500 MW Maximum Capability: 1,000 MW Reservations: Entity A: 400 MW Entity B: 300 MW Entity C: 200 MW Total 900 MW Not Reserved: 100 MW

slide-19
SLIDE 19

Flow

APA Transmission Presentation - 7 Sept 2018

19

A B

Actual Flow

  • Likely distinct for each point in time
  • Actual flow is a function of many

factors, including generation status and transmission system physics

Schedule: Entity A: 200 MW Entity B: 200 MW Entity C: 100 MW Total 500 MW Actual Flow: 600 MW Maximum Capability: 1,000 MW Reservations: Entity A: 400 MW Entity B: 300 MW Entity C: 200 MW Total 900 MW Not Reserved: 100 MW

slide-20
SLIDE 20

What Does A Transmission System Problem Look Like?

APA Transmission Presentation - 7 Sept 2018

20

slide-21
SLIDE 21

Congestion

APA Transmission Presentation - 7 Sept 2018

21

A B

Schedule: Entity A: 200 MW Entity B: 200 MW Entity C: 100 MW Total 500 MW “Congestion” May Refer to Either of These Maximum Capability: 1,000 MW Actual Flow: 600 MW Reservations: Entity A: 400 MW Entity B: 300 MW Entity C: 200 MW Total 900 MW Not Reserved: 100 MW

slide-22
SLIDE 22

One Way to Understand Transmission Congestion

APA Transmission Presentation - 7 Sept 2018

22

Transmission Restaurant Actual Flow

  • The maximum capability of

a transmission line has been determined

  • Actual electricity flowing on

the line exceeds maximum capability

  • Go to our favorite

restaurant on a Saturday night

  • People are standing around

because there aren’t enough tables for everyone Contract Path

  • Attempt to reserve

transmission rights on a particular path

  • No transmission rights are

available for the time period of interest

  • Attempt to make

reservation at a favorite restaurant on the day before Mother’s Day

  • No tables are available at

any time the next day

slide-23
SLIDE 23

Pancaking

APA Transmission Presentation - 7 Sept 2018

23

Transmission Owner: Line A-B Transmission Service Rate: $A / kw-yr Transmission Loss Rate: C%

A B C

Pancaking is the payment of multiple transmission service rates and losses for the delivery of a resource. In this example, a resource owner

  • r purchaser has a resource at Point A that needs to be delivered to

Point C, and the only existing transmission is displayed below. When sufficient ATC exists on path A-B and path B-C, then the resource owner / purchaser can achieve the desired delivery by paying $A+B / kw-yr for transmission service and C+D% for transmission losses. Transmission Owner: Line B-C Transmission Service Rate: $B / kw-yr Transmission Loss Rate: D%

slide-24
SLIDE 24

Losses

APA Transmission Presentation - 7 Sept 2018

24

A B

Transmission Losses

  • Causes include conductor heating, radiation losses, dielectric

heating and coupling losses

  • Past practice: often paid in quantities of energy
  • Future practice: often paid financially

A 100 MW resource is located at Point A A 5% loss rate exists

  • n Line A-B

95 MW arrive at Point B

slide-25
SLIDE 25

WECC Transmission Jan 1, 2017

APA Transmission Presentation - 7 Sept 2018

25

slide-26
SLIDE 26

Closing Remarks

  • The transmission system in Arizona has expanded

significantly during the past 40 years.

  • The electric utility business framework is

continuing to be significantly transformed.

  • Federal & state regulation impact transmission

business activity.

  • Foundational transmission business concepts can

be distinguished and understood.

  • The WECC grid represents a “clean disruption”
  • pportunity for the future.

APA Transmission Presentation - 7 Sept 2018

26
