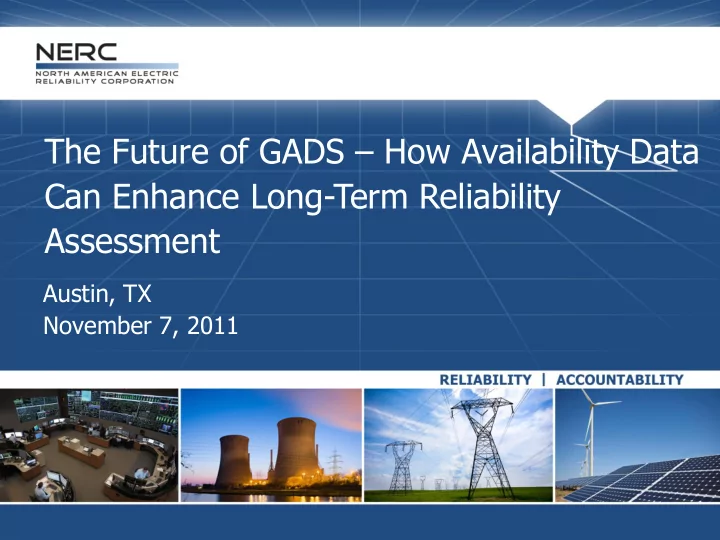

The Future of GADS – How Availability Data Can Enhance Long-Term Reliability Assessment

Austin, TX November 7, 2011

slide-2
SLIDE 2

2 RELIABILITY | ACCOUNTABILITY

The GADS Data Monster

slide-3
SLIDE 3

3 RELIABILITY | ACCOUNTABILITY

The GADS Databases

  • Design – equipment descriptions such as

manufacturers, number of BFP, steam turbine MW rating, etc.

  • Performance – summaries of generation produced,

fuels units, start ups, etc.

  • Event – description of equipment failures such as

when the event started/ended, type of outage (forced, maintenance, planned), etc.

slide-4
SLIDE 4

4 RELIABILITY | ACCOUNTABILITY

Performance Records Include

  • Unit Identification
  • Month/year of report
  • MW generated
  • Various MW rating of the unit (Gross and Net

Maximum and dependable capacities)

  • Any non-equipment loss from ambient conditions.
  • Summary of various active hours (SH, RSH, Pumping

hours, synchronous condensing)

  • Summary of various outage hours (FO, MO, PO)
  • Fuels burned
slide-5
SLIDE 5

5 RELIABILITY | ACCOUNTABILITY

Event Records Include

  • Unit identification
  • Start/end of events
  • Type of event
  • Reason for the event
  • Cause code, and
  • Description of outage or derate
slide-6
SLIDE 6

6 RELIABILITY | ACCOUNTABILITY

Mandatory GADS in 2012

slide-7
SLIDE 7

7 RELIABILITY | ACCOUNTABILITY

Need for GADS Data

TADS and DADS are already mandatory. GADS is the final step.

slide-8
SLIDE 8

8 RELIABILITY | ACCOUNTABILITY

Summary of Mandatory Report

  • Mandatory under Section 1600 and 1500 of the NERC

Rules of Procedure.

  • Conventional (no renewable) units only
  • 50 MW+ starting January 1, 2012
  • 20 MW+ starting January 1, 2013
  • Modification of in-house software only once.
  • Uniformity in collection using GADS as authority.
  • In-house audits of own data.
  • Design data limited to 9 elements only.
  • NERC tracks ownership of units
  • No future retirement dates in GADS
slide-9
SLIDE 9

9 RELIABILITY | ACCOUNTABILITY

Question & Answer

slide-10
SLIDE 10

10 RELIABILITY | ACCOUNTABILITY

What’s new with GADS?

slide-11
SLIDE 11

11 RELIABILITY | ACCOUNTABILITY

Move to WebE-GADS

slide-12
SLIDE 12

12 RELIABILITY | ACCOUNTABILITY

Move to webE-GADS

In August 2011, NERC signed a contract with OATI to collect GADS data starting in 2012.

slide-13
SLIDE 13

13 RELIABILITY | ACCOUNTABILITY

Move to webE-GADS

  • In preparation, GADS is moving away from old event

and performance record formats (97/95) and accepting only the latest formats (07/05) starting this year.

  • All data sent to GADS should be year-to-date
  • January – September, not September only.
  • New formats allow cause code amplification codes

(required as of January 1, 2011) for U1 events only.

slide-14
SLIDE 14

14 RELIABILITY | ACCOUNTABILITY

Move to webE-GADS

  • Beta testing of webE-GADS will begin during the first

quarter of 2012.

  • Beta testers are needed.
  • Training on using webE-GADS will also be during the

first quarter of 2012.

  • Once webE-GADS is up and operating, then no more

data will be sent to gads@nerc.com or Mike Curley.

slide-15
SLIDE 15

15 RELIABILITY | ACCOUNTABILITY

Question & Answer

slide-16
SLIDE 16

16 RELIABILITY | ACCOUNTABILITY

Continuing Projects

  • Addition of wind generators and solar to GADS
  • Working group formed to determine design,

event, cause codes, etc. for data collection.

  • Voluntary data collection at this point.
slide-17
SLIDE 17

17 RELIABILITY | ACCOUNTABILITY

Wind Turbine Groups

zzz

Wind Turbine Group Groups report the following site data:  Associated Plant Identifier  Turbine Group ID  Turbine Group Name  NERC Utility Code  NERC Unit Code  Installed Capacity in MW  Auxiliary Capacity  Commercial Date  Nearest City, State  Location Longitude and Latitude  Elevation  Wind Regime (topography)  SCADA Type  SCADA Manufacturer  SCADA Model

slide-18
SLIDE 18

18 RELIABILITY | ACCOUNTABILITY

What is pc-GAR?

  • Unique software

product to allow access to the data collected in the GADS database.

  • It reports equipment
  • utage information for

the purpose of improving electric power output. pc-G.A.R

slide-19
SLIDE 19

19 RELIABILITY | ACCOUNTABILITY

Uses of pc-GAR

  • Benchmarking generating units
  • Class averages
  • Q&A from public utility commissions, other groups
  • Comparing Summer and Winter periods
  • Locating top causes of outages (F, M, or P)
  • Outages or derates
  • Many more reports, distributions, averages, etc.
  • Reports can be made into graphs
  • Outputs in screen views, prints, or CSV.
slide-20
SLIDE 20

20 RELIABILITY | ACCOUNTABILITY

Question & Answer

Contact: Mike Curley Manager of GADS Services mike.curley@nerc.net 801.756.0972

slide-21
SLIDE 21

21 RELIABILITY | ACCOUNTABILITY

Background Information

slide-22
SLIDE 22

22 RELIABILITY | ACCOUNTABILITY

GADS Task Force

  • Mandatory GADS submission discussed for many

years.

  • In June 2010, the PC impaneled a task force to

evaluate the status of GADS need for mandatory submission:

  • About 73% of the installed capacity (20 MW or larger)

reports outage events to GADS.

  • Currently voluntary database
  • In 2011, the NERC RIS, PC and Board of Trustees

recommended mandatory submission for conventional units (fossil, nuclear, combined cycle, etc).

slide-23
SLIDE 23

23 RELIABILITY | ACCOUNTABILITY

What are “Conventional Generating Units?

  • No Renewable!!!!!!
  • No Wind
  • No Solar
  • (At this time …)
slide-24
SLIDE 24

24 RELIABILITY | ACCOUNTABILITY

Justifications For Conventional Units

  • Nearly 300 GW are not reported GADS.
  • Nearly 50% of new units 2000-2008 do not report
  • Large amounts of hydro-pumped storage, combined

cycle and gas turbines are missing.

  • These units are needed to analyze the reliability of the

bulk power system.

slide-25
SLIDE 25

25 RELIABILITY | ACCOUNTABILITY

Recommendations – Process and Security

  • The task force recommends that GADS data be

provided from all NERC Compliance Registry Generator Owners, following Section 1600, Requests for Data or Information under NERC’s Rules of Procedures.

  • GADS data confidentiality will be covered under

NERC’s Rules of Procedure Section 1500, Confidential Information.

slide-26
SLIDE 26

26 RELIABILITY | ACCOUNTABILITY

What are “Conventional Generating Units?”

  • The ten types of conventional generating units:
  • Fossil steam including fluidized bed design;
  • Nuclear;
  • Gas turbines/jet engines (simple cycle and others modes);
  • Internal combustion engines (diesel engines);
  • Hydro units/pumped storage;
  • Combined cycle blocks and their related components (gas turbines and steam

turbines);

  • Cogeneration blocks and their related components (gas turbines and steam

turbines);

  • Multi-boiler/multi-turbine units;
  • Geothermal units; and
  • Other miscellaneous conventional generating units (such as variable fuel –

biomass, landfill gases, etc) used to generate electric power for the grid and similar in design and operation as the units shown above and as defined by the GADS Data Reporting Instructions.

slide-27
SLIDE 27

27 RELIABILITY | ACCOUNTABILITY

Recommendations – MW Sizes and When

  • Generator Owners shall report their GADS data to

NERC as outlined in the GADS Data Reporting Instructions (Appendix III) for design, event and performance data for generating unit types listed above for units

  • 50 MW and larger starting January 1, 2012 and
  • 20 MW and larger starting January 1, 2013
  • Generator Owners not listed on NERC’s Compliance

Registry may report to GADS on a voluntary basis.

  • All small MW units invited but are voluntary.
slide-28
SLIDE 28

28 RELIABILITY | ACCOUNTABILITY

What is Meant by “MW Nameplate?”

  • “MW Nameplate” is calculated by multiplying the

MVA recorded of the generator times the power factor.

  • For example, a 100 MVA unit with a .90 power factor

would be a 90 MW unit. Generator Owners not listed on NERC’s Compliance Registry may report to GADS on a voluntary basis.

slide-29
SLIDE 29

29 RELIABILITY | ACCOUNTABILITY

Multi-units on Meters

10 MW 10 MW 10 MW 10 MW 10 MW 10 MW 10 MW 10 MW 10 MW 10 MW

Meter

Meter

Meter Meter Meter Meter

Not Required Reporting to GADS – Treat as Normal Unit. Reportable to GADS – Treat as “Miscellaneous Unit”

slide-30
SLIDE 30

30 RELIABILITY | ACCOUNTABILITY

Recommendations – Modify Reporting Software

  • There will be a one-time effort by non-reporting

generating companies to modify their existing computer data collection program outputs into GADS required formats. The GADSTF believes that equipment outage data is already collected by plant personnel, although they may not adhere to GADS requirements.

slide-31
SLIDE 31

31 RELIABILITY | ACCOUNTABILITY

Recommendations - Uniformity

  • Uniformity of data collection format is essential. All

GADS data shall be collected using the GADS Data Reporting Instructions. The Reporting Instructions will be updated annually and each reporting company will be required to follow the latest Reporting Instructions for the current year. All questions or needs for interpretation of the reporting instruction interpretations will be coordinated with NERC staff and the GADSTF.

  • Updates will follow the Section 1600 process.
slide-32
SLIDE 32

32 RELIABILITY | ACCOUNTABILITY

Recommendations – In-house Audits

  • In-house review of GADS data by the reporting

generating company has always been strongly encouraged under voluntary data reporting. Each reporting generating company shall continue to be responsible for collecting, monitoring, updating and correcting their own GADS design, event, and performance data.

slide-33
SLIDE 33

33 RELIABILITY | ACCOUNTABILITY

Recommendations - Design

  • Design data is essential for many generating plant
  • analyses. Generating companies will be asked to

review and update their design data annually or as recommended by NERC staff using the design time- stamping process, but the updating will be voluntary.

  • The GADSTF leadership recommended that the

design data requirement be nine (9) elements per unit, regardless of unit type.

slide-34
SLIDE 34

34 RELIABILITY | ACCOUNTABILITY

Recommendations - Design

  • The nine design data fields were chosen for

two specific reasons:

  • Allowing GADS data to be matched with information

collected in the Transmission Availability Data System (TADS). One goal of NERC is to allow the GADS and TADS databases to interact with each other. Certain data fields are needed to allow generating units to be located in areas where transmission lines are located. Specific fields allow that interaction.

  • Editing the event and performance data to insure the

continued quality of information collected by GADS.

slide-35
SLIDE 35

35 RELIABILITY | ACCOUNTABILITY

Recommendations - Design

  • GADS utility code (assigned by GADS Services)
  • GADS unit code (assigned by the reporting company following

the guidelines in Appendix C of the GADS Data Reporting Instructions.)

  • NERC Regional entity where the unit is located
  • Name of the unit
  • Commercial operating date
  • Type of generating unit (fossil, combined cycle, etc.)
  • MW size (nameplate)
  • State or province location of the unit.
  • Energy Information Administration (EIA) Plant number (US

units only).

slide-36
SLIDE 36

36 RELIABILITY | ACCOUNTABILITY

Recommendations – Ownership/Retirement

  • NERC shall track ownership changes as generating

units are sold to other operating companies. These changes will include the name of the new owners and the date of generating unit transfer. (Please note that GADS has been collecting

  • wnership transfers for 10 years with no burden on

reporters.)

  • Proposed or projected generating units retirement

dates shall not be collected in GADS
