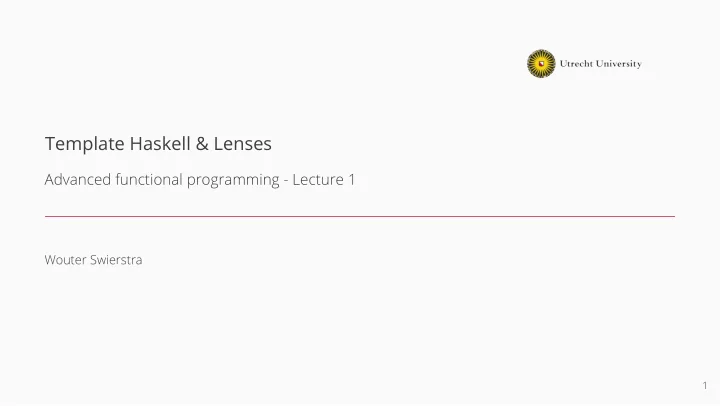

Template Haskell & Lenses

Advanced functional programming - Lecture 1

Wouter Swierstra

1

Template Haskell

There is a language extension, Template Haskell, that provides metaprogramming support for Haskell. This defines support for quotating code into data and splicing generated code back into your program.

2

Template Haskell

import Language.Haskell.TH three :: Int three = 1 + 2 threeQ :: ExpQ threeQ = [| 1 + 2 |] Rather than Racket’s quote function, we can enclose expressions in quotation brackets [| ... |]. This turns code into a quoted expression, ExprQ.

3

Unquoting

> three 3 > $threeQ 3 We can splice an expression e back into our program by writing $e (note the lack of space between $ and e) This runs the associated metaprogram and replaces the occurrence $e with its result.

4

Inspecting code

What happens when we quote an expression? > runQ [| 1 + 2 |] InfixE (Just (LitE (IntegerL 1))) (VarE GHC.Num.+) (Just (LitE (IntegerL 2))) Template Haskell defines a data type Exp corresponding to Haskell expressions. The type ExpQ is a synonym for Q Exp – a value of type Exp in the quotation monad Q. The runQ function returns the quoted expression associated with ExpQ.

5

Inspecting code

What happens when we quote an expression? > runQ [| 1 + 2 |] InfixE (Just (LitE (IntegerL 1))) (VarE GHC.Num.+) (Just (LitE (IntegerL 2))) Template Haskell defines a data type Exp corresponding to Haskell expressions. The type ExpQ is a synonym for Q Exp – a value of type Exp in the quotation monad Q. The runQ function returns the quoted expression associated with ExpQ.

5

The Exp data type

data Exp = VarE Name -- variables | ConE Name

• - constructors

| LitE Lit

• - literals such as 5 or 'c'

| AppE Exp Exp -- application | ParensE Exp -- parentheses | LamE [Pat] Exp -- lambdas | TupE [Exp] -- tuples | LetE [Dec] Exp -- let | CondE Exp Exp Exp -- if-then-else ... Not to mention unboxed tuples, record updates, record construction, lists, list comprehensions,…

6

Template Haskell: programming with expressions

incr : Int -> Int incr x = x + 1 incrE : Exp -> Exp incrE e = AppE (VarE 'incr) e)

• The first incr function increments a number;
• The second takes a quoted expression as argument and builds a new expression by passing its

argument to incr.

• We can ‘quote’ variable names with the prefix quotation mark 'incr

7

Template Haskell: programming with expressions

• - Let x = [| 1 + 2 |]

x : Exp x = InfixE (Just (LitE (IntegerL 1)))... y : Int y = $(incrE x) Question: What is the result of evaulating y? But this might go wrong…

8

Template Haskell: programming with expressions

• - Let x = [| 1 + 2 |]

x : Exp x = InfixE (Just (LitE (IntegerL 1)))... y : Int y = $(incrE x) Question: What is the result of evaulating y? But this might go wrong…

8

Typing Template Haskell

What happens when we create ill-typed expressions?

• - Let x = [| "Hello world" |]

x : Exp x = LitE (StringL "Hello World") y : Int y = $(incrE x) Question: What is the result of this program? We get a type error: No instance for (Num [Char]) arising from a use of ‘incr’ In the expression: incr "Hello World"...

9

Typing Template Haskell

What happens when we create ill-typed expressions?

• - Let x = [| "Hello world" |]

x : Exp x = LitE (StringL "Hello World") y : Int y = $(incrE x) Question: What is the result of this program? We get a type error: No instance for (Num [Char]) arising from a use of ‘incr’ In the expression: incr "Hello World"...

9

Typing Template Haskell

Template Haskell is a staged programming language. The compiler starts by type checking the program – even the program fragments building up expressions: x : Exp x = LitE (StringL "Hello World") But it ignores any splices: y : Int y = $(incrE x) It does not yet know if y is type correct or not…

10

Typing Template Haskell

Once the basic types are correct, the compiler can safely compute new code (such as that arising from the call incrE x). So during type checking the compiler needs to perform evaluation. It can then replace splices, such as $(incrE x) with result of evaluation.

11

Typing Template Haskell

But even then, we don’t know if the generated code is type correct. At this point, the splice $(incrE x) will be replaced by incr "Hello World". The compiler type checks the generated code, which may raise an error. Question: Is two passes enough? Not in general - the generated code may contain new program splices.

12

Typing Template Haskell

But even then, we don’t know if the generated code is type correct. At this point, the splice $(incrE x) will be replaced by incr "Hello World". The compiler type checks the generated code, which may raise an error. Question: Is two passes enough? Not in general - the generated code may contain new program splices.

12

Type safety

Question: So is Template Haskell statically typed? Yes: all generated code is type checked. No: metaprograms are essentially untyped.

13

Type safety

Question: So is Template Haskell statically typed? Yes: all generated code is type checked. No: metaprograms are essentially untyped.

13

Type safe metaprograms

Template Haskell also provides a data type for ‘typed expressions’: newtype TExp a = TExp { unType :: Exp } The type variable is not used, but tags an expression with the type we expect it to have. This is sometimes known as a phantom type. This can be used to give us some more type safety: appE :: TExp (a -> b) -> TExp a -> TExp b appE (TExp f) (TExp x) = TExp (AppE f x) Question: Where does this break?

14

Limited safety…

There are lots of ways to break this. Referring to variables is one way: bogus :: TExp String bogus = TExp (VarE 'incr) But more generally, there are plenty of situations where we cannot easily figure out the types of the metaprogram that we generate.

15

Beyond expressions

The Exp data type is used to reflect expressions. But Template Haskell also provides data types describing:

• Patterns
• Function definitions
• Data type declarations
• Class declarations
• Instance definitions
• Compiler pragmas
• …

Together with the technology to reflect code into such data types.

16

Beyond expressions

As a result, we can generate arbitrary code fragments using Template Haskell:

• new type signatures;
• new data type declarations;
• new classes or class instances;
• …

Any pattern in our code that we can describe programmatically can be automated throught Template Haskell.

17

Template Haskell: examples

There are several ways in which people use Template Haskell:

• Generalizing a certain pattern of functions:

zip :: [a] -> [b] -> [(a,b)] zip3 :: [a] -> [b] -> [c] -> [(a,b,c)] zip4 :: [a] -> [b] -> [c] -> [d] -> [(a,b,c,d)] ...

• Automating boilerplate code (lenses);
• Including system information (git-embed).
• Interfacing safely to an external data source, such as a database, requires computing new

marshalling/unmarshalling functions (printf).

18

Example: git-embed

Suppose that we want to include version information about our program. > mytool --version Built from the branch 'master' with hash 410d5264a We could do this in numerous ways:

• maintain a version variable in our code manually;
• have a shell script that generates this information whenever we release code;
• splice this information into our code using Template Haskell.

19

Example: git-embed

There is a library using Template Haskell, git-embed, that provides precisely this functionality. Using it is easy enough: import Git.Embed gitRev :: String gitRev = $(embedGitShortRevision) gitBranch :: String gitBranch = $(embedGitBranch) How is it implemented?

20

Example: git-embed ideas

Functions such as embedGitBranch need to compute a string, corresponding to the current git branch. To do so:

• 1. We perform a bit of I/O, running git branch with suitable arguments;
• 2. The result of this command contains the information that we are after.
• 3. Quoting this result back into a string literal, yields the desired value.

Note: we can run IO computations while metaprogramming…

21

Example: git-embed implementation

embedGitBranch : ExpQ embedGitBranch = embedGit ["rev-parse", "--abbrev-ref", "HEAD"] embedGit :: [String] -> ExpQ embedGit args = do addRefDependentFiles gitOut <- runIO (readProcess "git" args "") return $ LitE (StringL gitOut) The addRefDependentFiles adds the files from the .git directory as dependencies. If these files change, the module will be recompiled.

22

Quotation and I/O

This example illustrates that we can run I/O operations during quotation. Question: Why should this be allowed? And what are the drawbacks?

• Makes it possible to read data from a file, network, database, etc. – and use this information to

generate new code or write new data to a file.

• The compiling code may have side effects! You can write a Haskell program that formats your

hard-drive when compiled.

23

Quotation and I/O

This example illustrates that we can run I/O operations during quotation. Question: Why should this be allowed? And what are the drawbacks?

• Makes it possible to read data from a file, network, database, etc. – and use this information to

generate new code or write new data to a file.

• The compiling code may have side effects! You can write a Haskell program that formats your

hard-drive when compiled.

23

Example: printf

If you’ve ever done any debugging with C, you will have encountered printf: char* userName; x = ... ; y = ... ; printf("x,y, and user are now:") printf("x=%d,y=%d,user=%s",x,y,userName); The printf function takes a variable number of arguments: depending on the format string, it expects a different number of integers and strings. What is its type?

24

Example: printf using Template Haskell

We’ll sketch how to implement a printf function in Haskell: > $(printf "x=%d,s=%s") 6 "Hello" "x=6,s=Hello" The key idea is to use the argument string to compute a function taking suitable arguments. Splicing $(printf "x=%d,s=%s") will compute the term: \n0 -> \s1 -> "x=" ++ show n0 ++ ",s=" ++ s1

25

Example: printf

printf :: String -> ExpQ printf s = gen (parse s) data Format = D | S | L String parse :: String -> [Format] gen :: [Format] -> ExpQ

• The printf function maps a string to an expression;
• The parse function reads in the string and splits it into a series of format instructions – it

doesn’t use any Template Haskell and I won’t cover it further.

• Depending on these instructions, the gen command will compute a different expression.

26

Example: printf

Let’s try to figure out how the gen function works in several different steps. data Format = D | S | L String gen :: [Format] -> ExpQ gen [] = LitE (StringL "") If the list of formatting directives is empty, we compute the empty string – that was easy enough.

27

Example: printf

Now suppose we only ever have to worry about handling a single formatting directive: data Format = D | S | L String gen :: [Format] -> ExpQ gen [D] = [| \n -> show n |] gen [S] = [| \s -> s |] gen [L str] = LitE (StringL str) Each individual case generates the code that we would write by hand otherwise.

28

Example: printf

printf :: String -> Exp printf s = gen (parse s) [| "" |] gen :: [Format] -> Exp -> Exp gen [] e = e gen (D:fmts) e = [| \n-> $(gen fmts [| $e ++ show n |]) |] gen (S:fmts) e = [| \s-> $(gen fmts [| $e ++ s |]) |] gen (L s:fmts) e = gen fmts [| $e ++ $(LitE (StringL s)) |] The gen function is defined using an accumulating parameter. Initially, this is just the empty string.

29

Example: printf

printf :: String -> Exp printf s = gen (parse s) [| "" |] gen :: [Format] -> Exp -> Exp gen [] e = e gen (D:fmts) e = [| \n-> $(gen fmts [| $e ++ show n |]) |] gen (S:fmts) e = [| \s-> $(gen fmts [| $e ++ s |]) |] gen (L s:fmts) e = gen fmts [| $e ++ $(LitE (StringL s)) |] As we encounter more formatting directives, we add an additional lambda if necessary and perform a recursive call. Note the subtle interplay between splicing and quoting.

30

Example: printf

This example shows how to compute new expressions from existing data. This same pattern pops up whenever we want to interface with an external data source, such as database:

• Request information about the table layout;
• Parse the result and generate corresponding types;
• Generate functions to access the data.

31

Record management

Records in Haskell provide a convenient way to organize structured data. data Person = {name :: String, address :: Address} data Address = {street :: String, city :: String} In practice, these records can be huge.

32

Nested records

We can use the record fields to project out the desired information. If we need to access nested fields, we can define our own projection functions: personCity :: Person -> City personCity = city . address Record projections compose nicely. What about record updates?

33

Nested records

But setting nested fields is pretty painful: setCity :: City -> Address -> Address setCity newCity a = a {city = newCity} setAddress :: Address -> Person -> Person setAddress newAddress p = p {address = newAddress} setPersonCity :: City -> Person -> Person setPersonCity newCity p = setAddress (setCity newCity (address p)) p This is already quite some ‘boilerplate’ code – code that is not interesting and follows a fixed pattern.

34

Example: lenses

To automate this, we can package the getter and setter functions in a single data type, sometimes reffered to as a lens: data (:->) a b = Lens { get : a -> b , set : b -> a -> a } Such lenses compose nicely: compose :: (b :-> c) -> (a :-> b) -> (a :-> c)

35

Example: lenses

In our example, suppose we are given lenses for every record field: city :: (Address :-> String) address :: (Person :-> Address) We can compose these lenses by hand, to assemble the pieces of data that we’re interested in: personCity :: Person :-> City personCity = compose city address updateCity :: City -> Person -> Person updateCity newCity = set personCity newCity

36

Example: lenses

Lenses make the manipulation of nested records manageable. But who writes the lenses? This is not hard to do by hand: city :: Address :-> City city = Lens { get = \a -> city a , set = \nc a -> a {city = nc} } But could clearly use some automation.

37

Example: fclabels

The fclabels package defines the type of lenses together with a Template Haskell module that generates the lenses associated with any given record: data Person = Person { _name :: String, _address :: Address} data Address = Address { _city :: City , _street :: String} mkLabel ''Address mkLabel ''Person The double quotes ''Address quotes type Adress – the distinction can be necessary.

38

Example: fclabels

What does the Template Haskell code do?

• 1. Given a quoted record name, looks up the associated record declaration;
• 2. For each field, generate a suitable lens by:

2.1 looking up the type of the field; 2.2 generating the type signature of the required lens; 2.3 generating a name for the lens, based on the field name; 2.4 generating an expression corresponding to the lens definition;

• 3. Splicing all these declarations back into the file.

About 700 loc – but handles different flavours of lenses and generalizations.

39

Example: fclabels

This example sketches how you might want to use Template Haskell to generate code. There is a clear pattern showing how to define a lens for any given record… But we need metaprogramming technology to automate this.

40

Quasiquotation

As a last example, I want to briefly mention quasiquotation. We’ve seen how to embed domain specific languages in Haskell using deep/shallow embeddings. When we do so, we are constrained by Haskell’s syntax and static semantics. Racket shows how to use macros to write custom language dialects. Haskell’s quasiquotation framework borrows these ideas.

41

Quasiquotation: example

Suppose I’m writing a Haskell library for manipulating and generating C code. But working with C ASTs directly is pretty painful: add n = Func (DeclSpec [ ] [ ] (Tint Nothing)) (Id "add") DeclRoot (Args [Arg (Just (Id "x")) ... What I’d like to do is embed (a fragment of) C in my Haskell library.

42

Using quasiquotation

The quasiquoter allows me to do just that: add n = [cfun | int add (int x ) { return x + $int : n$; } |] The cfun quasiquoter tells me how to turn a string into a suitable Exp.

43

Defining quasiquoters

A quasiquoter is nothing more than a series of parsers for expressions, patterns, types and declarations: data QuasiQuoter = QuasiQuoter { quoteExp :: String -> Q Exp, quotePat :: String -> Q Pat, quoteType :: String -> Q Type, quoteDec :: String -> Q [Dec] } Whenever the Haskell parser encounters a quasiquotation [ myQQ | ... |] it will run the parser associated with the quasiquoter myQQ to generate the quoted expression/pattern/type/declaration.

44

Multiline strings

As a simple example, suppose we want to have multi-line string literals. We can define a quasiquoter: ml :: QuasiQuoter ml = QuasiQuoter { quoteExp = (\a -> LitE (StringL a)), ... } And call it as follows: example : String example = [ml | hello beautiful world|]

45

Quasiquoting

The quasiquoting mechanism allows you to embed arbitrary syntax within your Haskell program. And still use Template Haskell’s quotation and splicing to mix your object language with Haskell code. This is a mix of the embedded and stand-alone approaches to domain specific languages that we saw

• ver the last few weeks.

46

Drawbacks of metaprogramming

Metaprogramming has many applications, but several crucial drawbacks:

• Template Haskell AST and ‘real’ AST are often out of step.
• AST is much more complex than S-expressions – the Template Haskell library is huge!
• Debugging type errors in generated code is hard.
• Q monad allows arbitrary IO during compilation – which may be a security risk.
• Large computations can slow down compile times.

47
