Laurent Risser February 2015 - Vienna

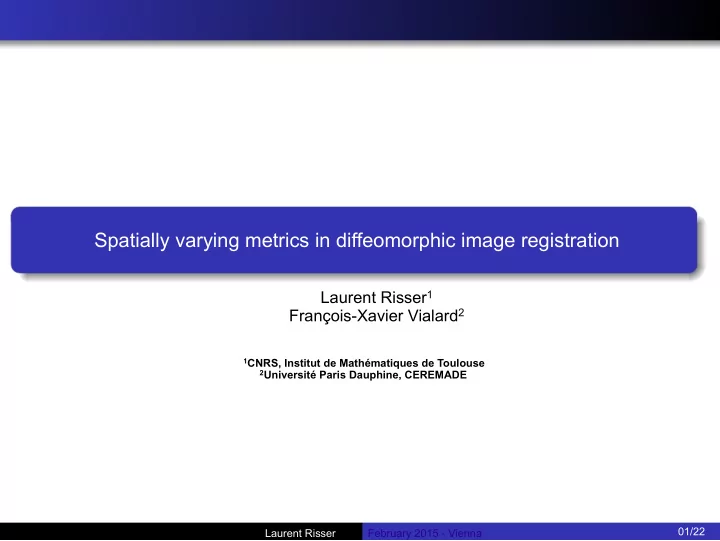

Spatially varying metrics in diffeomorphic image registration

Laurent Risser1 François-Xavier Vialard2

Laurent Risser February 2015 - Vienna

1CNRS, Institut de Mathématiques de Toulouse 2Université Paris Dauphine, CEREMADE

01/22

Laurent Risser February 2015 - Vienna

Introduction – brief overview of the LDDMM formalism

02/22

Inputs:

• Template (or source) image T
• Target image In
• A metric V which parameterizes how to compare the images

Output:

• Velocity field v(t), which encodes the optimal mapping between T and In

t ∈ [0,1]

Minimized energy: [Beg et al, IJCV 2005] Registration algorithm: [Beg et al, IJCV 2005]

• Initiate v(t) as equal to 0
• Perform a gradient descent with the gradient
• … and the momentum

where Tt and It are T and In transported at time t though Φ, respectively T In

Laurent Risser February 2015 - Vienna

Introduction – Motivations

03/22

“Best” K? Joint work with F.X. Vialard and other collaborators:

[Risser, et al, TMI 2011], [Bruveris, et al, SIAM MMS 2012]: Sum of Gaussian kernels [Risser et al, MedIA 2012]: Sliding motion [Schmah et al, MICCAI 2013]: Mathematical interpretation of LDDMM with spatially-varying metrics [Vialard and Risser, MICCAI 2014]: A general framework to learning spatially-varying metrics [Ongoing work]: Efficient schemes to learn spatially-varying metrics on real 3D data

Grey matter - 36 weeks Grey matter - 43 weeks Deformations obtained using different kernels K

Influence of the kernel K: [Risser, et al, TMI 2011] T In

Laurent Risser February 2015 - Vienna

Introduction – Talk overview

04/22

Talk overview: 1) From LDDMM to LIDM - interpreting spatially varying metrics in LDDMM 2) A general framework for spatially varying metrics a) Motivations b) General framework 3) Learning spatially varying metrics a) A very first strategy b) Strategy of [Vialard & Risser, MICCAI 2014] c) A new faster strategy d) Reducing the problem’s dimension 4) Results

Laurent Risser February 2015 - Vienna

1) From LDDMM to LIDM - Interpreting spatially varying metrics in LDDMM

05/22

Energy minimized in LDDMM and LIDM:

LDDMM: Spatial (Eulerian) velocity Consider point x at time 0 (in image I)

• LDDMM: motion of x at time t → driven by v(t) at point Φt o x
• LIDM: motion of x at time t → driven by v(t) at point x

→ Diffeomorphic registration formalism adapted to spatially varying metrics

LIDM: Convective velocity

Laurent Risser February 2015 - Vienna

1) From LDDMM to LIDM - Interpreting spatially varying metrics in LDDMM

06/22

As shown in [Schmah et al, MICCAI 2013], for a given metric:

• Diffeomorphisms differ between LIDM and LDDMM
• Final deformation is the same for LIDM and LDDMM

t=0 t=0.25 t=0.5 t=0.75 t=1

→ Final deformations of LDDMM registration with spatially varying metrics can be interpreted as what would be obtained using LIDM with the same metric (although the deformation path doesn’t make sense in LDDMM)

Motion of x at time t → smoothed at point x and not Φt o x

• Clearly not adapted for large deformations
• OK for small to reasonably large deformations

Laurent Risser February 2015 - Vienna

1) From LDDMM to LIDM - Interpreting spatially varying metrics in LDDMM

07/22

Results obtained using LIDM in [Schmah et al, MICCAI 2013] using very intuitive parameters: … let’s now define metrics which make sense for real images

C++ code can be freely downloaded at: http://sourceforge.net/projects/utilzreg/ (with multi-kernel LDDMM, Geodesic shooting, …)

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

08/22

Typical application: Registration of 3D MR brain images

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

08/22

Spatially homogeneous smoothing kernels:

• Typically, smoothing using ad-hoc Gaussian kernels (or sum of Gaussian kernels)
• Pros: limited amount of kernels to tune, relatively intuitive parameters tuning.
• Cons: Not necessarily adapted to the different brain structures

34% 13% 2% 34% 13% 2% 34% 13% 2%

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

08/22

34% 13% 2% 34% 13% 2% 34% 13% 2%

As discussed in e.g. [Simpson et al, MICCAI 2013]: It is interesting to more or less favour the deformations according to their location.

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

08/22

34% 13% 2%

Smoothing with preferential directions has also been well explored in classic registration algorithms (e.g. optical flow)

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

09/22

Strategy we will explore in this talk:

• Learning relations between the motion of pairs of points
• Using these relations to smooth the deformations

Local relations

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

09/22

Slighly related motion No relation

Local relations Long distance relations

Strategy we will explore in this talk:

• Learning relations between the motion of pairs of points
• Using these relations to smooth the deformations

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics - motivation

09/22

Motion in opposite directions Slighly related motion No relation

Local relations Long distance relations Direction based relations

Strategy we will explore in this talk:

• Learning relations between the motion of pairs of points
• Using these relations to smooth the deformations

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics – general overview

10/22

Mathematical property the smoothing kernel must ensure: Instead of a spatially-homogeneous K, we propose to use:

• Initiate v(t) as equal to 0
• Perform a gradient descent with the gradient
• … and the momentum

Same registration algorithm as in [Beg et al, IJCV 2005], except the smoothing part. The Hilbert space of vt has to be embedded in the Banach space of C1 vector fields where:

• K is a spatially-homogeneous kernel (typically Gaussian)
• M is a positive-semidefinite operator

^

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics – general overview

11/22

How to smooth the momentum Pt at point with K ? Smoothing Pt with K :

• Convolution with K
• Smoothing with M
• Convolution with K again

^ ^

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics – general overview

11/22

Smoothing Pt with K :

• Convolution with K
• Smoothing with M
• Convolution with K again

^ ^ How to smooth the momentum Pt at point with K ? Same properties in the image domain Same properties in directions x, y, z

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics – general overview

11/22

Smoothing Pt with K :

• Convolution with K
• Smoothing with M
• Convolution with K again

^ ^ How to smooth the momentum Pt at point with K ? Different properties in the image domain Different properties in directions x, y, z

→ Local deformations in a given direction may be related to deformations other directions and other locations Negative relation Positive relation

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics – general overview

11/22

Smoothing Pt with K :

• Convolution with K
• Smoothing with M
• Convolution with K again

^ ^ How to smooth the momentum Pt at point with K ? Same properties in the image domain Same properties in directions x, y, z

Laurent Risser February 2015 - Vienna

2) A general framework for spatially varying metrics – general overview

12/22

pj = ( xj , yj , zj ) pi = ( xi , yi , zi ) Consider a pair of voxels: Matrix M: Smoothing a 3D vector field Γt with M : Vectorize Γt → Matrix/vector multiplication → Recompose the vector field Important note: Ideally, M should be normalized

1 N N+1 2N 2N+1 3N ... ... ... ... 1 N N+1 2N 2N+1 3N ... ...

ux (pj ) ux (pi )

M(ux (pj ),uy (pi ))

uy (pj ) uz (pj ) uy (pi ) uz (pi )

i N+i 2N+i ... ... ... M(uy (pj ),ux (pi )) M(ux (pj ),ux (pi )) … … … … … …

Laurent Risser February 2015 - Vienna

3) Learning matrix M – A first strategy

13/22

First strategy:

1.

Register T on the N images In with M equals to Identity (equivalent to [Beg et al, IJCV 2005])

2.

Average the estimated velocity fields vn(t,x) on the temporal axis → vn(x)

3.

Compute the matrix M using the N velocity fields vn(x) Pros:

• Relatively simple to implement
• Relations taken into account

Cons:

• No regularisation, and therefore no prior, on M
• Particularly dependent on K
• At some locations, there may have no information

Consider a template image T defined on a (discrete) domain Ω and N reference images In T I1 I2 IN … ^

Laurent Risser February 2015 - Vienna

3) Learning matrix M – strategy of [Vialard & Risser, MICCAI 2014]

14/22

Energy used to register T and In in [Beg et al, IJCV 2005]: Here we use K M K instead of K and use the notation for ^ ^ where: Considering the template T and the N reference images In , we learn M by minimising : T I1 I2 IN … M M Id Id M M Id Id

Laurent Risser February 2015 - Vienna

Learning algorithm:

1.

Initiate M as equal to identity

2.

While not convergence of M, repeat:

1.

Register T on the N images In with the current M

2.

Compute

3.

Update M:

4.

Normalize M

3) Learning matrix M – strategy of [Vialard & Risser, MICCAI 2014]

15/22

where: Remark that || log(M) ||2 comes from a Riemannian metric denoted by g [Arsigny et al, SIAM MAA] → We consider S++ endowed with the inner product at S given by tr(S-1dSS-1dS) We can show that: Bottleneck when M gets large!!!

Laurent Risser February 2015 - Vienna

Instead of working on the space of SP matrices we work on the larger space of Mn( ) matrices Map Π : Mn ( ) Sn

+ defined by Π(M)=MMt

→ Riemannian submersion between:

• Mn ( ) endowed with the L2 metric
• Sn

+ endowed with the Wasserstein metric (this defines the metric)

Optimal results is not changed as the functional is invariant w.r.t. the right multiplication by On( ) By using the new regularizing term the new gradient is: where the corresponding kernel M is NTN .

3) Learning matrix M – a new strategy

16/22

Laurent Risser February 2015 - Vienna

New learning algorithm:

1.

Initiate N as equal to identity

2.

While not convergence of N, repeat:

a.

M = NTN

b.

Register T on the N images In with the current M

c.

Compute

d.

Update N:

e.

Normalize N Note:

• The Wasserstein metric can degenerate, which is not the case for the Log Euclidian

metric.

• In our tests, this is not observed so far if reasonably low ε are chosen.

3) Learning matrix M – a new strategy

17/22

Laurent Risser February 2015 - Vienna

3) Learning matrix M – Keeping the problem dimension reasonable

18/22

For 3D medical images, M or N can be a huge matrix!!! → A solution:

• Control points of M considering homogeneously sampled on the image domain
• Projecting K ★ Pn(t) on a basis

Reconstruction of the velocity field: What is used to learn M or N: ^

Laurent Risser February 2015 - Vienna

3) Learning matrix M – Keeping the problem dimension reasonable

19/22

Learning M or N at a scale constrained by the grid step size … and registering the images at a lower scale Instead of using the kernel: we use: Information lost at the scales lower than the grid step size Projection operator :

Laurent Risser February 2015 - Vienna

4) Results – 3D brain images

20/22

Learning step:

• Subject 5 of the LPBA40 dataset registered on subjects 1 to 30
• M learned on a grid with a step size of 20mm
• K is a Gaussian kernel with σ = 10 mm
• Different weights β for each strategy

^

Laurent Risser February 2015 - Vienna

4) Results – 3D brain images

21/22

Registration:

• Subject 5 of the LPBA40 dataset registered on subjects 31 to 40
• Comparison with other diffeomorphic registration strategies
• Target overlap of segmented regions / Determinant of Jacobians

Affine Alignment ANTS-SyN - Parameters of [Klein et al NI 2009] LDDMM - Sum of Gaussian kernels [Risser et al TMI 2011] LDDMM – Gaussian kernels [Beg et al IJCV 2005] Proposed method with different M

Laurent Risser February 2015 - Vienna

This work was supported by:

• Chaire Havas-Dauphine Economie des nouvelles données
• AO1 grant MALAC3D from Université Paul Sabatier
• ANR DEMOS grant (S. Gadat, J. Bigot, J.M. Loubes)

THANK YOU!

22/22

To summarize:

• New approach to learn spatially-varying metrics in the LDDMM framework
• Learning strategy based on a gradient descent
• Encouraging results

Future work:

• Testing other priors on N
• Application of the new strategy on 3D brain images at a high resolution
• Dimensionality reduction techniques on N
• Statistical analysis of the metric parameters

Laurent Risser February 2015 - Vienna 22/22

References: [Beg et al, IJCV 2005]: Beg M.F., Miller M.I. Trouvé A., Younes L.: Computing Large Deformation Metric Mappings

via Geodesic Flows of Diffeomorphisms, IJCV 61(2), 2005

[Risser, et al, TMI 2011] : Risser L., Vialard F.X., Wolz R., Murgasova M., Holm D.D., Rueckert D., ADNI:

Simultaneous Multiscale Registration using Large Deformation Diffeomorphic Metric Mapping. IEEE TMI, 2011

[Bruveris, et al, SIAM MMS 2012] : Bruveris M., Risser L., Vialard F.X.: Mixture of Kernels and Iterated

semidirect Product of Diffeomorphisms Groups. SIAM Multiscale Modeling and Simulation 10 (4), 2012

[Risser et al, MedIA 2012] : Risser L., Vialard F.X., Baluwala H.Y., Schnabel J.A.: Piecewise-Diffeomorphic Image

Registration: Application to the Motion Estimation between 3D CT Lung Images with Sliding Conditions Medical Image Analysis, 2012

[Schmah et al, MICCAI 2013] : Schmah T., Risser L., Vialard F.X.: Left-invariant metrics for diffeomorphic image

registration with spatially-varying regularisation. MICCAI'13 - LNCS, 2013

[Vialard and Risser, MICCAI 2014] : Vialard F.X., Risser L.: Spatially-varying metric learning for diffeomorphic

image registration. A variational framework. MICCAI'14 - LNCS, 2014

[Simpson et al, MICCAI 2013] : Simpson, I.J.A., Woolrich, M.W, Cardoso, M.J., Cash, D.M., Modat, M.,

Schanbel, J.A., Ourselin, S.: A bayesian approach for spatially adaptive regularisation in non-rigid registration MICCAI’13 – LNCS, 2013

[Arsigny et al, SIAM MAA] : Arsigny V., Fillard P., Pennec X., Ayache N.:Geometric Means in a Novel Vector Space

Structure on Symmetric Positive-Definite Matrices. SIAM Journal on Matrix Analysis and Applications, 29(1), 2007

[Klein et al NI 2009] : Klein A. et al.: Evaluation of 14 nonlinear deformation algorithms applied to human brain MRI

• registration. Neuroimage 46 (3), 2009.

ANTS SyN: http://picsl.upenn.edu/software/ants/
