Surviving Sensor Network Software Faults Presented by Jacek Migdal Software crashes Software bugs are common: tests may not reveal rare problems hard to identify and fix ... but sensor network should be able to work for years. Ariane

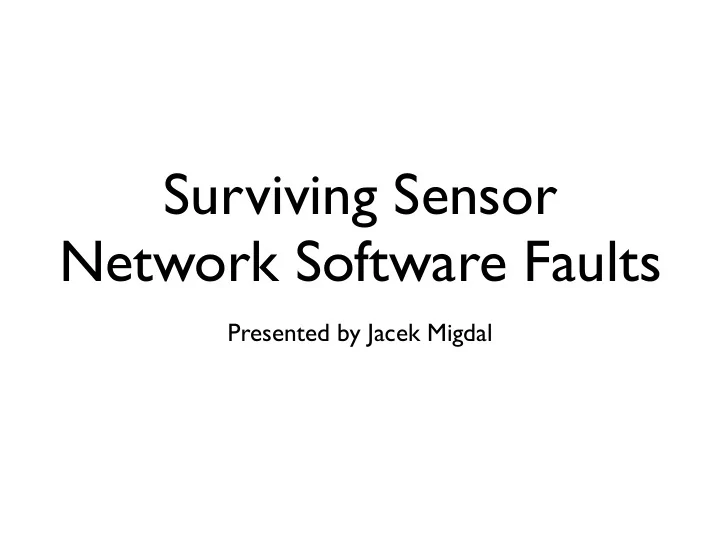

SLIDE 1

Surviving Sensor Network Software Faults

Presented by Jacek Migdal

SLIDE 2

Software crashes

Software bugs are common:

tests may not reveal rare problems
hard to identify and fix

... but sensor network should be able to work for years.

Ariane 5 Flight 501

SLIDE 3

Common approach

Have you tried rebooting?

SLIDE 4

Rebooting on failure

works in most cases (memory faults)
recent data is lost
time consuming => reduce availability
cause additional cost for routing

protocols

SLIDE 5

Proposed solution: Neutron

Divide software into recovery units and reboots the faulty unit.

SLIDE 6

Hardware

1-8 MHz
4-10 kB SRAM
40-128 KB flash memory
without hardware memory isolation

Low overhead solution is needed.

SLIDE 7

Architecture

Safe TinyOS TOSThreads Neutron extensions Deputy compiler

Compiler

Neutron recovery code

TinyOS

SLIDE 8

Recovery unit

Definition:

application recovery unit

may not call directly into a different recovery unit

instanties at least one thread

(kernel has exactly one)

every component belongs at

most to one application recovery unit or to kernel recovery unit

Recovery unit:

application
kernel

SLIDE 9

How to divide program into recovery unit

Use annotations to define kernel

boundaries (@syscall_base, @syscall_ext)

Use Deputy compiler to divide

program into recovery unit and isolate them

SLIDE 10

How to recover application unit

1. Cancel system

calls and halt threads (pending flag)

2. Reclaim

allocated memory

3. Re-initialize

application unit RAM

4. Restart the

application unit thread

SLIDE 11

How to recover kernel unit

1. Cancel
utstanding

system calls

2. Save application

dependent state.

3. Reboot the

TinyOS (skip thread state initialization)

4. Restart the

saved state.

SLIDE 12

Precious state

Losing state of application is too

costly.

Maintain variable value across

application unit restart (mark them with @precious flag).

SLIDE 13

Precious state

Recovery: 1.Check for corruption 2.Push to stack 3.Re-initialize recovery unit 4.Pop from stack and copy Features: 1.Groups 2.Atomic

perations

3.(Optional) Check integrity on application level 4.Pop from stack and copy

SLIDE 14

Evaluation availability

SLIDE 15

Evaluation routing protocol cost

SLIDE 16

Evaluation - overhead

Low programmer overhead (mostly cost of adding annotations)

SLIDE 17

Related work

kernel level safety (most OS, using virtual

address space)

language-level safety
micro reboots (Java Enterprise Edition)

SLIDE 18

Conclusion

Neutron:

recovers from memory safety bugs
divide program into recovery unit
re-initialize faulty unit on error
implement as part of compiler and TinyOS
designed for limited architecture
reduce time to synchronization by 94% and

cost of routing protocol by 99.5%

SLIDE 19

References

Y. Chen, O. Gnawali, M. Kazandjieva, P

. Levis,

J. Regehr: “Surviving Sensor Network

Software Faults,” in Proceedings ACM SOSP 2009, Big Sky, MT, USA, October 2009.
