SURFER Josue Araujo Hernandez Elisabeth Wilgenburg Rodolfo Barranco Kristen Biermayer Susan Su Udit Khandelwal Vibhav Gaur PROJECT GOALS Propeller driven vehicle Communication over distance Direct steering for front wheels

slide-1
SLIDE 1

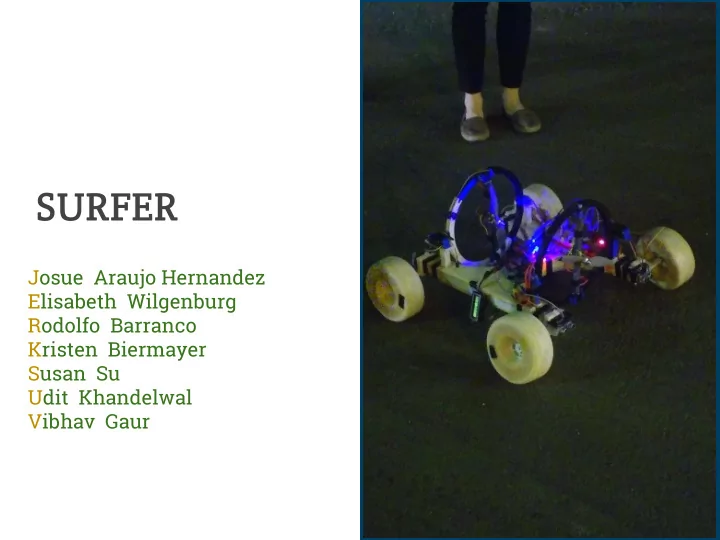

SURFER

Josue Araujo Hernandez Elisabeth Wilgenburg Rodolfo Barranco Kristen Biermayer Susan Su Udit Khandelwal Vibhav Gaur

slide-2
SLIDE 2

PROJECT GOALS

  • Propeller driven vehicle
  • Communication over distance
  • Direct steering for front wheels
  • Ability to float on water
  • Be able to semi-autonomously move from

ground to the wall

  • Drive and turn on wall
slide-3
SLIDE 3

FINAL DESIGN

slide-4
SLIDE 4

FINAL DESIGN

Functionalities

  • Identifies the wall: capable of

steering itself perpendicular to the wall

  • Uses propellers as propulsion
  • RC comms using Xbee
  • Full remote controls
  • Remote control functional

Changes

  • Spherical to cylindrical wheels
  • Propeller size increase: from 6” to 9”
  • Propellers only use one degree of

freedom rather than two

  • Stopped Water
slide-5
SLIDE 5

ITERATIONS

slide-6
SLIDE 6

ITERATIONS: Propeller Housing

slide-7
SLIDE 7

ITERATIONS: Wheel Axle

slide-8
SLIDE 8

ITERATIONS: Wheel Mold

slide-9
SLIDE 9

ITERATIONS: Chassis Mold Production

slide-10
SLIDE 10

FIXES

  • Epoxied two propeller halves to make a

ring

  • The chassis was poured without the

steering motors in mind so we created a motor holder

  • Epoxied many parts that printed in two

parts

Steering Servo Holder Wooden Propeller Ring Carbon Fiber Ring

slide-11
SLIDE 11

ELECTRONICS and PROGRAMMING

XBee Communication

  • XBee Series 1 modules for communication between remote and robot
  • Some issues encountered:

○ Understanding how XBee communication worked! ○ Jitters in the servos and brushless motors due to interfering signals Ultrasonic sensors

  • Ultrasonic sensors to determine the robot’s distance from the wall
  • 2 sensors on the front of the robot, 1 sensor on the back

Joysticks, potentiometers, and buttons oh my!

  • Servos controlled by joystick
  • Brushless motors controlled by potentiometer
  • Buttons tell robot whether to mount or not
slide-12
SLIDE 12

ELECTRONICS and PROGRAMMING

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18

THINGS WE learned

Planning stage

  • Coming up with a general and

detailed plan

  • Accommodating for mishaps

Designing stage

  • Component packaging
  • Steering links

Arduino programming

  • Steering
  • Propellers

Materials

  • ABS and PLA
  • Baltic Plywood
  • Epoxy
slide-19
SLIDE 19

THINGS WE enjoyed

  • Working together and figuring out

each other's strengths

  • Problem solving on our own instead
  • f book solving
  • Making an actual physical thing we

can see and touch

  • Successful results! Like the first time

the propellers moved the vehicle

  • We didn’t start a fire!! ...yet...
slide-20
SLIDE 20

THINGS WE disliked

  • 3D printing problems

○ Delay in part deliveries ○ Failed prints ○ Design flaws, like wheel molds and steering linkages

  • Location to work
  • Programming issues

○ Motor jitters ○ Mounting mechanism

  • Time crunch

The Printer Gives Up

slide-21
SLIDE 21

THINGS WE can improve (given more time)

  • Orientation detection using Inertial Measurement Unit (IMU)

○ Program feedback loops for accurate and real time thrust vectoring

  • Programming water navigation

○ Thrusting up on the surface of water to reduce apparent weight

  • Implementing turning on the wall using a combination of roll and pitch motor

control

○ Using feedback from the IMU and ultrasonic sensors

slide-22
SLIDE 22

THANK YOU!
