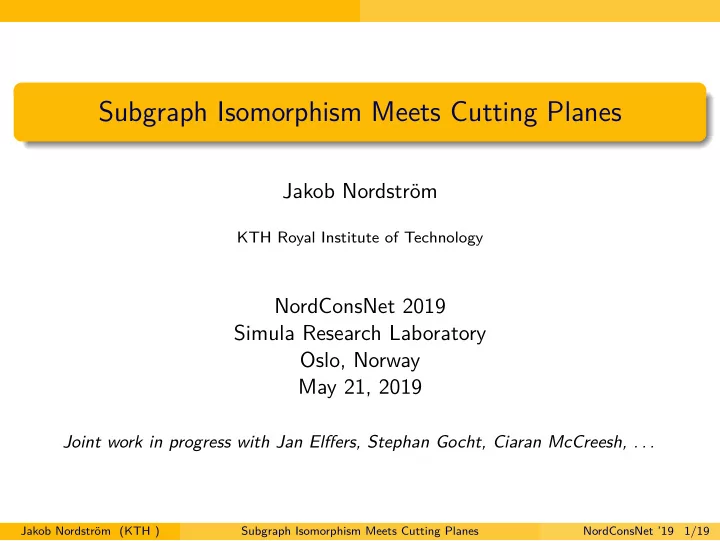

Subgraph Isomorphism Meets Cutting Planes

Jakob Nordstr¨

  • m

KTH Royal Institute of Technology

NordConsNet 2019 Simula Research Laboratory Oslo, Norway May 21, 2019

Joint work in progress with Jan Elffers, Stephan Gocht, Ciaran McCreesh, . . .

Jakob Nordstr¨

  • m (KTH )

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 1/19

slide-2
SLIDE 2

Subgraph Isomorphism Meets Cutting Planes

Jakob Nordstr¨

  • m

KTH Royal Institute of Technology University of Copenhagen

NordConsNet 2019 Simula Research Laboratory Oslo, Norway May 21, 2019

Joint work in progress with Jan Elffers, Stephan Gocht, Ciaran McCreesh, . . .

Jakob Nordstr¨

  • m (KTH )

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 1/19

slide-3
SLIDE 3

The Problem

Input Pattern graph P with vertices V (P) = {a, b, c, . . .} Target graph T with vertices V (T ) = {u, v, w, . . .} Task Find all subgraph isomorphisms ϕ : V (P) → V (T ) I.e., if

1

ϕ(a) = u

2

ϕ(b) = v

3

(a, b) ∈ E(P)

then must have (u, v) ∈ E(T )

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 2/19

slide-4
SLIDE 4

The Problem

Input Pattern graph P with vertices V (P) = {a, b, c, . . .} Target graph T with vertices V (T ) = {u, v, w, . . .} Task Find all subgraph isomorphisms ϕ : V (P) → V (T ) I.e., if

1

ϕ(a) = u

2

ϕ(b) = v

3

(a, b) ∈ E(P)

then must have (u, v) ∈ E(T )

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 2/19

slide-5
SLIDE 5

Subgraph Isomorphism Example

Pattern Target 2nd target No subgraph isomorphism Has subgraph isomorphism In fact, two of them

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 3/19

slide-6
SLIDE 6

Subgraph Isomorphism Example

Pattern Target 2nd target No subgraph isomorphism Has subgraph isomorphism In fact, two of them

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 3/19

slide-7
SLIDE 7

Subgraph Isomorphism Example

Pattern Target 2nd target No subgraph isomorphism Has subgraph isomorphism In fact, two of them

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 3/19

slide-8
SLIDE 8

Subgraph Isomorphism Example

Pattern Target 2nd target No subgraph isomorphism Has subgraph isomorphism In fact, two of them

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 3/19

slide-9
SLIDE 9

Subgraph Isomorphism Example

Pattern Target 2nd target No subgraph isomorphism Has subgraph isomorphism In fact, two of them

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 3/19

slide-10
SLIDE 10

Subgraph Isomorphism Example

Pattern Target 2nd target No subgraph isomorphism Has subgraph isomorphism In fact, two of them

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 3/19

slide-11
SLIDE 11

The Challenge

Subgraph isomorphism important in biochemistry compiler construction computer vision plagiarism and malware detection et cetera. . . But computationally very challenging!

1 How to solve efficiently? 2 How do we know if answer is correct?

(In particular, that we found all subgraph isomorphisms)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 4/19

slide-12
SLIDE 12

The Challenge

Subgraph isomorphism important in biochemistry compiler construction computer vision plagiarism and malware detection et cetera. . . But computationally very challenging!

1 How to solve efficiently? 2 How do we know if answer is correct?

(In particular, that we found all subgraph isomorphisms)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 4/19

slide-13
SLIDE 13

The Challenge

Subgraph isomorphism important in biochemistry compiler construction computer vision plagiarism and malware detection et cetera. . . But computationally very challenging!

1 How to solve efficiently? 2 How do we know if answer is correct?

(In particular, that we found all subgraph isomorphisms)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 4/19

slide-14
SLIDE 14

The Challenge

Subgraph isomorphism important in biochemistry compiler construction computer vision plagiarism and malware detection et cetera. . . But computationally very challenging!

1 How to solve efficiently? 2 How do we know if answer is correct?

(In particular, that we found all subgraph isomorphisms)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 4/19

slide-15
SLIDE 15

This Work

Analyze Glasgow Subgraph Solver [ADH+19, McC19] Show algorithm can be formalized in cutting planes proof system Consequences:

1

Produce efficient proofs of correctness with low overhead (hopefully)

2

Learn pseudo-Boolean no-goods ⇒ exponential speed-up (maybe)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 5/19

slide-16
SLIDE 16

This Work

Analyze Glasgow Subgraph Solver [ADH+19, McC19] Show algorithm can be formalized in cutting planes proof system Consequences:

1

Produce efficient proofs of correctness with low overhead (hopefully)

2

Learn pseudo-Boolean no-goods ⇒ exponential speed-up (maybe)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 5/19

slide-17
SLIDE 17

This Work

Analyze Glasgow Subgraph Solver [ADH+19, McC19] Show algorithm can be formalized in cutting planes proof system Consequences:

1

Produce efficient proofs of correctness with low overhead (hopefully)

2

Learn pseudo-Boolean no-goods ⇒ exponential speed-up (maybe)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 5/19

slide-18
SLIDE 18

This Work

Analyze Glasgow Subgraph Solver [ADH+19, McC19] Show algorithm can be formalized in cutting planes proof system Consequences:

1

Produce efficient proofs of correctness with low overhead (hopefully)

2

Learn pseudo-Boolean no-goods ⇒ exponential speed-up (maybe)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 5/19

slide-19
SLIDE 19

This Work

Analyze Glasgow Subgraph Solver [ADH+19, McC19] Show algorithm can be formalized in cutting planes proof system Consequences:

1

Produce efficient proofs of correctness with low overhead (hopefully)

2

Learn pseudo-Boolean no-goods ⇒ exponential speed-up (maybe)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 5/19

slide-20
SLIDE 20

This Work

Analyze Glasgow Subgraph Solver [ADH+19, McC19] Show algorithm can be formalized in cutting planes proof system Consequences:

1

Produce efficient proofs of correctness with low overhead (hopefully)

2

Learn pseudo-Boolean no-goods ⇒ exponential speed-up (maybe)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 5/19

slide-21
SLIDE 21

Solving Subgraph Isomorphism

Graph Notation and Terminology

Undirected graphs G with vertices V (G) and edges E(G) No loops in this talk (for simplicity) Neighbours NG(v) = {u | (u, v) ∈ E(G)} Degree degG(v) =

  • NG(v)
  • Degree sequence degseqG(v) = sort>({degG(u) | u ∈ NG(v)})

deg(v) = 3 degseq(v) = (3, 3, 1)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 6/19

slide-22
SLIDE 22

Solving Subgraph Isomorphism

Graph Notation and Terminology

Undirected graphs G with vertices V (G) and edges E(G) No loops in this talk (for simplicity) Neighbours NG(v) = {u | (u, v) ∈ E(G)} Degree degG(v) =

  • NG(v)
  • Degree sequence degseqG(v) = sort>({degG(u) | u ∈ NG(v)})

v

deg(v) = 3 degseq(v) = (3, 3, 1)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 6/19

slide-23
SLIDE 23

Solving Subgraph Isomorphism

Graph Notation and Terminology

Undirected graphs G with vertices V (G) and edges E(G) No loops in this talk (for simplicity) Neighbours NG(v) = {u | (u, v) ∈ E(G)} Degree degG(v) =

  • NG(v)
  • Degree sequence degseqG(v) = sort>({degG(u) | u ∈ NG(v)})

v

deg(v) = 3 degseq(v) = (3, 3, 1)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 6/19

slide-24
SLIDE 24

Solving Subgraph Isomorphism

Graph Notation and Terminology

Undirected graphs G with vertices V (G) and edges E(G) No loops in this talk (for simplicity) Neighbours NG(v) = {u | (u, v) ∈ E(G)} Degree degG(v) =

  • NG(v)
  • Degree sequence degseqG(v) = sort>({degG(u) | u ∈ NG(v)})

v

deg(v) = 3 degseq(v) = (3, 3, 1)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 6/19

slide-25
SLIDE 25

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Degree and Degree Sequence

Input Pattern graph P with vertices V (P) = {a, b, c, . . .} Target graph T with vertices V (T ) = {u, v, w, . . .} Preprocessing

1 If

  • V (P)
  • >
  • V (T )
  • , then no solution

2 If degP(a) > degT (u), then a → u 3 If degseqP(a) degseqT (u) pointwise, then a → u Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 7/19

slide-26
SLIDE 26

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Degree and Degree Sequence

Input Pattern graph P with vertices V (P) = {a, b, c, . . .} Target graph T with vertices V (T ) = {u, v, w, . . .} Preprocessing

1 If

  • V (P)
  • >
  • V (T )
  • , then no solution

2 If degP(a) > degT (u), then a → u 3 If degseqP(a) degseqT (u) pointwise, then a → u Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 7/19

slide-27
SLIDE 27

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Degree and Degree Sequence

Input Pattern graph P with vertices V (P) = {a, b, c, . . .} Target graph T with vertices V (T ) = {u, v, w, . . .} Preprocessing

1 If

  • V (P)
  • >
  • V (T )
  • , then no solution

2 If degP(a) > degT (u), then a → u 3 If degseqP(a) degseqT (u) pointwise, then a → u Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 7/19

slide-28
SLIDE 28

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Degree and Degree Sequence

Input Pattern graph P with vertices V (P) = {a, b, c, . . .} Target graph T with vertices V (T ) = {u, v, w, . . .} Preprocessing

1 If

  • V (P)
  • >
  • V (T )
  • , then no solution

2 If degP(a) > degT (u), then a → u 3 If degseqP(a) degseqT (u) pointwise, then a → u Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 7/19

slide-29
SLIDE 29

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Shapes

Shapes Choose special shape graphs S with 2 special vertices s, t Shaped graph GS has

1

vertices V

  • GS

= V (G)

2

edges (u, v) ∈ E

  • GS

iff S subgraph of G with s → u and t → v

Further preprocessing If

1

a → u

2

b → v

3

(a, b) ∈ E

  • PS

then must have (u, v) ∈ E

T S

(Since S “local subgraph” of P, has to be “local subgraph” also of T ) So repeat degree & degree sequence preprocessing for shaped graphs Plus do some other stuff that we’re skipping in this talk

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 8/19

slide-30
SLIDE 30

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Shapes

Shapes Choose special shape graphs S with 2 special vertices s, t Shaped graph GS has

1

vertices V

  • GS

= V (G)

2

edges (u, v) ∈ E

  • GS

iff S subgraph of G with s → u and t → v

Further preprocessing If

1

a → u

2

b → v

3

(a, b) ∈ E

  • PS

then must have (u, v) ∈ E

T S

(Since S “local subgraph” of P, has to be “local subgraph” also of T ) So repeat degree & degree sequence preprocessing for shaped graphs Plus do some other stuff that we’re skipping in this talk

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 8/19

slide-31
SLIDE 31

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Shapes

Shapes Choose special shape graphs S with 2 special vertices s, t Shaped graph GS has

1

vertices V

  • GS

= V (G)

2

edges (u, v) ∈ E

  • GS

iff S subgraph of G with s → u and t → v

Further preprocessing If

1

a → u

2

b → v

3

(a, b) ∈ E

  • PS

then must have (u, v) ∈ E

T S

(Since S “local subgraph” of P, has to be “local subgraph” also of T ) So repeat degree & degree sequence preprocessing for shaped graphs Plus do some other stuff that we’re skipping in this talk

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 8/19

slide-32
SLIDE 32

Solving Subgraph Isomorphism Preprocessing

Preprocessing Using Shapes

Shapes Choose special shape graphs S with 2 special vertices s, t Shaped graph GS has

1

vertices V

  • GS

= V (G)

2

edges (u, v) ∈ E

  • GS

iff S subgraph of G with s → u and t → v

Further preprocessing If

1

a → u

2

b → v

3

(a, b) ∈ E

  • PS

then must have (u, v) ∈ E

T S

(Since S “local subgraph” of P, has to be “local subgraph” also of T ) So repeat degree & degree sequence preprocessing for shaped graphs Plus do some other stuff that we’re skipping in this talk

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 8/19

slide-33
SLIDE 33

Solving Subgraph Isomorphism Preprocessing

Example of Preprocessing Using Shapes

s t

Shape Pattern shaped Target shaped Now obvious that there can be no subgraph isomorphism!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 9/19

slide-34
SLIDE 34

Solving Subgraph Isomorphism Preprocessing

Example of Preprocessing Using Shapes

s t

Shape Pattern shaped Target shaped Now obvious that there can be no subgraph isomorphism!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 9/19

slide-35
SLIDE 35

Solving Subgraph Isomorphism Preprocessing

Example of Preprocessing Using Shapes

s t

Shape Pattern shaped Target shaped Now obvious that there can be no subgraph isomorphism!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 9/19

slide-36
SLIDE 36

Solving Subgraph Isomorphism Preprocessing

Example of Preprocessing Using Shapes

s t

Shape Pattern shaped Target shaped Now obvious that there can be no subgraph isomorphism!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 9/19

slide-37
SLIDE 37

Solving Subgraph Isomorphism Preprocessing

Example of Preprocessing Using Shapes

s t

Shape Pattern shaped Target shaped Now obvious that there can be no subgraph isomorphism!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 9/19

slide-38
SLIDE 38

Solving Subgraph Isomorphism Preprocessing

Example of Preprocessing Using Shapes

s t

Shape Pattern shaped Target shaped Now obvious that there can be no subgraph isomorphism!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 9/19

slide-39
SLIDE 39

Solving Subgraph Isomorphism Search

Main Search Loop (Very Rough Outline)

For every a ∈ V (P) maintain possible domain D(a) ⊆ V (T ) Pick a with smallest domain & iterate over a → u for u ∈ D(a) Repeat until saturation

1

Shrink domains of b ∈ NP(a) for assigned a to D(b) ∩ NT (u)

2

Propagate assignment for b ∈ V (P) with

  • D(b)
  • = 1

Run all-different propagation If ∃A with D(A) =

a∈A D(a) such that

1

|D(A)| < |A| ⇒ contradiction

2

|D(A)| = |A| ⇒ erase D(A) from other domains

Repeat from top of slide Backtrack at failure (or when solution found)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 10/19

slide-40
SLIDE 40

Solving Subgraph Isomorphism Search

Main Search Loop (Very Rough Outline)

For every a ∈ V (P) maintain possible domain D(a) ⊆ V (T ) Pick a with smallest domain & iterate over a → u for u ∈ D(a) Repeat until saturation

1

Shrink domains of b ∈ NP(a) for assigned a to D(b) ∩ NT (u)

2

Propagate assignment for b ∈ V (P) with

  • D(b)
  • = 1

Run all-different propagation If ∃A with D(A) =

a∈A D(a) such that

1

|D(A)| < |A| ⇒ contradiction

2

|D(A)| = |A| ⇒ erase D(A) from other domains

Repeat from top of slide Backtrack at failure (or when solution found)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 10/19

slide-41
SLIDE 41

Solving Subgraph Isomorphism Search

Main Search Loop (Very Rough Outline)

For every a ∈ V (P) maintain possible domain D(a) ⊆ V (T ) Pick a with smallest domain & iterate over a → u for u ∈ D(a) Repeat until saturation

1

Shrink domains of b ∈ NP(a) for assigned a to D(b) ∩ NT (u)

2

Propagate assignment for b ∈ V (P) with

  • D(b)
  • = 1

Run all-different propagation If ∃A with D(A) =

a∈A D(a) such that

1

|D(A)| < |A| ⇒ contradiction

2

|D(A)| = |A| ⇒ erase D(A) from other domains

Repeat from top of slide Backtrack at failure (or when solution found)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 10/19

slide-42
SLIDE 42

Solving Subgraph Isomorphism Search

Main Search Loop (Very Rough Outline)

For every a ∈ V (P) maintain possible domain D(a) ⊆ V (T ) Pick a with smallest domain & iterate over a → u for u ∈ D(a) Repeat until saturation

1

Shrink domains of b ∈ NP(a) for assigned a to D(b) ∩ NT (u)

2

Propagate assignment for b ∈ V (P) with

  • D(b)
  • = 1

Run all-different propagation If ∃A with D(A) =

a∈A D(a) such that

1

|D(A)| < |A| ⇒ contradiction

2

|D(A)| = |A| ⇒ erase D(A) from other domains

Repeat from top of slide Backtrack at failure (or when solution found)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 10/19

slide-43
SLIDE 43

Solving Subgraph Isomorphism Search

Main Search Loop (Very Rough Outline)

For every a ∈ V (P) maintain possible domain D(a) ⊆ V (T ) Pick a with smallest domain & iterate over a → u for u ∈ D(a) Repeat until saturation

1

Shrink domains of b ∈ NP(a) for assigned a to D(b) ∩ NT (u)

2

Propagate assignment for b ∈ V (P) with

  • D(b)
  • = 1

Run all-different propagation If ∃A with D(A) =

a∈A D(a) such that

1

|D(A)| < |A| ⇒ contradiction

2

|D(A)| = |A| ⇒ erase D(A) from other domains

Repeat from top of slide Backtrack at failure (or when solution found)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 10/19

slide-44
SLIDE 44

Solving Subgraph Isomorphism Search

Main Search Loop (Very Rough Outline)

For every a ∈ V (P) maintain possible domain D(a) ⊆ V (T ) Pick a with smallest domain & iterate over a → u for u ∈ D(a) Repeat until saturation

1

Shrink domains of b ∈ NP(a) for assigned a to D(b) ∩ NT (u)

2

Propagate assignment for b ∈ V (P) with

  • D(b)
  • = 1

Run all-different propagation If ∃A with D(A) =

a∈A D(a) such that

1

|D(A)| < |A| ⇒ contradiction

2

|D(A)| = |A| ⇒ erase D(A) from other domains

Repeat from top of slide Backtrack at failure (or when solution found)

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 10/19

slide-45
SLIDE 45

Cutting Planes Syntax

Pseudo-Boolean Constraints

In this talk, “pseudo-Boolean” (PB) refers to 0-1 integer linear constraints Convenient to use non-negative linear combinations of literals, a.k.a. normalized form

  • i aiℓi ≥ A

coefficients ai: non-negative integers degree (of falsity) A: positive integer literals ℓi: xi or xi (where xi + xi = 1)

In what follows: all constraints assumed to be implicitly normalized “

i aiℓi ≤ A” is syntactic sugar for “ i aiℓi ≥ −A + i ai”

“=” is syntactic sugar for two inequalities “≥” and “≤”

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 11/19

slide-46
SLIDE 46

Cutting Planes Syntax

Pseudo-Boolean Constraints

In this talk, “pseudo-Boolean” (PB) refers to 0-1 integer linear constraints Convenient to use non-negative linear combinations of literals, a.k.a. normalized form

  • i aiℓi ≥ A

coefficients ai: non-negative integers degree (of falsity) A: positive integer literals ℓi: xi or xi (where xi + xi = 1)

In what follows: all constraints assumed to be implicitly normalized “

i aiℓi ≤ A” is syntactic sugar for “ i aiℓi ≥ −A + i ai”

“=” is syntactic sugar for two inequalities “≥” and “≤”

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 11/19

slide-47
SLIDE 47

Cutting Planes Syntax

Examples of Pseudo-Boolean Constraints

1 Clauses are pseudo-Boolean constraints

x ∨ y ∨ z ⇔ x + y + z ≥ 1

(So can view CNF formula as collection of pseudo-Boolean constraints)

2 Cardinality constraints

x1 + x2 + x3 + x4 + x5 + x6 ≥ 3

3 General constraints

x1 + 2x2 + 3x3 + 4x4 + 5x5 ≥ 7

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 12/19

slide-48
SLIDE 48

Cutting Planes Syntax

Examples of Pseudo-Boolean Constraints

1 Clauses are pseudo-Boolean constraints

x ∨ y ∨ z ⇔ x + y + z ≥ 1

(So can view CNF formula as collection of pseudo-Boolean constraints)

2 Cardinality constraints

x1 + x2 + x3 + x4 + x5 + x6 ≥ 3

3 General constraints

x1 + 2x2 + 3x3 + 4x4 + 5x5 ≥ 7

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 12/19

slide-49
SLIDE 49

Cutting Planes Syntax

Examples of Pseudo-Boolean Constraints

1 Clauses are pseudo-Boolean constraints

x ∨ y ∨ z ⇔ x + y + z ≥ 1

(So can view CNF formula as collection of pseudo-Boolean constraints)

2 Cardinality constraints

x1 + x2 + x3 + x4 + x5 + x6 ≥ 3

3 General constraints

x1 + 2x2 + 3x3 + 4x4 + 5x5 ≥ 7

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 12/19

slide-50
SLIDE 50

Cutting Planes The Proof System

Cutting Planes [CCT87]

Literal axioms ℓi ≥ 0 Linear combination

  • i aiℓi ≥ A
  • i biℓi ≥ B
  • i(cAai + cBbi)ℓi ≥ cAA + cBB

[cA, cB ≥ 0] Division

  • i aiℓi ≥ A
  • i⌈ai/c⌉ℓi ≥ ⌈A/c⌉

[c > 0]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 13/19

slide-51
SLIDE 51

Cutting Planes The Proof System

More About Cutting Planes

A toy example: 6x + 2y + 3z ≥ 5 x + 2y + w ≥ 1

Linear combination

(6x + 2y + 3z) + 2(x + 2y + w) ≥ 5 + 2 · 1 Literal axioms and linear combinations sound also over the reals Division is where the power of cutting planes lies Exponentially stronger than resolution/CDCL [Hak85, CCT87]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 14/19

slide-52
SLIDE 52

Cutting Planes The Proof System

More About Cutting Planes

A toy example: 6x + 2y + 3z ≥ 5 x + 2y + w ≥ 1

Linear combination

8x + 6y + 3z + 2w ≥ 7 Literal axioms and linear combinations sound also over the reals Division is where the power of cutting planes lies Exponentially stronger than resolution/CDCL [Hak85, CCT87]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 14/19

slide-53
SLIDE 53

Cutting Planes The Proof System

More About Cutting Planes

A toy example: 6x + 2y + 3z ≥ 5 x + 2y + w ≥ 1

Linear combination

8x + 6y + 3z + 2w ≥ 7

Division

3x + 2y + z + w ≥ 3 Literal axioms and linear combinations sound also over the reals Division is where the power of cutting planes lies Exponentially stronger than resolution/CDCL [Hak85, CCT87]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 14/19

slide-54
SLIDE 54

Cutting Planes The Proof System

More About Cutting Planes

A toy example: 6x + 2y + 3z ≥ 5 x + 2y + w ≥ 1

Linear combination

8x + 6y + 3z + 2w ≥ 7

Division

3x + 2y + z + w ≥ 3 Literal axioms and linear combinations sound also over the reals Division is where the power of cutting planes lies Exponentially stronger than resolution/CDCL [Hak85, CCT87]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 14/19

slide-55
SLIDE 55

Cutting Planes Encoding of Subgraph Isomorphism

Subgraph Isomorphism as a Pseudo-Boolean Formula

Recall: Pattern graph P with V (P) = {a, b, c, . . .} Target graph T with V (T ) = {u, v, w, . . .} No loops (for simplicity) Pseudo-Boolean encoding

  • v∈V (T )

xa→v = 1 [every a maps somewhere]

  • b∈V (P)

xb→u ≥

  • V (P)
  • − 1

[mapping is one-to-one] xa→u +

  • v∈N(u)

xb→v ≥ 1 [edge (a, b) maps to edge (u, v)]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 15/19

slide-56
SLIDE 56

Cutting Planes Encoding of Subgraph Isomorphism

Subgraph Isomorphism as a Pseudo-Boolean Formula

Recall: Pattern graph P with V (P) = {a, b, c, . . .} Target graph T with V (T ) = {u, v, w, . . .} No loops (for simplicity) Pseudo-Boolean encoding

  • v∈V (T )

xa→v = 1 [every a maps somewhere]

  • b∈V (P)

xb→u ≥

  • V (P)
  • − 1

[mapping is one-to-one] xa→u +

  • v∈N(u)

xb→v ≥ 1 [edge (a, b) maps to edge (u, v)]

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 15/19

slide-57
SLIDE 57

Our Work Proof logging

Key Finding

All reasoning steps in Glasgow Subgraph Solver can be formalized efficiently in the cutting planes proof system Means that

1 Solver can justify each step by writing local formal derivation 2 Local derivations can be concatenated to global proof of correctness 3 Proof checkable by stand-alone verifier

that knows nothing about graphs in time hopefully not much larger than solver execution

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 16/19

slide-58
SLIDE 58

Our Work Proof logging

Key Finding

All reasoning steps in Glasgow Subgraph Solver can be formalized efficiently in the cutting planes proof system Means that

1 Solver can justify each step by writing local formal derivation 2 Local derivations can be concatenated to global proof of correctness 3 Proof checkable by stand-alone verifier

that knows nothing about graphs in time hopefully not much larger than solver execution

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 16/19

slide-59
SLIDE 59

Our Work Proof logging

Key Finding

All reasoning steps in Glasgow Subgraph Solver can be formalized efficiently in the cutting planes proof system Means that

1 Solver can justify each step by writing local formal derivation 2 Local derivations can be concatenated to global proof of correctness 3 Proof checkable by stand-alone verifier

that knows nothing about graphs in time hopefully not much larger than solver execution

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 16/19

slide-60
SLIDE 60

Our Work Proof logging

Key Finding

All reasoning steps in Glasgow Subgraph Solver can be formalized efficiently in the cutting planes proof system Means that

1 Solver can justify each step by writing local formal derivation 2 Local derivations can be concatenated to global proof of correctness 3 Proof checkable by stand-alone verifier

that knows nothing about graphs in time comparable to the solver execution in time hopefully not much larger than solver execution

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 16/19

slide-61
SLIDE 61

Our Work Proof logging

Key Finding

All reasoning steps in Glasgow Subgraph Solver can be formalized efficiently in the cutting planes proof system Means that

1 Solver can justify each step by writing local formal derivation 2 Local derivations can be concatenated to global proof of correctness 3 Proof checkable by stand-alone verifier

that knows nothing about graphs in time comparable to the solver execution in time hopefully not much larger than solver execution

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 16/19

slide-62
SLIDE 62

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

Sum up all constraints & divide by 3 to obtain

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-63
SLIDE 63

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 Sum up all constraints & divide by 3 to obtain

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-64
SLIDE 64

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 xa→v + xb→v + xc→v + xd→v + xe→v ≥ 4 xa→w + xb→w + xc→w + xd→w + xe→w ≥ 4 Sum up all constraints & divide by 3 to obtain

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-65
SLIDE 65

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 xa→v + xb→v + xc→v + xd→v + xe→v ≥ 4 xa→w + xb→w + xc→w + xd→w + xe→w ≥ 4 xa→v ≥ 0 xa→w ≥ 0 xe→v ≥ 0 xe→w ≥ 0 Sum up all constraints & divide by 3 to obtain

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-66
SLIDE 66

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 xa→v + xb→v + xc→v + xd→v + xe→v ≥ 4 xa→w + xb→w + xc→w + xd→w + xe→w ≥ 4 xa→v ≥ 0 xa→w ≥ 0 xe→v ≥ 0 xe→w ≥ 0 Sum up all constraints & divide by 3 to obtain

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-67
SLIDE 67

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 xa→v + xb→v + xc→v + xd→v + xe→v ≥ 4 xa→w + xb→w + xc→w + xd→w + xe→w ≥ 4 xa→v ≥ 0 xa→w ≥ 0 xe→v ≥ 0 xe→w ≥ 0 Sum up all constraints & divide by 3 to obtain 3xa→u + 10 ≥ 11

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-68
SLIDE 68

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 xa→v + xb→v + xc→v + xd→v + xe→v ≥ 4 xa→w + xb→w + xc→w + xd→w + xe→w ≥ 4 xa→v ≥ 0 xa→w ≥ 0 xe→v ≥ 0 xe→w ≥ 0 Sum up all constraints & divide by 3 to obtain 3xa→u ≥ 1

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-69
SLIDE 69

Our Work Proof logging

Example: Degree Preprocessing with PB Reasoning

a b c d e u v w

xa→u + xb→v + xb→w ≥ 1 xa→u + xc→v + xc→w ≥ 1 xa→u + xd→v + xd→w ≥ 1 xa→v + xb→v + xc→v + xd→v + xe→v ≥ 4 xa→w + xb→w + xc→w + xd→w + xe→w ≥ 4 xa→v ≥ 0 xa→w ≥ 0 xe→v ≥ 0 xe→w ≥ 0 Sum up all constraints & divide by 3 to obtain 3xa→u ≥ 1 xa→u ≥ 1

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 17/19

slide-70
SLIDE 70

Our Work Speed-ups from Learning?

Better Subgraph Solvers by Learning No-Goods?

Subgraph isomorphism algorithm performs tree-like search Can we learn from failures and cut away larger parts of search space? Has been tried using CDCL solvers — doesn’t seem to work But CDCL only does resolution reasoning — very weak Pseudo-Boolean solvers Sat4j [LP10] and RoundingSat [EN18] can be exponentially stronger E.g., can do all-different propagation, which CDCL can’t Remains to be seen whether this will fly in practice for subgraph

  • isomorphism. . .

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 18/19

slide-71
SLIDE 71

Our Work Speed-ups from Learning?

Better Subgraph Solvers by Learning No-Goods?

Subgraph isomorphism algorithm performs tree-like search Can we learn from failures and cut away larger parts of search space? Has been tried using CDCL solvers — doesn’t seem to work But CDCL only does resolution reasoning — very weak Pseudo-Boolean solvers Sat4j [LP10] and RoundingSat [EN18] can be exponentially stronger E.g., can do all-different propagation, which CDCL can’t Remains to be seen whether this will fly in practice for subgraph

  • isomorphism. . .

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 18/19

slide-72
SLIDE 72

Our Work Speed-ups from Learning?

Better Subgraph Solvers by Learning No-Goods?

Subgraph isomorphism algorithm performs tree-like search Can we learn from failures and cut away larger parts of search space? Has been tried using CDCL solvers — doesn’t seem to work But CDCL only does resolution reasoning — very weak Pseudo-Boolean solvers Sat4j [LP10] and RoundingSat [EN18] can be exponentially stronger E.g., can do all-different propagation, which CDCL can’t Remains to be seen whether this will fly in practice for subgraph

  • isomorphism. . .

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 18/19

slide-73
SLIDE 73

Our Work Speed-ups from Learning?

Better Subgraph Solvers by Learning No-Goods?

Subgraph isomorphism algorithm performs tree-like search Can we learn from failures and cut away larger parts of search space? Has been tried using CDCL solvers — doesn’t seem to work But CDCL only does resolution reasoning — very weak Pseudo-Boolean solvers Sat4j [LP10] and RoundingSat [EN18] can be exponentially stronger E.g., can do all-different propagation, which CDCL can’t Remains to be seen whether this will fly in practice for subgraph

  • isomorphism. . .

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 18/19

slide-74
SLIDE 74

Take-Home Message

Subgraph isomorphism important problem with many applications Can often be efficiently solved, but what about correctness? This work: Glasgow Subgraph Solver captured by cutting planes Consequences:

1

Efficiently verifiable certificates of correctness

2

Potential for exponential speed-up from pseudo-Boolean no-goods?

Caveat: Still very much work in progress. . . Question: Can cutting planes formalize algorithms for other hard combinatorial problems in similar way?

Thank you for your attention!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 19/19

slide-75
SLIDE 75

Take-Home Message

Subgraph isomorphism important problem with many applications Can often be efficiently solved, but what about correctness? This work: Glasgow Subgraph Solver captured by cutting planes Consequences:

1

Efficiently verifiable certificates of correctness

2

Potential for exponential speed-up from pseudo-Boolean no-goods?

Caveat: Still very much work in progress. . . Question: Can cutting planes formalize algorithms for other hard combinatorial problems in similar way?

Thank you for your attention!

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 19/19

slide-76
SLIDE 76

References I

[ADH+19] Blair Archibald, Fraser Dunlop, Ruth Hoffmann, Ciaran McCreesh, Patrick Prosser, and James Trimble. Sequential and parallel solution-biased search for subgraph

  • algorithms. In Proceedings of the 16th International Conference on Integration of

Artificial Intelligence and Operations Research Techniques in Constraint Programming (CPAIOR ’19), June 2019. To appear. [CCT87] William Cook, Collette Rene Coullard, and Gy¨

  • rgy Tur´
  • an. On the complexity of

cutting-plane proofs. Discrete Applied Mathematics, 18(1):25–38, November 1987. [EN18] Jan Elffers and Jakob Nordstr¨

  • m. Divide and conquer: Towards faster

pseudo-Boolean solving. In Proceedings of the 27th International Joint Conference

  • n Artificial Intelligence (IJCAI ’18), pages 1291–1299, July 2018.

[Hak85] Armin Haken. The intractability of resolution. Theoretical Computer Science, 39(2-3):297–308, August 1985. [LP10] Daniel Le Berre and Anne Parrain. The Sat4j library, release 2.2. Journal on Satisfiability, Boolean Modeling and Computation, 7:59–64, 2010. [McC19] Ciaran McCreesh. Glasgow subgraph solver. https://github.com/ciaranm/glasgow-subgraph-solver, 2019.

Jakob Nordstr¨

  • m (UCPH)

Subgraph Isomorphism Meets Cutting Planes NordConsNet ’19 20/19
