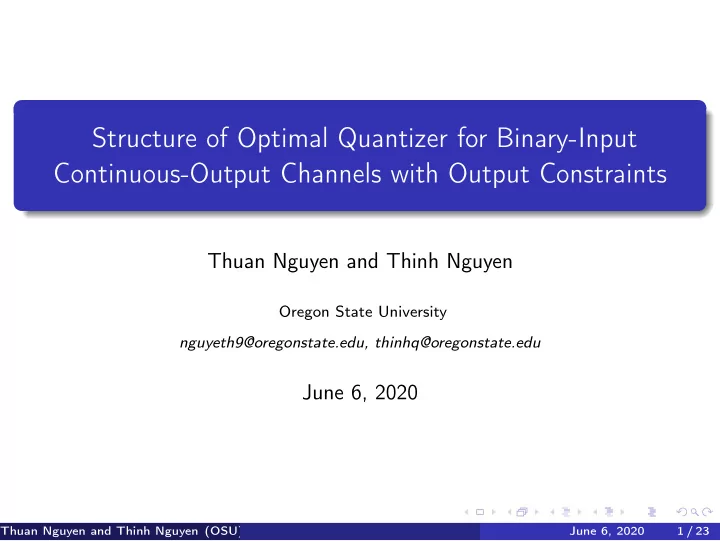

Structure of Optimal Quantizer for Binary-Input Continuous-Output Channels with Output Constraints Thuan Nguyen and Thinh Nguyen Oregon State University nguyeth9@oregonstate.edu, thinhq@oregonstate.edu June 6, 2020 Thuan Nguyen and Thinh

slide-1
SLIDE 1

Structure of Optimal Quantizer for Binary-Input Continuous-Output Channels with Output Constraints

Thuan Nguyen and Thinh Nguyen

Oregon State University nguyeth9@oregonstate.edu, thinhq@oregonstate.edu

June 6, 2020

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 1 / 23

slide-2
SLIDE 2

Outline

1

Introduction

2

Problem Formulation

3

Structure of optimal quantizer

4

Applications

5

Conclusion

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 2 / 23

slide-3
SLIDE 3
  • 1. Introduction

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 3 / 23

slide-4
SLIDE 4

Quantization maximizing mutual information

  • Designing quantizer maximizing mutual information receives

tremendous attention [1,2,3,4,5,6,7,8,9,10,11].

  • Finding the optimal quantizer under some output constraints has a

long history: entropy-constrained scalar quantization [12], [13], [14], entropy-constrained vector quantization [15], [16], [17]. → We investigate the problem of designing optimal quantizers that maximize the mutual information between input and the quantized

  • utput under quantized output constraints.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 4 / 23

slide-5
SLIDE 5

Related work

  • Strouse et al. proposed an iterative algorithm to find a local optimal

quantizer that maximizes the mutual information under the entropy constraint of output [18].

  • Gyorgy and Linder proved that convex cell quantizers are optimal for

entropy-constrained scalar quantization [14].

  • Kurkoski and Yagi showed that if the input is binary then the
  • ptimal quantizer maximizing mutual information must belong to class
  • f convex cell quantizers [1].

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 5 / 23

slide-6
SLIDE 6

Our Results

  • The optimal quantizer maximizing mutual information under any
  • utput constraint must belong to the class of convex cell quantizers.
  • A fast algorithm for finding a globally optimal quantizer if the

channel input is binary.

  • A sufficient condition for which a single threshold quantizer is
  • ptimal.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 6 / 23

slide-7
SLIDE 7
  • 2. Problem formulation

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 7 / 23

slide-8
SLIDE 8

Problem formulation

  • Binary random input X = {x1, x2}, pX = [px1, px2] = [p1, p2].
  • Continuous output Y is specified by two given conditional densities

py|x1 = φ1(y) and py|x2 = φ2(y).

  • Quantizer Q is used to quantize Y to a discrete output set

Z = {z1, z2, . . . , zN}. Our objective is to find the solution to the following optimization problem: max

Q βI(X; Z) − C(pZ),

(1)

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 8 / 23

slide-9
SLIDE 9

Notations

  • ry = px1|y =

p1φ1(y) p1φ1(y) + p2φ2(y).

  • vy = px|y = [px1|y, px2|y] = [ry, 1 − ry].
  • µ(y) denotes the density function of Y , µ(y) = p1φ1(y) + p2φ2(y).
  • Zi denotes the set of y that is quantized to the ith output zi.

Zi = {y : Q(y) = zi}.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 9 / 23

slide-10
SLIDE 10

Definitions

Definition

(Kullback-Leibler (KL) divergence) KL divergence of two probability vectors a = (a1, a2, . . . , aJ) and b = (b1, b2, . . . , bJ) is defined by D(a||b) =

J

  • i=1

ai log(ai bi ). (2)

Definition

(Centroid) Centroid of subset Zi ⊂ R is a two dimensional vector ci = [ci, 1 − ci] that globally minimizes the total KL divergence vy to ci from all y ∈ Zi: ci = arg min

c

  • y∈Zi

D(vy||c)µ(y)dy. (3)

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 10 / 23

slide-11
SLIDE 11

Definitions cont.

Definition

(Vector order) For two given conditional probability vectors vy1 and vy2, we define vy1 ≤ vy2 if and only if px1|y1 ≤ px1|y2 or ry1 ≤ ry2. Similarly, for two centroid vectors ci = [ci, 1 − ci] and cj = [cj, 1 − cj], ci ≤ cj if and

  • nly if ci ≤ cj.

Definition

(Set order) Given two arbitrary sets A ⊂ R and B ⊂ R , we define A ≤ B if and only if for all ya ∈ A and any yb ∈ B, we have vya ≤ vyb. We define A ≡ B if and only if A ⊂ B and B ⊂ A.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 11 / 23

slide-12
SLIDE 12

Definitions cont.

Definition

(Convex cell quantizer) A quantizer is a convex cell quantizer in ry if Q∗(ry) = zi, if a∗

i−1 ≤ ry < a∗ i ,

(4) for some optimal thresholds a∗

0 = 0 < a∗ 1 < · · · < a∗ N−1 < a∗ N = 1.

In other words, Q is convex cell quantizer if Z1 ≤ Z2 ≤ · · · ≤ ZN.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 12 / 23

slide-13
SLIDE 13
  • 3. Structure of optimal quantizer

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 13 / 23

slide-14
SLIDE 14

Optimal quantizer and KL-divergence

  • A quantizer Q maximizing I(X; Z) is equivalent to minimizing the

average distortion of KL divergence EY [DKL(vy||ci)] = D(Q) [2].

  • If D(Q) ≤ D(Q′) then I(X; Z)Q ≥ I(X; Z)Q′.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 14 / 23

slide-15
SLIDE 15

Structure of optimal quantizer for binary partition (N = 2)

Theorem

Let Q be an arbitrary quantizer that produces two disjoint output sets {Z1, Z2} corresponding to two centroid vectors c1, c2 such that c1 ≤ c2, there exists a convex cell quantizer ¯ Q with two output sets { ¯ Z1, ¯ Z2} and the corresponding centroids {¯ c1, ¯ c2} such that ¯ Z1 ≤ ¯ Z2, pZi = p ¯

Zi for

i = 1, 2 and D( ¯ Q) ≤ D(Q).

Proof.

For any given quantizer Q(y), we show that existing a convex cell quantizer ¯ Q(ry) such that:

  • pZ = p ¯

Z.

  • D( ¯

Q) ≤ D(Q). → The optimal quantizer must belong to the class of convex cell quantizers.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 15 / 23

slide-16
SLIDE 16

Optimal quantizer structure for N > 2

Theorem

Let Q be a quantizer with arbitrary disjoint quantized-output sets {Z1, Z2, . . . , ZN} corresponding to N centroids c1, c2, . . . , cN such that ci ≤ ci+1 ∀ i, there exists an other convex cell quantizer ¯ Q with the output sets { ¯ Z1, ¯ Z2, . . . , ¯ ZN} and the corresponding centroids {¯ c1, ¯ c2, . . . , ¯ cN} such that ¯ Zi ≤ ¯ Zi+1, pZi = p ¯

Zi ∀ i and D( ¯

Q) ≤ D(Q).

Proof.

Our proof is based on the induction method using the base case in Theorem 1.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 16 / 23

slide-17
SLIDE 17
  • 4. Applications

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 17 / 23

slide-18
SLIDE 18

Finding optimal binary partition N = 2

Based on Theorem 1, Q∗(ry) =

  • z1 if ry ≤ a∗

1,

z2 if ry > a∗

1,

for an optimal a∗

1 ∈ (0, 1).

  • The optimal quantizer can be found by an exhaustive searching over

a∗

1 ∈ (0, 1).

  • If φ2(y)

φ1(y) is a strictly increasing/decreasing function, the classical

  • ne threshold quantizer is optimal.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 18 / 23

slide-19
SLIDE 19

Finding optimal quantizer for N > 2

From Theorem 2, finding the optimal quantizer is equivalent to finding N + 1 scalar thresholds a0 = 0 < a1 < · · · < aN−1 < aN = 1 such that Q(y) = zi, if ai−1 ≤ ry = px1|y < ai. → The problem of finding globally optimal quantizer can be cast as a 1-dimensional scalar quantization problem that can be solved efficiently using the well-known dynamic programming [1], [11], [19].

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 19 / 23

slide-20
SLIDE 20
  • 5. Conclusion

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 20 / 23

slide-21
SLIDE 21

In this paper,

  • We show that the optimal quantizer that maximizes the mutual

information between input and output under an output constraint separates ry into convex cells.

  • We provide a sufficient condition for which a single threshold

quantizer is optimal.

  • Some fast algorithms are proposed for determining the optimal

quantizers.

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 21 / 23

slide-22
SLIDE 22

Thank you for listening !!!

Thuan Nguyen and Thinh Nguyen (OSU) June 6, 2020 22 / 23
