Evolving Techniques: Patient specific S pecific Targets for Cup Position in Total Hip Arthroplasty Stefan Kreuzer, MD Houston, Texas Disclosures/ Affiliations: Device companies Board Member/ Advisory Board Corin: Consult ing/ speaking,

slide-1
SLIDE 1

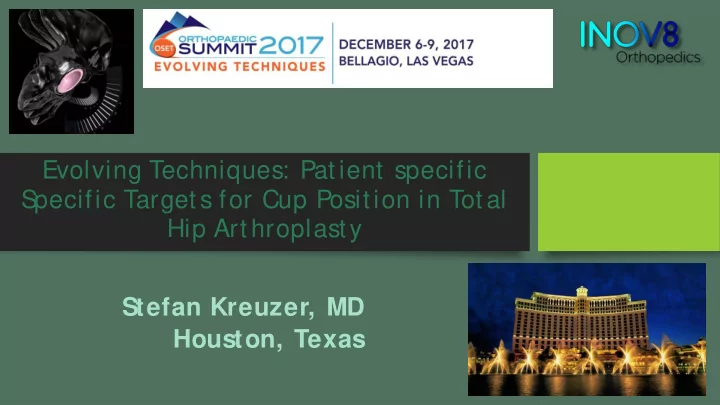

Stefan Kreuzer, MD Houston, Texas Evolving Techniques: Patient specific S pecific Targets for Cup Position in Total Hip Arthroplasty

slide-2
SLIDE 2

Disclosures/ Affiliations:

Device companies

  • Corin: Consult ing/ speaking, Research support , Royalt ies
  • S

mit h and Nephew: Consult ing/ speaking, Research support , Royalt ies (in t he past )

  • S

t ryker: Royalt ies

  • Zimmer/ Biomet: Consult ing, Royalt ies
  • Medt ronic: Consult ing/ speaking
  • Depuy: Research support t hrough MBJ-RF
  • Pacira: Consult ing/ S

peaking

  • Brain Lab: Consult ing/ speaking
  • Int elli-Joint S

urgical: Consult ing/ speaking

  • Think S

urgical: Consult ing, Research

  • Knee 360: Consult ing (none-compensates)
  • S

hukla: Consult ing

  • S

wift Pat h: Consult ing/ speaking

  • Pulse: Consult ing/ speaking, Royalt ies
  • Y
  • ur Pract ice on line: Consult ing (none compensat ed)

Board Member/ Advisory Board

  • IS

TA

  • ICJR
  • MBJ-RF
  • S

urgical Care Affiliates: Medical Advisory Board

  • Employers Direct : Medical Advisory Board

Investments/ ownership:

  • IOT
  • K and S

solut ions

  • Alpoza
  • Ort hosensor
  • Argent um Medical (silverlone)
  • Inov8 S

urgical

  • Invo8 Healt hcare
  • First S

t reet S urgical Hospit al

  • Texo-Venture
  • Employers Direct
slide-3
SLIDE 3

“The dogmas of the quiet past are inadequate to the stormy present… As our case is new, so we must think anew, and act anew.”

slide-4
SLIDE 4

Lewinnek1 defined safe zone as 30-50° inclination and 5-25° anteversion

 36 yr old analysis (JBJS

1978)

 9 dislocations (3 in the safe zone)  300 THRs - only 113 X-rays

analysed from the 291 non- dislocated patients

 Relative to the APP

The first ‘safe zone’

Angle (degrees) Angle (degrees)

Dislocated

anterior posterior unknown

Normal

1. Lewinnek, et el, 1978, JBJS

slide-5
SLIDE 5

Facts on Dislocation: HSS

  • The frequency of dislocation was 2.1%

(147 of 7040 patients).

slide-6
SLIDE 6
  • M. Abdel2- AAHKS

Nov 2014

 12,000 Hips implanted between

2003 and 2012 at the Mayo clinic

 Minimum 2 yr follow up  1.9%

(224 hips) dislocated

 58%

  • f dislocations were inside

the Lewinnek safe zone.

Is a safe zone really safe?

Angle (degrees) Angle (degrees)

1. Lewinnek, et el, 1978, JBJS 2. Abdel, AAHKS, 2014

slide-7
SLIDE 7

Introduction

The pelvis rotates in the sagittal plane, consequently in patients with THR, the functional cup orientation changes Posterior Tilt Anterior Tilt

slide-8
SLIDE 8

Consequences

Posterior Rotation Bad in hip extension Anterior Rotation Bad in hip flexion

slide-9
SLIDE 9

1517 patients

slide-10
SLIDE 10

Variation of functional pelvic tilt

slide-11
SLIDE 11

Variation of functional pelvic tilt

slide-12
SLIDE 12

Variation of functional pelvic tilt

slide-13
SLIDE 13

S ymptomatic THRs analysed in supine

40% in “ safe zone”

slide-14
SLIDE 14

S ymptomatic THRs analysed functionally

13% in “ safe zone”

slide-15
SLIDE 15

Functional Boundaries

slide-16
SLIDE 16

Take Home’s…

  • 40 - 60%
  • f dislocating/ squeaking hips are within

published safe-zones

  • However, when analysed functionally this number

falls to only 13%

  • Functional analysis is a significantly better predictor
  • f dislocating/ squeaking hips than static assessments
