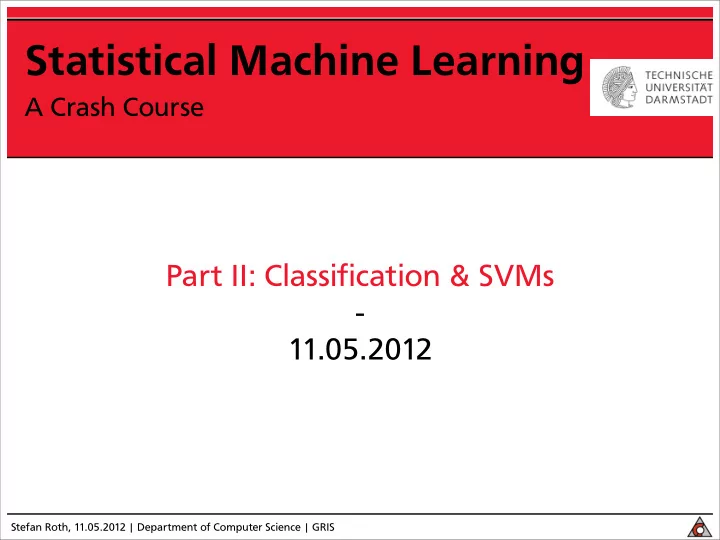

SLIDE 1

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS

Statistical Machine Learning

A Crash Course

Part II: Classification & SVMs

11.05.2012

SLIDE 2

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 2

■ Decision rule:

Decide if
This is equivalent to
Which is equivalent to

■ Bayes optimal classifier:

A classifier obeying this rule is called a Bayes optimal classifier.

Bayesian Decision Theory

p(C1|x) > p(C2|x) p(x|C1)p(C1) > p(x|C2)p(C2) p(x|C1) p(x|C2) > p(C2) p(C1) C1

We do not need the normalization!

SLIDE 3

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 3

■ Bayesian decision theory:

Model and estimate class-conditional density as well as

class prior

Compute posterior
Minimize the error probability by maximizing

■ New approach:

Directly encode the “decision boundary”
Without modeling the densities directly
Still minimize the error probability

Bayesian Decision Theory

p(Ck|x) = p(x|Ck)p(Ck) p(x)

p(x|Ck)

p(Ck) p(Ck|x) p(Ck|x)

SLIDE 4

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 4

■ Formulate classification using comparisons:

Discriminant functions:
Classify as class iff:
Example: Discriminant functions from Bayes classifier

y1(x), . . . , yK(x)

Discriminant Functions

yk(x) > yj(x), ⇥j = k

x

Ck yk(x) = p(Ck|x) yk(x) = p(x|Ck)p(Ck) yk(x) = log p(x|Ck) + log p(Ck)

SLIDE 5

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 5

■ Special case: 2 classes

Example: Bayes classifier

Discriminant Functions

y1(x) > y2(x) ⇔ y1(x) − y2(x) > ⇔: y(x) > y(x) = p(C1|x) − p(C2|x) y(x) = log p(x|C1) p(x|C2) + log p(C1) p(C2)

SLIDE 6

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Example: Bayes classifier

6

0.01 0.01 0.01 0.01 0.01 0.02 . 2 . 2 0.02 0.03 0.03 . 3 0.04 . 4 −3 −2 −1 1 2 3 4 5 −3 −2 −1 1 2 3 4 5 . 1 0.01 0.01 0.01 . 1 0.02 0.02 0.02 0.02 . 3 . 3 −3 −2 −1 1 2 3 4 5 −3 −2 −1 1 2 3 4 5 −0.01 −0.01 −0.01 0.01 0.01 0.01 0.01 . 2 0.02 −3 −2 −1 1 2 3 4 5 −3 −2 −1 1 2 3 4 5 − 3 − 2 − 2 − 1 − 1 − 1 1 1 1 1 2 2 2 3 3 4 −3 −2 −1 1 2 3 4 5 −3 −2 −1 1 2 3 4 5 −0.01 −0.01 −0.01 0.01 0.01 0.01 0.01 . 2 0.02 −3 −2 −1 1 2 3 4 5 −3 −2 −1 1 2 3 4 5

■ 2 classes, Gaussian class-conditionals: p(x|C1)p(C1) − p(x|C2)p(C2) log p(x|C1)p(C1) p(x|C2)p(C2) p(x|C1)p(C1) p(x|C2)p(C2)

decision boundary

SLIDE 7

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 7

■ 2-class problem: ■ Simplest case: linear decision boundary

Linear discriminant function:

normal vector

ffset

Linear Discriminant Functions

decide class 1, otherwise class 2

y(x) = wTx + w0 y(x) > 0 :

SLIDE 8

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Linear Discriminant Functions

■ Illustration for 2D case:

8

x2 x1 w x

y(x) kwk

x?

w0 kwk

y = 0 y < 0 y > 0 R2 R1

y(x) = wTx + w0

signed distance to the decision boundary

SLIDE 9

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Linear Discriminant Functions

■ 2 basic cases:

9

linearly separable not linearly separable

SLIDE 10

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Multi-Class Case

■ What if we constructed a multi-class classifier from several 2-class classifiers?

If we base our decision rule on binary decisions, this may lead to

ambiguities.

10

R1 R2 R3 ? C1 not C1 C2 not C2

ne-versus-all

(one-versus-the-rest)

R1 R2 R3 ? C1 C2 C1 C3 C2 C3

ne-versus-one

SLIDE 11

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Multi-Class Case

■ Better solution: (we have seen this already)

Use discriminant function to encode how strongly we believe in

each class:

Decision rule:

11

yk(x) > yj(x), ⇥j = k

y1(x), . . . , yK(x)

Ri Rj Rk xA xB ˆ x

If the discriminant functions are linear, the decision regions are connected and convex

SLIDE 12

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Discriminant Functions

■ Why might we want to use discriminant functions? ■ Example: 2 classes

We could easily fit the class-conditionals using Gaussians and use a

Bayes classifier.

How about now?
Do these points matter for making the decision between the two

classes?

12

SLIDE 13

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Distribution-free Classifiers

■ Main idea:

We do not necessarily need to model all details of the class-

conditional distributions to come up with a good decision boundary.

The class-conditionals may have many

intricacies that do not matter at the end

f the day.
If we can learn where to place the decision boundary directly, we

can avoid some of the complexity.

■ Nonetheless:

It would be unwise to believe that such classifiers are inherently

superior to probabilistic ones.

13

SLIDE 14

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

First Attempt: Least Squares

■ Try to achieve a certain value of the discriminative function:

Training data:
Labels:

■ Linear discriminant function:

Try to enforce
One linear equation for each training data point/label pair.

14

y(x) = +1 ⇔ x ∈ C1 y(x) = −1 ⇔ x ∈ C2 X = {x1 ∈ Rd, . . . , xn} xT

i w + w0 = yi,

∀i = 1, . . . , n Y = {y1 ∈ {−1, 1}, . . . , yn}

SLIDE 15

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

First Attempt: Least Squares

■ Linear equation system:

Define
Rewrite equation system:
Or in matrix-vector notation:

15

xT

i w + w0 = yi,

∀i = 1, . . . , n ˆ xi = xi 1 ⇥ ˆ w = w w0 ⇥ ˆ xT

i ˆ

w = yi, ∀i = 1, . . . , n ˆ XT ˆ w = y ˆ X = [ˆ x1, . . . , ˆ xn] y = [y1, . . . , yn]T

with

SLIDE 16

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

First Attempt: Least Squares

■ Overdetermined system of equations:

n equations, d+1 unknowns

■ Look for least squares solution:

Set the derivative to zero:

16

ˆ XT ˆ w = y 2 ˆ X ˆ XT ˆ w − 2 ˆ Xy := 0 ˆ w = ( ˆ X ˆ XT)−1 ˆ X ⇤ ⇥ ⌅ y

Pseudo-inverse

|| ˆ XT ˆ w − y||2 → min ( ˆ XT ˆ w − y)T( ˆ XT ˆ w − y) → min ˆ wT ˆ X ˆ XT ˆ w − 2yT ˆ XT ˆ w + yTy → min

SLIDE 17

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

First Attempt: Least Squares

■ Problem: Least-squares is very sensitive to outliers

17

−4 −2 2 4 6 8 −8 −6 −4 −2 2 4

No outliers Least-squares discriminant works

−4 −2 2 4 6 8 −8 −6 −4 −2 2 4

Outliers present Least-squares discriminant breaks down

SLIDE 18

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

New Stategy

■ If our classes are linearly separable, we want to make sure that we find a separating (hyper)plane: ■ First such algorithm we will see:

The perceptron algorithm [Rosenblatt, 1962]
A true classic!

18

SLIDE 19

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Perceptron Algorithm

■ Perceptron discriminant function: ■ Algorithm:

Start with some “weight” vector and some bias
For all data points with class labels
If is correctly classified, i.e. , do nothing.
Otherwise, if update the parameters using:
Otherwise, if update the parameters using:
Repeat until convergence.

19

y(x) = sign(wTx + b) w b xi

xi w ← w − xi b ← b − 1 w ← w + xi b ← b + 1

Notational convenience as before:

■ Novikoff’s theorem [1962]:

This means that if the data is linearly separable, the perceptron

algorithm will find it.

If it is not separable, the algorithm will never converge.

24

wTx + b = ˆ wTˆ x

Theorem 2.1 Let S = {(x1, y1), . . . , (xn, yn)} be a data set containing at least

ne positive and one negative example. Set R ≡ maxi xi. Assume that there

exists a weight vector w∗ with w∗ = 1 such that γi = yiw∗, xi ≥ γ for all

examples. Then the perceptron will not make more than (R/γ)2 update steps.

SLIDE 25

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

But is it useful?

■ How often is real data linearly separable? ■ Simple failure example:

History: Minsky & Papert [1969] criticized the perceptron for not

being able to handle this case, which halted research on this and related techniques for decades.

25

“XOR function”

SLIDE 26

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Other Feature Spaces

■ It took a long time until people had realized that there is a simple way out. ■ Key idea: Transform the input data nonlinearly so that the problem becomes linearly separable!

26

−1.5 −1 −0.5 0.5 1 1.5 −1.5 −1 −0.5 0.5 1 1.5 0.5 1 1.5 2 2.5 0.5 1 1.5 2 2.5

SLIDE 27

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Generalized Linear Discriminant Functions

■ Instead of using the linear discriminant function we use a generalized version:

Here is a nonlinear transformation.

■ All our linear algorithms can be used (i.e. least-squares, perceptron) after the transformation:

We can represent and find non-linear decision boundaries.

27

y(x) = wTx + b y(x) = wTφ(x) + b

φ(x)

SLIDE 28

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Generalized Linear Discriminant Functions

■ Simple example: Polar coordinates

If one class lies within a circle and

the other one outside, we can use a linear classifier on the radius from the center to perfectly classify the data

We use a linear classifier in the

transformed feature space, but if we look at the original space, the classifier is nonlinear!

28

−1.5 −1 −0.5 0.5 1 1.5 −1.5 −1 −0.5 0.5 1 1.5

φ

[x1, x2]T⇥

= ⇧⌥ x2

1 + x2 2, arctan

⇤x2 x1 ⌅⌃T

SLIDE 29

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Polynomial Transformations

■ Let us consider a more general case:

Suppose we want to represent decision boundaries that are

polynomials of a certain degree.

Simplest case (other than linear): degree 2.

■ Quadratic (decision) surfaces:

Assume we are in 2D:

29

y(x) = A11x2

1 + (A12 + A21)x1x2 + A22x2 2 + b1x1 + b2x2 + c

y(x) = xTAx + bTx + c, x, b ∈ Rn, A ∈ Rn×n

SLIDE 30

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Polynomial Transformations

■ How can we find a suitable transformation that maps into a space in which this quadratic can be represented by a linear decision boundary?

That is actually quite easy:
Then we can use our linear classifiers to also find quadratic

decision boundaries using:

30

y(x) = A11x2

1 + (A12 + A21)x1x2 + A22x2 2 + b1x1 + b2x2 + c

φ(x) x φ(x) = (x2

1, x1x2, x2 2, x1, x2)T

y(x) = wTφ(x) + b

SLIDE 31

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Polynomial Transformations

■ Example:

Circular decision boundary:

31

−1.5 −1 −0.5 0.5 1 1.5 −1.5 −1 −0.5 0.5 1 1.5

y(x) = x2

1 + x2 2 − r2

= 1 · x2

1 + 0 · x1x2 + 1 · x2 2 + 0 · x1 + 0 · x2 − r2

= (1, 0, 1, 0, 0)(x2

1, x1x2, x2 2, x1, x2)T − r2

= (1, 0, 1, 0, 0)φ(x) − r2

SLIDE 32

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Polynomial Transformations

■ What about higher dimensions ( )? ■ What about higher-order polynomials ( )? ■ We can use the same idea:

We transform the vector

into the space of all monomials with degree

What does that mean?
All possible terms of the form
Problem: There are such terms!
Example: terms

32

N > 2 d > 2 d xi1 · xi2 · · · · · xid

d + N − 1 d ⇥

d = 5, N = 256 ⇒ ≈ 1010

dimensions in the transformed space

x = (x1, . . . , xN)T

SLIDE 33

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Polynomial Transformations

■ This is clearly too high-dimensional to be practical.

We would need to have 1010 parameters...
Generally, we should have many more data points than we have

parameters.

But wanting to classify 16 x 16 images of, say, handwritten digits

doesn’t sound like an unreasonable task.

■ What to do?

Let us revisit the perceptron.

33

SLIDE 34

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Perceptron Algorithm

■ Perceptron discriminant function: ■ Algorithm:

Start with some “weight” vector and some bias
For all data points with class labels
If is correctly classified, i.e. , do nothing.
Otherwise, if update the parameters using:
Otherwise, if update the parameters using:
Repeat until convergence.

34

y(x) = sign(wTx + b) w b xi

xi w ← w − xi b ← b − 1 w ← w + xi b ← b + 1

yi ∈ {−1, 1}

yi = 1 y(xi) = yi yi = −1

SLIDE 35

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Toward a Nonlinear Perceptron

■ Let us first rewrite the update rule:

This works for both cases: and

■ Multiple rounds of the perceptron are simply summing up data points:

: number of data points
: # of times that was selected.

35

w ← w + yixi yi = +1 yi = −1 w =

n

i=1

αiyixi n αi xi

SLIDE 36

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Toward a Nonlinear Perceptron

■ Consequence:

We can express as a weighted sum of the training data

points

■ Discriminant function:

36

w =

n

i=1

αiyixi xi w y(x) = sign(wTx + b) = sign n ⇤

i=1

αiyixT

i x + b

⇥

SLIDE 37

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Dual Parameterization

■ We have a new, so-called dual parameterization of our discriminant function:

There are only as many parameters as there are training

examples.

The dimensionality of does not matter anymore.

■ We can now formulate a dual perceptron algorithm.

37

y(x) = sign n ⇤

i=1

αiyixT

i x + b

⇥ αi

x

SLIDE 38

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Dual Perceptron Algorithm

■ Dual perceptron discriminant function: ■ Algorithm:

Start with for all and with
For all data points with class labels
If is correctly classified, i.e. , do nothing.
Otherwise update the parameters using:
Repeat until convergence

38

xi

yi ∈ {−1, 1}

y(xi) = yi

y(x) = sign n ⇤

i=1

αiyixT

i x + b

⇥ αi = 0 b = 0 i αi ← αi + 1 b ← b + yi

SLIDE 39

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Dual Perceptron Algorithm

■ Back to the nonlinear case:

The feasibility of this dual nonlinear perceptron depends only on

whether we can compute the scalar product between the transformed features efficiently:

Later: We will see that for a large class of mappings

this scalar product can be computed efficiently without having to go to the high-dimensional feature space.

In fact, we can even use “infinite dimensional features”.

39

y(x) = sign n ⇤

i=1

αiyiφ(xi)Tφ(x) + b ⇥ φ(xi)Tφ(x) φ(x)

SLIDE 40

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Problem 1: Possibly irrelevant

features

Problem 2: Overfitting from overly

complex model

We are really interested in the

generalization ability and the corresponding risk.

■ Example: Classify students who will pass the exam. What are some common challenges?

40

shoe size matriculation number

Generalization Abilities

SLIDE 41

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 41

■ Split data in training and test sets:

Estimate the generalization abilities from the test error
Choose model with the minimal test error
Extreme case: Leave-one-out

# of model parameters training error test error

Cross Validation

run 1 run 2 run 3 run 4

test train

SLIDE 42

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 42

■ Statistical learning theory (Vapnik):

... is concerned with the question how one can control the

generalization abilities (of a learning machine).

... aims at a formal description of the generalization ability.
The goal is to develop a rigorous theory as opposed to commonly

used heuristics.

■ Important note:

This may be a noble goal, but the theory unfortunately does not

say that much about real problems...

Statistical Learning Theory

SLIDE 43

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ Assessment of prediction performance:

Loss function
Empirical risk:
Example: quadratic loss function

43

Risk

L(y, f(x; w)) Remp(w) = 1 N

N

i=1

L(yi, f(xi; w)) Remp(w) = 1 N

N

i=1

(yi − f(xi; w))2

SLIDE 44

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 44

■ In reality, we are instead interested in the:

True risk
is the true probability density of and .
The risk is the expected error over all data sets.
The risk is the expectation value of the generalization error.
Problem: is fixed, but usually unknown.
We cannot compute the (actual) risk directly.

Risk

p(x, y) x y p(x, y) R(w) =

L(y, f(x; w))p(x, y) dxdy

SLIDE 45

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Generalization Abilities

■ Empirical vs. true risk:

45

All 3 decision boundaries have zero empirical risk. Which one is preferable? Which one generalizes?

generalizes best to unseen data

SLIDE 46

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 46

■ True risk:

Advantage: Measure for the generalization ability
Disadvantage: In general, we do not know .

■ Empirical risk:

Disadvantage: No direct measure for the generalization ability
Advantage: Does not depend on
Learning algorithms often minimize the empirical risk.

■ We are interested in the dependencies between these two risks.

Risk

p(x, y) p(x, y)

SLIDE 47

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 47

■ Idea:

Determine an upper bound of the empirical risk based on the

empirical risk:

: # of training data points
: Probability that bound is met
: “Learning power” of the learning machine

(formally: VC-dimension)

Risk Bound

R(w) ≤ Remp(w) + (N, p, h) p N h

SLIDE 48

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 48

? ? ? ?

too complex too simple tradeoff

new patient negative example positive example

[Florian Markowetz]

“Learning Power”

SLIDE 49

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 49

■ VC stands for Vapnik-Chervonenkis. ■ (Informal) definition of the VC-dimension:

The VC-dimension of a family of functions is the maximal number
f data points that can be correctly classified by a function from

that family (no matter which label configuration the data points have).

The VC-dimension is a measure for the capacity or “learning

power” of a classifier.

VC-Dimension

SLIDE 50

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 50

Risk Bound

Remp(w)

SLIDE 51

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 51

■ Principle:

Given a family of models with non-decreasing VC-

dimension

Minimize the empirical risk for every model.
Choose the model that minimizes the risk bound (RHS of the

inequality).

In general, this is not the same model that minimizes the empirical

risk.

■ Note:

This is formally justified by the bound on the true risk.
The result is only sensible, however, if the upper bound on the

true risk is a tight bound.

Structural Risk Minimization

fi(x; wi) h1 ≤ h2 ≤ · · · ≤ hn

SLIDE 52

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ How can we implement structural risk minimization? ■ Classically:

Keep constant and minimize
By keeping some model parameters fixed (e.g. # of hidden nodes

etc.) is fixed.

■ Support Vector Machines (SVM):

Keep constant and minimize
In practice: with separable data
is controlled by changing the VC-dimension

(“capacity control”).

52

Structural Risk Minimization

R(w) ≤ Remp(w) + (N, p, h)

(N, p, h)

Remp(w)

(N, p, h)

Remp(w)

(N, p, h)

Remp(w) = 0

(N, p, h)

SLIDE 53

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 53

■ ...or short SVMs:

Linear classifiers (generalized later)
Approximate implementation of the structural risk minimization

principle.

If the data is linearly separable, the empirical risk of SVM classifiers

will be zero, and the risk bound will be approximately minimized.

Because of that SVMs have built-in “guaranteed” generalization

abilities.

Support Vector Machines

SLIDE 54

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ For now: linearly separable data

N training data points:
Hyperplane that

separates the data:

Which hyperplane shall we use?
How can we minimize the VC

dimension?

54

{xi, yi}N

i=1

yi ∈ {−1, 1}

xi ∈ Rd

Support Vector Machines

x2 x1 w x

y(x) kwk

x?

w0 kwk

y = 0 y < 0 y > 0 R2 R1

y(x) = wTx + w0

SLIDE 55

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Support Vector Machines

■ Intuitively:

We should find the hyperplane with the maximum “distance” to

the data.

55

generalizes best to unseen data

y = 1 y = 0 y = −1 margin

Maximize the margin (distance to the closest data point)

SLIDE 56

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Support Vector Machines

■ Maximizing the margin:

Why does that make sense?
Why does this minimize the VC dimension?

■ Key result (Vapnik):

If the data points lie in a sphere of radius :
and the margin of the linear classifier in dimensions is ,
then:

■ Maximizing the margin lowers a bound on the VC- dimension!

56

||xi|| < R R d γ h ≤ min ⇤ d, 4R2 γ2 ⇥⌅

SLIDE 57

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 57

■ Want to find a hyperplane so that the data is linearly separated:

Enforce for at least one data point.

■ Then we can easily express the margin:

The distance to the

hyperplane is:

This means that the margin is

Support Vector Machines

x2 x1 w x

y(x) kwk

x?

w0 kwk

y = 0 y < 0 y > 0 R2 R1

y(xi) ||w|| = wTxi + b ||w|| 1 ||w|| yi(wTxi + b) = 1 yi(wTxi + b) ≥ 1, ∀i

SLIDE 58

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Support Vector Machines

■ Illustration: ■ Support vectors:

All data points that lie on the margin (i.e. )

58

yi(wTxi + b) = 1

y = 1 y = 0 y = −1

SLIDE 59

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 59

■ Maximizing the margin is equivalent to minimizing . ■ Formulate as constrained optimization problem: ■ Lagrangian formulation:

Minimize Lagrangian

Support Vector Machines

1/||w|| ||w||2 s.t. yi(wTxi + b) − 1 ≥ 0 αi ≥ 0 arg min

w,b

1 2||w||2 L(w, b, α) = 1 2||w||2 −

N

i=1

αi(yi(wTxi + b) − 1)

SLIDE 60

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ Minimize ■ As usual, set the gradient to zero:

The separating hyperplane is a linear combination of the input

data.

But what are the ?

60

Support Vector Machines

∂L(w, b, α) ∂b = 0 ⇒

N

i=1

αiyi = 0 αi L(w, b, α) = 1 2||w||2 −

N

i=1

αi(yi(wTxi + b) − 1) ∂L(w, b, α) ∂w = 0 ⇒ w =

N

i=1

αiyixi

SLIDE 61

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Sparsity

■ Important property:

Almost all the are zero.
There are only a few support

vectors.

But the hyperplane was written

as:

■ SVMs are sparse learning machines:

The classifier only depends on a few data points.

61

y = 1 y = 0 y = −1

αi w =

N

i=1

αiyixi

SLIDE 62

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 62

Let’s rewrite the Lagrangian:
But we know that

Dual Form

L(w, b, α) = 1 2||w||2 −

N

i=1

αi(yi(wTxi + b) − 1) = 1 2||w||2 −

N

i=1

αiyiwTxi −

N

i=1

αiyib +

N

i=1

αi

N

i=1

αiyi = 0 ˆ L(w, α) = 1 2||w||2 −

N

i=1

αiyiwTxi +

N

i=1

αi

SLIDE 63

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Use constraint that:

63

Dual Form

ˆ L(w, α) = 1 2||w||2 −

N

i=1

αiyiwTxi +

N

i=1

αi ˆ L(w, α) = 1 2||w||2 −

N

i=1

αiyi

N

j=1

αjyjxT

j xi + N

i=1

αi = 1 2||w||2 −

N

i=1

N

j=1

αiαjyiyj(xT

j xi) + N

i=1

αi w =

N

i=1

αiyixi

SLIDE 64

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ We further use the fact that: ■ From which we obtain the so-called Wolfe dual by substitution:

We now solve the original problem by maximizing this dual

function.

64

Dual Form

1 2||w||2 = 1 2wTw =

N

i=1

N

j=1

αiαjyiyj(xT

j xi)

˜ L(α) =

N

i=1

αi − 1 2

N

i=1

N

j=1

αiαjyiyj(xT

j xi)

SLIDE 65

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ Maximize

under the conditions that:

■ The separating hyperplane is given by the support vectors:

65

Support Vector Machines

˜ L(α) =

N

i=1

αi − 1 2

N

i=1

N

j=1

αiαjyiyj(xT

j xi) N

i=1

αiyi = 0 αi ≥ 0 NS

can be calculated as well, but we will skip that here...

b

w =

NS

i=1

αiyixi

SLIDE 66

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

SVMs so far

■ Both the original SVM formulation (primal) as well as the derived dual formulation are quadratic programming problems.

They have unique solutions
... which can be computed efficiently.

■ Why did we bother to go to the dual form?

To go beyond linear classifiers!

66

SLIDE 67

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 67

■ Nonlinear transformation of the data: ■ Hyperplane in (linear classifier in ). ■ Nonlinear classifier in . ■ This is the same trick that we applied to the perceptron

What is so special here?

H H

Rd

Nonlinear SVMs

φ wTφ(x) + b = 0 x ∈ Rd φ : Rd → H

SLIDE 68

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Nonlinear SVMs

■ Dual form:

subject to and

■ With a nonlinear transformation, we obtain:

only appears in scalar products with another .
We only need to be able to evaluate scalar products.

68

˜ L(α) =

N

i=1

αi − 1 2

N

i=1

N

j=1

αiαjyiyj(xT

j xi) N

i=1

αiyi = 0 αi ≥ 0 ˜ L(α) =

N

i=1

αi − 1 2

N

i=1

N

j=1

αiαjyiyj(φ(xj)Tφ(xi)) φ(xi) φ(xj)

SLIDE 69

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Nonlinear SVMs

■ But what about the discriminant function?

We still need to represent . No?
No, we can represent differently:
The nonlinear discriminant function can thus be written as:
Can also be written with scalar products of the nonlinear features
nly.

69

y(x) = wTφ(x) + b w w w =

NS

i=1

αiyiφ(xi) y(x) =

NS

i=1

αiyiφ(xi)Tφ(x) + b

# of support vectors

SLIDE 70

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Nonlinear SVMs

■ Both the dual optimization problem and the discriminant function can be written in terms of scalar products of the features.

We have already seen this when we talked about the dual version
f the perceptron.
In fact the discriminant function even has the very same

functional form:

Key difference: In an SVM the parameters maximize the

margin of the classifier.

Have built-in generalization properties.

70

y(x) =

NS

i=1

αiyiφ(xi)Tφ(x) + b αi

SLIDE 71

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Kernel Trick

■ “Kernel trick”: Replace every occurrence of a scalar product between features with a kernel function:

If we can find a kernel function that is equivalent to this scalar

product, we can avoid mapping into a high-dimensional space and instead compute the scalar-product directly.

■ What are examples of such kernels and when do they exist?

71

K(xi, xj) = φ(xi)Tφ(xj) xi

SLIDE 72

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 72

■ Polynomial kernel of 2nd degree:

Equivalence:

Example: Polynomial Kernel

K(x, y) = (xTy)2 x, y ∈ R2 K(x, y) = (xTy)2 = x2

1y2 1 + 2x1x2y1y2 + y2 1y2 2

=   x2

1

√ 2x1x2 x2

2

 

T 

 y2

1

√ 2y1y2 y2

2

 = φ(x)Tφ(y)

SLIDE 73

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ Polynomial kernel of 2nd degree:

Equivalence:
This means that is not unique for a

73

Example: Polynomial Kernel

K(x, y) = (xTy)2 x, y ∈ R2 K(x, y) = (xTy)2 = x2

1y2 1 + 2x1x2y1y2 + y2 1y2 2

= φ(x)Tφ(y) = 1 √ 2   x2

1 − x2 2

2x1x2 x2

1 + x2 2

 

T

1 √ 2   y2

1 − y2 2

2y1y2 y2

1 + y2 2

  φ(x) K(x, y)

SLIDE 74

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Example: Polynomial Kernel

■ In general: Polynomials of degree

Let be the transformation that maps a vector into the

space of all ordered monomials of degree .

We can represent all polynomials of degree as linear functions

in this transformed space.

Example:
Ordered monomials:
Unordered monomials:
The kernel lets us compute arbitrary scalar

products without doing the explicit mapping:

74

d

Cd(x)

d

d = 2

x2

1, x1x2, x2 2

x2

1, x1x2, x2x1, x2 2

K(x, y) = (xTy)d

K(x, y) = (xTy)d = Cd(x)TCd(y)

d

SLIDE 75

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 75

■ Polynomials of degree

Dimensionality of the transformed space :
Example:
The classifier has VC-dimension !

dim(H) + 1

Example: Polynomial Kernel

d

K(x, y) = (xTy)d

H N = 16 × 16 = 256 d = 4 dim(H) = 183181376

d + N − 1 d ⇥

SLIDE 76

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

SVM: Linear Case

76

SLIDE 77

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ Polynomial kernel of degree 3:

SVM with Kernels

77

linearly separable classifier almost linear not linearly separable (in original space)

SLIDE 78

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Constructing Kernels

■ So far we proceed as follows:

We identify some linear transformation that we think will be

useful.

Then we find a kernel that allows us to compute the

scalar product without making the mapping explicit:

■ What do kernels do?

They measure similarity (in a transformed space).
But what if we have a notion of similarity and want to encode this

in a kernel function directly?

78

φ(x)

K(xi, xj) = φ(xi)Tφ(xj)

K(xi, xj) K(xi, xj)

SLIDE 79

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 79

■ Gaussian radial basis function (RBF) kernel:

Measures similarities.
Interesting property: is infinite dimensional.
Intuition:
Since we only use the kernel function, this is no problem.
But: The hyperplane also has infinite VC-dimension!

H exp(x) = 1 + x 1! + x2 2! + . . . + xn n! + . . .

Radial Basis Function Kernel

K(x, y) = exp

−||x − y||2

2σ2 ⇥

SLIDE 80

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Radial Basis Function Kernel

80

SLIDE 81

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 81

■ Intuition:

If we can make the radius of the kernel arbitrarily small, then at

some point every data point will have its “own” kernel:

But in contrast: If we bound the radius of the RBF below, we can

limit the VC-dimension!

VC-Dimension for Gaussian RBF Kernel

SLIDE 82

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 82

■ Question: Is the Gaussian RBF kernel a valid kernel, i.e. is there a mapping so that:

How can we assess this more generally?

■ Mercer’s Condition:

A function is a valid kernel, if for every with

it holds that:

Kernels

{H, φ}

K(x, y) g(x)

g(x)2 dx < ∞
K(x, y)g(x)g(y) dxdy ≥ 0

K(x, y) = φ(x)Tφ(y)

with

φ : Rd → H

SLIDE 83

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 83

■ Inhomogeneous polynomial kernel:

Can also represent polynomials of degree .

■ Gaussian RBF kernel: ■ Hyperbolic tangent kernel:

Kernels satisfying Mercer’s condition

K(x, y) = (xTy + c)d

< d

K(x, y) = exp

−||x − y||2

2σ2 ⇥

K(x, y) = tanh(axTy + b)

SLIDE 84

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Combining Kernels

■ It may not be always easy to check if Mercer’s condition is satisfied, but it is possible to construct new kernels out

f known ones.

■ If and are valid kernels, then so are:

Etc.

84

K1(x, y) K2(x, y) c · K1(x, y) K1(x, y) + K2(x, y) K1(x, y) · K2(x, y) f(x)K1(x, y)f(y)

SLIDE 85

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Non-separable data

■ What if our data is not linearly separable?

Simple solution: Transform the features into a space so that they

become linearly separable.

E.g. RBF kernel with small kernel radius.
Problem:
Such a classifier will have a very high VC-dimension, and thus has a large

capacity.

This will lead to overfitting.
Solution: Allow for data points to “violate the margin”.

85

SLIDE 86

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 86

■ Instead of requiring that the data is perfectly linearly separable: ■ we allow for small violations from perfect separation:

Support Vector Machines

wTxi + b ≥ +1 for yi = +1 wTxi + b ≤ −1 for yi = −1 wTxi + b ≥ +1 − ξi for yi = +1 wTxi + b ≤ −1 + ξi for yi = −1 ξi ≥ 0 ∀i ξi

SLIDE 87

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Support Vector Machines

■ More concisely, we require that:

The are called “slack variables”.

■ Illustration:

87

yi(wTxi + b) ≥ 1 − ξi, ξi ≥ 0 ∀i

y = 1 y = 0 y = −1

ξ > 1 ξ < 1 ξ = 0 ξ = 0

ξi

SLIDE 88

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

Support Vector Machines

■ We have to penalize the deviations:

Maximize the margin while minimizing the penalty for all data

points that are not outside the margin.

The weight allows us to specify a trade-off.
Typically determined through cross-validation.
Even if the data is separable, it may be better to allow for an
ccasional penalty.

88

arg min

w,b

1 2||w||2 + C

N

i=1

ξi s.t. yi(wTxi + b) − 1 + ξi ≥ 0 ξi ≥ 0 C

SLIDE 89

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS |

■ Dual formulation: Maximize

under the conditions that:

■ The separating hyperplane is given by the support vectors:

89

Support Vector Machines

˜ L(α) =

N

i=1

αi − 1 2

N

i=1

N

j=1

αiαjyiyj(xT

j xi) N

i=1

αiyi = 0 NS w =

NS

i=1

αiyixi 0 ≤ αi ≤ C

box constraint

SLIDE 90

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 90

■ Text classification: Joachims (1997)

Problem: Classify documents into a number of categories (topics,

etc.)

The text is represented using word statistics, i.e. histograms of the

word frequency:

We count how often every word occurs and ignore their order (“bag of words”)
Very high-dimensional feature space (roughly 10,000 dimensions)
Very few features that are not relevant (difficult to apply feature selection or

dimensionality reduction)

Application Example 1

SLIDE 91

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 91

Application Example 1

SLIDE 92

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 92

■ Handwritten digit classification ■ U.S. Postal Service Database

Application Example 2

SLIDE 93

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 93

■ Human performance: 2.5% error ■ Various learning algorithms:

16.2%: Decision tree (C4.5)
5.9%: 2-layer neural network
5.1%: LeNet 1 - 5-layer neural network

■ Various SVM results:

4.0%: Polynomial kernel (p=3, 274 support vectors)
4.1%: Gaussian kernel (σ=0.3, 291 support vectors)

Application Example 2

SLIDE 94

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 94

■ Very little overfitting

Good generalization.

Application Example 2

SLIDE 95

Stefan Roth, 11.05.2012 | Department of Computer Science | GRIS | 95

■ Even better results:

Supply knowledge about invariances in the data.
Geometric deformations, etc.
2.7% error: Elastic matching (no learning)
Use knowledge of how digits can deform
Classify test digit by finding the template that required least deformation

■ Recent results:

With more training data, better modeling of invariances, etc.
Error down to about 0.5% with SVMs and 0.4% with neural

networks.
