SLIDE 1

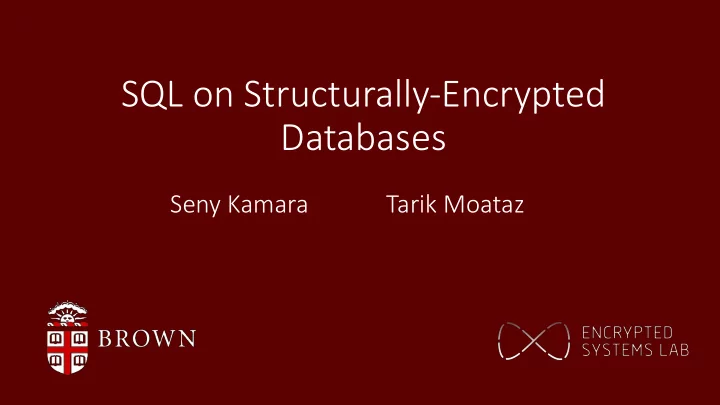

SQL on Structurally-Encrypted Databases

Seny Kamara Tarik Moataz

SLIDE 2

Q: What is a relational database?

2

SLIDE 3

Relational DB

3

Att1 Att2 Att3 Att4 Att5 Att6 Att7

DB =

T1 T2

Row or record Table or relation Column or attribute

SLIDE 4

Structured Query Language

SQL is a language for querying relational DBs
Example:

Se Select ct (name, gender, height) Fr From (T2, T8) Wh Where (age = 36 AND zip = 10040 AND gender = F)

SQL is the standard way to query a relational DB
Standard ANSI/ISO since 1986/1987

4

SLIDE 5

Q: What is Structured Encryption (STE)?

5

SLIDE 6

Structured Encryption (STE) [CK10]

6 Setup(1k, DS) ⟾ (K, EDS)

Token(K, q) ⟾ tk

tk

Query(EDS, tk) ⟾ ct

EDS

DS

ct

SLIDE 7

Structured Encryption (STE) [CK10]

7 Setup(1k, DS) ⟾ (K, EDS)

Token(K, q) ⟾ tk

tk

Query(EDS, tk) ⟾ ans

EDS

DS

ans

Setup Leakage Ls(DS) Query Leakage Lq(DS, q)

SLIDE 8

Structured Encryption (STE) [CK10]

We say that an STE is (LS,LQ)-secure if

It reveals no information about the structure beyond LS
It reveals no information about the structure and queries beyond LQ

8

SLIDE 9

Encrypted Multi-Maps [CK10]

9

Single Keyword SSE [SWP00], [Goh03], [CGKO06], [CK10], [KPR12], [KP13], [CJJKRS13], [CJJJKRS14], [Bost16], [BMO17], [AKM19] … Encrypted Multi-Map Encrypted Inverted Index

SLIDE 10

Q: How can we encrypt a relational DB?

10

SLIDE 11

Efficiency Leakage Functionality

11

SLIDE 12

Tradeoffs: Efficiency vs. Security

12 Efficiency STE/SSE-based PPE-based FHE-based ORAM-based skFE-based pkFE-based Leakage

SLIDE 13

Tradeoffs: Functionality vs. Efficiency

13 SK-FE-based STE/SSE-based PPE-based FHE-based ORAM-based PK-FE-based Efficiency Functionality SQL NoSQL

SLIDE 14

Q: Can we design an STE-based Relational EDB?

14

SLIDE 15

Challenges

No PPE so no plug-and-play solutions
SQL is a declarative language
Where do we even start?
SQL is complex
Combination of many basic query types
Most STE schemes handle a single type queries
SQL is “constructive”
STE has been optimized for “lookup-type” queries

15

SLIDE 16

Ch Ch. . #1 #1: Declarative => Procedural

Relational algebra [Codd70]
Set of operations on relations/tables
Union
Difference
Selection
Projection
Cross product
Join (many kinds)
…

16

SQL RA

SLIDE 17

SPC algebra [Chandra-Merlin77]
Selection, Projection, Cross product
Equivalent to Conjunctive SQL queries
Any SPC query can be written in a Normal Form:

Ch Ch. . #2: #2: Complex => Simple

17

SQL RA SPC

SLIDE 18

Select, Project, Cross Product

18 Att1 Att2 Att3

𝜏"

Att1 Att2 Att3 Att1 Att2 Att3

𝜌$,&

Att2 Att3 Att1 Att2 Att3 Att4 Att5 Att6 Att1 Att2 Att3 Att4 Att5 Att6

SLIDE 19

Our Goal

19

tk

Att1 Att2 Att1 Att3

STEK

SQL => SPC => NF

Att2 Att3

EncK

SLIDE 20

Our Results

SP

SPX: Encrypted Relational Database

First STE scheme for relational DBs
Handles non-trivial subset of SQL
Sub-linear search and storage complexity (optimal under certain conditions)
from any single-keyword SSE
SP

SPX+: dynamic SPX

Only row addition and deletion
from any dynamic single-keyword SSE
Sub-linear search and storage complexity (optimal under certain conditions)
FP

FP-SP SPX+: forward-private dynamic SPX

poly-logarithmic overhead for updates

20

SLIDE 21

A: Naïve STE-based Relational EDB

21

SLIDE 22

Naïve SPC Algorithm

22 Att1 Att2 Att3 Att4 Att5 Att6 Att1 Att2 Att3 Att4 Att5 Att6 Att2 Att6

SLIDE 23

Sub-Linear SPC Algorithm

Ideally linear in output size:
Less than cross product size:

23 Att2 Att6 Att1 Att2 Att3 Att4 Att5 Att6

SLIDE 24

Q: Can we achieve sub-linear STE-based EDB?

24

SLIDE 25

SPX Overview

Step 1. Heuristic normal form (HNF) instead of the standard normal

form

Avoid naïve Cartesian product by a “push select through product” method
Step 2. New (plaintext) data structure that supports HNF
Different representations of the database to handle different SPC operators
Step 3. Encrypted structure that supports HNF queries
Chaining technique with a better control of leakage
From any single-keyword SSE schemes

25

SLIDE 26

Step 1: Heuristic Normal Form (1)

26 Att4 Att5 Att6 Att1 Att2 Att3

𝜏"

Att4 Att5 Att6 Att1 Att2 Att3

𝜏"' 𝜏"(

Ψ = Ψ1 ∧ Ψ2

More complicated

Correlated/non-correlated
Different types of select

Push Select through Product

SLIDE 27

Step 1: Heuristic Normal Form (2)

27 Att4 Att5 Att6 Att1 Att2 Att3

𝜏"' 𝜏"(

Att1 Att2 Att3 Att4 Att5 Att6 Att1 Att2 Att3 Att4 Att5 Att6 Att1 Att2 Att3 Att4 Att5 Att6

≪

Size Overhead

SLIDE 28

Step 2: Database representations

28

DB =

Row representation Column representation Value representation Cross-value representation

T1 T2

Att1 Att2 Att3 Att4 Att5

SLIDE 29

Step 2: Row / Column representation

29 Att1 Att2 Att3 Att4 Att5 (T1, 1) Row Multi-map MMR (T1, 2) (T2, 1) (T2, 2) (T2, 3) (T1, Att1) Column Multi-map MMC (T1, Att2) (T2, Att3) (T2, Att4) (T2, Att5)

SLIDE 30

Step 2: Value representation

30 Att1 Att2 1 CS 2 Math Att3 Att4 Att5 1 45 CS 2 45 Math 2 60 CS (1, T1, Att1) Value Multi-map MMv (2, T1, Att1) (T1, 1) (CS, T1, Att2) (Math, T1, Att2) (1, T2, Att3) (2, T2, Att3) (45, T2, Att4) (60, T2, Att4) (CS, T2, Att5) (Math, T2, Att5) (T1, 2) (T1, 1) (T1, 2) (T2, 1) (T2, 2) (T2, 3) (T2, 1) (T2, 2) (T2, 1) (T2, 1) (T2, 3) (T2, 2)

SLIDE 31

Step 2: Cross-Value representation

31 Att1 Att2 1 CS 2 Math Att3 Att4 Att5 1 45 CS 2 45 Math 2 60 CS ((T1,Att1), (T2, Att3)) Cross-Value Multi-map MMAtt1 (T1, 1), (T2, 1) (T1, 2), (T2, 2) (T1, 2), (T2, 3) ((T1,Att2), (T2, Att5)) Cross-Value Multi-map MMAtt2 (T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2)

SLIDE 32

Step 3: SPX Setup

32

SetupSPX 1k,

Att1 Att2 Att3 Att4 Att5

SLIDE 33

Step 3: SPX Setup

33 (T1, 1) Encrypted Column Multi-map EMMC (T1, 2) (T2, 1) (T2, 2) (T2, 3) (T1, 1) Encrypted Row Multi-map EMMR (T1, 2) (T2, 1) (T2, 2) (T2, 3) (1, T1, Att1) Encrypted Value Multi-map EMMv (2, T1, Att1) (T1, 1) (CS, T1, Att2) (Math, T1, Att2) (1, T2, Att3) (2, T2, Att3) (45, T2, Att4) (60, T2, Att4) (CS, T2, Att5) (Math, T2, Att5) (T1, 2) (T1, 1) (T1, 2) (T2, 1) (T2, 2) (T2, 3) (T2, 1) (T2, 2) (T2, 1) (T2, 1) (T2, 3) (T2, 2) ((T1,Att1), (T2, Att3)) Encrypted Cross-Values Multi-map EMMAtt1 (T1, 1), (T2, 1) (T1, 2), (T2, 2) (T1, 2), (T2, 3) ((T1,Att2), (T2, Att5)) Encrypted Cross-Values Multi-map EMMAtt2 (T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2) Encrypted dictionary EDX

,

Att1 Att2

SLIDE 34

Step 3: SPX Token (1)

34

TokenSPX

,

Select Att3 From (T1, T2) Where T1.Att2= T2.Att5

SLIDE 35

Step 3: SPX Token (2)

35

πatt3 ✓ σatt2=att5

T1 × T2

◆

1. Rewrite SQL query to Normal Form
2. Rewrite Normal Form to Heuristic Normal Form
3. Generate the token

Att2 3 ((T1, Att2), (T2, Att5))

Dictionary sub-token Select Sub-token Projection Sub-token

SLIDE 36

Step 3: SPX Query (1)

36

QuerySPX

,

Encrypted Column Multi-map EMMC Encrypted Row Multi-map EMMR Encrypted Value Multi-map EMMv Encrypted dictionary EDX

Att2 ((T1, Att2), (T2, Att5)) 3

SLIDE 37

Step 3: SPX Query (2)

37

Get

,

((T1,Att2), (T2, Att5)) Encrypted Cross-Values Multi-map EMMAtt2 (T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2) ((T1,Att1), (T2, Att3)) Encrypted Cross-Values Multi-map EMMAtt1 (T1, 1), (T2, 1) (T1, 2), (T2, 2) (T1, 2), (T2, 3) ((T1,Att2), (T2, Att5)) Encrypted Cross-Values Multi-map EMMAtt2 (T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2) Encrypted dictionary EDX Att1 Att2

Att2

SLIDE 38

Step 3: SPX Query (3)

38

Get

,

((T1, Att2), (T2, Att5))

((T1,Att2), (T2, Att5)) Encrypted Cross-Values Multi-map EMMAtt2 (T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2)

(T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2)

SLIDE 39

Step 3: SPX Query (4)

39

Get

,

(T1, 1) Encrypted Row Multi-map EMMR (T1, 2) (T2, 1) (T2, 2) (T2, 3)

(T1, 1)

,

(T2, 1)

Encrypted Row Multi-map EMMR

Get

Temporary Result Table

(T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2)

SLIDE 40

Step 3: SPX Query (5)

40

,

(T1, 2)

Encrypted Row Multi-map EMMR

Get

Temporary Result Table

,

(T2, 3)

Encrypted Row Multi-map EMMR

Get

,

(T1, 2)

Encrypted Row Multi-map EMMR

Get

,

(T2, 2)

Encrypted Row Multi-map EMMR

Get

(T1, 1), (T2, 1) (T1, 2), (T2, 3) (T1, 2), (T2, 2)

SLIDE 41

Step 3: SPX Query (6)

41

Temporary Result Table 3

𝜌

Final Result

SLIDE 42

Leakage: SPX-OPT vs. PPE-based

Query leakage of SPX
Cross product pattern
Projection pattern
Selection pattern
Query leakage of PPE-based schemes
Cross product pattern
Projection pattern
Selection pattern
Frequency pattern
Persistent
Existing very strong attacks

42

⊆

SLIDE 43

Modularity: SPX-Obliv vs. SPX-OPT

Query leakage of SPX-OPT

43

⊆

Query leakage of SPX-Obliv

When the EMMs are oblivious

[GO96,SvDS+13,GMP16,KMO18]

But comes with extra overhead

SLIDE 44

SPX-OPT Asymptotics

Worst-case query complexity with
Assuming optimal MM and DX encryption schemes [CK10,CJJ+14]
ℎ projected attributes
𝑢 tables with size each
is the size of the result on a plaintext database
Mild condition
If is constant in , then query time is optimal

44

h−1 ·

t

X

i=1

si

SLIDE 45

SPX-OPT Asymptotics

Communication complexity is optimal
Storage depends on the data distribution
Concretely, the big-O hides a multiplicative factor of 3

45

O(#DB + X

att∈S

#MMatt)

SLIDE 46

Takeaways and Future Work

First STE-based encrypted relational database
Sub-linear query time (optimal under certain conditions)
First (forward-private) dynamic STE-based encrypted relational

database

Better leakage profile than PPE-based
Future research questions:
Extend SPX to handle relational algebra
Remove interaction in SPX+
Extend SPX to handle range sub-predicates
Design of new encrypted range solutions is required [KKNO16, LMP17]

46

SLIDE 47

Thank you!

https://eprint.iacr.org/2016/453

47
