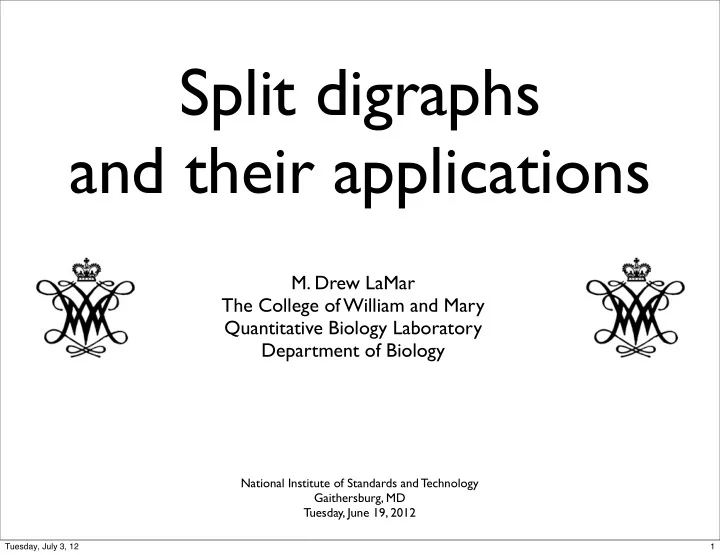

Split digraphs and their applications

  • M. Drew LaMar

The College of William and Mary Quantitative Biology Laboratory Department of Biology

National Institute of Standards and Technology Gaithersburg, MD Tuesday, June 19, 2012

1 Tuesday, July 3, 12

slide-2
SLIDE 2

Simple graphs and degree sequences

Undirected Directed

2 Tuesday, July 3, 12

slide-3
SLIDE 3

Split graphs

A graph is split if it can be partitioned into a clique and an independent set:

  • Subset of perfect graphs
  • Superset of threshold graphs
  • Only chordal graphs whose complements are also

chordal

  • (2K2,C4,C5)-free
  • A graph is split if and only if its degree sequence

satisfies a particular Erdős-Gallai inequality with equality

3 Tuesday, July 3, 12

slide-4
SLIDE 4

Graphic sequences

4 Tuesday, July 3, 12

slide-5
SLIDE 5

Graphic sequences

Slack sequence

4 Tuesday, July 3, 12

slide-6
SLIDE 6

Characterizations of split graphs

5 Tuesday, July 3, 12

slide-7
SLIDE 7

Characterizations of split graphs

5 Tuesday, July 3, 12

slide-8
SLIDE 8

Characterizations of split graphs

5 Tuesday, July 3, 12

slide-9
SLIDE 9

Permutations:

Digraphic sequences

6 Tuesday, July 3, 12

slide-10
SLIDE 10

Permutations: Lexicographic ordering (pref. to out-degree)

Digraphic sequences

6 Tuesday, July 3, 12

slide-11
SLIDE 11

Permutations: Lexicographic ordering (pref. to out-degree) Lexicographic ordering (pref. to in-degree)

Digraphic sequences

6 Tuesday, July 3, 12

slide-12
SLIDE 12

Permutations: Example: Lexicographic ordering (pref. to out-degree) Lexicographic ordering (pref. to in-degree)

Digraphic sequences

6 Tuesday, July 3, 12

slide-13
SLIDE 13

Digraphic sequences

7 Tuesday, July 3, 12

slide-14
SLIDE 14

Digraphic sequences

Slack sequences

7 Tuesday, July 3, 12

slide-15
SLIDE 15

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-16
SLIDE 16

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-17
SLIDE 17

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-18
SLIDE 18

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-19
SLIDE 19

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-20
SLIDE 20

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-21
SLIDE 21

Structural characterization of split digraphs

X± X0 X+ X−

8 Tuesday, July 3, 12

slide-22
SLIDE 22

Structural characterization of split digraphs

8 Tuesday, July 3, 12

slide-23
SLIDE 23

Splittance of an undirected graph

9 Tuesday, July 3, 12

slide-24
SLIDE 24

Splittance of an undirected graph

1 2 3 4 5

9 Tuesday, July 3, 12

slide-25
SLIDE 25

1 2 3 4 5

Splittance of an undirected graph

1 2 3 4 5

9 Tuesday, July 3, 12

slide-26
SLIDE 26

1 2 3 4 5

Splittance of an undirected graph

1 2 3 4 5

9 Tuesday, July 3, 12

slide-27
SLIDE 27

1 2 3 4 5

Splittance of an undirected graph

1 2 3 4 5 1 2 3 4 5

9 Tuesday, July 3, 12

slide-28
SLIDE 28

1 2 3 4 5

I I

Splittance of an undirected graph

1 2 3 4 5 1 2 3 4 5

9 Tuesday, July 3, 12

slide-29
SLIDE 29

1 2 3 4 5 1 2 3 4 5

Splittance of an undirected graph

1 2 3 4 5

I C I C

10 Tuesday, July 3, 12

slide-30
SLIDE 30

1 2 3 4 5

Splittance of an undirected graph

1 2 3 4 5 1 2 3 4 5

C I C I

11 Tuesday, July 3, 12

slide-31
SLIDE 31

1 2 3 4 5

Splittance of an undirected graph

1 2 3 4 5 1 2 3 4 5

C I C I

NOT SPLIT!

12 Tuesday, July 3, 12

slide-32
SLIDE 32

Splittance of a directed graph

13 Tuesday, July 3, 12

slide-33
SLIDE 33

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

13 Tuesday, July 3, 12

slide-34
SLIDE 34

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

13 Tuesday, July 3, 12

slide-35
SLIDE 35

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

X X

13 Tuesday, July 3, 12

slide-36
SLIDE 36

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

14 Tuesday, July 3, 12

slide-37
SLIDE 37

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

14 Tuesday, July 3, 12

slide-38
SLIDE 38

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

14 Tuesday, July 3, 12

slide-39
SLIDE 39

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

14 Tuesday, July 3, 12

slide-40
SLIDE 40

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

15 Tuesday, July 3, 12

slide-41
SLIDE 41

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

16 Tuesday, July 3, 12

slide-42
SLIDE 42

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

16 Tuesday, July 3, 12

slide-43
SLIDE 43

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

16 Tuesday, July 3, 12

slide-44
SLIDE 44

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

17 Tuesday, July 3, 12

slide-45
SLIDE 45

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

17 Tuesday, July 3, 12

slide-46
SLIDE 46

Splittance of a directed graph

x1 x4 x2 x5 x3

1 2 3 4 5

SPLIT!

17 Tuesday, July 3, 12

slide-47
SLIDE 47

Splittance of a directed graph - directed extensions

Undirected

18 Tuesday, July 3, 12

slide-48
SLIDE 48

Splittance of a directed graph - directed extensions

Undirected Directed

18 Tuesday, July 3, 12

slide-49
SLIDE 49

Splittance of a directed graph - directed extensions

Undirected Directed

18 Tuesday, July 3, 12

slide-50
SLIDE 50

Splittance of a directed graph - directed extensions

Undirected Directed

18 Tuesday, July 3, 12

slide-51
SLIDE 51

Splittance of a directed graph - directed extensions

Undirected Directed

NOT SPLIT! SPLIT!

18 Tuesday, July 3, 12

slide-52
SLIDE 52

Canonical split decomposition

19 Tuesday, July 3, 12

slide-53
SLIDE 53

Canonical split decomposition

19 Tuesday, July 3, 12

slide-54
SLIDE 54

Canonical split decomposition of digraphs?

20 Tuesday, July 3, 12

slide-55
SLIDE 55

Canonical split decomposition of digraphs?

20 Tuesday, July 3, 12

slide-56
SLIDE 56

Realizing graphic and digraphic sequences

21 Tuesday, July 3, 12

slide-57
SLIDE 57

Realizing graphic and digraphic sequences

21 Tuesday, July 3, 12

slide-58
SLIDE 58

Uniform sampling algorithms Random walks

Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-59
SLIDE 59

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-60
SLIDE 60

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-61
SLIDE 61

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-62
SLIDE 62

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-63
SLIDE 63

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-64
SLIDE 64

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-65
SLIDE 65

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-66
SLIDE 66

Uniform sampling algorithms Random walks

Example: Random walk on set of realizations:

2-switch 3-cycle reorientation

22 Tuesday, July 3, 12

slide-67
SLIDE 67

Uniform sampling algorithms Importance sampling

23 Tuesday, July 3, 12

slide-68
SLIDE 68

Uniform sampling algorithms Importance sampling

23 Tuesday, July 3, 12

slide-69
SLIDE 69

Uniform sampling algorithms Importance sampling

Algorithm

23 Tuesday, July 3, 12

slide-70
SLIDE 70

Uniform sampling algorithms Importance sampling

Algorithm

23 Tuesday, July 3, 12

slide-71
SLIDE 71

Uniform sampling algorithms Importance sampling

Algorithm

* Blitzstein and Diaconis, “Sequential Importance Sampling Algorithm for Generating Random Graphs with Prescribed Degrees.” Internet Mathematics. 2011 Mar. 9;6(4):489–522. (remained unpublished for 6 years) * del Genio et al, “Efficient and exact sampling of simple graphs with given arbitrary degree sequence.” PLoS ONE. 2010 Mar. 31;5(4):1–7.

23 Tuesday, July 3, 12

slide-72
SLIDE 72

Uniform sampling algorithms Importance sampling

23 Tuesday, July 3, 12

slide-73
SLIDE 73

Uniform sampling of realizations

24 Tuesday, July 3, 12

slide-74
SLIDE 74

Uniform sampling of realizations

24 Tuesday, July 3, 12

slide-75
SLIDE 75

Uniform sampling of realizations

24 Tuesday, July 3, 12

slide-76
SLIDE 76

Uniform sampling of realizations

24 Tuesday, July 3, 12

slide-77
SLIDE 77

Uniform sampling of realizations

x1 x2 x3 x7 x4 x5 x6 ✓ 5 5 5 2 1 1 1 1 1 1 5 4 4 4 ◆ (d)

24 Tuesday, July 3, 12

slide-78
SLIDE 78

25 Tuesday, July 3, 12

slide-79
SLIDE 79

25 Tuesday, July 3, 12

slide-80
SLIDE 80

25 Tuesday, July 3, 12

slide-81
SLIDE 81

x4 x1 x2 x3 ✓ 2 1 1 1 2 1 1 1 ◆ x4 x1 x2 x3 ✓ 1 2 2 2 1 2 2 2 ◆ x4 x5 x1 x2 x3 ✓ 2 1 1 1 4 3 2 2 2 ◆ (a) (b) (c)

Examples:

26 Tuesday, July 3, 12

slide-82
SLIDE 82

x4 x1 x2 x3 ✓ 2 1 1 1 2 1 1 1 ◆ x4 x1 x2 x3 ✓ 1 2 2 2 1 2 2 2 ◆ x4 x5 x1 x2 x3 ✓ 2 1 1 1 4 3 2 2 2 ◆ (a) (b) (c)

Examples:

U x1 x2 x3 U x1 x2 x3

~ F1 ~ F2

26 Tuesday, July 3, 12

slide-83
SLIDE 83

27 Tuesday, July 3, 12

slide-84
SLIDE 84

U x1 x2 x3 U x1 x2 x3

~ F1 ~ F2

27 Tuesday, July 3, 12

slide-85
SLIDE 85

X0 X± X+ X− F

      X± X+ X− X0 F X± 1 ∗ 1 ∗ 1 X+ 1 ∗ 1 ∗ 1 X− ∗ ∗ X0 ∗ ∗ F 1 1

    

U x1 x2 x3 U x1 x2 x3

~ F1 ~ F2

27 Tuesday, July 3, 12

slide-86
SLIDE 86

X0 X± X+ X− F

      X± X+ X− X0 F X± 1 ∗ 1 ∗ 1 X+ 1 ∗ 1 ∗ 1 X− ∗ ∗ X0 ∗ ∗ F 1 1

    

U x1 x2 x3 U x1 x2 x3

~ F1 ~ F2

27 Tuesday, July 3, 12

slide-87
SLIDE 87

28 Tuesday, July 3, 12

slide-88
SLIDE 88

28 Tuesday, July 3, 12

slide-89
SLIDE 89

Partial order of majorization and split partitions

29 Tuesday, July 3, 12

slide-90
SLIDE 90

Partial order of majorization and split partitions

29 Tuesday, July 3, 12

slide-91
SLIDE 91

Partial order of majorization and split partitions

29 Tuesday, July 3, 12

slide-92
SLIDE 92

Partial order of majorization and split partitions

29 Tuesday, July 3, 12

slide-93
SLIDE 93

Thank you!
