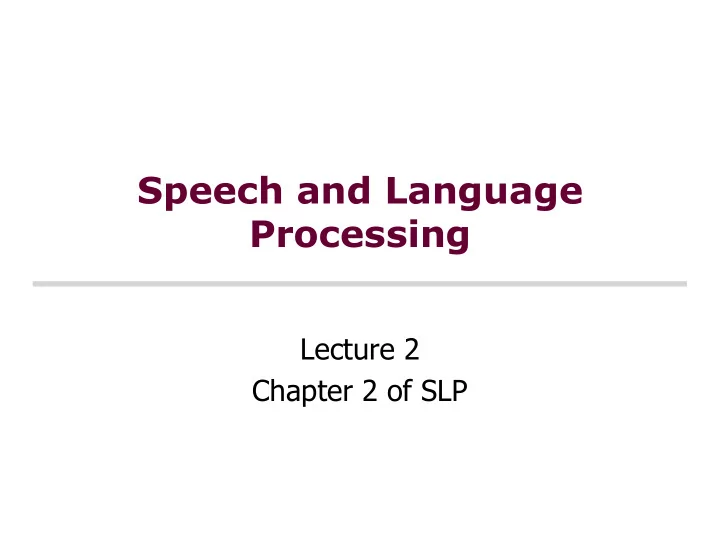

Speech and Language Processing

Lecture 2 Chapter 2 of SLP

7/29/08

Speech and Language Processing - Jurafsky and Martin

2

Today

• Finite-state methods

7/29/08

Speech and Language Processing - Jurafsky and Martin

3

Regular Expressions and Text Searching

• Everybody does it

 Emacs, vi, perl, grep, etc..

• Regular expressions are a compact textual

representation of a set of strings representing a language.

7/29/08

Speech and Language Processing - Jurafsky and Martin

4

Example

• Find all the instances of the word “the” in

a text.

 /the/  /[tT]he/  /\b[tT]he\b/

7/29/08

Speech and Language Processing - Jurafsky and Martin

5

Errors

• The process we just went through was

based on two fixing kinds of errors

 Matching strings that we should not have matched (there, then, other)

• False positives (Type I)

 Not matching things that we should have matched (The)

• False negatives (Type II)

7/29/08

Speech and Language Processing - Jurafsky and Martin

6

Errors

• We’ll be telling the same story for many

tasks, all semester. Reducing the error rate for an application often involves two antagonistic efforts:

 Increasing accuracy, or precision, (minimizing false positives)  Increasing coverage, or recall, (minimizing false negatives).

7/29/08

Speech and Language Processing - Jurafsky and Martin

7

Finite State Automata

• Regular expressions can be viewed as a

textual way of specifying the structure of finite-state automata.

• FSAs and their probabilistic relatives are at

the core of much of what we’ll be doing all semester.

• They also capture significant aspects of

what linguists say we need for morphology and parts of syntax.

7/29/08

Speech and Language Processing - Jurafsky and Martin

8

FSAs as Graphs

• Let’s start with the sheep language from

Chapter 2

 /baa+!/

7/29/08

Speech and Language Processing - Jurafsky and Martin

9

Sheep FSA

• We can say the following things about this

machine

 It has 5 states  b, a, and ! are in its alphabet  q0 is the start state  q4 is an accept state  It has 5 transitions

7/29/08

Speech and Language Processing - Jurafsky and Martin

10

But Note

• There are other machines that

correspond to this same language

• More on this one later

7/29/08

Speech and Language Processing - Jurafsky and Martin

11

More Formally

• You can specify an FSA by enumerating

the following things.

 The set of states: Q  A finite alphabet: Σ  A start state  A set of accept/final states  A transition function that maps QxΣ to Q

7/29/08

Speech and Language Processing - Jurafsky and Martin

12

About Alphabets

• Don’t take term alphabet word too

narrowly; it just means we need a finite set of symbols in the input.

• These symbols can and will stand for

bigger objects that can have internal structure.

7/29/08

Speech and Language Processing - Jurafsky and Martin

13

Dollars and Cents

7/29/08

Speech and Language Processing - Jurafsky and Martin

14

Yet Another View

• The guts of FSAs

can ultimately be represented as tables 4 4 3 2,3 2 2 1 1 e ! a b

If you’re in state 1 and you’re looking at an a, go to state 2

7/29/08

Speech and Language Processing - Jurafsky and Martin

15

Recognition

• Recognition is the process of determining if

a string should be accepted by a machine

• Or… it’s the process of determining if a

string is in the language we’re defining with the machine

• Or… it’s the process of determining if a

regular expression matches a string

• Those all amount the same thing in the end

7/29/08

Speech and Language Processing - Jurafsky and Martin

16

Recognition

• Traditionally, (Turing’s notion) this process is

depicted with a tape.

7/29/08

Speech and Language Processing - Jurafsky and Martin

17

Recognition

• Simply a process of starting in the start

state

• Examining the current input
• Consulting the table
• Going to a new state and updating the

tape pointer.

• Until you run out of tape.

7/29/08

Speech and Language Processing - Jurafsky and Martin

18

D-Recognize

7/29/08

Speech and Language Processing - Jurafsky and Martin

19

Key Points

• Deterministic means that at each point in

processing there is always one unique thing to do (no choices).

• D-recognize is a simple table-driven

interpreter

• The algorithm is universal for all

unambiguous regular languages.

 To change the machine, you simply change the table.

7/29/08

Speech and Language Processing - Jurafsky and Martin

20

Key Points

• Crudely therefore… matching strings with

regular expressions (ala Perl, grep, etc.) is a matter of

 translating the regular expression into a machine (a table) and  passing the table and the string to an interpreter

7/29/08

Speech and Language Processing - Jurafsky and Martin

21

Recognition as Search

• You can view this algorithm as a trivial kind
• f state-space search.
• States are pairings of tape positions and

state numbers.

• Operators are compiled into the table
• Goal state is a pairing with the end of tape

position and a final accept state

• It is trivial because?

7/29/08

Speech and Language Processing - Jurafsky and Martin

22

Generative Formalisms

• Formal Languages are sets of strings

composed of symbols from a finite set of symbols.

• Finite-state automata define formal

languages (without having to enumerate all the strings in the language)

• The term Generative is based on the view

that you can run the machine as a generator to get strings from the language.

7/29/08

Speech and Language Processing - Jurafsky and Martin

23

Generative Formalisms

• FSAs can be viewed from two

perspectives:

 Acceptors that can tell you if a string is in the language  Generators to produce all and only the strings in the language

7/29/08

Speech and Language Processing - Jurafsky and Martin

24

Non-Determinism

7/29/08

Speech and Language Processing - Jurafsky and Martin

25

Non-Determinism cont.

• Yet another technique

 Epsilon transitions  Key point: these transitions do not examine or advance the tape during recognition

7/29/08

Speech and Language Processing - Jurafsky and Martin

26

Equivalence

• Non-deterministic machines can be

converted to deterministic ones with a fairly simple construction

• That means that they have the same

power; non-deterministic machines are not more powerful than deterministic

• nes in terms of the languages they can

accept

7/29/08

Speech and Language Processing - Jurafsky and Martin

27

ND Recognition

• Two basic approaches (used in all major

implementations of regular expressions, see Friedl 2006)

• 1. Either take a ND machine and convert it to a

D machine and then do recognition with that.

• 2. Or explicitly manage the process of

recognition as a state-space search (leaving the machine as is).

7/29/08

Speech and Language Processing - Jurafsky and Martin

28

Non-Deterministic Recognition: Search

• In a ND FSA there exists at least one path

through the machine for a string that is in the language defined by the machine.

• But not all paths directed through the machine

for an accept string lead to an accept state.

• No paths through the machine lead to an accept

state for a string not in the language.

7/29/08

Speech and Language Processing - Jurafsky and Martin

29

Non-Deterministic Recognition

• So success in non-deterministic

recognition occurs when a path is found through the machine that ends in an accept.

• Failure occurs when all of the possible

paths for a given string lead to failure.

7/29/08

Speech and Language Processing - Jurafsky and Martin

30

Example

b a a a ! \

q0 q1 q2 q2 q3 q4

7/29/08

Speech and Language Processing - Jurafsky and Martin

31

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

32

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

33

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

34

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

35

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

36

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

37

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

38

Example

7/29/08

Speech and Language Processing - Jurafsky and Martin

39

Key Points

• States in the search space are pairings of

tape positions and states in the machine.

• By keeping track of as yet unexplored

states, a recognizer can systematically explore all the paths through the machine given an input.

7/29/08

Speech and Language Processing - Jurafsky and Martin

40

Why Bother?

• Non-determinism doesn’t get us more

formal power and it causes headaches so why bother?

 More natural (understandable) solutions

7/29/08

Speech and Language Processing - Jurafsky and Martin

41

Compositional Machines

• Formal languages are just sets of strings
• Therefore, we can talk about various set
• perations (intersection, union,

concatenation)

• This turns out to be a useful exercise

7/29/08

Speech and Language Processing - Jurafsky and Martin

42

Union

7/29/08

Speech and Language Processing - Jurafsky and Martin

43

Concatenation

7/29/08

Speech and Language Processing - Jurafsky and Martin

44

Negation

• Construct a machine M2 to accept all

strings not accepted by machine M1 and reject all the strings accepted by M1

 Invert all the accept and not accept states in M1

• Does that work for non-deterministic

machines?

7/29/08

Speech and Language Processing - Jurafsky and Martin

45

Intersection

• Accept a string that is in both of two

specified languages

• An indirect construction…

 A^B = ~(~A or ~B)
