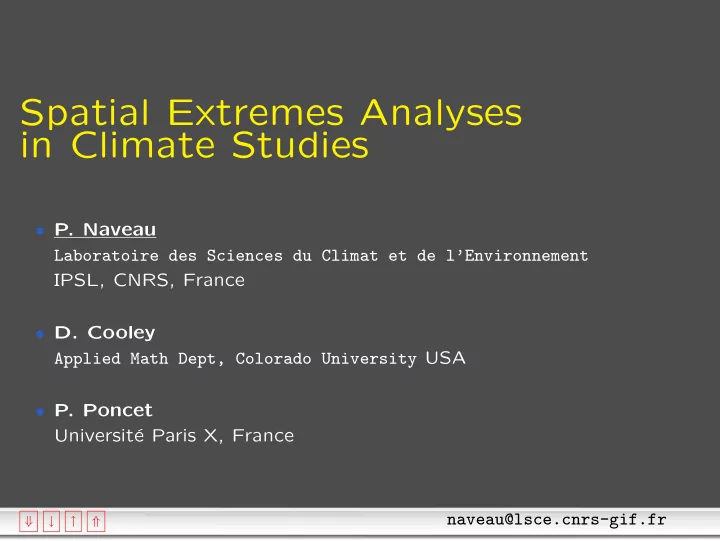

Spatial Extremes Analyses in Climate Studies

  • P. Naveau

Laboratoire des Sciences du Climat et de l’Environnement IPSL, CNRS, France

  • D. Cooley

Applied Math Dept, Colorado University USA

  • P. Poncet

Universit´ e Paris X, France

slide-2
SLIDE 2

Outline of the Talk

⇓ ↓ ↑ ⇑

naveau@lsce.cnrs-gif.fr

2

  • 1. Motivations
  • 2. Maxima distribution
  • 3. Extremal coefficient
  • 4. Geostatistics
  • 5. Conclusions
slide-3
SLIDE 3

Climate Studies

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

3

slide-4
SLIDE 4

Climate Studies

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

3

General statistical difficulties (but also true for extremes)

Spatial component: e.g. El-Nino Temporal component: e.g. solar forcing Non-stationary: e.g. release of CO2 Driven by physical processes: e.g. heat equations Multivariate variables: winds, precipitation, temperatures

slide-5
SLIDE 5

Climate Studies

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

3

General statistical difficulties (but also true for extremes)

Spatial component: e.g. El-Nino Temporal component: e.g. solar forcing Non-stationary: e.g. release of CO2 Driven by physical processes: e.g. heat equations Multivariate variables: winds, precipitation, temperatures

slide-6
SLIDE 6

Spatial Statistics for Extremes

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

4

5500 6000 6500 7000 7500 18500 19000 19500 100 200 300 400 500

How to describe the spatial dependence as a function of the distance between two points?

slide-7
SLIDE 7

Our Data: Daily precipitation

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

5

slide-8
SLIDE 8

Our Data: Daily precipitation

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

6

Dijon’s mustard region!!

slide-9
SLIDE 9

Our Data: Daily precipitation

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

7

5500 6000 6500 7000 7500 18500 19000 19500 100 200 300 400 500

Maxima over 1970-2004 Data homogenized by O. Mestre Cˆ

  • te d’Or, Bourgogne France

83 locations

slide-10
SLIDE 10

Spatial Statistics for Extremes

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

8

A few approaches for modeling spatial extremes

Max-stable processes: Adapting asymptotic results for multivariate ex- tremes Schlather & Tawn (2003), Naveau et al. (2005), de Haan & Pereira (2005) Bayesian or latent models: spatial structure indirectly modeled via the EVT parameters distribution Coles & Tawn (1996), Cooley et al. (2005) Linear filtering: Auto-Regressive spatio-temporal heavy tailed processes, Davis and Mikosch (2005) Gaussian anamorphosis: Transforming the field into a Gaussian one Wackernagel (2003)

slide-11
SLIDE 11

Assumptions

⇓ ↓ ↑ ⇑

Motiv Maxima distribution Coeff Geostat End

9

Suppose we know the marginal distributions of maxima M(x) with M(x) = the maximum recorded at the location x from a stationary field. Without loss of generality, we assume that the margins follow an unit Fr´ echet

F(u) = P[M(x) ≤ u] = exp(−1/u)

slide-12
SLIDE 12

Assumptions

⇓ ↓ ↑ ⇑

Motiv Maxima distribution Coeff Geostat End

9

Suppose we know the marginal distributions of maxima M(x) with M(x) = the maximum recorded at the location x from a stationary field. Without loss of generality, we assume that the margins follow an unit Fr´ echet

F(u) = P[M(x) ≤ u] = exp(−1/u)

P [M(x) < u1, M(x + h) < u2] = ??

slide-13
SLIDE 13

Bivariate case (M(x), M(x + h))

⇓ ↓ ↑ ⇑

Motiv Maxima distribution Coeff Geostat End

10

A well-known non-parametric structure

P [M(x) < u1, M(x + h) < u2] = exp

  • −
  • max
  • g(s, 0)

u1 , g(s, h) u2

  • δ(ds)
slide-14
SLIDE 14

Bivariate case (M(x), M(x + h))

⇓ ↓ ↑ ⇑

Motiv Maxima distribution Coeff Geostat End

10

A well-known non-parametric structure

P [M(x) < u1, M(x + h) < u2] = exp

  • −
  • max
  • g(s, 0)

u1 , g(s, h) u2

  • δ(ds)
  • Special case u1 = u2 = u

P [M(x) < u, M(x + h) < u] = exp(−θ(h)/u)

= F(u)θ(h), with F(u) = e−1/u

slide-15
SLIDE 15

θ(h) = Extremal coefficient

⇓ ↓ ↑ ⇑

Motiv Max Extremal coefficient Geostat End

11

P [M(x) < u, M(x + h) < u] = F(u)θ(h)

with F(u) = P [M(x) < u] = P [M(x + h) < u]

slide-16
SLIDE 16

θ(h) = Extremal coefficient

⇓ ↓ ↑ ⇑

Motiv Max Extremal coefficient Geostat End

11

P [M(x) < u, M(x + h) < u] = F(u)θ(h)

with F(u) = P [M(x) < u] = P [M(x + h) < u]

Interpretation Independence ⇒ θ(h) = 2 M(x) = M(x + h) ⇒ θ(h) = 1 Do not completely characterize the full bivariate dependence structure

slide-17
SLIDE 17

Geostatistics: Variograms

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

12

γ(h) = 1

2E|Z(x + h) − Z(x)|2 if {Z(x)} stationary field s.t. E|Z(x)|2 < ∞

  • 0.0

0.2 0.4 0.6 0.8 0.0 0.2 0.4 0.6 0.8 1.0 distance semivariance

Finite if light tails Capture all spatial structure if {Z(x)} Gaussian fields but not well adapted for extremes

slide-18
SLIDE 18

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

13

1 2

E |M(x + h) − M(x)|2

=???

where {M(x)} stationary max-stable field with unit-Fr´ echet margins

slide-19
SLIDE 19

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

13

1 2

E |M(x + h) − M(x)|2

=???

where {M(x)} stationary max-stable field with unit-Fr´ echet margins

M(x) unit-Fr´ echet ⇒ EM(x) = ∞

E |M(x + h) − M(x)|2 not finite

slide-20
SLIDE 20

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

14

|F(M(x + h)) − F(M(x))|

with F(u) = exp(−1/u)

slide-21
SLIDE 21

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

15

ν(h) = 1 2

E |F(M(x + h)) − F(M(x))|

with F(u) = exp(−1/u) Defined for light & heavy tails Called a Madogram Nice links with extreme value theory

slide-22
SLIDE 22

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

16

ν(h) = 1 2E |F(M(x + h)) − F(M(x))| Why does it work?

slide-23
SLIDE 23

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

16

ν(h) = 1 2E |F(M(x + h)) − F(M(x))| Why does it work? 1 2|a − b| = max(a, b) − 1 2(a + b)

slide-24
SLIDE 24

A Different Variogram

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

16

ν(h) = 1 2E |F(M(x + h)) − F(M(x))| Why does it work? 1 2|a − b| = max(a, b) − 1 2(a + b) a = F(M(x + h)) and b = F(M(x))

Ea = Eb = 1/2 E max(a, b) = EF(max(M(x + h), M(x)

  • max-stable

)) = θ(h) 1 + θ(h)

slide-25
SLIDE 25

Madogram ν(h) ⇒ Extremal coeff θ(h)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

17

θ(h) = 1 + 2ν(h) 1 − 2ν(h)

The madogram ν(h) gives the extremal coefficient θ(h)

slide-26
SLIDE 26

Madogram ν(h) ⇒ Extremal coeff θ(h)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

17

θ(h) = 1 + 2ν(h) 1 − 2ν(h)

The madogram ν(h) gives the extremal coefficient θ(h) The madogram ν(h) = 1

2E |F(M(x + h)) − F(M(x))| is easy to estimate:

ˆ ν(h) = 1 Nh

  • ||xi−xj||=h
  • F(M(xi) − F(M(xj))
slide-27
SLIDE 27

Schlather’s models (2003)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

18

10 20 30 40 10 20 30 40 x y −1 1 2 3

θ(h) = 1 +

  • 1 − 1

2 (exp(−h/40) + 1)

slide-28
SLIDE 28

Madogram ν(h) ⇒ Extremal coeff θ(h)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

19

Schlather’s fields Madogram Extremal coeff

0.0 0.2 0.4 0.6 0.8 distance estimated madogram

  • 1

4 6 8 10 12 14 16 18 20

  • 1.0

1.2 1.4 1.6 1.8 2.0 distance thetaHat

  • 1

4 6 8 10 12 14 16 18 20

slide-29
SLIDE 29

Precipitation

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

20

Histogram Madogram

normalized data Density 0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.5 1.0 1.5

  • ● ●
  • ● ●
  • ●
  • ● ● ● ● ● ●
  • ●
  • 200

400 600 800 1000 1200 1400 0.00 0.05 0.10 0.15 distance madogram

slide-30
SLIDE 30

Building valid θ(h)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

21

Proposition A Any extremal coefficient function θ(h) is such that 2 − θ(h) is positive semi-definite.

slide-31
SLIDE 31

Building valid θ(h)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

21

Proposition A Any extremal coefficient function θ(h) is such that 2 − θ(h) is positive semi-definite. Proposition B Any extremal coefficient function θ(h) satisfies the following inequalities θ(h + k) ≤ θ(h)θ(k), θ(h + k)τ ≤ θ(h)τ + θ(k)τ − 1, for all 0 ≤ τ ≤ 1, θ(h + k)τ ≥ θ(h)τ + θ(k)τ − 1, for all τ ≤ 0.

slide-32
SLIDE 32

Complete bivariate structure

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

22

Special case u1 = u2 = u

P [M(x) < u, M(x + h) < u] = exp(−θ(h)/u)

slide-33
SLIDE 33

Complete bivariate structure

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

22

Special case u1 = u2 = u

P [M(x) < u, M(x + h) < u] = exp(−θ(h)/u)

General case

P [M(x) < u1, M(x + h) < u2] = exp(−θλ(h)/u1), with λ = u1

u2

slide-34
SLIDE 34

Complete bivariate structure

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

23

Special case u1 = u2 = u

θ(h) = 1 + 2ν(h) 1 − 2ν(h)

slide-35
SLIDE 35

Complete bivariate structure

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

23

Special case u1 = u2 = u

θ(h) = 1 + 2ν(h) 1 − 2ν(h)

General case

θλ(h) = cλ + νλ(h) 1 − νλ(h) − cλ , with cλ = 1 + 3λ 4(1 + λ) and νλ(h) = 1 2E |F(M(x + h)) − F(λM(x))|

slide-36
SLIDE 36

Complete bivariate structure

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

24

Estimators of νλ(h) = 1

2E |F(M(x + h)) − F(λM(x))|

The “naive” estimator is ˆ νλ(h) = 1 Nh

  • ||xi−xj||=h
  • F(M(xi) − F(λM(xj))
  • but it does not satisfy ˆ

θ0(h) = ˆ θ∞(h) = 1

slide-37
SLIDE 37

Complete bivariate structure

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

24

Estimators of νλ(h) = 1

2E |F(M(x + h)) − F(λM(x))|

The “naive” estimator is ˆ νλ(h) = 1 Nh

  • ||xi−xj||=h
  • F(M(xi) − F(λM(xj))
  • but it does not satisfy ˆ

θ0(h) = ˆ θ∞(h) = 1 An unbiased estimator satisfying the above condition is ˆ ˆ νλ(h) = ˆ νλ(h) − (1 − ω(λ))1 n

  • F(λM(xj)) − ω(λ)1

n

  • F(λM(xj)) + 1

4 with ω(λ) = λ/(1 + λ)

slide-38
SLIDE 38

λ-madogram versus Caperaa et al. 1997

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

25

G(u1, u2) = exp

  • −
  • 1

u1 + 1 u2

  • A
  • u1

u1 + u2

  • with A(w) = (1 − t1)w + (1 − t2)(1 − w) + [(t1w)(1/α) + (t2(1 − w))(1/α)]α

α = .7, t1 = t2 = 1 α = .3, t1 = t2 = 1 α = .2, t1 = 0.8, t2 = 0.5

w, (lambda) A(w) 0.0 0.2 0.4 0.6 0.8 1.0 0.5 0.6 0.7 0.8 0.9 1.0 (Inf) (4) (3/2) (2/3) (1/4) (0)

  • w, (lambda)

A(w) 0.0 0.2 0.4 0.6 0.8 1.0 0.5 0.6 0.7 0.8 0.9 1.0 (Inf) (4) (3/2) (2/3) (1/4) (0)

  • w, (lambda)

A(w) 0.0 0.2 0.4 0.6 0.8 1.0 0.5 0.6 0.7 0.8 0.9 1.0 (Inf) (4) (3/2) (2/3) (1/4) (0)

slide-39
SLIDE 39

λ−Madogram for spatial fields

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

26

Schlather’s fields

λ = 1 , 2/3 ,..., 1/4 ,..., 1/99 λ = 1 , 3/2 ,..., 4 ,..., 99

5 10 15 20 0.00 0.05 0.10 0.15 0.20 0.25 distance madogram

  • ● ●
  • 5

10 15 20 0.00 0.05 0.10 0.15 0.20 0.25 distance madogram

  • ● ●
slide-40
SLIDE 40

Take-home messages

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostat End

27

Madogram ν(h) ⇒ Extremal coeff θ(h) Extremal coeff θ(h) ⇒ Info about the spatial dependence λ-madogram captures bivariate structure

slide-41
SLIDE 41

Take-home messages

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostat End

27

Madogram ν(h) ⇒ Extremal coeff θ(h) Extremal coeff θ(h) ⇒ Info about the spatial dependence λ-madogram captures bivariate structure Future research Derive limiting results for unknown marginals Find “madograms” for exceedances Develop spatial interpolation methods for maxima Derive statistical schemes for downscaling of extremes Acknowledgement NSF-GMC (ATM-0327936) E2C2: Extreme Events, Cause and Consequences: Post-docs

slide-42
SLIDE 42

To learn more about this topic ...

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostat End

28

http://amath.colorado.edu/faculty/naveau/

  • Naveau, P., Poncet, P., and Cooley, D. (2005). First-order variograms for extreme

bivariate random vectors (submitted).

  • Schlather, M. and Tawn, J. (2003).

A dependence measure for multivariate and spatial extreme values: Properties and inference.

  • Davis, R. and Resnick, S. (1993).

Prediction of stationary max-stable processes,

  • Ann. of Applied Prob 3, 497–525
  • Capeera, P., Foug´

eres A.L., and Genest, C (1997). A non-parametric estimation procedure for bivariate extreme value copulas.

  • Smith, R. (1990). Max-stable processes and spatial extremes.

“Better to have the approximate solution to the correct problem than the exact solution to the wrong problem” -J. Tukey

slide-43
SLIDE 43

Spatial Statistics for Extremes

⇓ ↓ ↑ ⇑

Motivations Max Coeff Geostat End

29

5500 6000 6500 7000 7500 18500 19000 19500 0.0 0.2 0.4 0.6 0.8

Our “renormalized” random field

slide-44
SLIDE 44

Smith’s models (2003)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

30

10 20 30 40 10 20 30 40 x y 1 2 3

θ(h) = 2Φ

  • hTΣ−1h/2
slide-45
SLIDE 45

Madogram ν(h) ⇒ Extremal coeff θ(h)

⇓ ↓ ↑ ⇑

Motiv Max Coeff Geostatistics End

31

Smith’s fields Madogram Extremal coeff

0.0 0.2 0.4 0.6 0.8 1.0 distance estimated madogram

  • 1

4 6 8 10 12 14 16 18 20

  • 1.0

1.2 1.4 1.6 1.8 2.0 distance thetaHat

  • 1

4 6 8 10 12 14 16 18 20
