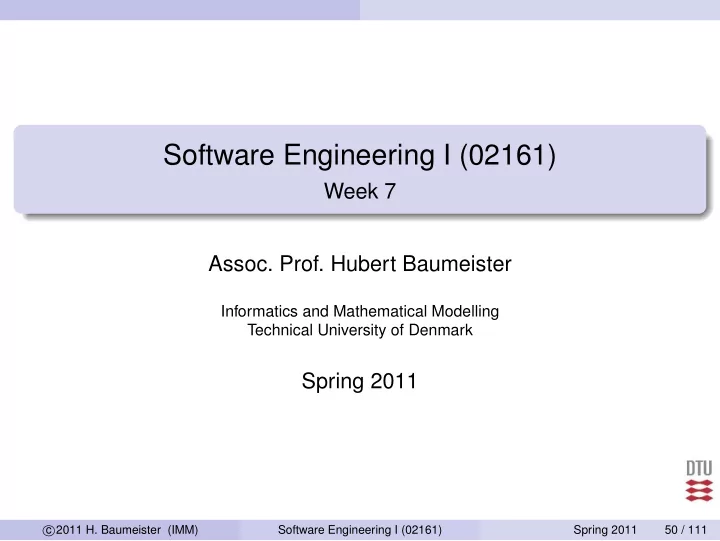

Software Engineering I (02161)

Week 7

• Assoc. Prof. Hubert Baumeister

Informatics and Mathematical Modelling Technical University of Denmark

Spring 2011

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 50 / 111

Recap

Recap

State Machines

Good for representing that behaviour is changed as a reaction to events: → Implementation using the state pattern (a Design Pattern) based on distributed control

Layered Architecture

Layers have their own set of responsibilities: e.g. Presentation–, Application–, Domain–, and Database/Infrastructer layer Interface between layers is small → Easy to exchange layer Separation between Presentation– and Application– layer allows to test application logic

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 52 / 111

Layered Architecture: Persistence Layer

Layered Architecture: Persistency Layer for the library application

Persistency Layer Presentation Layer Application Layer LibraryUI LibraryApp Medium User Book Cd PersistentObject PersistencyLayer

For simplicity: Data (User and Medium) is stored in two files users.txt and media.txt; address has no file A book dtu.library.app.Book b01 some book author some book title Mar 13, 2011 <empty line> A user dtu.library.app.User cpr-number Some Name a@b.dk Kongevejen 2120 København b01 c01 <empty line>

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 54 / 111

Layered Architecture: Persistence Layer

Persistency Layer

LibraryApp PersistencyLayer ... clearDatabase() createMedium(m:Medium) createUser(u:User) readMedium(sig:String):Medium readUser(cpr:String):User updateMedium(m:Medium) updateUser(m:User) deleteMedium(sig:String) deleteUser(cpr:String) getUsers(): List<User> getMedia(): List<Medium> ... 1 User ... ... getKey():String storeOn(out:PrintWriter) readFromReader(r:Buff.Read.

• l:PersistencyLayer)

PersistentObject storeOn(out:PrintWriter) getKey():String key:String 0..1 cache_users key:String 0..1 cache_media Medium ... ... getKey():String storeOn(out:PrintWriter) readFromReader(r:Buff.Read.

• l:PersistencyLayer)

{ return getSignature(); } { return getCprNumber(); } * borrowedMedia

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 55 / 111

Layered Architecture: Persistence Layer

Layered Architecture: Persistency Layer for the library application

PersistencyLayer cache_users cahce_medium clearDatabase() createMedium(m:Medium) createUser(u:User) readMedium(sig:String):Medium readUser(cpr:String):User updateMedium(m:Medium) updateUser(m:User) deleteMedium(sig:String) deleteUser(cpr:String) getUsers(): List<User> getMedia(): List<Medium> ...

CRUD: Create, Read, Update, Delete: typical database operations clearDatabase: removes the two files users.txt and media.txt createMedium/User: appends a new record to the corresponding file readMedium/User: go sequentially through the files, reads the object and returns it if the key matches updateMedium/User: copy all entries in a new file; replace the old entry with the new entry on copying; rename the new file to the old file deleteMedium/User: The same as updateMedium/User, the difference is that the object to delete is not copied getUsers/Media

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 56 / 111

Layered Architecture: Persistence Layer

Reading/Writing User and Media objects

User ... ... getKey():String storeOn(out:PrintWriter) readFromReader(r:Buff.Read.

• l:PersistencyLayer)

readFrom(r:Buff.Read.

• l:PersistencyLayer):User

Medium ... ... getKey():String storeOn(out:PrintWriter) readFromReader(r:Buff.Read.

• l:PersistencyLayer)

* borrowedMedia PersistentObject storeOn(out:PrintWriter) getKey():String Cd readFrom(r:Buff.Read., pl:PersistencyLayer):Cd Book readFrom(r:Buff.Read., pl:PersistencyLayer):Book

storeOn writes a representation of the

• bject on a writer

readFrom is a static method that creates a new object from a read; it creates the

• bject and delegates the initialisation to

the object itself: i.e. User u = new User(); u.readFromReader(reader,pl); return u; readFromReader reads the state of an

• bject from a reader

Note that the user needs the PersistencyLayer to get from it the borrowed books based on their signatures

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 57 / 111

Layered Architecture: Persistence Layer

Use of Files

Writing to files: Second argument to FileWriter constructor: if true, this means append to the file if the file exists, false means, replace the file if the file exists FileWriter fw = new FileWriter(filename, true); PrintWriter out = new PrintWriter(fw);

• ut.println("Some line");
• ut.print("Some string without new lline");

Reading from files FileReader fr = new FileReader(filename); BufferedReader in = new BufferedReader(fr); String line - in.readLine(); Deleting and renaming files File f = new File(filename); f.delete(); f.renameTo(new File(new_filename));

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 58 / 111

Layered Architecture: Persistence Layer

Issues

readMedium/User should return the same object if called twice with the same key

→ use a cache of media/users and return the object in the cache if it exists The cache maps keys to persistent objects, i.e., Map<String,PersistentObject> cache Note: the cache needs also to work together with the add and delete operations

updateMedium/User needs to be called whenever the state of a user/media changes (e.g. through borrowing and returning media)

→ Don’t forget to create tests for that

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 59 / 111

Layered Architecture: Persistence Layer

Tasks

1) Implement the persistency layer as described (based on the provided tests)

Note: Don’t implement the class diagram directly; instead implement parts of the diagram as necessary to so that the test pass → The diagram describes the final state to be achieved using TDD Challenge: the CRUD operations for users are similar to those for

• media. Actually, they can be implemented for all instances of

PersistentObject → DRY principle

2) Connect the persistency layer with the library application

a) Change the library application code to use the persistency layer

→ This requires to add throws clauses to some of the methods of library application

b) Adapt the tests as necessary

→ Note that most tests require now to have the database cleared before the tests can start (using PersistencyLayer.clearDatabase())

c) Add additional tests to make sure that the database is updated when, e.g. books are borrowed or returned.

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 60 / 111

Architecture

Architectural Design

Identify the main structural components of the system Usually done after the requirements as a first design step Outcome is an architectural model or metaphor (XP) Example: Packing robot control system

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 62 / 111

Architecture

Overlap Requirements Engineering and Architectural Design

Ideally: System specification should not include design information Reality: For complex system the system specification will come with a structure

Also: Requirements may state architectural requirements: e.g. application should run on the Web, mobile phone, desktop, . . .

→ Requirements engineering may already yield a coarse system architecture

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 63 / 111

Architecture

Software architecture

Importance: It influences performance, robustness, distributability, and maintainability

Functional requirements are implemented by the components Non-functional requirements depend on the architecture

Advantage of an explicit system architecture

1) Manage the complexity of the system and development task 2) Communication with stakeholders 3) Allows to analyse the system according to emergent properties (like performance, security, safety, etc.) 4) Possibility for large-scale reuse

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 64 / 111

Architecture

Notation for architectural design

Commonly: Informal, boxes denoting components and sub-components and lines denoting data– or control-flow Also: UML component diagram with precise defined interfaces for the components Two purposes

a) A way of facilitating discussion abut the system design

e.g metaphor in XP

b) A way of documenting an architecture that has been designed

e.g. base of model-driven architecture where the implementation is derived from the architecture through model-transformations

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 65 / 111

Architecture

Architectural Patterns/styles

There are a set of common architectural patterns:

Model View Controller Layered Architecture Repository Architecture Client-Server Architecture Pipe and filter Architecture . . .

Quite often, the patterns are mixed, e.g. the client in a client-server architecture could be build using a layered architecture where the presentation layer uses the model-view-controller pattern

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 66 / 111

Architecture

Model View Controller

Used when there are multiple ways to view and interact with data. Advantage: Easy to change and add data representations and interactions; supports different presentations of the same data where changes in one presentation are reflected in all others (→ Vending Machine UI’s from last week) Disadvantage: Can involve additional code with simple data models and interactions.

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 67 / 111

Architecture

Layered Architecture

Used when building new facilities on top of existing systems or separation of concerns is important (e.g. easy exchange of presentation– or data layer) Advantage: Easy replacement of entire layers; redundant facilities (like authentification) can be provided in each layer to increase the dependability of the system Disadvantage: Sometimes higher layers have to talk directly to lower layers; possible performance issues by propagating messages through layers

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 68 / 111

Architecture

Repository Architecture

Used when the system has large volumes of data Advantage: Independent of components (they don’t have to know each other); components can easily be added or exchanged Disadvantage: Repository is a single point of failure; possible source for inefficiencies

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 69 / 111

Architecture

Client-Server Architecture

Used when data in a shared database has to be accessed from a range of locations Advantage: access to remote servers/data Disadvantage: single point of failure (the server); denial-of-service attacks

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 70 / 111

Architecture

Pipes-and-Filter Architecture

Used in data processing applications Advantage: Easy to understand; reuse of transformations Disadvantage: agreement on data structures; each transformation needs to parse and unparse the data

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 71 / 111

Basic Principles of Good Design Duplication

DRY principle

DRY principle Don’t repeat yourself: Every piece of knowledge must have a single, unambiguous, authoritative representation within a system. Problem with duplication

Consistency: Changes need to be applied to each of the duplicates Changes won’t be executed because changes needed to be done in too many places

Kind of duplication

Code duplications Concept duplications Code / Comments / Documentation

→ Self documenting code → Only document ideas, concepts, . . . that are not expressible (expressed) clearly in the code: e.g. What is the idea behind a design, what were the design decisions Example: eUML: Class diagrams == Code

. . .

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 73 / 111

Basic Principles of Good Design Duplication

Example: Code Duplication

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 75 / 111

Basic Principles of Good Design Duplication

DRY principle

Techniques to avoid duplication

Use appropriate abstractions

Inheritance Classes with instance variables Methods with parameters refactor your software to remove duplications . . .

to refactor software Change the structure of the software without changing its functionality Use generation techniques

generate documention from code

e.g. Javadoc generates HTML documentation from Java source files e.g. http://java.sun.com/javase/6/docs/api/

generate code from UML models

most modern tools support this for class diagrams in both directions (i.e. code → diagram and diagram → code

. . .

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 76 / 111

Basic Principles of Good Design Simplicity

KISS principle

KISS principle Keep it short and simple (sometimes also: Keep it simple, stupid) Try to use the simplest solution first

Make complex solutions only if needed

Strive for simplicity

Takes time!! refactor your software to make it simpler

Antoine de Saint Exup´ ery ”It seems that perfection is reached not when there is nothing left to add, but when there is nothing left to take away”.

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 77 / 111

Project

Course 02161 Exam Project

Exam project: Monday 21.3 — Monday 9.5 10 min demonstrations of the software are planned for Monday 9.5 To be delivered

the running software and source code a report describing the software (Use cases, class diagrams, sequence diagrams, . . . )

Group size: 2 – 4 Group forming: next week

Either you are personally present or someone can speak for you If not, then there is no guarantee for participation in the exam project

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 79 / 111

Patterns (I) Introduction

What is a pattern and a pattern language?

Pattern A pattern is a solution to a problem in context A pattern usually contains a discussion on the problem, the forces involved in the problem, a solution that addresses the problem, and references to other patterns Pattern language A pattern language is a collection of related patterns

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 81 / 111

Patterns (I) Introduction

History of patterns

Christopher Alexander (architect)

Patterns and pattern language for constructing buildings / cities → Timeless Way of Building and A Pattern Language: Towns, Buildings, Construction (1977/79)

Investigated for use of patterns with Software by Kent Beck and Ward Cunningham in 1987 Design patterns book (1994) Pattern conferences, e.g. PloP (Pattern Languages of Programming) since 1994 Portland Pattern repository http://c2.com/cgi/wiki?PeopleProjectsAndPatterns (since 1995)

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 82 / 111

Patterns (I) Introduction

What is a design pattern?

Design patterns book by ”Gang of Four” (Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides) A set of best practices for designing software

E.g. Observer pattern, Factory pattern, Composite pattern, . . . Many of the design patterns describe how to use decentralised control (i.e. object-oriented techniques) to solve common design problems

Places to find patterns:

Wikipedia http://en.wikipedia.org/wiki/Design_ pattern_(computer_science) Portland Pattern repository http://c2.com/cgi/wiki?PeopleProjectsAndPatterns (since 1995) Wikipedia http://en.wikipedia.org/wiki/Category: Software_design_patterns

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 83 / 111

Patterns (I) Template Method

Template Method

Template Method Define the skeleton of an algortihm in an operation, deferring some steps to subclasses. Template Method lets sublcasses redefine certain steps of an algorithm without changing the algorithm’s structure.

ConcreteClass2 primitiveMethod1 primitiveMethod2 ... AbstractClass templateMethod primitiveMethod1 primitiveMethod2 ... ConcreteClass1 primitiveMethod1 primitiveMethod2 ... The template method defines its algortihm based on primitiveMethod1, ... PrimitiveMethod1, ... in AbstractClass are usually abstract, but they could also define some default behavior. c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 84 / 111

Patterns (I) Template Method

Template Method: Library Application

Cd .. .. getMaxDaysForLoan():int Medium .. .. getMaxDaysForLoan():int isOverdue():bool Book .. .. getMaxDaysForLoan():int if (!isBorrowed()) { return false; } Calendar date = libApp.getDate(); Calendar latestReturnDate = new GregorianCalendar(); latestReturnDate.setTime(borrowDate.getTime()); latestReturnDate.add(Calendar.DAY_OF_YEAR, getMaxDaysForLoan()); return latestReturnDate.before(date);

The computation of isOverdue depends on getMaxDaysForLoan which is different for Book and Cd.

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 85 / 111

Patterns (I) Observer Pattern

Observer Pattern

Observer Pattern Define a one-to-many dependency between objects so that when one

• bject changes state, all its dependents are notified and updated

automatically.

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 86 / 111

Patterns (I) Observer Pattern

Observer Pattern

The basic idea is that the object being observed does not know that there are observers

→ observers can be added independently on the observable (also called subject) → new types of observers can be created without changing the subject

The observer pattern is used often in GUI programming to connect the presentation of a model with the model itself

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 87 / 111

Patterns (I) Observer Pattern

Observer Pattern

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 88 / 111

Patterns (I) Observer Pattern

Observer Pattern

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 89 / 111

Patterns (I) Observer Pattern

Implementation in Java

Support from the class library: One abstract class and interface: Interface java.util.Observer

Implement update(Observable o, Object aspect)

Class java.util.Observable

Provides connection to the observers Provides methods addObserver(Observer o), deleteObserver(Observer o)

To add and delete observers

setChanged()

Marks the observable / subject as dirty

notifyObservers(), notifyObservers(Object aspects)

Notify the observers that the state of the observable has changed The aspect can be used to say what has changed in the observable

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 90 / 111

Patterns (I) Observer Pattern

Example: Stack with observers

public class Stack<E> extends Observable { List<E> data = new ArrayList<E>(); void push(Type o) { data.add(o); setChanged(); notifyObserver("data elements"); } E pop() { E top = data.remove(data.size())’ setChanged(); notifyObserver("data elements"); } E.top() { return data.get(data.size()); } int size() { return data.size(); } ... }

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 91 / 111

Patterns (I) Observer Pattern

Example: Stack observer

Observe the number of elements that are on the stack. Each time the stack changes its size, a message is printed on the console. class NumberOfElementsObserver() implements Observer { Stack<E> stack; NumberOfElementsObserver(Stack<E> st) { stack = st; } public void update(Observable o, Object aspect) { System.out.println(subject.size()+" elements on the stack"); } }

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 92 / 111

Patterns (I) Observer Pattern

Example: Stack observer

Adding an observer .... Stack<Integer> stack = new Stack<Integer>; NumberOfElementsObserver observer = new NumberOfElementsObserver(stack); stack.addObserver(observer); stack.push(10); stack.pop(); ... stack.deleteObserver(observer) ...

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 93 / 111

Patterns (I) Observer Pattern

Sequence diagram for the stack

sample

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 94 / 111

Patterns (I) State pattern

State Pattern

State Pattern Allow an object to alter its behavior when its internal state changes. The object will appear to change its class. This pattern delegates the behaviour of one object to another

• bject

* State request1 request2 AClass request1 request2 ... changeState State1 request1 request2 State2 request1 request2

sd: StatePattern

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 95 / 111

Patterns (I) Composite Pattern

Composite Pattern

Composite Pattern Compose objects into tree structures to represent part-whole

• hierarchies. Composite lets client treat individual objects and

compositions of objects uniformly.

Component computeCost() {int costs = 0; foreach (Component c : components) { costs += c.computeCost(); } return costs; } * {return catalogueEntry.cost} Assembly computeCost() Part computeCost() CatalogueEntry cost computeCost() * c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 96 / 111

Patterns (I) Composite Pattern

Example: Graphics

Class Diagram Instance diagram

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 97 / 111

Patterns (I) Visitor Pattern

Visitor Pattern

Visitor Pattern Represent an operation to be performed on the elements of an object

• structure. Visitor lets you define a new operation without changing the

classes of the elements on which it operates. The object structure (e.g. based on a composite pattern) provides access to itself through a set of methods

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 98 / 111

Patterns (I) Visitor Pattern

Example: compute costs for components

Component computeCost() {int costs = 0; foreach (Component c : components) { costs += c.computeCost(); } return costs; } * {return cost} Assembly computeCost() Part cost computeCost()

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 99 / 111

Patterns (I) Visitor Pattern

Example: compute costs as a visitor

Visitor visitPart(Component c) visitAssembly(Component c) Function visitPart visitAssembly ComputeCosts visitPart(Component c) visitAssembly(Component c) { int costs = 0; foreach (Component co : c.getComponents()) { costs += co.accept(this); } return costs; } {v.visitAssembly(this)} {return c.getCost()} {v.visitPart(this)} Component acceptVisitor(Visitor v) * Assembly acceptVisitor() Part cost acceptVisitor(Visitor v)

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 100 / 111

Patterns (I) Visitor Pattern

Visitor pattern

The trick of the visitor is to use double dispatch

add type information to the method name

acceptVisitor → visitPart, visitAssembly

Use the visitor pattern if

The functions don’t belong to the concept of the object structure:e.g. generator functions One should be able to do traverse an object structure without wanting to add operations to the object structure One has several functions almost the same. Then one can use the visitor pattern and inheritance between the visitors do define slight variants of the functions (e.g. only overriding acceptPart)

Do not use it

if the complexity of the visitor pattern is not justified if the functions belongs conceptually to the object structure If the flexibility of the visitor is not needed, e.g.. if one only wants to add one function

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 101 / 111

Patterns (I) Visitor Pattern

Double Dispatch

Double Dispatch Here it is known that a is an integer and thus needs to be converted to the more general type (i.e. float) Here we know that both arguments are floats and that we can use the addition on floats Here the method is based on the type of the receiver and the argument => "Dynamic binding" on both arguments => "double dispatch"

e.g. found in Smalltalk or Ruby where numbers are first class objects

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 102 / 111

Patterns (I) Summary

Summary Design Patterns

Original Gang of Four book: Creational Patterns

Abstract Factory, Builder, Factory Method, Prototype, Singleton

Structural Patterns

Adapter, Bridge, Composite, Decorator, Facade, Flyweight, Proxy

Behavioral Patterns

Chain of Responsibility, Command, Interpreter, Iterator, Mediator, Memento, Observer, State, Strategy, Template Method, Visitor

There are more: Implementation Patterns, Architectural Patterns, Analysis Patterns, Domain Patterns . . .

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 103 / 111

Recap

Summary

Layered Architecture: Persistent Layer Architecture Good Design Design Patterns (I):

(Object-oriented) solutions to common design problems Template Method, Observer Pattern, State Pattern, Composite Pattern, Visitor Pattern

c 2011 H. Baumeister (IMM) Software Engineering I (02161) Spring 2011 105 / 111
