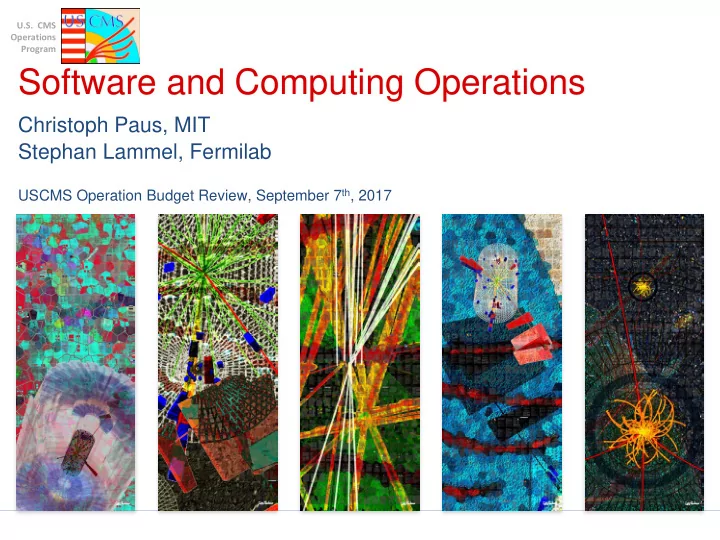

SLIDE 1

U.S. CMS Operations Program

Software and Computing Operations

Christoph Paus, MIT Stephan Lammel, Fermilab

USCMS Operation Budget Review, September 7th, 2017

SLIDE 2

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Enable high-quality, timely research by

▪ processing data ▪ distributing data ▪ running job submission infrastructure ▪ running various data/software/DB services ▪ investigating possible improvements

==> clearly in US/US physicist interest

goal matches CMS, different focus on enabling it

==> strategy is to apply US expertise

increase operations coverage with second 8h shift

S&C Operations, Goals

2/14

SLIDE 3

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Smooth, effortless operation:

▪ automate where possible ▪ make things robust ▪ off-load monitoring to shifter ▪ effective alerting

▪ Look beyond today:

▪ what is needed next month/year ▪ what becomes available ▪ what needs to be improved/evolved

▪ What is in for USCMS:

▪ know the data and issues ▪ keep US facilities at peak performance ▪ see computing research and development opportunities early

S&C Operations, Strategy

3/14

SLIDE 4

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

Tier-0

Operate the Tier-0 infrastructure

USCMS people designed and built the Tier-0
USCMS contributes significantly to the operation

Data Distribution

Operate PhEDEx and Dynamo data distribution

USCMS designed and built PhEDEx, AAA, and Dynamo
USCMS operates the system with collaboration contribution

Data Processing

Re(re)construct data and produce Monte Carlo datasets

USCMS designed and build the processing setup
USCMS operates the system with collaboration contribution

Submission Infrastructure

Schedule and execute production and user jobs on Grid and Cloud resources of sites

USCMS co-developed glide-in WMS
USCMS designed and setup the Global Pool
USCMS operates the system with OSG and collab contribution

Central Services

Operate various distributed data, database, and software access services

USCMS contributed in the development of several services
USCMS contributes significantly to the operation

Site Support

Monitor health and performance of CMS grid sites

USCMS people developed the setup based on WLCG tools
USCMS contributes significantly to the daily monitoring

S&C Operations, Areas

4/14

SLIDE 5

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪

Tier-0 components consists of:

▪ interface to transfer system of StorageManager at P5

▪ transfer system to get data from P5 to CERN EOS/MSS

▪ Express and PromptCalib

▪ Repack data from streamer format into ROOT files

▪ PromptReco

▪ AlCaSkim

▪ data quality monitoring

▪ file merge

▪ cloud based infrastructure for CPU resources at CERN

▪

2017 Activities:

▪ commission new interface to transfer system

▪ transfer performance and lost files in EOS

▪ data cached on disk reduced

▪

USCMS effort:

▪ CMS/O&C/CompOps/Tier-0 L3 head at CERN (0.5 FTE costed)

▪ Tier-0 operator at CERN (0.3 FTE uncosted)

▪ Tier-0 operator at Fermilab (1 FTE subsistence)

▪ Tier-0 head/operator at CERN (2 FTE cola)

S&C Operations, Tier-0

5/14

SLIDE 6

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪

Data Distribution components consists of:

▪ PhEDEx transfer system

▪ dynamic data management DDM / Dynamo

▪ AAA / xrootd federated data service (redirectors, monitoring)

▪

2017 Activities:

▪ tape-to-disk staging tests at Tier-1s

▪ expanded DDM use

▪ lost files due to storage system failures

▪ network transfer rates at two of the Tier-1s

▪ storage inconsistencies due to race conditions/exceptions

▪ increase DDM functionality and capabilities

▪

USCMS effort:

▪ AAA/xrootd operations at Nebraska (0.5 FTE costed)

▪ network performance integration at Nebraska (0.2 FTE costed)

▪ storage performance integration at Florida (0.5 FTE costed)

▪ transfer team operator at CERN/MIT (0.6 uncosted)

▪ DDM/Dynamo support and evolution at MIT (0.3 uncosted)

▪ transfer team operator at Fermilab (1 FTE subsistence)

▪ CMS/O&C/CompOps/TT L3 head at CERN (1 FTE cola)

S&C Operations, Data Distribution

6/14

SLIDE 7

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Data Processing tasks consists of:

▪ reconstruction of cosmic and pp-collision data ▪ re-miniAOD campaign for spring conferences ▪ re-reconstruction of 2016 pp-collision data ▪ making pile up Monte Carlo samples for pre-mixing ▪ Run 2, phase 1, and 2 Monte Carlo samples

▪ 2017 Activities:

▪ EOS authentication overload with HLT and Tier-0

resources

▪ stage-out issues ▪ software availability and thus late start of campaigns ▪ network and storage overloads

▪ USCMS effort:

▪ Data Processing operations at Fermilab (1 FTE costed) ▪ CMS/O&C/CompOps/P&R L3 head (0.25 FTE uncosted)

S&C Operations, Data Processing

7/14

SLIDE 8

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Submission Infrastructure tasks consists of:

▪ operation of the glide-in WMS factories ▪ support and evolution of the batch system Global Pool ▪ interface with glide-in WMS and HTCondor developers and

advise on features/priorities

▪ 2017 Activities and Milestones:

▪ multi-core pilot tuning (task priorities, retirement policies,

and scheduling efficiency)

▪ Global Pool stability and increased scalability (500k cores) ▪ Singularity integration and deployment (glexec

replacement)

▪ including I/O resources in job scheduling

▪ USCMS effort:

▪ GlideIn Factory operations at UCSD (0.2 FTE costed) ▪ Submission Infrastructure leadership at UCSD (0.45 FTE

costed)

S&C Ops, Submission Infrastructure

8/14

SLIDE 9

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Central Services components consists of:

▪ CVMFS for software and MC gridpack distribution ▪ DBfroNtier/squid infrastructure of distributed database

cache

▪ 2017 Activities:

▪ squids switched from static config to launchpad

discovery

▪ USCMS effort:

▪ CVMFS operations at Florida (0.3 FTE costed) ▪ DBfroNtier/squid operations at Johns Hopkins (0.17

FTE costed)

▪ DBfroNtier/squid support at Fermilab (0.1 FTE costed)

S&C Operations, Central Services

9/14

SLIDE 10

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Site Support components consists of: ▪ SAM and HC of WLCG ▪ site readiness and status metrics ▪ topology description (VO-feed, SITECONF) ▪ dashboard metric displays ▪ 2017 Activities: ▪ decouple VO-feed from BDII, multi-site support, xrootd ▪ finer granularity tests (SAM, HC, PhEDEx links between

sites)

▪ new pilot startup site test ▪ IPv6 storage commissioning/testing ▪ USCMS effort: ▪ Site Support operator at Fermilab (1.0 FTE subsistence) ▪ CMS/O&C/F&S/SS L3 head (0.25 FTE uncosted)

S&C Operations, Site Support

10/14

SLIDE 11

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ USCMS effort coordinating CMS/O&C: ▪ Submission Infrastructure L2 head (0.1 FTE costed) ▪ Computing Operations L2 head (0.15 FTE uncosted) ▪ Facilities and Services L2 head (0.1 FTE uncosted) ▪ USCMS effort coordinating USCMS Ops/O&C: ▪ Computing Operations L3 (0.2 FTE uncosted) ▪ Guest Scientist Line Management (0.05 FTE uncosted)

S&C Operations, Coordination

11/14

SLIDE 12

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ Operating, operating, operating...

▪ LHC data keeps coming through 2018

▪ Reacting to issues/addressing operational needs

▪ difficult to plan ahead, except

▪ Areas with more evolution component like

▪ Submission Infrastructure

need to stay ahead of CPU/core demand: scalability &

efficiency

high-availability via IPv6 of Global Pool services
feeding HTCondor monitoring and factory logs to MonIT
develop/setup mechanism to suspend matching of production

jobs to a sites

▪ Data distribution

plan for DDM to become a more sophisticated cache

manager

S&C Operations, FY-18 plans

12/14

SLIDE 13

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪

High:

▪ Submission Infrastructure

danger of losing glide-in WMS investment
USCMS makes big impact

▪ Data Distribution/DDM

know/coordinate which data are stored at which sites (physics)

▪ AAA/xrootd

influence/guide future of remote data access (leadership)

▪ Dbfrontier/squid

cross experiment/frontier activity (leadership)

▪

Moderate:

▪ Data Processing

direct knowledge of datasets/processing information would be lost (physics)

▪ Site Support

watching out for USCMS sites would be lost

▪ Tier-0

we loose connection to data as they are recorded

▪ Storage/Network performance integration

don’t be proactive and incur delay/slower implementation when plan ready

▪ CVMFS operation

expect CMS to pick this up as service is needed for all sites

▪

Low:

S&C Operations, Priorities

13/14

SLIDE 14

U.S. CMS Operations Program 2018 U.S. CMS Budget Review — Computing Operations Stephan Lammel, 2017-Sep-07

▪ USCMS Computing Operations works well and makes a significant

impact in CMS !

▪ Tier-0: keeps up with data taken by detector ▪ Data Distribution: data at sites managed actively; to a few sites

distribution is limited by network bandwidth

▪ Data Processing: MC and data ready in time for spring 2017

conferences; keeping up with requests from PPD

▪ Submission Infrastructure: plenty of resources made available for

production and user analysis

▪ Central Services: CVMFS service runs smoothly and

DBfroNtier/squid is monitored/managed proactively

▪ Site Support: improved detection and turn-around in case of issues ▪ Anticipated LHC performance is expected to put computing under

stress and challenge operations to high efficiency

Summary

4.02 02 + 3 3 FTEs Es c coste ted + s subsiste tence 2.2 2 FTEs s uncoste ted COL OLA A fo for 3 3 FTE TEs

14/14
