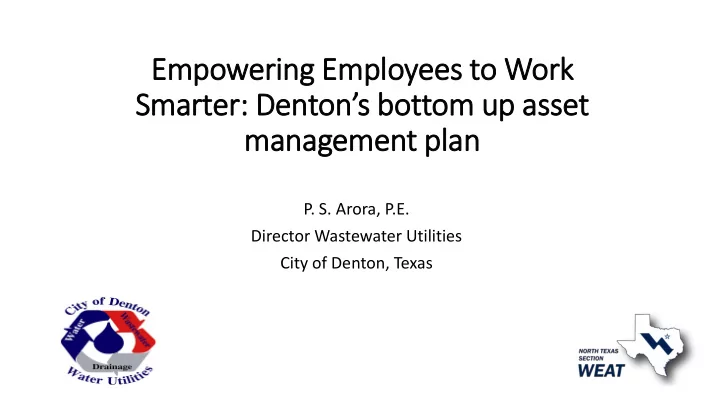

Empowering Employees to Work Smarter: Dentons bottom up asset management plan P. S. Arora, P.E. Director Wastewater Utilities City of Denton, Texas Presentation Scope Why asset management Software tools used in Denton asset
SLIDE 2
SLIDE 3
Presentation Scope
- Why asset management
- Software tools used in Denton asset management plan
- Discussion of asset management plan
- Empowering employees with front row seats in
AMP development
- Benefits derived
Asset Framework & Information Solutions
Planning Hydraulic Modeling New Capacity Delivery Operations & Maintenance Infrastructure Renewal
SLIDE 4
Denton’s Collection System Has Expanded to Match Population Growth
First sewer lines were constructed around the Courthouse in the early 1900s
500,000 1,000,000 1,500,000 2,000,000 2,500,000 3,000,000 20,000 40,000 60,000 80,000 100,000 120,000 140,000 160,000 1880 1890 1900 1910 1920 1930 1940 1950 1960 1970 1980 1990 2000 2010 Population Population Gravity Main
Linear Feet of Gravity Sewer Main
SLIDE 5
Why Asset Management
- Substantial investment in wastewater collection system assets ($0.5
Billion)
- Limited dollars for O&M and replacement
- Good steward of the environment, SSO reduction
- Work smarter
- High employee morale
- Lower rates, happy ratepayers
SLIDE 6
Software Tools Used in AM
- ESRI GIS
- Pipeworks/Cityworks CMMS
- Hydroworks/Infoworks Capacity Models
- WERF SCRAPS Prioritization Model
- CapPlan/Infomaster Asset Management Model
- Operations staff buy in
- Addition of IT/Database professional
- CMOM Program
SLIDE 7
How Denton Uses Cit ityworks CMMS
Work orders for:
- Flushing program
- CCTV
- Point repairs
- Service line replacements
- Main line replacements
- Customer calls
- Odor complaints
- Chokes and overflows
- Manhole inspections
EVERY ACTIVITY IN THE COLLECTIONS DEPARTMENT IS ENTERED AS A WORK ORDER!
SLIDE 8
Cit ityworks Combined wit ith GIS for Flu lushing Program Example, Flu lushing Staff f Vs IT IT
SLIDE 9
Cityworks Quality Control, WO Overload Created Need for Automation
**SYSTEM GENERATED INSTRUCTION** Tested for batch closure 2016-06-28. Could not be closed because of the following:
- WO CONTAINS INSTRUCTIONS
**END OF INSTRUCTION**
SLIDE 10
In Info Work rks Model to Pla lan Capacity
SLIDE 11
5 Year Capital Im Improvement Pla lan
SLIDE 12
Success of f Wet Weather Program
SLIDE 13
SCRAPS Model
- Using Probability and Consequence of Failure SCRAPS
provides a numerical ranking from 0 to 100 for each pipe segment, highest being worst
- Began focusing inspection and preventative maintenance in
areas with higher risk based on the SCRAPS output
- Feedback from the field allowed for data corrections which
brought down the average risk in the collection system
SLIDE 14
Benefits of f Dig igital Database of f Collection System That Accrued fr from Im Implementation of f SCRAPS Model
SLIDE 15
SLIDE 16
O&M Staff continue to collect pipe data when flushing, Quick Cam, MH Inspections
SLIDE 17
Coll llection System by In Install Year
- The use of
- The idea of
subdivision plat dates came with staff involvement
SLIDE 18
Basin in Cle leaning Pri rioritization
- The idea of 1, 5 and
10 year cleaning cycles developed with input from staff
SLIDE 19
Enter CapPlan Sewer
- SCRAPS Model provided valuable
priority ranking
- It is not a complete asset management
system
- The next step was then to move to full
asset management system
SLIDE 20
Denton’s In InfoMaster Flow Chart (s (simplified)
SLIDE 21
Denton’s In InfoMaster Flo low Chart (f (full)
- Staff
intimately involved in the Decision Matrix developmt
SLIDE 22
A Typical Pip ipe
SLIDE 23
In InfoMaster Recommends In Individual Repairs
SLIDE 24
SLIDE 25
InfoMaster Results Tell the Pipe Condition Story
Excellent, 68% Good, 12% Fair, 7% Poor, 2% Needs Attention, 11%
Quick Cam implementation with staff involvement changed CCTV paradigm
SLIDE 26
Information Management is at the Heart of AM Strategies
Hydraulic Modeling Master Planning Impact Fee Analysis Annual CIP Planning
Asset Management Plan CMOM Information Management
GIS Cityworks SCRAPS WinCam Infomaster/CapPlan Infoworks XC2 Software Engineering & Construction New Capacity Storage Lift Stations Treatment New Taps Utility Coordination Inspection CCTV QuickCam Manholes Smoke Testing Maintenance Cleaning Root Control Grease Control Internal Repairs Point Repairs Pipe Replacement Manhole Rehab Manhole Rebuilds Service Lines Clean Outs
SLIDE 27
Cityworks to InfoMaster to Cityworks
SLIDE 28
Key O&M Strategies Drive Success
Targeted Cleaning Quick Cam CCTV
- 100,000
200,000 300,000 400,000 500,000 600,000 700,000 800,000 2013 2014 2015 2016 2017
CCTV Quick Cam
Feet Inspected
Quick Lock Point Repair
SLIDE 29
Metrics Drive Performance, Metrics Adopted by Staff
— — — — — — — —
Maintenance and Inspection Repair and Replacement
— — — — — — — —
SLIDE 30
Customer Service Focuses on Reducing SSOs and Sewer Line Chokes, Metrics Adopted by Staff
10 20 30 40 50 60
FY10 FY11 FY12 FY13 FY14 FY15 FY16 FY17 Reported Number of SSOs
SSO Trends Per Fiscal Year
Equals 3 SSOs Per 100 Miles Per year
CS Metric – 3 SSOs/100 miles/yr. CS Metric – 1 Choke/1000 customers/yr.
- 5
10 15 20 25 30 35 40 FY13 FY14 FY15 FY16 FY17 Reported Number of Chokes Per Year
Five Year Choke Trend
Customer Service Goal 1 Choke per 1,000 Customers per year
SLIDE 31
SLIDE 32
SLIDE 33
SLIDE 34
SLIDE 35
Contact:
- P. S. Arora, P.E.
