6th Int. Conference onEmerging e-learning Technologies and Applications September 11-13, 2008 , The High Tatras, Slovakia _____________________________________________ SLOVAK e-LABORATORY OF REMOTE INTERACTIVE EXPERIMENTS FOR UNIVERSITY TEACHING

slide-1
SLIDE 1

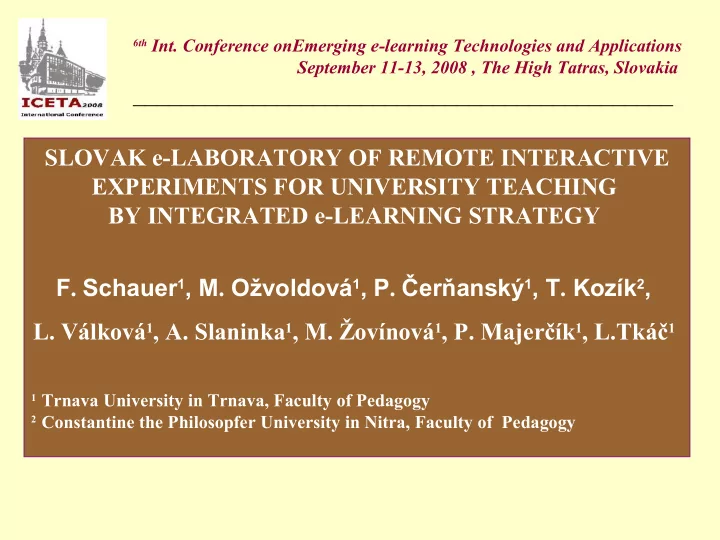

SLOVAK e-LABORATORY OF REMOTE INTERACTIVE EXPERIMENTS FOR UNIVERSITY TEACHING BY INTEGRATED e-LEARNING STRATEGY

  • F. Schauer1, M. Ožvoldová1, P. Čerňanský1, T. Kozík2,
  • L. Válková1, A. Slaninka1, M. Žovínová1, P. Majerčík1, L.Tkáč1

1 Trnava University in Trnava, Faculty of Pedagogy 2 Constantine the Philosopfer University in Nitra, Faculty of Pedagogy 6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-2
SLIDE 2

Thesis

  • 1. Reasoning why remote experiments? What is INTe-L?
  • 2. Technological aspects – ISES AND ISES WEB CONTROL
  • 3. Slovak e- laboratory - list of experiments

Electrochemical cell - in function

  • 4. Discussion and Outlook….

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-3
SLIDE 3
  • 1. Reasoning why remote experiments? What is INTe-L?

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-4
SLIDE 4
  • 1. Reasoning why remote experiments? What is INTe-L?

SCIENTIFIC METHOD BASED ON SIMULATIONS AND APPLETS:

Wieman C and Perkins K , 2005 Transforming Physics Education, Physics Today 58 2005, 26-41.

eLTR (e-Learning,e-Teaching, e-Research) - REMOTE EXPERIMENTS AS A MISSING PART IN e- LEARNING: Thomsen C, Jeschke S, Pfeiffer O

and Seiler R e-Volution: eLTR – Technologies and Their Impact on Traditional Universities in Proceedings of the Conference: EDUCA online, ISWE GmBH, Berlin, 2005. _________________________________________ Schauer, F., Ozvoldova, M., Lustig , F. and Dekar, M.: Real Remote Mass-Spring Laboratory Experiments across Internet-Inherent Part of Integrated E- Learning of Oscillations, International Journal of Online Engineering (iJOE) 4, No.2, (2008) pp. 52-55.

  • S. Altherr, A. Wagner, B. Eckert, H. J. Jodl, “Multimedia material for teaching

physics (search, evaluation and examples)", European Journal of Physics 25 (2004) Gröber S, Vetter M, Eckert B and Jodl H J 2007 Experimenting from a Distance – Remotely Controlled Laboratory (“RCL), Eur. J. Phys. 28 (2008), p. 127

slide-5
SLIDE 5
  • 1. Reasoning why remote experiments? What is INTe-L?

Integrated e-Learning (INTe-L) = the higher generation of e-Learning, based on:

  • A. REAL EXPERIMENT

Real hands or real remote experiment via the Internet

  • B. ELECTRONIC SIMULATIONS AND

MODELLING Flash or Java

  • C. ELECTRONIC INTERACTIVE

TEXTBOOK

slide-6
SLIDE 6
  • 1. Reasoning why remote experiments? What is INTe-L?

KEGA MŚ SR No. 3/108003 : Interactive multimedia project of physics teaching at the Slovak Universities (2003- 2005) KEGA project No 3/4128/06 „E- laboratory of interactive experiments as a continuation of the project of multimedia education at the Slovak Universities“ (2006- 2008)

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––-– Ožvoldová M.- Červeň, I.- Dillinge, J.- Halusková, S.- Laurinc, V.- Holá O.- Fedorko - Štubňa, I. - Jedinák, D.- Beňo, M.: Multimediálna vysokoškolská učebnica fyziky, časť 1, Trnava 2007, Trnavská univerzita, PdF, CD - ISBN 978-80-8082-127-2 Ožvoldová, M. – Červeň, I. - Čerňanský, P. – Dillinger, J.- Halúsková S.- Holá, O., Fedorko, I. - Štubňa I.- Ballo, P.- Jančuška, I.- Krempaský, J. - Kvetaň, K. - Beňo, M.: Multimediálna vysokoškolská učebnica fyziky, časť 2 , Trnava 2007, Trnavská univerzita, PdF, CD, ISBN 978-80-8082-128-9

slide-7
SLIDE 7

Situation over the world

University of Technology Kaiserslautern Department of Physics

Head of project

  • Prof. Dr. H. J. Jodl

E-Mail: jodl@physik.uni-kl.de web: pen.physik.uni-kl.de/w_jodl/ Technische University, Berlin. Prof.Thomsen http://remote.physik.tu-berlin.de/farm/index.php?id=3

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-8
SLIDE 8

International Colaboration

  • Assoc. prof. František Lustig, PhD., http://ises.info/

––––––––––––––––––––––––––––––––––––––––––––––––

  • F. Schauer, F. Lustig, J. Dvořák and M. Ožvoldová: Easy to Build Remote

Laboratory with Data Transfer using ISES – Internet School Experimental System,

  • Eur. J. Phys. 29 (2008) 753-765.

INTe-L

  • A. REAL HANDS ON OR REAL REMOTE

EXPERIMENT VIA INTERNET http://ises.info

slide-9
SLIDE 9
  • 2. Technological aspects – ISES AND ISES WEB CONTROL

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-10
SLIDE 10

Internet School Experimental System (ISES) software & hardware

ISES programe ISES interface ISES modules

slide-11
SLIDE 11
slide-12
SLIDE 12

A B C D E F V V

Controlled voltage source Photovoltaic cell Controlled light source U I

The first step: to set up the computer controlle experiment

  • schematic setup
slide-13
SLIDE 13

Schematical representation of the remote experiment setup with Pinknet server and Image Server, Measure Server and HTTP Relay Server.

Exper im en t Browser HTTP Ser ve r

Pinknet Server

Mea sure Serv er Imag e Serv er

ISES WEB CONTROL kit consists of 15 typical Java applets with great flexibility and adjustable parameters enabling to build web pages for controlling the majority of physics experiments

  • n the client side.
slide-14
SLIDE 14

Examples of modular Java applets from ISES WEB CONTROL kit as building tools and blocks for remote experiments web control pages (a) display, (b) control slide, (c) graph for data presentation.

(a) (b) ( c)

slide-15
SLIDE 15

INTERNET Fv = F0 sin ω t

The second step : real remote experiment

The oscillator consists of the spring and the weight, the external force is exerted by the electromagnetic generator with the variable frequency, all controlled by ISES, the instantaneous deflection is detected by the deflection sensor.

slide-16
SLIDE 16
  • 3. Slovak e- laboratory - list of experiments

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-17
SLIDE 17

Experiments under construction at Trnava University in Trnava, Department of Physics

  • 1. Environmental monitoring in Trnava
  • 2. Electrochemical cell characterization
  • 3. Free fall in gasses and liquids
  • 4. Mathematical pendulum
  • 5. Oscillations in RCL circuits
  • 6. Magnetic field generation and mapping

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-18
SLIDE 18

Schema

  • 1. Experiment „Environmental monitoring in

Trnava“

144 46 100 31,5

http://remotelab.truni.sk/

Reálna zostava

Panel ISES Teplomer Barometer Indikátor slnečného svitu

slide-19
SLIDE 19
  • 2. Experiment „Electrochemical cell characterization“
  • The schematical diagram of the remote interactive experiment

http://elchemcell.remotelab.truni.sk:83/clanok/ b) Real www. page The electrochemical properties of the galvanic cell are determined from the measurements of electromotive force, conductometric and pH data.

Válková L. Schauer F. : ICETA 2008 „Remote interactive experiment in electrochemistry exemplified on the experiment „Electrochemical cell“.

slide-20
SLIDE 20
  • 3. Free fall in gasses and liquids

The set up and the signal from experiment, here in the air

C

2

S

4

S

2

S

3

S

1

C

3

C

4

C

5

S

5

C

6

S

6

C

7

S

7

C

8

S

8

C

9

S

9

C1

y x y

0g

y *

C

1

slide-21
SLIDE 21
  • 4. Experiment „Mathematical pendulum“

S1 S2

Natural and driven oscillations of the mathematical pendulum

is an experiment with unique recording of the instantaneous angular deflection by two dynamometer ISES sensors S1 and S2

slide-22
SLIDE 22
  • 5. Experiment „ Oscillations in RCL circuits“

The experiment measures the AC current – voltage signals and their respective phase shift, giving the possibility to study the resonance phenomena and the energy transfers in the RLC system

slide-23
SLIDE 23
  • 6. Experiment „ Magnetic field generation and mapping “

Set up

R iadenie polohy sondy H elmholtzove cievky Sonda Panel ISE S

  • 20

20 40 60 80 100 120 140 160

  • 6
  • 4
  • 2

2 4 6 8 10

current, voltage (a.u.) time (a.u.)

aktuálny pulz prvá cievka

ε

x(

t) druhá cievka ε

y(

t)

dt d Ui

Φ =

NSdB d =

Φ

max i

U B∝

Gives the possibility to examine and study the magnetic field generation and its

properties.

slide-24
SLIDE 24
  • 4. Discussion and Outlook….

6th Int. Conference onEmerging e-learning Technologies and Applications

September 11-13, 2008 , The High Tatras, Slovakia

_____________________________________________

slide-25
SLIDE 25

Discussion and Outlook….

  • The remote experiments will play a decisive role in gaining

interest, motivation and individual involvement in pedagogical process using remote experiments covering various areas of Natural sciences, entering lectures, seminaries, laboratory exercises, project work, examinations and self study, or in general Integrated e- Learning.

slide-26
SLIDE 26

Discussion and Outlook….

  • The remote experiments will play a decisive role in gaining

interest, motivation and individual involvement in pedagogical process using remote experiments covering various areas of Natural sciences, entering lectures, seminaries, laboratory exercises, project work, examinations and self study, or in general Integrated e- Learning.

  • The ISES technology of hands on experiments in Natural

sciences is extremely suitable for the computer oriented experiments on both university and secondary school level,

slide-27
SLIDE 27

Discussion and Outlook….

  • We hope to attract young people, used to exploit the

Internet for the casual playing, chatting and communication purposes, for real work with the planned goals and aimed and involved output and to persuade them about the information The ISES technology of hands on experiments in Natural sciences is extremely suitable for the computer oriented experiments on both university and secondary school level.

slide-28
SLIDE 28

Discussion and Outlook….

  • We hope to attract young people, used to exploit the

Internet for the casual playing, chatting and communication purposes, for real work with the planned goals and aimed and involved output and to persuade them about the information The ISES technology of hands on experiments in Natural sciences is extremely suitable for the computer oriented experiments on both university and secondary school level.

  • The pedagogical research in using of remote experiments

proved the hypothesis of increased involvement of both students and teachers into pedagogical process.

slide-29
SLIDE 29

Conclusion Johan Amos Comenius (1592-1670) „ There is a permanent point at issue of pedagogy, striking the right balance

  • f the teaching content and form,

where the question is to find the way according to which those who teach would teach less, but those who learn would learn more.“

slide-30
SLIDE 30

Thank you for your attention

mozvoldo@truni.sk
