WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

LANDMARKS DOCKET NUMBER: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

19-25415

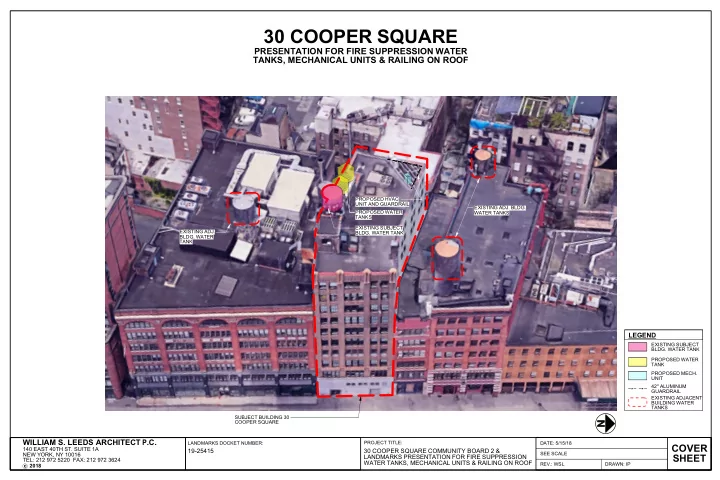

COVER SHEET

30 COOPER SQUARE

PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

SUBJECT BUILDING 30 COOPER SQUARE EXISTING ADJ. BLDG. WATER TANKS EXISTING ADJ.

• BLDG. WATER

TANK EXISTING SUBJECT

• BLDG. WATER TANK

PROPOSED WATER TANKS PROPOSED HVAC UNIT AND GUARDRAIL EXISTING SUBJECT

• BLDG. WATER TANK

PROPOSED WATER TANK

LEGEND

42" ALUMINUM GUARDRAIL PROPOSED MECH. UNIT EXISTING ADJACENT BUILDING WATER TANKS

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

HISTORIC DISTRICT MAP, PLOT PLAN W/ ZONING INFORMATION, PHOTOGRAPH KEY MAP AND INDEX

E . 4 T H ST. E . 5 T H ST . E. 6 T H ST. C O O P E R SQ . C O O P E R S Q . 3RD AVE . LAFAYETTE ST . E. 7TH ST.

1 2 4 5 6 8 7 3

30 COOPER SQUARE BUILDING ID # 1008779 BLOCK: 544 LOT: 48 ZONE: M1-5B MAP: 12c CB # 102

LOT 50 LOT 47 LOT 45 LOT 65

BLOCK 544

5 7 3 ' T O ASTOR PL. 278' TO 4TH AVE . 3 6 ' 113.12' 50' 3 6 .92' 95' 46 .83'

LOT 48

E N T R Y T O 30 COOPER SQUARE PROPOSED (2) SPRINKLER SYSTEM HOLDING TANKS EXISTING DOMESTIC AND STANDPIPE WATER TANK AREA OF ROOF MOUNTED

• MECH. EQUIPMENT

AREA OF 2ND FL.

• MECH. EQUIPMENT

BELOW

2

PHOTOGRAPH KEY NOTE: SEE SK-4 & SK-5 FOR CORRESPONDING PHOTOGRAPHS

SK-1

30 COOPER SQUARE SUBJECT BLDG. 30 COOPER SQUARE SK-1 : NOHO HISTORICAL DISTRICT MAP, PLOT PLAN W/ ZONING INFORMATION, PHOTOGRAPH KEY MAP AND INDEX SK-2 : SIGHTLINE DIAGRAMS SK-3 : EXISTING ROOF PLAN W/ PROPOSED WORK SK-3A : PHOTOGRAPH OF NEIGHBORHOOD CONTEXT WITH WATER TANKS SK-4 : PHOTOGRAPHS FROM STREET - 1 SK-5 : PHOTOGRAPHS FROM STREET - 2 SK-6 : PHOTOGRAPHS AT ROOF WITH MOCK UPS AND ROOF SECTION SK-7 : PHOTOGRAPHS OF 2ND FLOOR ROOF DECK

INDEX NOHO HISTORICAL DISTRICT 1 PLOT PLAN & ZONING INFORMATION 2 PHOTOGRAPH KEY MAP 3

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

SIGHT LINE DIAGRAMS

EXISTING WATER TANK TO REMAIN

6'-0"

COOPER SQ.

80'-0" 667'-0"

SUBJECT BUILDING

15'-9"

SIGHT LINE

120'-1" 136'-1" 571'-3"

3RD AVE.

CURB CURB

6'-0"

COOPER SQ.

80'-0" 486'-3"

SUBJECT BUILDING

15'-9"

REAR YARD SIGHT LINE

120'-1" 136'-1" 582'-0"

CURB CURB

6'-0"

COOPER SQ.

80'-0" 69'-8"

SUBJECT BUILDING

15'-9" 120'-1" 136'-1"

REAR YARD SIGHT L I N E

CURB

SIGHT LINE DIAGRAM LOOKING SOUTH FROM ASTOR PLACE AND 3RD AVENUE

SEE SK-5 PHOTOGRAPH 6

3 SIGHT LINE DIAGRAM LOOKING SOUTH FROM ASTOR PLACE AND COOPER SQUARE

SEE SK-5 PHOTOGRAPH 7

2 SIGHT LINE DIAGRAM LOOKING FROM ACROSS THE STREET

SEE SK-4 PHOTOGRAPH 3

1

PROPOSED WATER TANKS ON NEW STRUCTURAL SUPPORT. FROM OPPOSITE SIDE OF

• STREET. NOT VISIBLE.

LOCATION OF MECHANICAL HVAC UNIT AND GUARD RAIL . FROM OPPOSITE SIDE OF

• STREET. NOT VISIBLE.

EXISTING WATER TANK TO REMAIN PROPOSED WATER TANKS ON STRUCTURAL

• SUPPORT. VISIBLE

LOCATION OF MECHANICAL HVAC UNIT AND GUARD

• RAIL. VISIBLE

EXISTING WATER TANK TO REMAIN PROPOSED WATER TANKS ON STRUCTURAL

• SUPPORT. VISIBLE

LOCATION OF MECHANICAL HVAC UNIT AND RAIL. NOT VISIBLE

SK-2

SEE SPRINKLER DWGS STAIR A BELOW PUMP RM. BELOW STAIR B BELOW EXISTING SKYLIGHT EXISTING SKYLIGHT EXISTING SKYLIGHT STAIR BULKHEAD EXISTING 3" WASTE VENT ELEVATOR MOTOR ROOM EXISTING MECHANICAL EQUIPMENT EXISTING SKYLIGHT EXISTING CHIMNEY EXISTING HVAC UNITS EXISTING DUNNAGE EXISTING HVAC EQUIPMENT ON CURB TO REMAIN EXISTING WATER TANK ABOVE TO REMAIN FDNY ROOF ACCESS ROUTE. EXISTING ROOF (2) 8'-6" Ø X 12'-0" WATER TANK ABOVE. UP PROPOSED FUTURE

• MECH. UNITS

2ND FLOOR TERRACE W/ PROPOSED MECHANICAL UNITS AND DUNNAGE SUPPORT. 2ND FLOOR TERRACE (BELOW) 3'-6" ALUMINUM METAL PAINTED BLACK SAFETY GUARDRAIL ON TOP OF DUNNAGE. (SEE RAILING DETAIL ON SHEET SK-3A DRAWING 4 AND 5.)

PROPOSED WATER TANK PROPOSED WATER TANK BULKHEAD ROOF ELEVATOR MOTOR ROOM ROOF

S

EXISTING WATER TANK NEW SPRINKLER RESERVE TANKS 8'-6" X 12' H (CLEAR INTERIOR) 5094 GROSS CAPACITY - 5000 GALLONS EACH, 10,000 GALLONS TOTAL RESERVE WITH HEATERS EXISTING ROOF TANK FOR STANDPIPE AND DOMESTIC RESERVE 5,000 11'-6" Ø X 12' TALL - TO REMAIN & REPAIR.

ROOF PLAN DETAIL

SCALE : NTS

1 BULKHEAD PLAN DETAIL

SCALE : NTS

2

SK-3

3 SK-6

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

EXISTING ROOF PLAN W/ PROPOSED WORK

EXISTING SUBJECT

• BLDG. WATER TANK

PROPOSED WATER TANK

LEGEND

42" ALUMINUM GUARDRAIL PROPOSED MECH. UNITS EXISTING ADJACENT BUILDING WATER TANKS

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

PHOTOGRAPHS FROM SUBJECT BLDG. ROOF OF SURROUNDING CONTEXT

LOOKING SOUTH WEST 2

EXISTING WATER TANKS ON SURROUNDING BUILDINGS. (TYP.)

SK-3A

• ADJ. BLDG. EXISTING WATER TANK

1

NOTE: 30 COOPER SQUARE PROPOSED TANKS TO MATCH ADJACENT BUILDING WATER TANK

CEDAR WD. W/ WIRE STRAPS JOHN MANSVILLE BASE SHEET ROOFING

LOOKING WEST 3 ELEVATION OF BLACK PTD. ALUMINUM RAILING

NOT TO SCALE

4 SECTION A - A

NOT TO SCALE

5

4 3/4" 2 3/8" 2 3/8" 1/2" 1/2" 4" 2 1/2" 2" 1" 3/8" 3/4" 15/16" 2" 4" 2"

A A PICKET POST TOP RAIL POST SHOE WEEP HOLE (IF REQ'D) BOTTOM HORIZONTAL CHANNEL TOP HORIZONTAL CHANNEL

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

PHOTOGRAPHS FROM STREET - 1

SUBJECT BLDG. EXISTING WATER TANK SUBJECT BLDG. 30 COOPER SQUARE ADJACENT BLDG. W/ EXISTING WATER TANK

PHOTOGRAPH 1

1

PHOTOGRAPH 2

2

SK-4

ADJACENT BLDG. EXISTING WATER TANK

PHOTOGRAPH 3

3

PHOTOGRAPH 4

4

SUBJECT BLDG. 30 COOPER SQUARE MOCK UP OF GUARD RAIL AND HVAC UNIT BEYOND NOTE: PHOTOGRAPH KEY ON SK-1

SUBJECT BUILDING EXISTING WATER TANK ADJACENT BLDG. EXISTING WATER TANK

PHOTOGRAPH 5

1

PHOTOGRAPH 6

2

SK-5

PHOTOGRAPH 7

3

PHOTOGRAPH 8

4

SUBJECT BUILDING EXISTING SUBJECT

• BLDG. WATER TANK

ADJACENT BLDG. EXISTING WATER TANK EXISTING WATER TANK MOCK UPS OF PROPOSED WATER TANKS. EXISTING WATER TANK ON SUBJECT

• BLDG. 30 COOPER

SQUARE MOCK UPS OF PROPOSED WATER TANKS, HVAC UNIT AND GUARD RAIL NOTE: PHOTOGRAPH KEY ON SK-1

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

PHOTOGRAPHS FROM STREET - 2

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

PHOTOGRAPHS AT ROOF WITH MOCK UPS AND ROOF SECTION / ELEVATION

EXISTING DOMESTIC WATER TANK WITH (2) PROPOSED SPRINKLER HOLDING TANKS

1

SK-6

MOCK UPS HVAC UNIT AND GUARD RAIL EXISTING WATER TANK & HVAC ON DUNNAGE

HVAC UNIT AND GUARD RAIL MOCK UPS

2

1'-0" 3'-6" 3'-6" 2'-0" 6'-4" 12'-9" 8" 12'-0" 16'-6" 2'-0" 12'-0" 8'-6" 8'-6" 11'-6"

REAR YARD COOPER SQ.

EXISTING HVAC ON DUNNAGE EXISTING DUNNAGE SUPPORT POCKETED IN PARAPET FOR HVAC UNIT SUPPORT

SECTION AT EXISTING ROOF

SCALE: 1/8" = 1'-0"

3

ELEVATOR BULKHEAD STAIR B BULKHEAD PROPOSED SPRINKLER WATER TANK PROPOSED SPRINKLER WATER TANK EXISTING WATER TANK EXISTING HVAC UNITS ON DUNNAGE. FUTURE UNITS TO MATCH. STAIR A BULKHEAD PROPOSED GUARD RAIL MTD. ON DUNNAGE MOCK UPS OF 2 SPRINKLER WATER TANKS

WILLIAM S. LEEDS ARCHITECT P.C.

140 EAST 40TH ST. SUITE 1A NEW YORK, NY 10016 TEL: 212 972 5220 FAX: 212 972 3624

DRAWING TITLE: PROJECT TITLE: SEE SCALE DATE: 5/15/18 DRAWN: IP REV.: WSL

30 COOPER SQUARE COMMUNITY BOARD 2 & LANDMARKS PRESENTATION FOR FIRE SUPPRESSION WATER TANKS, MECHANICAL UNITS & RAILING ON ROOF

c 2018

PHOTOGRAPHS OF 2ND FLOOR ROOF DECK

SK-7

PHOTOGRAPH OF 2ND FLOOR ROOF DECK

TAKEN FROM MAIN ROOF SHOWING EXISTING HVAC UNITS

1

PHOTOGRAPH OF 2ND FLOOR ROOF DECK

TAKEN FROM 2ND FLOOR WINDOW

2

PHOTOGRAPH OF 2ND FLOOR ROOF DECK

TAKEN FROM 2ND FLOOR WINDOW SHOWING EXISTING HVAC UNITS
