SIUE Green Roof Environmental Evaluation Network Susan Morgan, Ph.D., P .E. Professor of Civil Engineering and Associate Dean of Graduate School William Retzlaff, Ph.D. Professor of Biological Sciences and Associate Dean of College of Arts and

slide-1

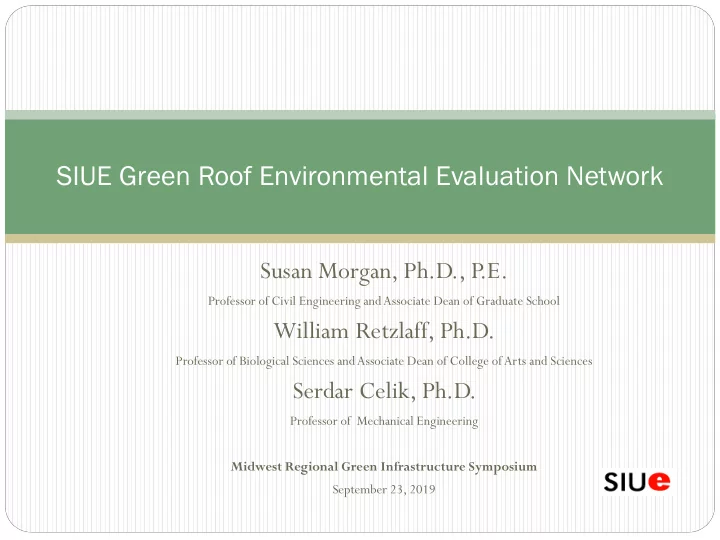

SLIDE 1

Susan Morgan, Ph.D., P .E.

Professor of Civil Engineering and Associate Dean of Graduate School

William Retzlaff, Ph.D.

Professor of Biological Sciences and Associate Dean of College of Arts and Sciences

Serdar Celik, Ph.D.

Professor of Mechanical Engineering Midwest Regional Green Infrastructure Symposium September 23, 2019

SIUE Green Roof Environmental Evaluation Network

slide-2
SLIDE 2

Outline

 Overview of G.R.E.E.N.  Green Wall Maintenance  Thermal Economic

Analyses

slide-3
SLIDE 3

Overview of G.R.E.E.N.

slide-4
SLIDE 4

Timeline

2004 2018

slide-5
SLIDE 5

SIUE Green Infrastructure Sites

slide-6
SLIDE 6

Engineering Building

slide-7
SLIDE 7

Ground-level Field Site

slide-8
SLIDE 8

Student Success Center

slide-9
SLIDE 9

Types of Research

slide-10
SLIDE 10

Research Results

https://www.siue.edu/green/research/index.shtml

slide-11
SLIDE 11

Green Wall Maintenance

slide-12
SLIDE 12

Green Retaining Walls

 Living wall that

stabilizes a slope.

 Designed to:

 Prevent erosion  Increase stormwater

interception, infiltration.

 Reduce Urban

Temperatures

 Beautify vertical space

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15

Stormwater Collection

slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20

B B A B B B

5 10 15 20 25 30 35 40 45

Control

  • S. hybridium
  • S. kamschatikum

Mixed Sedum

  • S. phedimus
  • S. spurium

Plant Cover (%) Treatment

Mean Plant Coverage by Treatment

slide-21
SLIDE 21

A A A A A A

20 40 60 80 100 120 140 160 180

Control

  • S. hybridium
  • S. kamschatikum

Mixed Sedum

  • S. phedimus
  • S. spurium

Height (cm) Treatment

Mean Block Height by Treatment

Original Block Height

slide-22
SLIDE 22

C B B A

20 40 60 80 100 120 140 160 180

East North South West Block Height (cm) Wall Aspect

Mean Block Height by Aspect

slide-23
SLIDE 23
slide-24
SLIDE 24

A A A A A A

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6

Control

  • S. hybridium
  • S. kamschatikum

Mixed Sedum

  • S. phedimus
  • S. spurium

' Displaced Blocks Treatment

Mean Number of Displaced Blocks by Treatment

slide-25
SLIDE 25
slide-26
SLIDE 26

Long-Term P Performance ce/Maint intenance

  • There has been some, limited block

settling

  • 38 of 990 blocks have been displaced

(~4%)

  • 5 of 990 blocks have been dislocated

(<1%)

  • Many of the original plants are still

covering the wall system

slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31

Thermal Economic Analyses

slide-32
SLIDE 32

Thermal and Economic Analyses

Coupled green roof model

slide-33
SLIDE 33

Theory

) ( ) (

4 4 ∞

− − + + = T T A G G G A q

s R d ND radiation

εσ α

) (

∞

− = T T hA q

s convection

total r s conduction

R T T A q ) ( − =

Reflected irradiation Diffuse irradiation Normal direct irradiation Unit thermal resistance through all layers

...

3 3 2 2 1 1

+ + + = k L k L k L Rtotal

slide-34
SLIDE 34

Vegetation

slide-35
SLIDE 35

Growing Media

Media Description Arkalyte Clay heated to 1000 0C Lava Volcanic rock Pumice Volcanic Rock

slide-36
SLIDE 36

Temperature Data for All Combinations

slide-37
SLIDE 37

Peak Hours on August 12, 2007

slide-38
SLIDE 38

Heat Flux on August 12, 2007

slide-39
SLIDE 39

Energy Cost of a 50,000 m2 Roof during Peak Hours

slide-40
SLIDE 40

Summary: Thermal

 The color of the growth media and the vegetation affects the

thermal radiation to/from the green roof blocks significantly.

 The porosity of the growth media helps the evaporative

cooling of the roof after rain/irrigation events. This is an active cooling process in addition to the added thermal resistance to the roof by the green roof systems.

 The more condensed the leaves are, the better shading effect

  • ccurs, resulting in better insulation in air-conditioning
  • seasons. Maintenance helps achieve higher plant coverage and

leaf area index, resulting in improved thermal benefits.

slide-41
SLIDE 41

Questions?

https://www.siue.edu/green Susan Morgan, smorgan@siue.edu https://www.researchgate.net/profile/Susan_Morgan5 Bill Retzlaff, wretzla@siue.edu https://www.researchgate.net/profile/Bill_Retzlaff Serdar Celik, scelik@siue.edu https://www.researchgate.net/profile/Serdar_Celik3
