Short cycle covers of graphs with minimum degree three Tom Kaiser, Daniel Krl, Bernard Lidick and Pavel Nejedl Department of Applied Math Charles University Cycles and Colourings 2008 - Tatransk trba Short cycle covers of

slide-1

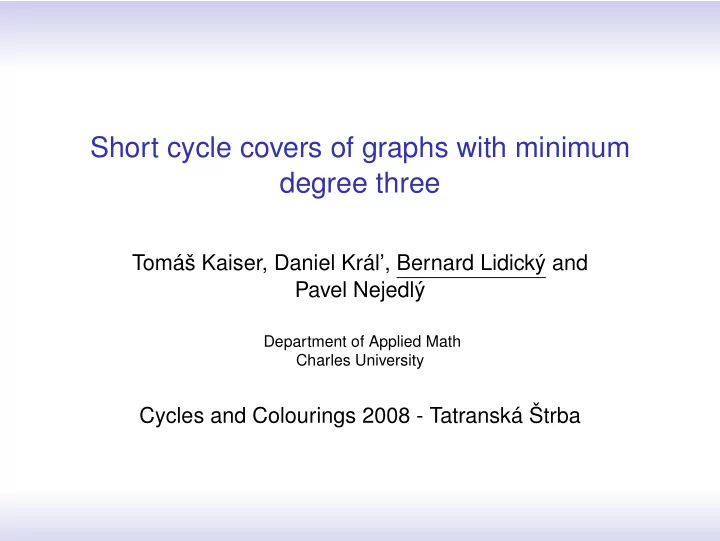

SLIDE 1

Short cycle covers of graphs with minimum degree three

Tomáš Kaiser, Daniel Král’, Bernard Lidický and Pavel Nejedlý

Department of Applied Math Charles University

Cycles and Colourings 2008 - Tatranská Štrba

slide-2
SLIDE 2

Short cycle covers of graphs with minimum degree three

Overview - from the previous talk

  • cycle is a subgraph with all degrees even
  • circuit is a connected 2-regular graph
  • cycle cover is a set of cycles such that

each edge is contained in at least one of the cycles

  • cycle double cover is a set of cycles such that

each edge is contained in exactly two cycles Goal is to find a short cycle cover

slide-3
SLIDE 3

Short cycle covers of graphs with minimum degree three

Overview - from the previous talk

Conjecture (Alon and Tarsi, 1985)

Every m-edge bridgeless graph has a cycle cover of length at most 7m/5 = 1.4 m (SCC)

Conjecture (Seymour, 1979 and Szekeres, 1973)

Every bridgeless graph has a cycle double cover (CDC)

Theorem (Jamshy, Raspaud and Tarsi, 1989)

Every m-edge graph which admits 5-flow has a cycle cover of length at most 8m/5 = 1.6 m

Theorem (Král’, Nejedlý and Šámal, 2007+)

Every m-edge cubic graph has a cycle cover of length at most 34m/21 ≈ 1.619 m

slide-4
SLIDE 4

Short cycle covers of graphs with minimum degree three

Short Cycle Cover implies Cycle Double Cover 1/2

  • reduction due to Jamshy and Tarsi (1992)
  • CDC is enough to prove for cubic bridgeless graphs

(splitting vertices, contracting 2-vertices)

  • the Petersen graph has SCC of length 7m/5
slide-5
SLIDE 5

Short cycle covers of graphs with minimum degree three

Short Cycle Cover implies Cycle Double Cover 2/2

  • replace every vertex of a cubic graph G by part of Petersen
slide-6
SLIDE 6

Short cycle covers of graphs with minimum degree three

slide-7
SLIDE 7

Short cycle covers of graphs with minimum degree three

Short Cycle Cover implies Cycle Double Cover 2/2

  • replace every vertex of a cubic graph G by part of Petersen
  • find SCC - necessary behaves like on Petersen
  • convert SCC back to G, edges covered by 1 or 2 cycles
  • remove edges covered twice, the resulting graph is another

cycle

slide-8
SLIDE 8

Short cycle covers of graphs with minimum degree three

Short Cycle Cover implies Cycle Double Cover 2/2

  • replace every vertex of a cubic graph G by part of Petersen
  • find SCC - necessary behaves like on Petersen
  • convert SCC back to G, edges covered by 1 or 2 cycles
  • remove edges covered twice, the resulting graph is another

cycle

slide-9
SLIDE 9

Short cycle covers of graphs with minimum degree three

Short Cycle Cover implies Cycle Double Cover 2/2

  • replace every vertex of a cubic graph G by part of Petersen
  • find SCC - necessary behaves like on Petersen
  • convert SCC back to G, edges covered by 1 or 2 cycles
  • remove edges covered twice, the resulting graph is another

cycle

slide-10
SLIDE 10

Short cycle covers of graphs with minimum degree three

Bridgeless graphs with mindegree three

Theorem (Kaiser, Král, L., Nejedlý, 2007+)

Bridgeless graph G = (V, E) with mindegree three has a cycle cover of length at most 44m/27 ≈ 1.630 m.

Theorem (Alon and Tarsi, 1985 or Bermond, Jackson and Jaeger 1983)

Bridgeless graph G = (V, E) has a cycle cover of length at most 5m/3 ≈ 1.666 m.

slide-11
SLIDE 11

Short cycle covers of graphs with minimum degree three

Bridgeless graphs with mindegree three

Theorem (Kaiser, Král, L., Nejedlý, 2007+)

Bridgeless graph G = (V, E) with mindegree three has a cycle cover of length at most 44m/27 ≈ 1.630 m.

Theorem (Alon and Tarsi, 1985 or Bermond, Jackson and Jaeger 1983)

Bridgeless graph G = (V, E) has a cycle cover of length at most 5m/3 ≈ 1.666 m.

slide-12
SLIDE 12

Short cycle covers of graphs with minimum degree three

Bridgeless graphs

  • splitting vertices of degree ≥ 4 (preserving bridgelessness)
  • suppress 2-vertices and add weights to edges

(cubic graph), w is sum of all weigths

  • create rainbow 2-factor
  • find a matching of weight ≤ w/3 and 2-factor F
  • contract F and obtain nowhere-zero-4-flow
  • create three covering cycles
  • compute the total length of cover
slide-13
SLIDE 13

Short cycle covers of graphs with minimum degree three

Bridgeless graphs

  • splitting vertices of degree ≥ 4 (preserving bridgelessness)
  • suppress 2-vertices and add weights to edges

(cubic graph), w is sum of all weigths

3 1

  • create rainbow 2-factor
  • find a matching of weight ≤ w/3 and 2-factor F
  • contract F and obtain nowhere-zero-4-flow
  • create three covering cycles
  • compute the total length of cover
slide-14
SLIDE 14

Short cycle covers of graphs with minimum degree three

Bridgeless graphs

  • splitting vertices of degree ≥ 4 (preserving bridgelessness)
  • suppress 2-vertices and add weights to edges

(cubic graph), w is sum of all weigths

  • create rainbow 2-factor
  • find a matching of weight ≤ w/3 and 2-factor F
  • contract F and obtain nowhere-zero-4-flow
  • create three covering cycles
  • compute the total length of cover
slide-15
SLIDE 15

Short cycle covers of graphs with minimum degree three

Bridgeless graphs

  • splitting vertices of degree ≥ 4 (preserving bridgelessness)
  • suppress 2-vertices and add weights to edges

(cubic graph), w is sum of all weigths

  • create rainbow 2-factor
  • find a matching of weight ≤ w/3 and 2-factor F
  • contract F and obtain nowhere-zero-4-flow
  • create three covering cycles
  • compute the total length of cover
slide-16
SLIDE 16

Short cycle covers of graphs with minimum degree three

Bridgeless graphs

  • splitting vertices of degree ≥ 4 (preserving bridgelessness)
  • suppress 2-vertices and add weights to edges

(cubic graph), w is sum of all weigths

  • create rainbow 2-factor
  • find a matching of weight ≤ w/3 and 2-factor F
  • contract F and obtain nowhere-zero-4-flow
  • create three covering cycles
  • compute the total length of cover
slide-17
SLIDE 17

Short cycle covers of graphs with minimum degree three

Bridgeless graphs

  • splitting vertices of degree ≥ 4 (preserving bridgelessness)
  • suppress 2-vertices and add weights to edges

(cubic graph), w is sum of all weigths

  • create rainbow 2-factor
  • find a matching of weight ≤ w/3 and 2-factor F
  • contract F and obtain nowhere-zero-4-flow
  • create three covering cycles
  • compute the total length of cover
slide-18
SLIDE 18

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-19
SLIDE 19

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-20
SLIDE 20

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-21
SLIDE 21

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-22
SLIDE 22

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-23
SLIDE 23

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-24
SLIDE 24

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-25
SLIDE 25

Short cycle covers of graphs with minimum degree three

Local view on one cycle

slide-26
SLIDE 26

Short cycle covers of graphs with minimum degree three

A little bit of computation

  • assume r ≤ g ≤ b
  • assume r + g + b ≤ m/3
  • usage 3r, 2g, b and 3/2F.
  • size of the cover:

3r+2g+b+3/2F = 2(r+g+b)+3/2F = 3m/2+m/6 = 5m/3

slide-27
SLIDE 27

Short cycle covers of graphs with minimum degree three

Bridgeless graphs with mindegree three - improvements

  • combination of two cycle covers
  • little bit unfriendly to vertices of degree two
  • unable to split 4-vertices (expading)
  • improve the nowhere-zero-4-flow
slide-28
SLIDE 28

Short cycle covers of graphs with minimum degree three

Bridgeless graphs with mindegree three - improvements

  • combination of two cycle covers
  • little bit unfriendly to vertices of degree two
  • unable to split 4-vertices (expading)
  • improve the nowhere-zero-4-flow
slide-29
SLIDE 29

Short cycle covers of graphs with minimum degree three

Bridgeless graphs with mindegree three - improvements

  • combination of two cycle covers
  • little bit unfriendly to vertices of degree two
  • unable to split 4-vertices (expading)
  • improve the nowhere-zero-4-flow
slide-30
SLIDE 30

Short cycle covers of graphs with minimum degree three

Bridgeless graphs with mindegree three - improvements

  • combination of two cycle covers
  • little bit unfriendly to vertices of degree two
  • unable to split 4-vertices (expading)
  • improve the nowhere-zero-4-flow
slide-31
SLIDE 31

Short cycle covers of graphs with minimum degree three

slide-32
SLIDE 32

Short cycle covers of graphs with minimum degree three

Thank you for your attention
