October 22, 2015 Radare2 workshop hack.lu 2015 shikata ga nai Jaime (@NighetMan) Pealba. This workshop is based on ideas and scripts from 2 disclaimer 3 Please look at the shikata_ga_nai folder in the virtual machine where to find the

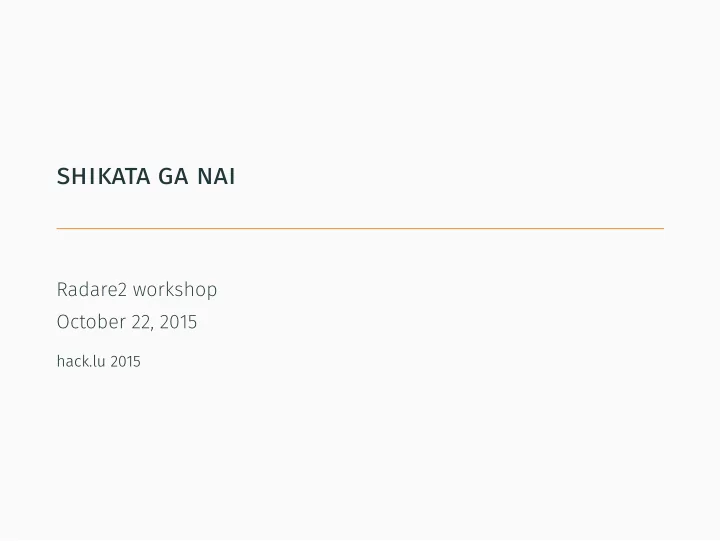

SLIDE 1

shikata ga nai

Radare2 workshop October 22, 2015

hack.lu 2015

SLIDE 2

disclaimer

This workshop is based on ideas and scripts from Jaime (@NighetMan) Peñalba.

2

SLIDE 3

where to find the material?

Please look at the shikata_ga_nai folder in the virtual machine

3

SLIDE 4

what are we going to do?

SLIDE 5

shikata ga nai

Unpack Shikata ga nai!

5

SLIDE 6

shikata ga nai

Polymorphic
320 lines of msf-powered OOP Ruby
We want the unpacked shellcode

6

SLIDE 7

how do we do it?

SLIDE 8

solutions

Run it on your machine and see what happens
Step-step-step-step-step-… in gdb
Trace the execution in a virtual machine
Use radare2 with ESIL!

8

SLIDE 9

solutions

Run it on your machine and see what happens
Step-step-step-step-step-… in gdb
Trace the execution in a virtual machine
Use radare2 with ESIL!

8

SLIDE 10

solutions

Run it on your machine and see what happens
Step-step-step-step-step-… in gdb
Trace the execution in a virtual machine
Use radare2 with ESIL!

8

SLIDE 11

solutions

Run it on your machine and see what happens
Step-step-step-step-step-… in gdb
Trace the execution in a virtual machine
Use radare2 with ESIL!

8

SLIDE 12

but what is esil?

SLIDE 13

esil

Evaluable String Intermediary Language
Yet another intermediary language
RPN-ish
jz 0xaabbccdd : zf, ?, 0xaabbccdd, eip, =,

10

SLIDE 14

what can we do with this ?

SLIDE 15

esil

Used for
Emulation
Decompilation
Analysis
Flamewars

against other IL

12

SLIDE 16

esil

Used for
Emulation
Decompilation
Analysis
Flamewars

against other IL

12

SLIDE 17

esil

Used for
Emulation
Decompilation
Analysis
Flamewars

against other IL

12

SLIDE 18

esil

Used for
Emulation
Decompilation
Analysis
Flamewars

against other IL

12

SLIDE 19

how does emulation help us to dump the shellcode?

SLIDE 20

where to stop?

We can emulate the shellcode, but where do we stop?

Instructions aren’t fixed.
Blocks are permutated.
Registers are dynamically selected.

So what can we do?

14

SLIDE 21

reading the source code

It seems that the last instruction will always be loop. So we can emulate the shellcode, and dump the result from the last loop instruction till then end.

15

SLIDE 22

reading the source code

It seems that the last instruction will always be loop. So we can emulate the shellcode, and dump the result from the last loop instruction till then end.

15

SLIDE 23

how do we use radare2/esil anyway?

SLIDE 24

r2pipe

17

SLIDE 25

languages

NodeJS npm install r2pipe Python pip install r2pipe Ruby gem install r2pipe

18

SLIDE 26

so let’s use esil?

SLIDE 27

plot twist

FPU is currently not supported in ESIL :D
FPU is used to get EIP with FNSTENV
Polymorphic FPU instructions

20

SLIDE 28

plot twist

20

SLIDE 29

can we emulate them the ?

SLIDE 30

are those detected as fpu by r2?

You’ve got the hello_world.py code
Check if every opcode in the test_fpu.py one has the fpu

family

Feel free to do it in your favourite language!

22

SLIDE 31

my solution

23

SLIDE 32

ready to unpack shikata ga nai?

SLIDE 33

sum up

1. Initialize the ESIL vm
2. If the instruction is invalid

2.1 We’re at the end! 2.2 Dump from the last encountered loop instruction to the end

3. Else, if the instruction is an fpu one

3.1 If it’s fnstenv, write the previously stored eip at esp 3.2 Else, store eip

4. Else, if the instruction is loop, store its location
5. Step and goto 2.

25

SLIDE 34

your turn!

SLIDE 35

my solution

27

SLIDE 36

conclusion

SLIDE 37

conclusion

ESIL is cool
Still WIP
More to come!

29

SLIDE 38

conclusion

Radare2 is nice. You should use it.

29

SLIDE 39

resources

Github repo
Official website
The r2 blog
The r2 book
Twitter
