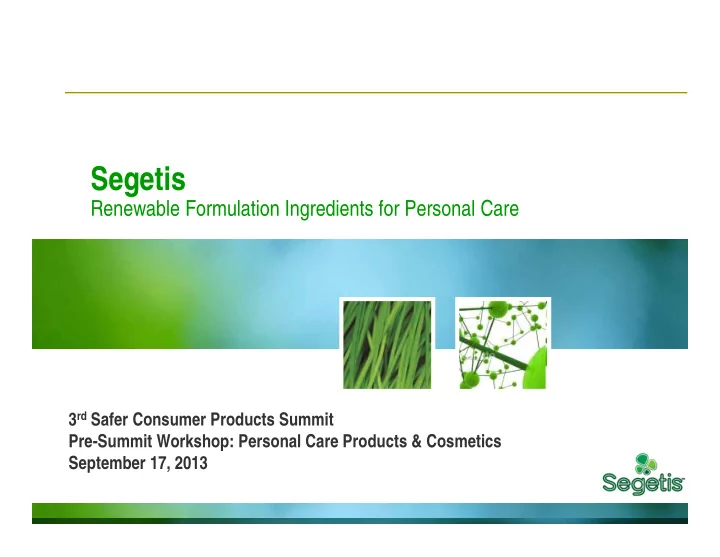

Segetis

Renewable Formulation Ingredients for Personal Care

3rd Safer Consumer Products Summit Pre-Summit Workshop: Personal Care Products & Cosmetics September 17, 2013

Renew.Reinvent.Sustain.Change the WorldTM

2

Renew We believe that biobased materials are viable alternatives to petrochemicals Reinvent Our disruptive technology will turn Levulinic Acid’s potential as a Biobased Building Block into reality Sustain Supporting sustainable lifestyles with high performance materials that reduce toxicity, air, and environmental impact

Change the World

• Green and Rapidly Growing VC‐funded Specialty Chemistry Company

– Founded in 2006 in MN, USA on the notion of developing Levulinic Acid (LA) and further converting into levulinic ketals as platform materials – Delivering new to the world materials, not green routes to existing molecules

Who is Segetis?

HO OH O O

succinic acid

HO OH O

3-hydroxypropionic acid

OH O NH2 HO O

glutamic acid aspartic acid

OH HO O O NH2 HO OH OH

glycerol

O O HO

4-hydroxybutyrolactone itaconic acid

HO OH O O O O OH

levulinic acid

O O OH O HO

2,5-furandicacboxylic acid

OH OH OH OH OH

xylitol

OH OH OH OH OH OH

sorbitol

HO OH OH OH OH OH O O

glucaric acid

Top 12 US DOE renewable chemicals

3

Segetis: Partnering Across the LA Value Chain

4

Cellulosic Biomass Sugar

• Renewable feedstocks
• Diverse feedstocks

Levulinic Acid (LA)

• Isolated, high‐purity product
• Thermochemical conversion

Specialty, Renewable Ingredients

• Bio‐based building block

for a >$80 B markets

Segetis’ Breakthrough in Levulinic Acid Technology: Clean, High‐Yield Process

• Despite high level of interest, no large‐scale, cost‐

effective, clean LA production exists today

• Segetis has developed a patented, scalable process

for cost‐effective LA production – High utilization of biomass inputs – Reduced waste – Multiple sugar sources for feedstock flexibility – Demonstrated, economical process

5

Cleanest, most economical Levulinic Acid process Cleanest, most economical Levulinic Acid process

Now: Segetis Process Before: Incumbent Process

Char coats equipment Inoperable <<50% yield Char easily rinses >80% yield

What We Do: Specialty Chemicals from Sustainable Feedstocks

From lab scale to commercial sales in 4 years

Family of Products

• Green products competing on

performance

• Markets open to change

O O R2 OR1 O

• Renewable feedstocks
• Diverse feedstocks

6

In comparison to petro‐based alternatives: 1. Save 2 gallons of gasoline per gallon of Segetis product 2. Save 7 tons of CO2‐ equivalents per ton of Segetis product

Enhanced Sustainability Profile

3rd Party LCA modeled “field to product” by Boustead Consulting Ltd

7 Calculated on a mixed product portfolio

Color cosmetics

Why we are here today

Hair Care Suncare Nail Care Skincare Makeup Removers

8

Broad Solubility

Oil Soluble with what % SG1100D? Soluble with what % SG1200D Stearyl alcohol* 50 50 Stearic acid* 50 50 Castor oil 50 50 Beeswax* 50 50 C12-15 alkyl benzoate 50 50 Isopropyl myristate 50 50 Isopropyl palmitate 50 50 Caprylic/capric triglyceride 50 50 Mineral oil

• 50

Octyl methoxycinnamate 50 50 Cyclomethicone

• 50

Avocado oil 10 50 Sunflower oil 10 50 Almond oil 10 50 Squalene

• 50

Isododecane

• 50

Caprylyl methicone

• 50
• Compatible with many

personal care ingredients

• Can be used in any type of

formulation

Ingredient Soluble with SG1100D Soluble with SG1200D Ethanol Y Y Isopropanol Y Y Water Y N Hydroalcohol Y Y

Segetis solvents can be used in aqueous, alcoholic, or oil phases 9

Dissolves a wide range of ingredients Brings difficult ingredients into formulations Broad compatibility Compatibilizes materials Light, dry emolliency

Physical Characteristics

• Low volatility
• Clear
• Low viscosity
• Compatible with water, hydroalcohol

solutions, alcohols, and oils

Key Functions

10

Anti‐aging actives

Trouble‐shooting ingredients

UV actives Polymers Oils & greases Pigments

11

Dissolve and Disperse

Brings Difficult Ingredients into Formulations

Solute Demonstrated Solubility in SG1100D (wt %) Demonstrated Solubility in SG1200D (wt %) Avobenzone 20-25 30-40 Oxybenzone 20-25 30-35 Parabens 15-20 Not tested Coenyzme Q10

• 20-22

Retinoic acid

• ~1

Salicylic acid 15-20 11-14 DEET 50 50 Polymer

• Wt. % in

SG1100D

• Wt. % in

SG1200D Nitrocellulose Y Y cellulose acetate butyrate 14 ≥25 acrylate/octylacrylamide copolymer ~5 ~1 PMMA 1 >10

• Increased active loading
• Simplified formulation
• Simplified raw material inventory

Dissolves crystalline actives & polymers High solubility limit Broad substitution range

12

Surfactant‐free, naturally‐derived makeup remover

# Phase Trade Name

• Wt. %

1 A SG1200D 29.8 2 A SG1100D 29.8 3 A PROPANEDIOL 39.8 4 A PARABEN DU * 0.6 TOTAL 100

*preservative system is synthetic

Removes waterproof mascara more easily than commercial makeup remover products

13

Versatile matchmaker

Expands solubility range of ethanol Expands solubility range of water Brings water into anhydrous systems

14

Compatibilizes and Carries

Compatibilizes Ingredients with Alcohols

Expands solubility range in ethanol while maintaining clarity Example: avobenzone in alcohol

15

Actives more tolerant to water with SG1100D than with ethanol

16

SG1100D ethanol

Lipstick with water (in stick form)

Add 10% water to a lipstick form with no sweating

17

• Single formulation ingredient to replace

many specialized ingredients

• Single formulation ingredient to replace

many specialized ingredients

• Troubleshooting ingredient that allows

formulators to expand the range of actives & increase actives concentration

• Troubleshooting ingredient that allows

formulators to expand the range of actives & increase actives concentration

• Robust formulation latitude
• Compatible with many starting formulations
• Robust formulation latitude
• Compatible with many starting formulations
• Incorporates water into anhydrous systems
• Surfactant‐free solubilization
• Expands solubility of ethanol, w/ clarity
• Incorporates water into anhydrous systems
• Surfactant‐free solubilization
• Expands solubility of ethanol, w/ clarity
• Compliment to natural formulations to

reduce greasiness

• Dry, silky after‐feel
• Compliment to natural formulations to

reduce greasiness

• Dry, silky after‐feel

Opportunities to use Segetis ingredients

18

Market Status

• Feedback has been very positive

– Segetis’ products bring a very important toolset to formulators – Renewable concept gets traction

• Segetis (and other small renewable chemical companies) need to navigate:

– EU Cosmetic Directive and resistance to animal testing make new innovations difficult

• Global formulation houses tend to formulate globally  new ingredient registrations
• Cannot exceed 1 T in Europe without REACH registration (animal testing required), which

conflicts with – EU cosmetic directive (although recent guidance provides some clarity) – Consumer desire for safe cosmetics with no animal testing

– Fragmented market = high cost to serve

• Many small formulation houses
• Decision‐making is formula by formula

– Specialized formulation know‐how needed

• Awareness of specific formulation challenges
• Understanding of tradeoff balance, other options

Key to success: Strong Partnerships

Advantage to existing ingredients

THANK YOU

Dorie Yontz: 763-795-7257, dorie_yontz@segetis.com
