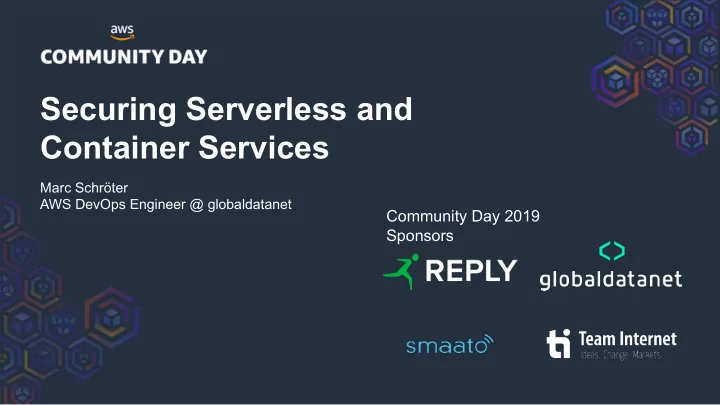

Securing Serverless and Container Services

Marc Schröter AWS DevOps Engineer @ globaldatanet

Community Day 2019 Sponsors

DevOps Automation Continuous Delivery Infrastructure as Code Cloud Security Security and Compliance Controls Container Managing the full container life cycle Serverless Highly scalable and fault-tolerant solutions

What is serverless, and how does it impact your approach to security?

What is serverless?

Shift operational responsibilities to AWS Increasing your agility and innovation

No infrastructure provisioning, no management Automatic scaling Pay for value Highly available and secure

COMPUTE INTEGRATION DATA STORES

AWS Lambda AWS Fargate Amazon S3 Amazon Aurora Serverless AWS DynamoDB Amazon API Gateway Amazon SQS Amazon SNS Amazon Step Functions

Serverless Risks - OWASP

A1: Injection A2: Broken Authentication A3: Sensitive Data Exposure A4: XML External Entities (XXE) A5: Broken Access Control A6: Security Misconfiguration A7: Cross-Site Scripting (XSS) A8: Insecure Deserialization A9: Using Components with Known Vulnerabilities A10: Insufficient Logging and Monitoring

Serverless Risks - CSA

SAS-1: Function Event Data Injection SAS-2: Broken Authentication SAS-3: Insecure Serverless Deployment Configuration SAS-4: Over-Privileged Function Permissions & Roles SAS-5: Inadequate Function Monitoring and Logging SAS-6: Insecure Third-Party Dependencies SAS-7: Insecure Application Secrets Storage SAS-8: Denial of Service & Financial Resource Exhaustion SAS-9: Serverless Business Logic Manipulation SAS-10: Improper Exception Handling and Verbose Error Messages SAS-11: Obsolete Functions, Cloud Resources and Event Triggers SAS-12: Cross-Execution Data Persistency

Serverless Risk Categorization

Application Code & App Logic Risks Deployment Configurations Risks Serverless Platform Risks Misc.Risks

Injection Broken Authentication Sensitive data exposure Insecure deserialization Known vulnerabilities Improper exception handling Security misconfiguration Overprivileged permission Insecure secrets storage Broken access control Inadequate Monitoring DoS Unused functions Data Persistency XSS, XXE

A1: Injection

Injection

Injection

• Use Web Application Firewall
• Validate data based on schemas and data transfer objects
• Always use an ORM
• Escape special characters
• Use least privileges
• Consider all event types and entry points into the system
• Use a commercial runtime defense solution

A2: Broken Authentication

Broken Authentication

• AWS Cognito or Single Sign-On
• API Gateway Access control

○ API keys ○ Usage plans ○ AWS IAM roles and policies ○ Amazon Cognito user pools ○ Lambda authorizer functions

• Service authentication between internal resources

○ SAML, OAuth2, Security Tokens ○ Encrypted channels ○ Password and key management ○ Client certificate ○ OTA/2FA

A3: Sensitive Data Exposure

Sensitive Data Exposure

• Identify and classify sensitive data
• Minimize storage of sensitive data
• Protect data at rest and in transit
• Use HTTPS only endpoints for APIs
• Key management
• Encryption of stored data
• Secret Management
• Environment variables encryption

A5: Broken Access Control

Broken Access Control

Fine grained access control

POST GET DELETE customers table

• rders table

queue Amazon API Gateway

Broken Access Control

Follow least-privilege

Broken Access Control

Automate permission configuration

Broken Access Control

Automate permission configuration

Broken Access Control

Automate security testing of IaC

CloudFormation CloudWatch Lambda Event for stack CREATE/UPDATE Pull CF Script from S3 S3 Notify on failure SES CF Script

Broken Access Control

Analyze IAM access patterns programmatically

Broken Access Control

Analyze IAM access patterns programmatically

Broken Access Control

Follow AWS IAM Best Practices

A7: Security Misconfiguration

Security Misconfiguration

• Enforce access control
• Providers security best practices
• Check for functions with unlinked triggers
• Resources that appear in policies but are not linked back to the function
• Set timeouts to the minimum required by the function
• Use automatic tools that detect security misconfigurations

A7: Known Vulnerabilities

Known Vulnerabilities

• Continuously monitor dependencies and their versions
• Only obtain components from official sources
• Continuously monitor sources like CVE and NVD
• Platform based advisories like NodeSecurity, PyUp, OWASP SafeNuGet, etc.
• Scan dependencies for known vulnerabilities

○ OWASP Dependency Check ○ GitHub Security Alerts ○ Gitlab Dependency Scanning ○ WhiteSource

Serverless Security Demo

Serverless Security Demo

1. Information Gathering 2. Function Reverse Engineering 3. Digging For Gold Inside Environment Variables 4. Exploiting Over-Privileged IAM Roles 5. Abusing Insecure Cloud Configurations 6. Finding Known Vulnerabilities In Open Source Packages

Security for Amazon Kubernetes Cluster

Encrypt communication

• Between web clients and your loadbalancer

○ Use the application loadbalancer (ALB) ○ Can be achieved with the ALB-Ingress-Controller ○ ALB provides routing and security options for the application layer

• Between your loadbalancer and pod

○ Encryptions support of your application or application server ○ Run a sidecar on your pod which performs encryption ○ Run a complete service mesh like Istio

• Between your pod and your AWS RDS database

Encrypt storage

• Databases
• Persistent Volume Claims (PVC)

Restrict inbound and outbound traffic

• Use network policies
• Network Policy engine (Calico)

More EKS Security Tips

• Use a firewall to block known web attacks
• Protect yourself from DDos attacks
• Secure your AWS account
• Use namespaces and secrets
• Cyber attack detection
• Review your security setup
• Scan your container images

○ Aqua Security Microscanner ○ CoresOS Clair ○ Anchore engine

Container DevSecOps

Developer AWS Cloud9 1.Pull Request AWS CodeCommit (Application Repo) AWS Lambda Function Amazon CloudWatch Event Rule

• 7. Adds feedback to

Pull Request

• 6. Triggers Lambda

Function

• 5. CodeBuild Success/Failure

triggers Rule AWS CodePipeline AWS CodeBuild AWS CodeBuild AWS CodeBuild AWS CodeBuild DOCKER LINTING PUBLISH IMAGE VULNERABILITY SCANNING SECRETS SCANNING Configs Development PULL REQUEST AWS Security Hub Amazon ECR

• 3. Pushes vulnerabilities

to Security Hub

• 4. Builds and pushes

Image to ECR

• 2. Triggers

CodePipeline

Build with services not servers
