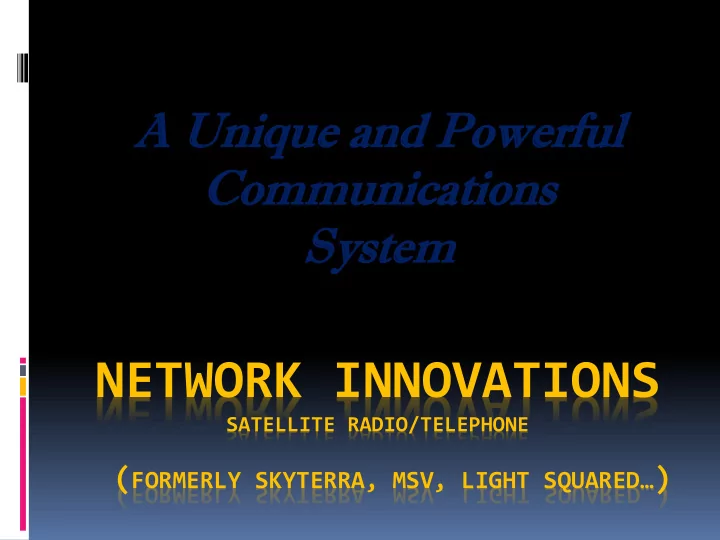

NETWORK INNOVATIONS

SATELLITE RADIO/TELEPHONE

(FORMERLY SKYTERRA, MSV, LIGHT SQUARED…)

A Uni Unique que an and Po Powerful werful Com

  • mmunications

munications Sys ystem tem

slide-2
SLIDE 2

Secure Communications

1. The network employs the IMBE (Improved Multi-Band Excitation),voice codec approved by The Association of Public Safety Communications. 2. Digital coding and scrambling prevents casual eavesdropping or monitoring of calls.

slide-3
SLIDE 3

Features and Benefits

  • 1. Seamless coverage
  • 2. Satellites act as one big radio

tower for all of North America.

  • 3. Users don't have to worry

about service interruptions associated with roaming because it is all one network.

slide-4
SLIDE 4

Satellite Infrastructure

slide-5
SLIDE 5

MSV Coverage Area

As shown by the shaded area in the map, MSV provides wide-area wireless communications on land, sea or in the air, in North America (Alaska and Hawaii), Central America, Northern South America, the Caribbean and up to 250 miles offshore

slide-6
SLIDE 6

MSV Service Users

Homeland Security Public Safety Fire / Rescue USAR Police Military Marine

slide-7
SLIDE 7

Beams

1 2 3 4 5

slide-8
SLIDE 8

Beams

BX SXX This indicator specifies the beam to which the radio has logged-on, as well as the radio received signal strength (i.e. B1 S55). Beam mapping is as follows:

 Beam 1 East Central  Beam 2 West Central  Beam 3 West  Beam 4 South  Beam 5 Alaska/Hawaii

Signal strength ranges from 0 (no signal) through 99.

slide-9
SLIDE 9

Talk Groups

Talk Groups Currently Assigned

STRAC1 (Emergency Operations) STRAC 2 (Hospital Operations) J-SMART (Nationwide Mutual

Aid Radio Talk Group)

G-SMART (Gulf –States Mutual

Aid Radio Talk Group)

slide-10
SLIDE 10

Changing Talk groups

  • To Change Talk groups,

press the key under the Group and use the Arrow up and down to change the TG. Once complete the selected TG will automatically be selected

slide-11
SLIDE 11

Display

  • 1. Latitude/longitude
  • 2. Talk group assignment
  • 3. Menus for invoking

actions and functions

  • 4. Beam/Signal Strength
  • 5. Function success, error,
  • r messages
  • 6. “Soft” keys to support

various functions

slide-12
SLIDE 12

Controls

BUTTONS (Mobile Units)

Power: The power button is the

“on-off” switch for the handset. It is a “delayed action” button – you must keep it pressed for a second

  • r two and then release it to

initiate the power on or power off sequence.

PTT: Pressing and holding the

PTT button initiates and maintains a Dispatch Radio call.

P1: Pressing this key initiates a

Priority-1 Emergency Interruption Dispatch Radio call.

slide-13
SLIDE 13

Controls

BUTTONS (Fixed Unit)

Power: The power button is the

“on-off” switch for the handset. It is a “delayed action” button – you must keep it pressed for a second

  • r two and then release it to

initiate the power on or power off sequence.

PTT: Pressing and holding the

PTT button initiates and maintains a Dispatch Radio call.

P1: Pressing this key initiates a

Priority-1 Emergency Interruption Dispatch Radio call.

slide-14
SLIDE 14

Controls

PHYSICAL KEYS

Keypad Keys: The keypad

contains alphanumeric keys for text entry and Circuit-Switched Voice number dialing.

SEND: This key is used to

initiate the Dial-out Dispatch sequence.

END: This key is used to Quick

exit from any menu through which you are navigating. When you press the key you are returned to the “idle” display screen

slide-15
SLIDE 15

Controls

PHYSICAL KEYS

Keypad Keys: The keypad

contains alphanumeric keys for text entry and Circuit-Switched Voice number dialing.

SEND: This key is used to

initiate the Dial-out Dispatch sequence.

END: This key is used to Quick

exit from any menu through which you are navigating. When you press the key you are returned to the “idle” display screen

slide-16
SLIDE 16

Controls

UP /DOWN ARROW:

These keys are used primarily for the following functions:

1) Volume adjustment 2) Scrolling through various menus 3) Scrolling through downloaded talk group tag positions

slide-17
SLIDE 17

Features

When you first enter the Main Menu, the system lock is OFF.

  • 1. Use the Up/Down arrows to

highlight LOCK: OFF, then press SELECT to lock the

  • system. The option then

changes to LOCK: ON. HAND SET LOCK AND UNLOCK

slide-18
SLIDE 18

Features

  • 2. To unlock the system,

select the LOCK: ON

  • ption in the Main Menu.

At the prompt for the unlock code, type in the code and then select Enter

The option then reverts

back to LOCK: OFF. The default code is 0000 (four zeroes).

slide-19
SLIDE 19

Indicators

Idle: This is a typical view of

the screen when the unit is activated and not in use.

slide-20
SLIDE 20

Indicators

Calling: This indicates the

PTT has been depressed and the unit is requesting an open channel thru the satellite.

slide-21
SLIDE 21

Indicators

USER ON: This indicator

appears when the PTT key has been pressed and the communication channel has been accessed. The indicator is prompting you to begin speaking.

slide-22
SLIDE 22

Indicators

VACANT : This indicator

appears when the PTT key has been released. It indicates that the communication channel is available to any member of the talk group who wishes to speak.

slide-23
SLIDE 23

Indicators

DN: This number appears

  • n the display from the

person speaking, when the unit is in operation.

slide-24
SLIDE 24

Audio Indicators

Status or Event Sound Notes

Radio Info Message Two quick high tones Indicates one of the following: Hardware failure Satellite link is lost (no service could be network failure). Lost Speaker Two quick high tones Indicates that the current party speaking has been cancelled and the radio has stopped transmitting. Call Termination Sounds like a “fast busy” tone Sounds when the call is terminated because of the disconnection of satellite link. Calling Failure Tone Sounds like a “fast busy” tone Indicates that a Circuit Switched call has failed during call set-up. “USER ON” – Talk Ready A short high/Low tone Indicates that the user can begin to talk in Dispatch Radio mode. Talk group Vacant A low tone Indicates the talk group is available. Power On / Power Off A short high tone Indicates the radio has been powered on/off. Incorrect Key Two quick beeps When a key is pressed out of sequence.

slide-25
SLIDE 25

Error Messages

Error Condition Definition Action Searching….

If signal strength bars are seen, the radio is in the process of connecting to the MSAT network. If signal strength bars are not seen, the radio cannot receive a satellite signal. If the condition persists, check the radio has a clear view of the southern sky and that the antenna is connected and is functioning (e.g. can hear the servo motor in the antenna).

Wait….

Signifies that the radio has not received a response to the PTT request from the MSAT network and is attempting several retries. Continue to press the PTT key. If the call is successful, USER ON will be

  • displayed. In the event a call fails, a PTT

FAIL message will appear requiring the user to release the PTT key and try again

PTT Fail

Signifies the radio failed to receive a response to the PTT request from the MSAT network. Release the PTT key and try again. If this message continues, contact MSV Customer Support.

Press PTT

Signifies the PTT key was been pressed then released just before the radio received the confirmation from the network. Press and hold the PTT key in order to talk.

Invalid DN

Signifies the user has entered a Directory Number (DN) that is not a member of the private mode talk group currently active on the radio. Ensure a valid DN is entered in tag position 00.

slide-26
SLIDE 26

Error Messages

“Searching”

Signal Strength bars

slide-27
SLIDE 27

Signal Strengths (G-2)

Signal Value Number of Bars

Signal Value Number of Bars Service Level 0-35 Poor (too weak for a call) 36-45 1 Poor 46-55 2 Marginal 56-65 3 Marginal 66-75 4 Acceptable 76-99 5 Excellent

slide-28
SLIDE 28

Signal Strengths (Mitsubishi)

Signal Value Number of Bars

Signal Value Number of Bars Service Level 0-18 May be too weak for a call 19-31 1 Poor 32-39 2 Marginal 39-48 3 Acceptable 48-54 4 Great 54-60 5 Excellent

slide-29
SLIDE 29

Error Message

Error Condition Definition Action

BLOCKED

Signifies that the radio's antenna signal to the satellite is blocked. Ensure that the antenna has a clear line-of-sight to the satellite.

WARNING! OVERHEAT

Signifies that the radio is

  • verheating. This message will

appear at 10 second intervals until the temperature is reduced. If the temperature continues to increase then the radio will shutdown. Move the radio to a cooler

  • place. If the radio powers
  • ff, allow it to cool down

before re-initiating the power-up sequence.

WRONG LOCK CODE

Signifies the user has entered the wrong Handset Lock code. If you cannot remember the lock code (default is 0000), enter the SYSTEM password (default 1234) when prompted to enter the code.

ANTENNA FAILURE

This indicates the radio has detected a fault in the antenna and shut it down. Power cycle the radio. If this problem persists, contact MSV Customer Support.

slide-30
SLIDE 30

Error Message

Antenna Failure: This indicates the radio has detected a fault in the antenna and shut it down.

*This may be due to a lack of

power to the unit, check the voltage display and check that it reads 12 volts, and restart.

slide-31
SLIDE 31

Direct Connect Hand Sets

Direct Connect (Walkie – Talkie) feature only

slide-32
SLIDE 32

G-2 Hand set

  • The G-2 Handset
  • perates as a Direct

Connect (Walki -Talkie) and a Telephone all in

  • ne.
slide-33
SLIDE 33

Initiating a Phone call

Key Pad: Using the numerical key pad on the front of the handset enter the area code and phone number.

slide-34
SLIDE 34

Initiating a Phone call

Key Pad: Once the number is added depress the SEND key. The display above the number will Prompt the words CALL and IN USE

SEND

END

slide-35
SLIDE 35

Initiating a Phone call

Display: Once the call is placed the time will display and the minutes-seconds will begin to track the length of the call.

*(at a rate of $2.49 per minute)

slide-36
SLIDE 36

Initiating a Phone call

Key Pad: Once the call is complete depress the END key on the key pad this will hang up the call, the word END will be displayed in the left hand corner.

END

SEND

slide-37
SLIDE 37

Initiating a Phone call

Display: Once the call has been disconnected the hand set will default back to the Walkie- Talkie Mode.

slide-38
SLIDE 38

Portability Units

MSAT

slide-39
SLIDE 39

SV-300 Interface box

SV-300 Interface Box This interface box allows the user to walk away from the G-2 Unit and transmit and receive on the Satellite Radio with a portable VHF radio

slide-40
SLIDE 40

SV-300 Interface box

“NET Mode” With the unit in the “NET” mode the Satellite and the VHF radio can be used independently and monitored at the unit only

slide-41
SLIDE 41

SV-300 Interface box

“Handheld Mode” With the unit in the “Handheld” mode the user can walk away from the G-2 Unit, Transmit and Receive

  • n a handheld VHF.

(The handheld and mobile unit must be on the same channel)

slide-42
SLIDE 42

SV-300 Interface box

“Local Mode” With the unit in the “Local Mode” the user is able to monitor the traffic from the G-2 Unit and adjust the volume from the front panel”

slide-43
SLIDE 43

SV-300 Interface box

“Phone Mode” With the unit in the “Phone mode” the user can monitor their satellite traffic privately via the G-2 handset.

slide-44
SLIDE 44

Changing Beams

1 2 3 4 5

slide-45
SLIDE 45

Change Beams (G-2)

Press the menu button: This will take you to the main menu

slide-46
SLIDE 46

Change Beams (G-2)

Scroll down till you get to the, “X-Over “ heading hit select this will display all of the beams in the system.

slide-47
SLIDE 47

Change Beams (G-2)

Scroll down to the: B2-West C.

This is the West Central Beam. * Press the select button. There will be a momentary pause while it manually change beams

slide-48
SLIDE 48

Changing Beams (G-2)

You will prompted, if you wish to continue with the change, press “YES”

slide-49
SLIDE 49

Changing Beams (G-2)

The display will show the change over in progress, when the beam has been changed it will default back to the normal display.

slide-50
SLIDE 50

Changing Beams (G-2)

Remember to always check that the change you were requesting has been done and is correct. Beam 02

slide-51
SLIDE 51

Signal Strength

The signal strength will be displayed next to the beam,

 Beam Channel

Signal Strength

 The signal strength is seen in

values from 00-99, during heavy thunder storms you may see below 25 which may give you less than optimal performance.

slide-52
SLIDE 52

Channel

This displays the Channel that you are currently on.

 (Channel 2)

This is the channel identifier associated with that channel.

 STRAC 2

slide-53
SLIDE 53

Changing Beams

(Mitsubishi)

 Depress the FCN key then

95, you will be in the Beam changing mode.

 By depressing the #, * keys

this will change the beams up and down. Once you see the beam you need to be in push the STO and then the * to accept the change.

slide-54
SLIDE 54

STRAC Emergency Operations

v.2012

Questions or Comments?

Alex O’Rourke 210.771.5243
