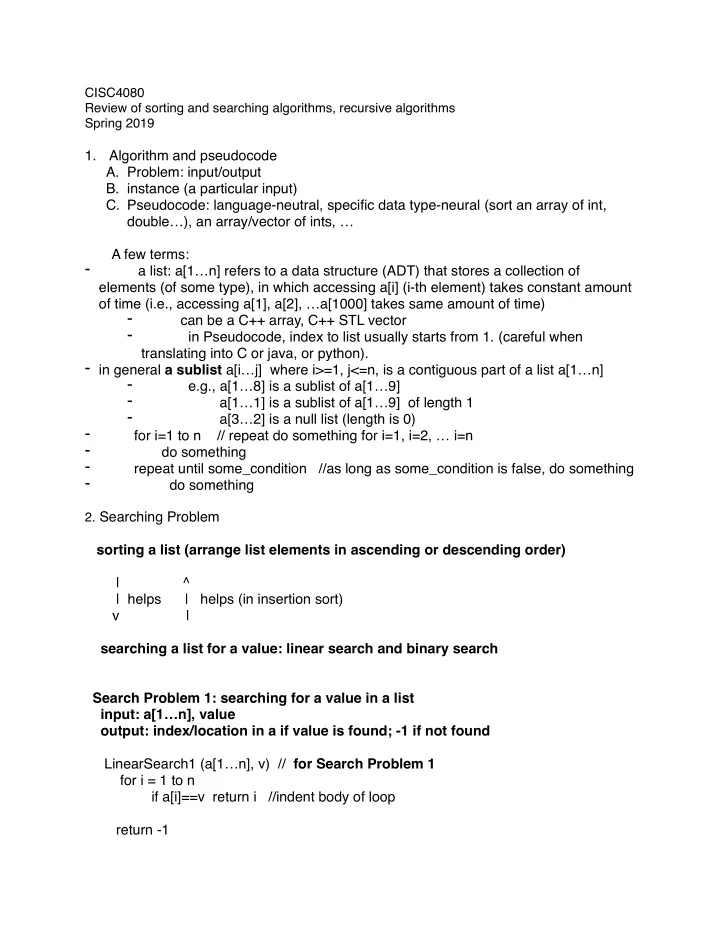

CISC4080 Review of sorting and searching algorithms, recursive algorithms Spring 2019

• 1. Algorithm and pseudocode
• A. Problem: input/output
• B. instance (a particular input)
• C. Pseudocode: language-neutral, specific data type-neural (sort an array of int,

double…), an array/vector of ints, … A few terms:

• a list: a[1…n] refers to a data structure (ADT) that stores a collection of

elements (of some type), in which accessing a[i] (i-th element) takes constant amount

• f time (i.e., accessing a[1], a[2], …a[1000] takes same amount of time)
• can be a C++ array, C++ STL vector
• in Pseudocode, index to list usually starts from 1. (careful when

translating into C or java, or python).

• in general a sublist a[i…j] where i>=1, j<=n, is a contiguous part of a list a[1…n]
• e.g., a[1…8] is a sublist of a[1…9]
• a[1…1] is a sublist of a[1…9] of length 1
• a[3…2] is a null list (length is 0)
• for i=1 to n // repeat do something for i=1, i=2, … i=n
• do something
• repeat until some_condition //as long as some_condition is false, do something
• do something
• 2. Searching Problem

sorting a list (arrange list elements in ascending or descending order) | ^ | helps | helps (in insertion sort) v | searching a list for a value: linear search and binary search Search Problem 1: searching for a value in a list input: a[1…n], value

• utput: index/location in a if value is found; -1 if not found

LinearSearch1 (a[1…n], v) // for Search Problem 1 for i = 1 to n if a[i]==v return i //indent body of loop return -1

Search Problem 2: search for a value in a sorted list and return would-be location of not found input: a[1…n], value

• utput: index/location where value is found;

negation of would-be location of value if it’s not found linearSearch2 (a[1…n], v) // alg for search problem 2 for i=1 to n if a[i]==v return i if a[i] > v return -i return -(n+1) // v is larger than all list elements ——————————————————- binarySearch (a[1…n], v) // alg for search problem 2 compare v with elements in the middle of a[1…n] if v is larger than middle element of a[1…n], perform binary search on second half … 1) to make it recursive, the function needs to take the left and right index as parameter, to specify the sublist to search 2) complete the recursive function

• 3. Three sorting algorithms

bubble sort: * based upon the process of bubbling (up the largest number to the right by comparing adjacent elements and swap them if the former is larger than the latter) * Repeat the same bubbling process for the sublist, a[1…n-1]; and then a[1… n-2],.. * until the sublist is of length 1, i.e., a[1…1] bubble_sort (a[1…n]) end_index = n repeat until end_index==1 or there is no swap in last bubbling // bubbling up a[1…end_index] for i=1 to end_index-1 if (a[i] > a[i+1]) swap a[i], a[i+1] // now: a[end_index] is greater than a[1], a[2], … a[end_index-1] end_index = end_index -1

bubble_sort (a[1…n]) implemted as recursive function if (n==1) return for i=1 to n-1 if (a[i] > a[i+1]) swap (a[i], a[i+1]) // now a[n] is the largest value among a[1…n], no need to touch it bubble_sort (a[1…n-1]) Check: Do you know how to trace the execution of a recursive function? a[1…6] = {10, 4, 5, 7, 3, 9} 2) How to convince/check the correctness of recursive function? three questions:

• A. Are the base cases solved correctly?
• B. Does the general case reduce the size of the problem and eventually to

a base case?

• C. Does the general cases use the smaller case solution to solve the

larger one correctly?

• Math. induction

Insertion Sort Idea: * Gradually build up a sorted sublist. Initially a[1…1] is sorted, insert a[2] into the sorted sublist a[1…1] to get sorted sublist a[1…2] insert a[3] into a[1…2] => a[1…3] is sorted … * Key operation: insert a value into a sorted sublist by shifting all values that are larger then v to the right (down)

• r use binary search to find where to insert the new value

Insertion_Sort (a[1…n]) // a[1…1] is sorted for i=2 to n // insert a[i] into the sorted sublist a[1…i-1] value = a[i] // use j to scan a[1…i-1] from right to left, until find first element that’s smaller // than or equal to value, shift all larger values to the right

for j=i-1 to 1 if value < a[j] a[j+1] = a[j] else break //either j==0 or a[j] <= value (and a[j+1]>value) a[j+1] = value //add testing if j+1!=i to avoid this copying // a[1…i] is now sorted Selection Sort: fewer swapping of the data (than bubble sort and insertion sort) Find out the location of the largest element of list a[1…n], swap it with a[n] Find the index of the largest element of list a[1…n-1], swap it with a[n-1] … Find the index of the largest element of sublist a[1…2], and swap it with a[2] ——————————————————- SelectionSort (a[1…n]) for endIndex=n to 2 //find maxIndex (index of largest element in sublist a[1…endIndex]) maxIndex = 1 //maxIndex is the largest so far, i.e., in a[1…1] for i=2 to endIndex if a[i]>a[maxIndex] maxIndex = i //a[maxIndex] is largest among a[1…i] //swap a[maxIndex] with a[endIndex] if endIndex!=maxIndex swap a[endIndex], a[maxIndex] ——————————————————- //Recursive implementation: pass the left and right index of the list to be sorted SelectionSort_recursive (a[], left, right ) if (left==right) return //find maxIndex (index of largest element in sublist a[left…right]) maxIndex = left //maxIndex is the largest so far, i.e., in a[left…left]

for i=left+1 to right if a[i]>a[maxIndex] maxIndex = i //a[maxIndex] is largest among a[left…right] //swap a[maxIndex] with a[right] if right!=maxIndex swap a[right], a[maxIndex] SelectionSort_recursive (a[left…right-1] ——————————————————-

• 4. Implementation

in lab1, as function template (a template that can be used to generate automatically functions that has the same logic, but work on different data type). You don’t write a function to sort an array of ints, and then a different one to sort an array of doubles, or an array of chars…. Link to code example:

http://storm.cis.fordham.edu/zhang/cs4080/Demo/bubblesort.cpp
