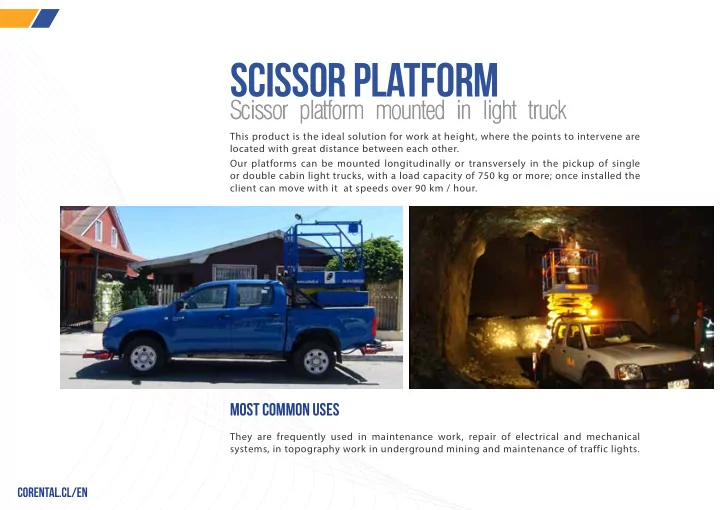

Scissor platform

Scissor platform mounted in light truck

This product is the ideal solution for work at height, where the points to intervene are located with great distance between each other. Our platforms can be mounted longitudinally or transversely in the pickup of single

• r double cabin light trucks, with a load capacity of 750 kg or more; once installed the

client can move with it at speeds over 90 km / hour.

Most common uses

They are frequently used in maintenance work, repair of electrical and mechanical systems, in topography work in underground mining and maintenance of traffic lights.

corental.cl/en

Scissor platform mounted in light truck

3.5 mt to 8 mt front and rear platforms Rails

Sliding Scissors Folding Working height hydraulic stabilizers

250 kg the equipment has its own power inverter from 12 vdc to 220 vac Drive unit, made with a gear pump, coupled to a 12 volt motorDC to prevent slippage provide a firm footing in the work cover ideal for maintenance work

Loading capacity Independent power supply Oil hydraulic unit Anti-slip tapes Aerial work platform

Uses and standards

Our “HA family Scissor platform”, consists of an Scissors type platform That has been designed according to ANSI / SIA 92.6-1999., UNE-NE280 and OSHA standards, it has been made to be mounted on a double cabin light trucks and It could be used in maintenance works , repair and surveying tasks.

We have 4 models that can be adapted to your needs Our products are governed by the following standards.

Highlights Corental means safety work

ANSI/SIA A92.6 2006 OSHA Regulations Standards 29 CFR UNE-NE 280

corental.cl/en

It is power source belongs to the light truck. Adjacent to the overpressure valve of the system and the cylinders’ hydraulic oil valve operated with 12 volt DC power source. Constructed by 2 ½ “double-effect cylinders, They are located in the back, front or both sides of the light truck, this leveling system helps the light truck to stay stable on operations site. This platform is equipped with folding rails which allows the vehicle to use routes with height restriction particularly at the construction site . To facilitate the operator safety access to the platform, our equipment’s have handrails and folding access ladder. We have built it as an integral part of the platform. Our equipment can be operated with both control panel on the aerial work platform and at ground; the

• perator can also rise o lower the platform in case of emergency.

Hydraulic oil unit Retractile front and rear supports jacks Folding Railings Access Ladder Movement - Operation of the equipment

Accessories

and specifications

In order to contribute with what is requested by legislation, our Scissors platforms can have

• ptional accessories that promote to develop a

safer and more reliable work.

corental.cl/en

HA-350-E HA-400-E HA-500-E HA-600-E General features Working height maximum m/m (C) 3.500 4.000 5.000 6.000 Platform height maximum m/m 5.300 5.800 6.800 7.800 Platform height stowed m/m (F) 550 550 550 550 Folding Rails height m/m 1.100 1.100 1.100 1.100 Dimensions Platform Width m/m (A) 1.300 1.300 1.300 1.300 Wheel base m/m (D) 1.000 1.000 1.000 1.000 Slide-out platform extension deck m/m (B) 500 500 500 500 Lift capacity KG 250 250 250 250 Rise / lower Speed in seconds 15/24 15/24 15/24 15/24 Unit Power 12 VDC 12 VDC 12 VDC 12 VDC Power source Battery light truck Battery light truck Battery light truck Battery light truck

HA-350-E HA-400-E HA-500-E HA-600-E

3.5 metros 4.0 metros 5.0 metros 6.0 metros

manufactured in 25 x 25 square profile Self powered , on the platform has powered by an AGM type battery. in order to perform m a i n t e n a n c e work, Our platform can

• perate with an

extensible deck , outside of the height line

Protective cage Power Source Slide-out platform

características

*Weight will vary depending on options and/or country standards.

Scissor platform mounted in light truck

corental.cl/en

SCISSOR PLATFORM

for truck

It is the best solution to perform work at height where the points to intervene are at a distance, they are mounted in longitudinal direction on the truck which allows to move at the maximum allowed speed.

MOST COMMON USES

Is used in the maintenance or installation of electrical, mechanical systems in mining underground, we have developed 3 models that cover working heights of 4 to 11 meters and with load capacities of 400 to 4000 Kilos,

corental.cl/en

scissor platform for truck

CHARACTERISTICS

Are manufactured with access ladder, fixed railings, transverse platform displaceable which allows maintenance outside the platform Fixed, front and rear hydraulic retractable supports, power independent of the network with inverter from 12 VDC to 220 VAC and the hydraulic unit of 12 or 24 volt direct current is connected to the battery or batteries of the truck.

HA-400-C HA-500-C HA-900-C HA-4.000 General Features Platform height m/m (C) 4.000 5.000 9.000 4.500 Working height m/m 5.800 6.800 10.800 6.300 Minimum height m/m (F) 550 750 980 550 Railing Height m/m 1.100 1.100 1.100 1.100 Work surface Length m/m (A) 2.800 2.800 2.800 4.500 Width m/m (D) 1.800 1.800 1.800 2.200 Platform extended m/m (B) NA NA NA 1.000 Lift capacity KG 400 400 400 4.000 Raise / lower speed 15/24 15/24 15/24 15/24 Drive Unit 12 VDC NA 12 VDC 24 VDC Power source Battery truck power take ofg Battery truck Battery truck

Description

*Measurements are in Millimeters

corental.cl/en

Our articulated and telescopic boom lift platform, model DE-11,8-220, has been designed and manufactured by Corental to be installed on the light truck pick up. This equipment allows the staff to carry out tasks up to height of 13 meters and Maximum Horizontal Reach of 5.5 meters, with a load capacity of 220 kilos which allows 2 operators with tools and materials.

Articulated and telescopic boom lift Platform

12 volt hydraulic unit , within Power source from the battery truck. Electric control in the basket and in the ground. Controls for stabilization at the ground and in the basket. Built it Aluminum based basket. Electric horometer anti-movement, tilt sensor at Boom and cabin in the vehicle. Emergency manual pump. Electric socket 110/230 v in the platform Braking valves in each hydraulic actuator

Basic Model

corental.cl/en

Maximum Platform height 13.6 m Maximum Horizontal Reach 5.5m Operators 2 Platform capacity 225 kg Dimensions aluminum platform 1400 x 700 mm Railing height 1100 mm Commands hidráulicos Platform rotation 360º Stabilizers 2 en Pick up

General features

Auxiliary power unit 230V / 50Hz mono phase with battery charger. 1000 V Platform electrical shock isolation. Optional hydraulic jacks supports Air , water access from the platform.

Options and accesories

Articulated and telescopic boom lift Platform

corental.cl/en

Self-propelled

scissor lift

Corental has designed and manufactured this compact solution for inaccessible work

• areas. Therefore, we are pleased to offer our customers seven models with load capacities

since 250 up to 1000 Kilos, adjustable depending on the needs of the customer.

All of them are compact and maneuverable, and can be operated from the platform in any position, saving time and improving efficiency.

Highlights

250 a 1.000 kg with power inverter from 12 v dc to 220 v ac

Steel platform independent power source

Drive the equipment at maximum height. Easy access to platform deck. Compact dimensions and minimum turning radius. Motor mounted on removable desk cover. Two

• r

four wheels mix

• perations.

More options

with auditable alarm

Tilt level sensor

corental.cl/en

Self-propelled scissor lift

CA-380 CA-480 CD-500 CA-600 CA-800 CA-1000 CA-2000 GENERAL FEATURES Working height maximum 5.600 6.300 6.800 7.800 9.800 11.800 13.800 Platform height maximum 3.800 4.500 5.000 6.000 8.000 10.000 12.000 Platform height stowed 770 770 770 810 870 1.300 1.300 Folding Rails height 1.000 1.000 1.000 1.000 1.000 1.000 1.000 Loading capacity 300 300 350 500 600 800 700 DIMENSIONS Platform 1.710x770 1.710x770 1.710x770 3.600x1.800 3.600x1.800 3.600x1.800 3.600x1.800 Width 780 780 780 1.100 1.900 1.900 1.900 Wheel base 690 690 690 980 1.700 1.700 1.700 Length - stowed 1.560 1.560 1.560 2.060 3.200 3.200 3.200 Stability 90% 90% 90% 90% 90% 90% 90% Rise / Lower Speed (sec) 23/16 30/25 32/27 32/30 28/30 28/30 28/30 Drive Speed stowed (km / hr) 3.1 3.1 4 4 3.8 5.6 4 turning radius - inside 500 500 500 650 1.050 1.050 1.050 turning radius - outside 1.900 1.900 1.900 2.400 3.800 3.200 3.200 Control (voltage) 12 12 12 12 12 12 12 Equipment weight (kg)** 800 800 1.200 2.000 2.800 3.120 3.500 Power source 24 V DC (four 6V 225 Ah batteries) 24 V DC (four 6V 225 Ah batteries) 24 V DC (four 6V 225 Ah batteries) Deutz Diesel Manual pump Manual pump Manual pump 5.6 meters 6.3 meters 11.8 meters 13.8 meters 7.8 meters 6.8 meters 9.8 meters

Options

and accessories

The command located

• n the platform allows

movements such as fo r w a r d - b a c k w a r d

• rise - lower, left -

right. Batteries source (24 VDC) supply for the hydraulic unit with the purpose

• f

recharging the batteries after a day’s work. This is a platform with great rigidity; it has a much better turning radius than some more compact platforms. achieve greater productivity in your work

Comando de movimiento Power unit Built-in battery charger

*Measurements are in Millimeters **Weight will vary depending on options and/or country standards.

corental.cl/en

Scissor platform

with manual pump

Our “HA - 240 – E Aerial Platform”, consists of aerial scissor type work platform, designed according to ANSI / SIA 92.6-1999, UNE -_NE 280 and OSHA Standards. The manufacture of this equipment is intended to be used in the workshop and does not have any propulsion, it allows to work In the platform at 2.4 meters high and can carry

• n a maximum load of 150 kilos.

Essentially is capable to achieve the proper handling, disassemble and assemble elements and accessories in the daily tasks.

corental.cl/en

Accessories

and specifications

built it 50 cc piston, manual pump. An

• verpressure valve installed after the

pump allows controlling the maximum deck load. para ambos lados In order to provide extra stability and better support this equipment has supports jacks displaceable built in with sliding elements and mechanical screws. built it 4 “ diameter and 8” stroke cylinder rise –lower it.

Hydraulic system Plataforma desplazable Security jacks supports Double-acting cylinder

SCISSOR PLATFORM self-propelled with manual pump

Measures are in Millimeters

Maximum platform height m / m (A) 2400 Working height maximum m / m 4200 Platform height stowed m / m (E) 750 Folding Rails height m / m 1100 Wheel base Length m / m (C) 1000 Width m / m (D 700 Platform length extended m / m (F) 400 Lift capacity 250 Lift capacity - extension deck 100 Rise / Lower Speed (sec) 25/40 Hydraulic Unit Manual Pump Manual pump

características
