SAXS and SANS facilities and experimental practice Clement Blanchet EMBL Hamburg Small Angle Scattering experiment Detector Sample X-ray or neutron 2 2 Beam s Buffer The beam hits the sample, X-rays/neutrons interact with the

slide-1
SLIDE 1

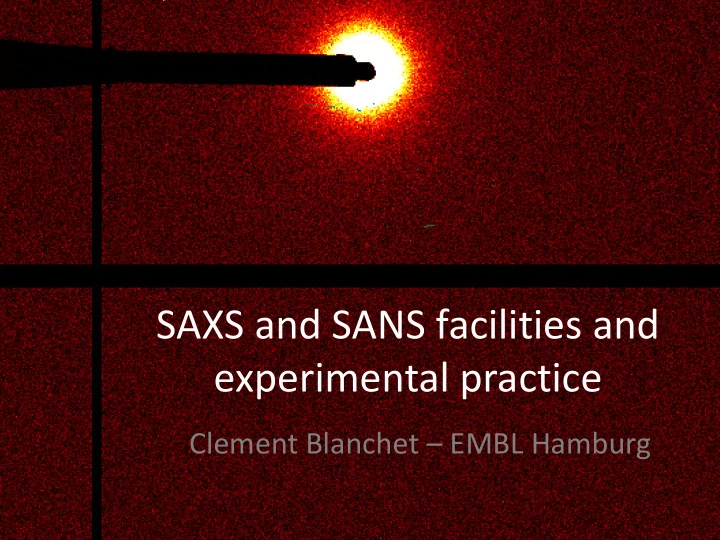

SAXS and SANS facilities and experimental practice

Clement Blanchet – EMBL Hamburg

slide-2
SLIDE 2

6/20/2016 SAXS and SANS facilities Clement Blanchet 2

Small Angle Scattering experiment

2θ 2θ

s

X-ray or neutron Beam

Sample Buffer Detector

The beam hits the sample, X-rays/neutrons interact with the sample and are scattered, providing structural information on the sample. Same formalism but different scattered particles  Different instrument.

slide-3
SLIDE 3

6/20/2016 SAXS and SANS facilities Clement Blanchet 3

Outline

  • X-rays / neutrons
  • SAS instruments
  • Sample environment
  • Sample requirements and collection strategy
slide-4
SLIDE 4

6/20/2016 SAXS and SANS facilities Clement Blanchet 4

X-rays and neutrons

slide-5
SLIDE 5

6/20/2016 SAXS and SANS facilities Clement Blanchet 5

X-rays

Roengten, 1895

slide-6
SLIDE 6

6/20/2016 SAXS and SANS facilities Clement Blanchet 6

Electromagnetic wave

slide-7
SLIDE 7

6/20/2016 SAXS and SANS facilities Clement Blanchet 7

How are X-ray produced?

  • Brehmstrahlung

– When a charge is accelerated charge, electromagnetic radiation is produced (from Maxwell equation)

slide-8
SLIDE 8

6/20/2016 SAXS and SANS facilities Clement Blanchet 8

X-ray sources - Synchrotron

  • Synchrotrons
slide-9
SLIDE 9

6/20/2016 SAXS and SANS facilities Clement Blanchet 9

X-ray sources - synchrotron

  • Synchrotron radiation – Insertion devices
slide-10
SLIDE 10

6/20/2016 SAXS and SANS facilities Clement Blanchet 10

Insertion devices

Dipole bending magnet (APS) Undulator (PetraIII)

slide-11
SLIDE 11

6/20/2016 SAXS and SANS facilities Clement Blanchet 11

Synchrotrons around the world

slide-12
SLIDE 12

6/20/2016 SAXS and SANS facilities Clement Blanchet 12

X-ray sources - FEL

  • Free electron laser

– Electrons are accelerated and send to a long undulator (several 100s meters) – Self amplified spontaneous emission: electrons group themselves into small bunches. – Production of very short and intense X-ray pulses

slide-13
SLIDE 13

6/20/2016 SAXS and SANS facilities Clement Blanchet 13

X-ray sources - FEL

  • Free electron laser
slide-14
SLIDE 14

6/20/2016 SAXS and SANS facilities Clement Blanchet 14

Lab sources

slide-15
SLIDE 15

6/20/2016 SAXS and SANS facilities Clement Blanchet 15

Lab sources

  • Principle : electrons, produced by heating a

cathode are accelerated in an electric field and projected on a metallic anode. – Brehmstrahlung – Fluorescence

slide-16
SLIDE 16

6/20/2016 SAXS and SANS facilities Clement Blanchet 16

X-ray sources

  • Lab source (rotating anode, liquid jet)
slide-17
SLIDE 17

6/20/2016 SAXS and SANS facilities Clement Blanchet 17

slide-18
SLIDE 18

6/20/2016 SAXS and SANS facilities Clement Blanchet 18

Neutron

λ=h/mv

James Chadwick

slide-19
SLIDE 19

6/20/2016 SAXS and SANS facilities Clement Blanchet 19

Neutron production

  • Nuclear reaction
slide-20
SLIDE 20

6/20/2016 SAXS and SANS facilities Clement Blanchet 20

Neutron production

  • Spallation source

– Accelerated protons hit a heavy metal target.

slide-21
SLIDE 21

6/20/2016 SAXS and SANS facilities Clement Blanchet 21

Neutrons Facilities

slide-22
SLIDE 22

6/20/2016 SAXS and SANS facilities Clement Blanchet 22

SAXS and SANS Instruments

slide-23
SLIDE 23

6/20/2016 SAXS and SANS facilities Clement Blanchet 23

Optics

Polychromatic divergent beam from the source Monochromatic focused (parallel) beam for SAS

slide-24
SLIDE 24

6/20/2016 SAXS and SANS facilities Clement Blanchet 24

Monochromatic X-ray

  • Bragg diffraction on a crystal

nλ = 2dsinθ

slide-25
SLIDE 25

6/20/2016 SAXS and SANS facilities Clement Blanchet 25

Monochromator

  • Before
  • Polychromatic
  • After
  • One wavelength + harmonics
slide-26
SLIDE 26

6/20/2016 SAXS and SANS facilities Clement Blanchet 26

Focusing/low divergence

  • Small beam at the detector position
  • Small beam at the sample position

2θ 2θ

slide-27
SLIDE 27

6/20/2016 SAXS and SANS facilities Clement Blanchet 27

Focusing X-ray

  • Compound refractive lenses
  • X-ray mirrors
slide-28
SLIDE 28

6/20/2016 SAXS and SANS facilities Clement Blanchet 28

Focusing X-ray

  • Focussing mirror
  • Reflectivity

Energy [eV]

10000

Transmission

0,0 0,2 0,4 0,6 0,8 1,0

0.15 Degree 0.25 Degree 1 Degree

slide-29
SLIDE 29

6/20/2016 SAXS and SANS facilities Clement Blanchet 29

Focussing mirror – harmonics filter

Monochromatic, focused x-ray beam

slide-30
SLIDE 30

6/20/2016 SAXS and SANS facilities Clement Blanchet 30

Monochromatic neutrons

  • De Broglie equation: λ=h/mv

The wavelength of a neutron is related to its velocity.

  • Velocity selector

∆λ/λ=5-10%

  • For pulsed source, TOF
slide-31
SLIDE 31

6/20/2016 SAXS and SANS facilities Clement Blanchet 31

Collimation neutrons

  • The collimator is used to obtain a parallel

beam

slide-32
SLIDE 32

Get rid of parasitic scattering: slits

Beam defining slits Guard or anti-scatter slits

slide-33
SLIDE 33

Hybrid slits

  • Idea: use a crystal for the tip of the blade:

 no scattering but diffraction

6/20/2016 SAXS and SANS facilities Clement Blanchet 33

slide-34
SLIDE 34

Hybrid slits

  • On the P12 beamline

6/20/2016 SAXS and SANS facilities Clement Blanchet 34

slide-35
SLIDE 35

6/20/2016 SAXS and SANS facilities Clement Blanchet 35

Sample environment

slide-36
SLIDE 36

6/20/2016 SAXS and SANS facilities Clement Blanchet 36

Flight tube

slide-37
SLIDE 37

6/20/2016 SAXS and SANS facilities Clement Blanchet 37

Beamstop

  • Prevent the direct beam from hitting the

detector

– Big enough to stop the direct beam – Small enough to collect the small angle

  • Measure transmitted beam
slide-38
SLIDE 38

6/20/2016 SAXS and SANS facilities Clement Blanchet 38

Active Beamstop

  • SAXS images needs to be accurately

scaled to allow for proper buffer subtraction and extraction of the solute SAXS pattern

slide-39
SLIDE 39

6/20/2016 SAXS and SANS facilities Clement Blanchet 39

Detectors

slide-40
SLIDE 40

6/20/2016 SAXS and SANS facilities Clement Blanchet 40

CCD detector

slide-41
SLIDE 41

6/20/2016 SAXS and SANS facilities Clement Blanchet 41

slide-42
SLIDE 42

6/20/2016 SAXS and SANS facilities Clement Blanchet 42

Single photon counting detector principle

slide-43
SLIDE 43

6/20/2016 SAXS and SANS facilities Clement Blanchet 43

Single photon counting detector Pilatus

– High dynamic range – No background noise – (relatively) Fast framing

 Ideal for SAXS

slide-44
SLIDE 44

6/20/2016 SAXS and SANS facilities Clement Blanchet 44

Neutron detection

  • He3 detector:

n + 3He → 3H + 1H + 0.764 MeV

slide-45
SLIDE 45

6/20/2016 SAXS and SANS facilities Clement Blanchet 45

Sample environment

slide-46
SLIDE 46

6/20/2016 SAXS and SANS facilities Clement Blanchet 46

Samples

Metal alloys Nanomagnetic materials Sufactants Polymers Tissues Bio-macromolecules in solution

SAS applicable to many type of samples.

slide-47
SLIDE 47

6/20/2016 SAXS and SANS facilities Clement Blanchet 47 Rapid mixing device Heating stages Magnetic field system Sample changers

Sample environment

Example ID02 (ESRF) multipurpose beamline

slide-48
SLIDE 48

6/20/2016 SAXS and SANS facilities Clement Blanchet 48

Sample environment

  • Bio-macromolecules in solution are weakly

scattering sample.

  • For biological macromolecules in solution:

– fragile – Preferably in vacuum – Thermostated

slide-49
SLIDE 49

6/20/2016 SAXS and SANS facilities Clement Blanchet 49

Sample cell

  • Cell material: low absorption and scattering

– Mica, quartz, polycarbonate

  • Sample thickness (t): compromise between

scattering and absorption

– Scattering α t – absorption α exp(-ut)

  • For neutron, cell are rather thin (<1mm to avoid

multiple scattering

slide-50
SLIDE 50

Solution SAXS

6/20/2016 SAXS and SANS facilities Clement Blanchet 50

10 years ago: Manual sample loading

  • Buffer and sample should be

measured in the same cell

  • Difficult to implement in vacuum
  • 10-15 minutes per measurement
  • High sample consumption
  • Non-optimized cleaning procedure
  • Tedious, energy and attention

consuming

slide-51
SLIDE 51

SAXS sample changer @EMBL Hamburg

6/20/2016 SAXS and SANS facilities Clement Blanchet 51

slide-52
SLIDE 52

SAXS sample changer

6/20/2016 SAXS and SANS facilities Clement Blanchet 52

slide-53
SLIDE 53

Sample changer performances

  • Large storage capacity
  • Full cycle time (loading, exposure,

flushing, cleaning, drying) ≈ 1 min

  • Volume 5-20 microliter
  • Very efficient cleaning
  • Flow measurement

6/20/2016 SAXS and SANS facilities Clement Blanchet 53

slide-54
SLIDE 54

6/20/2016 SAXS and SANS facilities Clement Blanchet 54

Online size exclusion column

slide-55
SLIDE 55

6/20/2016 SAXS and SANS facilities Clement Blanchet 55

SEC + SAXS

Defined buffer region

slide-56
SLIDE 56

6/20/2016 SAXS and SANS facilities Clement Blanchet 56

Experimental practice

slide-57
SLIDE 57

6/20/2016 SAXS and SANS facilities Clement Blanchet 57

Buffer subtraction

slide-58
SLIDE 58

6/20/2016 SAXS and SANS facilities Clement Blanchet 58

Buffer subtraction

  • Biological sample scatters very weakly,

SAXS curves collected on the buffer should be carefully subtracted

– Exactly matching buffer (dialysis, elution buffer) – Sample and buffer measured in the same cell

slide-59
SLIDE 59

6/20/2016 SAXS and SANS facilities Clement Blanchet 59

Monodispersity

  • SAS is very sensible to aggregation, the

sample should be monodisperse

slide-60
SLIDE 60

6/20/2016 SAXS and SANS facilities Clement Blanchet 60

Monodispersity

  • Check the monodispersity of your sample

before coming to the beamline.

(native gel, dynamic light scattering, ultracentrifugation,…)

  • Use online chromatography
slide-61
SLIDE 61

6/20/2016 SAXS and SANS facilities Clement Blanchet 61

Inter-particle interactions

slide-62
SLIDE 62

6/20/2016 SAXS and SANS facilities Clement Blanchet 62

Inter-particle interactions

  • Change solution (pH, salt concentration) to

limit interactions

  • Measure different concentrations and

extrapolate

slide-63
SLIDE 63

6/20/2016 SAXS and SANS facilities Clement Blanchet 63

Measure also water and/or standard protein…

  • … to estimate the molecular mass of your

sample using the forward scattering

– For data on an absolute scale (water measurement)

  • M=I(0)*NA/(C*ν∗∆ρ)

– Using a protein standard

  • M=MBSA*I(0)/IBSA(0)
slide-64
SLIDE 64

6/20/2016 SAXS and SANS facilities Clement Blanchet 64

X-rays - Radiation damage!!!

  • With intense synchrotron beam: radiation

damage:

  • Monitor radiation damage: collect several

frames and compare them.

  • Limit the radiation damage

H2O OH· Free radicals: oxidize proteins which leads to their aggregation H ·

slide-65
SLIDE 65

6/20/2016 SAXS and SANS facilities Clement Blanchet 65

X-rays - Radiation damage!!!

Flow measurement Beam attenuation Use of additives Rnase – Static measurement

slide-66
SLIDE 66

6/20/2016 SAXS and SANS facilities Clement Blanchet 66

Contrast in neutron

  • Neutrons interact with the nucleus of

atoms

  • Each atoms has its own scattering length:

H D C N O P S

  • .3742

0.6671 0.6651 0.940 0.5804 0.517 0.2847

slide-67
SLIDE 67

6/20/2016 SAXS and SANS facilities Clement Blanchet 67

slide-68
SLIDE 68

6/20/2016 SAXS and SANS facilities Clement Blanchet 68

Labeling

  • Protein and nucleic acids have different

scattering length densities and the different components can readily be studied by SANS

  • To study protein-protein complex, one of the

components needs to be deuterated (hydrogen exchanged with deuterium) to changed its scattering length density

  • A deuterated protein is obtained by producing

the protein in a deuterated medium.

slide-69
SLIDE 69

6/20/2016 SAXS and SANS facilities Clement Blanchet 69

Neutrong collection strategy

  • Solvent matching

– Find the solvent composition that match the contrast of the component you want to hide – Measure the sample in this solvent

  • Contrast variation

– Measure the sample in solvent with different D/H ratio, different scattering length. – Using Stuhrmann analysis you can access the curves of the different components.

slide-70
SLIDE 70

6/20/2016 SAXS and SANS facilities Clement Blanchet 70

Summary: SAS sample

  • Protein concentration: 0.1-10 mg/ml
  • Volume: 5-50 microliter (SAXS), 200-300

microliter (SANS)

  • Time:
  • lab source: 5-60 min
  • Synchrotron: seconds
  • Neutrons: 30 minutes - hours
slide-71
SLIDE 71

6/20/2016 SAXS and SANS facilities Clement Blanchet 71

Summary: SAS sample

  • Pure and monodisperse sample
  • Exactly matching buffer
  • Measure concentration series
  • For SAXS:

– Be aware of radiation damage

  • For SANS:

– Carefully design your experiment, think of your collection strategy.

slide-72
SLIDE 72

Conclusion

  • To optimally use your beamtime: carefully plan your

experiment, prepare your sample and characterize them before coming to the beamline

  • SAXS is now widely used. Dedicated instruments with

low background and high level of automation, high quality lab instruments.

  • SANS more difficult: consume more time and sample,

requires good planning of your experiments and collection strategy, but can provides unique information.

6/20/2016 SAXS and SANS facilities Clement Blanchet 72
