Joint use of SAXS and crystallography Rob Meijers EMBL Hamburg Outstation SAXS EMBO Course EMBL Hamburg 2018 Stories of SAXS and MX Following lipid mediated protein complex formation SAXS as the arbiter for cell surface receptor

slide-1
SLIDE 1

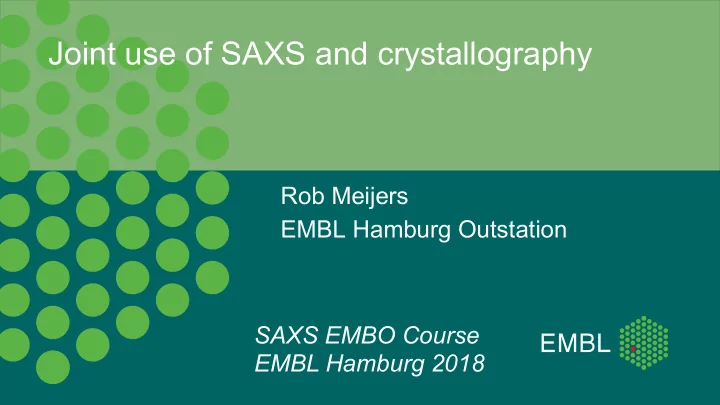

Joint use of SAXS and crystallography

Rob Meijers EMBL Hamburg Outstation SAXS EMBO Course EMBL Hamburg 2018

slide-2
SLIDE 2

Stories of SAXS and MX

  • Following lipid mediated protein

complex formation

  • SAXS as the arbiter for cell surface

receptor dimerization

  • A disordered guidance cue

23/11/18 2

Haydyn Mertens

slide-3
SLIDE 3

Crystal structure 1:1 SAXS

  • SAXS user1: unfolded
  • SAXS user2: globular

dimer

  • Call from above: a rod

24/11/18 3

slide-4
SLIDE 4

Example1: The crystal structure just doesn’t fit

24/11/18 4

slide-5
SLIDE 5

Endolysins

24/11/18 5

  • Cd27l & CS74L: N-acetylmuramoyl-L-alanine amidase
  • Ctp1l: Glycosyl hydrolase (lysozyme)
slide-6
SLIDE 6

Crystal structure is confusing

24/11/18 6

slide-7
SLIDE 7

So what does the mix consist of??

24/11/18 7

slide-8
SLIDE 8

SAXS + mutagenesis clears up oligomeric state

  • Wild-type CD27L does

not fit a dimer, nor a tetramer (SASDAL5)

  • But C238R mutant fits

a dimer (SASDAM5)

24/11/18 8

slide-9
SLIDE 9

C238R is a pure dimer

  • OLIGOMER confirms

difference in states between wild-type and C238R

24/11/18 9

slide-10
SLIDE 10

A Shine-Dalgarno sequence

CTP1L/CS74L CD27L

Dunne et al. (2016) JBC 291(10):4882-93

slide-11
SLIDE 11

24/11/18 11

An internal translation site

Lys-Gly

AAG GGG

Val

GTG

slide-12
SLIDE 12

Titrating a weak complex

slide-13
SLIDE 13

The dark side of DCC

23/11/18 13

Mehlen et al, Nature Reviews in Cancer 2011, 11, 188

slide-14
SLIDE 14

Structure of netrin/DCC fragment

23/11/18 14

Finci et al (2014) Neuron 83, 839

slide-15
SLIDE 15

Using SAXS to study binding kinetics

  • Mix different

stochiometries of Netrin: DCC56

  • Use OLIGOMER to

calculate summation

  • f free,1:1 and 1:2

complexes

  • SASDBD entry

SASDA76

23/11/18 15

slide-16
SLIDE 16

Site 1 DCC mutant behaves differently

23/11/18 16

DCC Cluster DCC M933R

slide-17
SLIDE 17

Analyzing a partially folded protein

slide-18
SLIDE 18

Draxin binds to DCC receptor

  • Deleted in colorectal

cancer

  • Netrin & draxin binding

to different regions

18

Axon -1 Netrin Draxin SP DCC Netrin Draxin axin

slide-19
SLIDE 19

Draxin is partially unfolded

Draxin-C Draxin-22

Liu et al. Neuron 2018

slide-20
SLIDE 20

The "unfolded-ness" or "random coil" likeness of a biological macromolecule can be qualitatively assessed by means of a Kratky plot. The small angle X-ray scattering (SAXS) data of human full length Draxin clearly show the protein is partially unfolded in solution.

slide-21
SLIDE 21

EOM ¡shows ¡another ¡aspect ¡

  • Wide ¡distribu5on ¡of ¡Rg ¡
slide-22
SLIDE 22

Two adaptor proteins that can only form a complex when PIP2 lipid is present

23/11/18 22

slide-23
SLIDE 23

Clathrin-mediated Receptor endocytosis

Credit: Journal of Cell Science

slide-24
SLIDE 24

Clathrin-mediated endocytosis

Lauwers et al. (2016) Neuron 90, 11

slide-25
SLIDE 25

Phosphorylation rules adaptor protein binding

Schill & Anderson Biochem. J. 2009 418, 247-260

slide-26
SLIDE 26

Two adaptor proteins that work as connectors

  • Adaptor proteins connect

clathrin to cell membrane

  • Ent1 and Sla2 connect cell

membrane to actin cytoskeleton

  • Some ANTH connect to

AP2 (which binds cargo)

Wood & Royle Dev Cell 2015

slide-27
SLIDE 27

Different assemblies between Human and fungal CME

Merrifield & Kaksonen (2014), CSH Perspec. Biol. 6:a016733

slide-28
SLIDE 28

Mechanisms for curving the membane

Merrifield & Kaksonen (2014), CSH Perspec. Biol. 6:a016733

slide-29
SLIDE 29

ENTH and ANTH bind through PIP2

24/11/18 29

Skruzny et al. Developmental Cell, 2015

ENTH ANTH PIP2

slide-30
SLIDE 30

Human epsin oligomers observed with EPR

Yoon et al. (2010) JBC 285, 531

slide-31
SLIDE 31

ITC shows a 1:1 complex for ENTH:ANTH

Skruzny et al. Developmental Cell, 2015

slide-32
SLIDE 32

EM shows large GUV vesicles with ENTH and ANTH embedded

Skruzny et al. Developmental Cell, 2015

slide-33
SLIDE 33

Fitting the complex in the blobs

Skruzny et al. Developmental Cell, 2015

slide-34
SLIDE 34

Let’s look at the assembly of the complex

slide-35
SLIDE 35

yENTH2 forms a PIP2-associated dimer

slide-36
SLIDE 36

Compared to IP3- structure, N-terminal helix is oriented differently

  • IP3 lacks the aliphatic

tail

  • We cannot see the tail

either except for the 1st carbon

  • Orientation of lipid is

different also

slide-37
SLIDE 37

This makes space for a second ENTH module to bind

slide-38
SLIDE 38

Ready to form larger oligomers

slide-39
SLIDE 39

Mass spectrometry

  • MS/MS + Ion mobility :
  • Detailed folding state
  • Protein-protein

interactions

  • Whole protein size…

Courtesy Waters

slide-40
SLIDE 40

Native mass spec used to look at stoichiometry

slide-41
SLIDE 41

yENTH/PIP2 needs Sla2 to form larger complex

slide-42
SLIDE 42

yENTH/Sla2/PIP2 complex matures in 3 minutes

slide-43
SLIDE 43

But human assembly is different

ENTH hexamer alone

slide-44
SLIDE 44

How does human epsin/PIP2 look like?

slide-45
SLIDE 45

Small angle X-ray scattering on human ENTH1

  • Created “filled” dimer
  • f yENTH2
  • Used 3 copies to fill

hexamer

  • Applied P3 symmetry
slide-46
SLIDE 46

SAXS dummy model vs construct

slide-47
SLIDE 47

And the structure, in solution?

Side view Membrane view

slide-48
SLIDE 48

Model for epsin/Sla2 assembly in yeast

slide-49
SLIDE 49

Model for epsin/Hip1R assembly in human

slide-50
SLIDE 50

Mechanisms for curving the membane

Merrifield & Kaksonen (2014), CSH Perspec. Biol. 6:a016733

slide-51
SLIDE 51

You can mix epsins, complex still forms

  • Mixing ENTH1 and

ENTH2 gives complex with 4 ENTH1 and 4 ENTH2 molecules

  • Despite 73 %

sequence identity

slide-52
SLIDE 52

You can mix species, complex still forms…

cENTH/ySLA2 hENTH/ySla2 or hENTH/ cSla2 ySLA2 cSLA2

slide-53
SLIDE 53

Stochastic assembly of adaptors

  • PIP2-driven
  • ligomerization
  • Adaptor recruitment
  • Is stochastic
  • Depends on available

adaptors

slide-54
SLIDE 54

Acknowledgements
