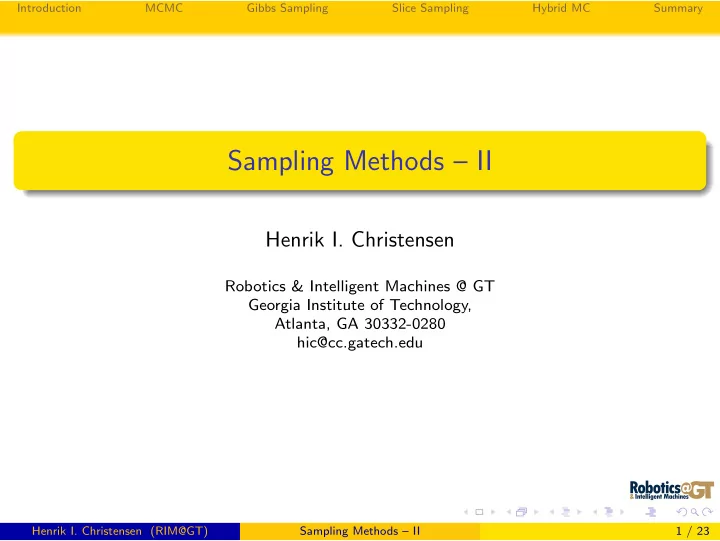

Sampling Methods – II

Henrik I. Christensen

Robotics & Intelligent Machines @ GT Georgia Institute of Technology, Atlanta, GA 30332-0280 hic@cc.gatech.edu

Henrik I. Christensen (RIM@GT) Sampling Methods – II 1 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Outline

1

Introduction

2

Markov Chain Monte Carlo

3

Gibbs Sampling

4

Slice Sampling

5

Hybrid Monte-Carlo

6

Summary

Henrik I. Christensen (RIM@GT) Sampling Methods – II 2 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Introduction

Last time we talked about sampling methods Generation of distribution estimates based on sampling of the input space Discussed rejection and importance sampling A problem is typically rejection rates and generalization to higher dimensionality spaces Today discussion of methods that generalizes to higher dimensional spaces.

Henrik I. Christensen (RIM@GT) Sampling Methods – II 3 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Outline

1

Introduction

2

Markov Chain Monte Carlo

3

Gibbs Sampling

4

Slice Sampling

5

Hybrid Monte-Carlo

6

Summary

Henrik I. Christensen (RIM@GT) Sampling Methods – II 4 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Markov Chain Monte Carlo

We will sample a proposed distribution We will maintain a record of samples - z(τ) and the proposal distribution q(z|z(τ)) Assume we have p(z)/˜ p(z)/Zp Assume we can evaluate ˜ p(z) Generate a candidate sample z∗ and accept if a criteria is satisfied.

Henrik I. Christensen (RIM@GT) Sampling Methods – II 5 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Metropolis Algorithm

Assume q(zA|zB) = q(zB|zA) Acceptance criteria is then A(z∗, z(τ)) = min

• 1, ˜

p(z∗) ˜ p(z(τ))

• Generate a random number - u ∈ (0, 1)

Update z(τ+1) = z∗ if A(z∗, z(τ)) > u z(τ)

• therwise
• Ie. if a new update is better than the old one use it or stick to the

earlier estimate The basic Monte Carlo is a limited random walk and as such not over efficient

Henrik I. Christensen (RIM@GT) Sampling Methods – II 6 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Markov Chains

Assume we have a series of random variables - z(1), z(2), z(3), ..., z(M) First order Markov Chain is defined by conditional independence p(z(m+1)|z(1), z(2), ..., z(m)) = p(z(m+1)|z(m)) The marginal probability is then given by the transition probabilities and the initial prior p(z(m+1)) =

• z(m)

p(zm+1|z(m))p(z(m))

Henrik I. Christensen (RIM@GT) Sampling Methods – II 7 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Markov Chain Properties

A MC is called homogeneous when all p(.|.) are the same A distribution is invariant/stationary if the distribution remains invariant i.e. p∗(z) =

• z′

p(z|z′)p∗(z′) A condition for ensuring invariance is that the transition probabilities are detail balanced: p∗(z)p(z′|z) = p∗(z′)p(z|z′) We require that the desired distribution is invariant and converges to this distribution as m → ∞ The property is called ergodicity and the final distribution is termed the equilibrium

Henrik I. Christensen (RIM@GT) Sampling Methods – II 8 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Outline

1

Introduction

2

Markov Chain Monte Carlo

3

Gibbs Sampling

4

Slice Sampling

5

Hybrid Monte-Carlo

6

Summary

Henrik I. Christensen (RIM@GT) Sampling Methods – II 9 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Gibbs Sampling

Gibbs Sampling a widely applicable MCMC algorithm Consider a distribution p(z) = p(z1, z2, ..., zM) In each step one of the variables is optimized conditioned on the

• ther variables.

Example - Consider p(z1, z2, z3) Optimized by consideration /sampling of p(z1|z(τ)

2 , z(τ) 3 )

p(z2|z(τ)

1 , z(τ) 3 )

p(z3|z(τ)

1 , z(τ) 2 )

Continue until convergence

Henrik I. Christensen (RIM@GT) Sampling Methods – II 10 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Gibbs Example

z1 z2 L l

Henrik I. Christensen (RIM@GT) Sampling Methods – II 11 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Gibbs Sampling in Graphical Models

Initialize variables in parent tree and traverse tree/graph

Henrik I. Christensen (RIM@GT) Sampling Methods – II 12 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Outline

1

Introduction

2

Markov Chain Monte Carlo

3

Gibbs Sampling

4

Slice Sampling

5

Hybrid Monte-Carlo

6

Summary

Henrik I. Christensen (RIM@GT) Sampling Methods – II 13 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Slice Sampling

Metropolis is sensitive to sampling step size Slice sampling combines sampling to explore step size.

• p(z)

z(τ) z u (a)

• p(z)

z(τ) z u zmin zmax (b)

Henrik I. Christensen (RIM@GT) Sampling Methods – II 14 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Outline

1

Introduction

2

Markov Chain Monte Carlo

3

Gibbs Sampling

4

Slice Sampling

5

Hybrid Monte-Carlo

6

Summary

Henrik I. Christensen (RIM@GT) Sampling Methods – II 15 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Hybrid Monte-Carlo

The Metropolis algorithm has step size issues Introduction of a method with adaptive step size and low reject rates Adoption of a dynamic systems approach to optimization

Henrik I. Christensen (RIM@GT) Sampling Methods – II 16 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Dynamical Systems

In physics the Hamiltonian expresses the total energy of a system If we consider a particle in motion we have momentum described as r = dz dτ We describe the space of derivative/state as the phase space We can rewrite the probability as p(z) = 1/Zp exp(−E(z)) Acceleration / rate of change is defined as dr dτ = −∂E(z) ∂z Kinetic energy is k(r) = 1/2||r||2

Henrik I. Christensen (RIM@GT) Sampling Methods – II 17 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Hamiltonian model

The Hamiltonian is then H(z, r) = E(z) + K(r) The coupled systems is then dzi dτ = ∂H ∂ri dri dτ = −∂H ∂zi

Henrik I. Christensen (RIM@GT) Sampling Methods – II 18 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Hamiltonian model

The Hamiltonian is constant energy but can trade-off z and r We can control the motion of the dynamic system. As an example r could be drawn as a sample from p(z). In reality this is parallel to Newton - Rapson optimization where gradient information is used to control step size.

Henrik I. Christensen (RIM@GT) Sampling Methods – II 19 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Leapfrog Discritization

Discretization - alternative variables ri(τ + ǫ/2) = ri(τ) − ǫ 2 ∂E ∂zi (z(τ)) zi(τ + ǫ) = zi(τ) + ǫrI(τ + ǫ/2) ri(τ + ǫ) = ri(τ + ǫ/2) − ǫ 2 ∂E ∂zi (z(τ + ǫ))

Henrik I. Christensen (RIM@GT) Sampling Methods – II 20 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Hybrid Monte-Carlo

Consider a state (z, r) and a updated state of (z∗, r∗) We could then accept the candidate when min(1, exp(H(z, r) − H(z∗, r∗))) Given the hamiltonian is supposed to be constant a strategy is to make a ’random’ change before the leapfrog integration and then consider the update.

Henrik I. Christensen (RIM@GT) Sampling Methods – II 21 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Outline

1

Introduction

2

Markov Chain Monte Carlo

3

Gibbs Sampling

4

Slice Sampling

5

Hybrid Monte-Carlo

6

Summary

Henrik I. Christensen (RIM@GT) Sampling Methods – II 22 / 23

Introduction MCMC Gibbs Sampling Slice Sampling Hybrid MC Summary

Summary

MCMC is about tracking of state during sampling How can we use current estimates to update variables as iterative updating Consideration of strategies to update

Metropolis - basic random walk Slicing - a way to update step sizes Gibbs Sampling - stepwise updating Hybrid MCMC - a way to integrate gradient information

Henrik I. Christensen (RIM@GT) Sampling Methods – II 23 / 23
