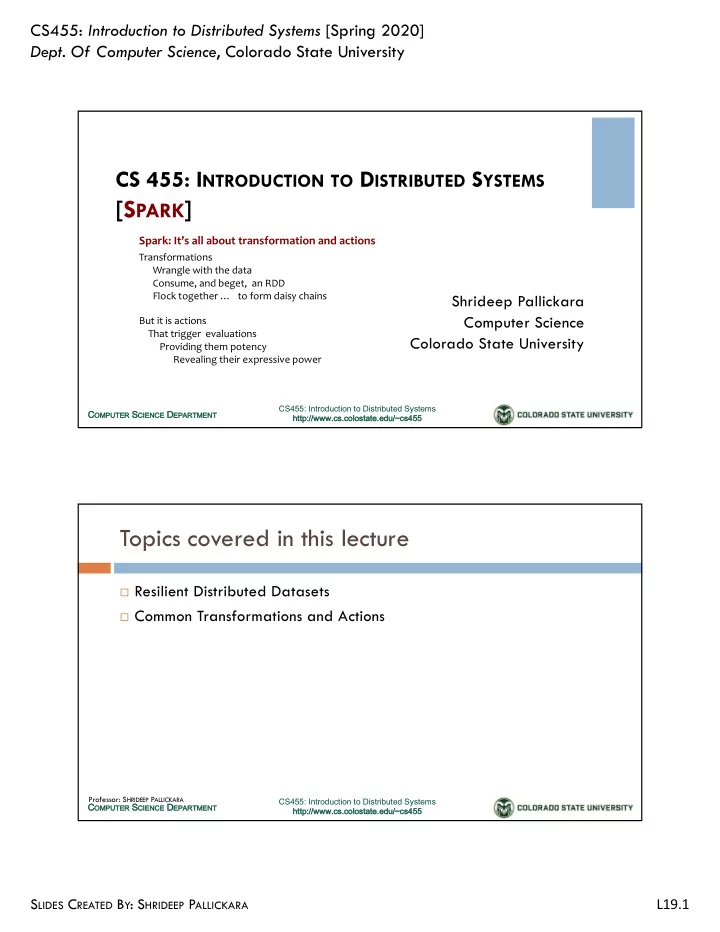

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University CS 455: I NTRODUCTION TO D ISTRIBUTED S YSTEMS [S PARK ] Spark: It’s all about transformation and actions Transformations Wrangle with the data Consume, and beget, an RDD Flock together … to form daisy chains Shrideep Pallickara Computer Science But it is actions That trigger evaluations Colorado State University Providing them potency Revealing their expressive power CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 Topics covered in this lecture ¨ Resilient Distributed Datasets ¨ Common Transformations and Actions Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.1 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University R ESILIENT D ISTRIBUTED D ATASET [RDD] CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 Resilient Distributed Dataset (RDD) ¨ RDD is an immutable distributed collection of objects ¨ Each RDD is split into multiple partitions ¤ Maybe computed on different nodes in the cluster ¨ Can contain any type of Java, Scala, or Python objects ¤ Including user-defined classes Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.2 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University Creation of RDDs ① Loading an external dataset ② Distributing a collection of objects via the driver program >>> lines = sc.textFile(“README.md”) Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 Once created, RDDs offer two types of operations ¨ Transformations ¤ Construct a new RDD from a previous one ¤ E.g.: Filtering data that matches a predicate ¨ Actions ¤ Compute a result based on an RDD ¤ Return result to the driver program or save it in external storage system (HDFS) Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.3 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University Some more about RDDs ¨ Although you can define new RDDs anytime ¤ Spark computes them in a lazy fashion ¤ When? n The first time they are used in an action ¨ Loading lazily allows transformations to be performed before the action Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 Lazy loading allows Spark to see the whole chain of transformations ¨ Allows it to compute just the data needed for the result ¨ Example: lines = sc.textFile(“README.md”) pythonLines= lines.filter(lambda line: “Python” in line) ¨ If Spark were to load and store all lines in the file, as soon as we wrote lines=sc.textFile() ? ¤ Would waste a lot of storage space, since we immediately filter out a lot of lines Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.4 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University RDD and actions ¨ RDDs are recomputed (by default) every time you run an action on them ¨ If you wanted to reuse an RDD? ¤ Ask Spark to persist it using RDD.persist() ¤ After computing it the first time, Spark will store RDD contents in memory ( partitioned across cluster machines) ¤ Persisted RDD is used in future actions Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 RDDs: memory residency and immutability implications ¨ Spark can keep an RDD loaded in-memory on the executor nodes throughout the life of a Spark application for faster access in repeated computations ¨ RDDs are immutable, so transforming an RDD returns a new RDD rather than the existing one ¨ Cross-cutting implications? ¤ Lazy evaluation, in-memory storage, and immutability allows Spark to be easy-to-use, fault-tolerant, scalable, and efficient Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.5 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University Every Spark program and shell works as follows ① Create some input RDD from external data ② Transform them to define new RDDs using transformations like filter() ③ Ask Spark to persist() any intermediate RDDs that needs to be reused ④ Launch actions such as count() , etc. to kickoff a parallel computation ¤ Computing is optimized and executed by Spark Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 A C LOSER LOOK AT RDD O PERATIONS CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.6 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University RDDs support two types of operations ¨ Transformations ¤ Operations that return a new RDD . E.g.: filter() ¨ Actions ¤ Operations that return a result to the driver program or write to storage ¤ Kicks of a computation. E.g.: count() ¨ Distinguishing aspect? ¤ Transformations return RDDs ¤ Actions return some other data type Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 Transformations ¨ Many transformations are element-wise ¤ Work on only one element at a time ¨ Some transformations are not element-wise ¤ E.g.: We have a logfile, log.text , with several messages, but we only want to select error messages inputRDD = sc.textFile(“log.txt”) errorsRDD = inputRDD.filter(lambda x:”error” in x) Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.7 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University In our previous example … ¨ filter does not mutate inputRDD ¤ Returns a pointer to an entirely new RDD ¤ inputRDD can still be reused later in the program ¨ We could use inputRDD to search for lines with the word “warning” ¤ While we are at it, we will use another transformation, union() , to print number of lines that contained either errorsRDD = inputRDD.filter(lambda x: “error” in x) warningsRDD = inputRDD.filter(lambda x: “warning” in x) badlinesRDD = errorsRDD.union(warningsRDD) Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT http: ht p://www.cs. cs.co colost state.edu/~cs4 cs455 In our previous example ¨ Note how union() is different from filter() ¤ Operates on 2 RDDs instead of one ¨ Transformations can actually operate on any number of RDDs Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.8 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA

CS455: Introduction to Distributed Systems [Spring 2020] Dept. Of Computer Science , Colorado State University RDD Lineage graphs ¨ As new RDDs are derived from each other using transformations, Spark tracks dependencies ¤ Lineage graph ¨ Uses lineage graph to ¤ Compute each RDD on demand ¤ Recover lost data if part of persistent RDD is lost Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 RDD lineage graph for our example inputRDD filter filter errorsRDD warningsRDD union badLinesRDD Professor: S HRIDEEP P ALLICKARA CS455: Introduction to Distributed Systems C OM TER S CI NCE D EPAR OMPUTE CIENCE EPARTMEN ENT ht http: p://www.cs. cs.co colost state.edu/~cs4 cs455 L19.9 S LIDES C REATED B Y : S HRIDEEP P ALLICKARA
