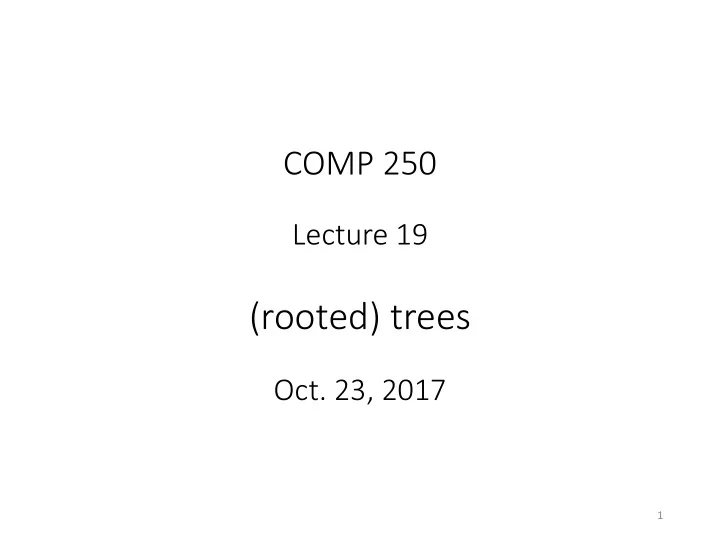

COMP 250
Lecture 19
(rooted) trees
- Oct. 23, 2017
Linear Data Structures
Non-Linear Data Structures
linked list array tree graph
2
(rooted) trees Oct. 23, 2017 1 Linear Data Structures linked list - - PowerPoint PPT Presentation
(rooted) trees Oct. 23, 2017 1 Linear Data Structures linked list - - PowerPoint PPT Presentation
COMP 250 Lecture 19 (rooted) trees Oct. 23, 2017 1 Linear Data Structures linked list array Non-Linear Data Structures tree graph 2 Tree Example: Organization Hierarchy (McGill) 3
SLIDE 2
SLIDE 3
Tree Example: Organization Hierarchy (McGill)
3
SLIDE 4
person Child 1 Child 2 Child 3
Family Tree (descendents)
Here I ignore spouses (partner).
4
SLIDE 5
person mom dad mom’s mom mom’s dad
Family Tree (ancestors)
dad’s mom dad’s dad
This is an example of a binary tree.
5
SLIDE 6
Tree: UNIX file system
6
SLIDE 7
Tree: Java Classes e.g. GUI
7
SLIDE 8
root
Tree Terminology
node, vertex
8
A directed edge is ordered pair: (from, to)
SLIDE 9
root
parent child
9
Every node except the root is a child, and has exactly one parent.
SLIDE 10
10
For some trees,
- edges are from parent to child
- edges are from child to parent
- edges are both from parent to child and child to
parent.
- edge direction is ignored e.g. common with non-
rooted trees (see final slide of today)
SLIDE 11
11
For some trees,
- edges are from parent to child
- edges are from child to parent
- edges are both from parent to child and child to
parent.
- edge direction is ignored e.g. common with non-
rooted trees (see final slide of today)
Most of definitions today will assume edges are from parent to child.
SLIDE 12
Q: If a tree has N nodes, how many edges does it have ?
12
SLIDE 13
Q: If a tree has N nodes, how many edges does it have ? A: N-1 Since every edge is of the form (parent, child), and each node except the root is a child and each child has exactly one parent.
13
SLIDE 14
parent siblings
14
Two nodes are siblings if they have the same parent.
SLIDE 15
Recursive definition of rooted tree…
15
SLIDE 16
Recursive definition of rooted tree
16
A tree T is a finite (& possibly empty) set of 𝑜 nodes such that:
- if 𝑜 > 0 then one of the nodes is the
root r
- if 𝑜 > 1 then the 𝑜 − 1 non-root
nodes are partitioned into (non- empty) subsets T1, T2, …, Tk, each
- f which is a tree (called a subtree”),
and the roots of the subtrees are the children of root r.
This definition does NOT assume edges are from parent to child.
SLIDE 17
internal nodes (e.g. file directories) external nodes, leaves
(e.g. files)
17
SLIDE 18
A path in a tree is a sequence of nodes (𝑤1, 𝑤2,…, 𝑤𝑙) such that (𝑤𝑗, 𝑤𝑗+1 ) is an edge. The length of a path is the number of edges in the path (number of nodes – 1)
18
SLIDE 19
A path with just
- ne node (𝑤1)
has length = 0, since it has no edges.
19
SLIDE 20
What is the path length? (2 or 3?)
20
SLIDE 21
ancestor descendent
21
Node v is an ancestor of node w if there is a path from v to w. Node w is a descendent of node v.
SLIDE 22
root
depth (level) 1 2 3 4 The depth or level of a node is the length of the path from the root to the node.
22
SLIDE 23
depth (level) 1 2 3 4
How to compute depth(v) ?
23
SLIDE 24
24
depth( v ){ if ( v.parent == null) //root return 0 else return 1 + depth( v.parent ) }
This requires parent links. This is analogous to a ‘prev’ link in a doubly linked list.
SLIDE 25
?
1 3 1 1 2 1
The height of a node is the maximum length of a path from that node to a leaf.
25
SLIDE 26
2
1 3 1
? 1
0? 2 1
The height of a node is the maximum length of a path from that node to a leaf.
26
SLIDE 27
? 2
1 3 1
11
00 2 1
The height of a node is the maximum length of a path from that node to a leaf.
27
SLIDE 28
4
2 1 3 1 1 2 1
How to compute height(v) ?
28
SLIDE 29
height(v){ if (v is a leaf) return 0 else{ h = 0 for each child w of v h = max(h, height(w)) return 1 + h } }
4
2 1 3 1 1 2 1
29
SLIDE 30
How to implement a tree ?
class TreeNode<T>{ T element; }
30
SLIDE 31
How to implement a tree ?
class TreeNode<T>{ T element; ArrayList< TreeNode<T> > children; TreeNode<T> parent; }
31
SLIDE 32
Another common implementation: ‘first child, next sibling’
32
SLIDE 33
More common implementation: ‘first child, next sibling’ (similar to singly linked lists)
class Tree<T>{ TreeNode<T> root; : // inner class class TreeNode<T>{ T element; TreeNode<T> firstChild; TreeNode<T> nextSibling; : } }
33
SLIDE 34
More common implementation: ‘first child, next sibling’ (similar to singly linked lists)
34
class Tree<T>{ TreeNode<T> root; : // inner class class TreeNode<T>{ T element; TreeNode<T> firstChild; TreeNode<T> nextSibling; TreeNode<T> parent; : } }
SLIDE 35
A tree of what? Each node has an element (not illustrated on right)
class Tree<T>{ TreeNode<T> root; : // inner class class TreeNode<T>{ T element; TreeNode<T> firstChild; TreeNode<T> nextSibling; : } }
35
SLIDE 36
Exercise
36
A tree can be represented using lists, as follows:
tree = root | ( root listOfSubTrees ) listOfSubTrees = tree | tree listOfSubTrees
SLIDE 37
Exercise
37
A tree can be represented using lists, as follows:
tree = root | ( root listOfSubTrees ) listOfSubTrees = tree | tree listOfSubTrees Draw the tree that corresponds to the following list, where the root elements are single digits.
( 6 ( 2 1 7 ) 3 ( 4 5 ) ( 9 8 0 ) )
SLIDE 38
( 6 ( 2 1 7 ) 3 ( 4 5 ) ( 9 8 0 ) )
38
6
2 3 4 1 7 5 9 8
SLIDE 39
( 6 ( 2 1 7 ) 3 ( 4 5 ) ( 9 8 0 ) )
39
6
2 3 4 1 7 5 9 8
6
2 3 4 1 7 5 9 8
SLIDE 40
ASIDE: Non-rooted trees
40
6
2 3 4 1 7 5 9 8
6
2 3 4 1 7 5 9 8
