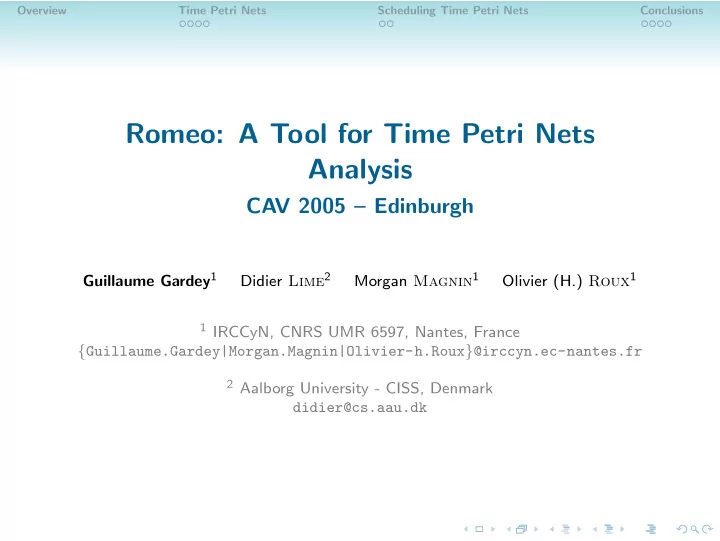

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Romeo: A Tool for Time Petri Nets Analysis

CAV 2005 – Edinburgh

Guillaume Gardey1 Didier Lime2 Morgan Magnin1 Olivier (H.) Roux1

1 IRCCyN, CNRS UMR 6597, Nantes, France

{Guillaume.Gardey|Morgan.Magnin|Olivier-h.Roux}@irccyn.ec-nantes.fr

2 Aalborg University - CISS, Denmark

didier@cs.aau.dk

slide-2
SLIDE 2

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Overview

Objectives

  • Specification of (preemptive) real-time systems
  • Analysis, model-checking

Models

  • Time Petri Nets
  • Scheduling Time Petri Nets
slide-3
SLIDE 3

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Overview

Romeo

Graphical Editor

Time Petri Net Scheduling-Time Petri Net

Model-checkers

  • State Space Abstractions
  • Structural Translations
  • Reachability Test
  • Simulation

} }

On-line analysis Off-line analysis

slide-4
SLIDE 4

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Time Petri Nets

Time extension of Petri nets.

P1 P2 P3

T1[0, ∞[ T2[1, 2] T3[1, 1]

  • No multi-enableness

  1 2   2 ut − − →

T2

− →   1 1 1   1.3 ut − − − →

T2

− →   1 2   . . .

  • Strong semantics
slide-5
SLIDE 5

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

State Space Abstractions

Romeo implements two types of state space computation:

slide-6
SLIDE 6

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

State Space Abstractions

Romeo implements two types of state space computation:

  • Classical state class graph
  • Berthomieu and Diaz 1991
  • Classical method to compute the state space
  • Untimed language.
  • Preserves LTL properties.
slide-7
SLIDE 7

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

State Space Abstractions

Romeo implements two types of state space computation:

  • Classical state class graph
  • Berthomieu and Diaz 1991
  • Classical method to compute the state space
  • Untimed language.
  • Preserves LTL properties.
  • Zone based graph (FORMATS’03)
  • Forward exploration of the state space
  • Efficient method ⇒ efficient reachability algorithm for TPN.
slide-8
SLIDE 8

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Model-checking using Observers

Observer: TPN pattern that does not modify the behaviour of the initial TPN.

“2 successive occurrences of T3 always append in less than 4 time units ”

→ Transform the property to check into an observer: ⇒ reachability test

slide-9
SLIDE 9

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Model-checking using Observers

Observer: TPN pattern that does not modify the behaviour of the initial TPN.

“2 successive occurrences of T3 always append in less than 4 time units ”

Limitations

slide-10
SLIDE 10

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Model-checking using translations into Timed Automata

Objectives

  • Extend the class of properties
  • Use efficient existing model-checkers

Methods

  • Structural Translation (AVoCS’04)
  • parallel composition of n Timed Automata
  • optimized to be used with Uppaal (active clocks)
  • State space based translations (jDEDS’05,jTPLP’06)
  • one Timed Automaton
  • small number of clocks
slide-11
SLIDE 11

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Scheduling Time Petri Nets

  • Preemption
  • Scheduler: Fixed priority policy
slide-12
SLIDE 12

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Model-Checking of Scheduling-TPN

  • State Space computation (extension of the state class graph)
  • exact: polyhedra (ICATPN’04) , DBM+polyhedra

(SoftMC’05)

  • overapproximation (DBM) (FET’03)
  • Translation into a Stopwatch Automaton (RTSS’04)
  • Overapproximation (DBM)
  • but exact
  • Small number of clocks
slide-13
SLIDE 13

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Recent Works

Time Petri Nets

  • On-the-fly model-checker for a subset of TCTL

(EF,EG,AF,AG, bounded liveness)

  • Control synthesis for safety properties
slide-14
SLIDE 14

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Future Works

  • System Design
  • Scheduling-TPN: add scheduling policies (Round Robin,

Earliest Deadline First. . . )

  • Inhibitors hyperarcs (Stop and resume clocks)
  • UML (Activity diagram)
  • Analysis, Model-checking
  • Discrete Time
  • Full TCTL model-checker
slide-15
SLIDE 15

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Details

  • Download

http://www.irccyn.ec-nantes.fr/irccyn/d/fr/ equipes/TempsReel/logs/software-2-romeo

  • Contact

romeo@irccyn.ec-nantes.fr

  • Papers

http://www.irccyn.ec-nantes.fr/~olivier Demo: tomorrow 11:00 - 12:00 am

slide-16
SLIDE 16

Overview Time Petri Nets Scheduling Time Petri Nets Conclusions

Questions?

slide-17
SLIDE 17

Transition Time Petri Net: Definition

Definition A Transition Time Petri Net (TPN) is a tuple (P, T,•(.), (.)•, α, β, M0) where:

  • P = {p1, p2, . . . , pm}, is a non-empty set of places
  • T = {t1, t2, . . . , tn}, is a non-empty set of transitions
  • •

(.) : T → I NP, is the backward incidence function

  • (.)• : T → I

NP, is the forward incidence function

  • M0 ∈ I

NP, the initial marking

slide-18
SLIDE 18

Transition Time Petri Net: Definition

Definition A Transition Time Petri Net (TPN) is a tuple (P, T,•(.), (.)•, α, β, M0) where:

  • P = {p1, p2, . . . , pm}, is a non-empty set of places
  • T = {t1, t2, . . . , tn}, is a non-empty set of transitions
  • •

(.) : T → I NP, is the backward incidence function

  • (.)• : T → I

NP, is the forward incidence function

  • M0 ∈ I

NP, the initial marking

◮ α : T → Q+, is the function giving the earliest firing date ◮ β : T → Q+ ∪ {∞}, is the function giving the latest firing

date.

slide-19
SLIDE 19

Time Petri Net: Semantics

Definition (Newly enabled transition) enabled (M) ti =

  • ti

tk s.t. M −•ti ≤•tk ∧ M −•ti + t•

i ≥•tk

P1 P2 P3 P4 T1 T2 T3

enabled (M) T2 = {T2, T3}

slide-20
SLIDE 20

Time Petri Net: Semantics

Definition (Newly enabled transition) enabled (M) ti =

  • ti

tk s.t. M −•ti ≤•tk ∧ M −•ti + t•

i ≥•tk

P1 P2 P3 P4 T1 T2 T3

enabled (M) T2 = {T2, T3}

slide-21
SLIDE 21

Time Petri Net: Semantics

Definition (Newly enabled transition) enabled (M) ti =

  • ti

tk s.t. M −•ti ≤•tk ∧ M −•ti + t•

i ≥•tk

P1 P2 P3 P4 T1 T2 T3

enabled (M) T2 = {T2, T3}

slide-22
SLIDE 22

Time Petri Net: Semantics

Definition Timed Transition System S = (Q, q0, →) where :

  • Q = I

NP × (I R+)T

  • q0 = (M0, ¯

0)

  • →∈ Q × (T ∪ I

R) × Q defined by:

  • continuous transition :

(M, v)

e(d)

− − → (M, v ′) iff

  • v ′ = v + d

∀k ∈ [1, n] M ≥• tk ⇒ v ′

k ≤ β(tk)

  • discrete transition :

(M, v)

ti

− → (M′, v ′) iff                M ≥•ti M′ = M −•ti + t•

i

α(ti) ≤ vi ≤ β(ti) ∀k ∈ [1, n] v ′

k =

  • 0 iff tk ∈ enabled (M) ti

vk otherwise

slide-23
SLIDE 23

Undecidability result

Theorem The boundedness of a Transition Time Petri Net is undecidable.

slide-24
SLIDE 24

Undecidability result

Theorem The boundedness of a Transition Time Petri Net is undecidable. → Does not reduce to the boundedness of the underlying Petri Net. P1 P2

T1[1, 1] T2[0, 0]

slide-25
SLIDE 25

Undecidability result

Theorem The boundedness of a Transition Time Petri Net is undecidable. → Does not reduce to the boundedness of the underlying Petri Net. P1 P2 ∞

T1[1, 1] T2[0, 0]
