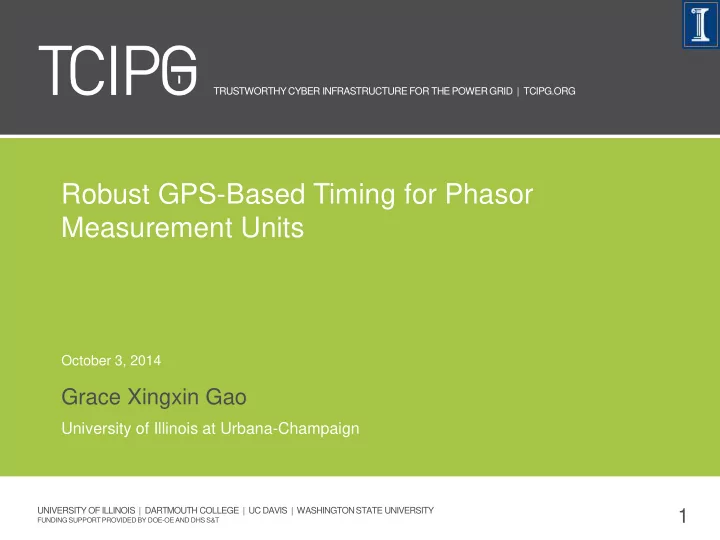

Robust GPS-Based Timing for Phasor Measurement Units

October 3, 2014

Grace Xingxin Gao

University of Illinois at Urbana-Champaign

slide-2
SLIDE 2

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

2

How to Make GPS-based Timing Robust?

slide-3
SLIDE 3

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

3

Facts about GPS

– GPS provides timing for many applications, such as PMUs – GPS civil signals are unencrypted

  • Only GPS military signals are encrypted
  • Civil users (e.g. PMUs) do not have access to the military codes

– GPS civil signal structures are completely open

  • GPS civil signal definition is published in its Interface Control

Documents (ICD) – GPS received signals are extremely weak

  • GPS satellites are 20,200 km (12,550 miles) away

– GPS is operational

  • Satellites in orbits
  • Signals being broadcast
  • Billions of GPS receivers in use
slide-4
SLIDE 4

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

4

Outline

– GPS Cooperative Authentication

  • Pairwise check
  • Decision aggregation

– Position-Information-Aided Vector Tracking

  • Approach
  • Implementation
  • Experimental Results

– Conclusions

slide-5
SLIDE 5

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

5

Outline

– GPS Cooperative Authentication

  • Pairwise check
  • Decision aggregation

– Position-Information-Aided Vector Tracking

  • Approach
  • Implementation
  • Experimental Results

– Conclusions

slide-6
SLIDE 6

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

6

Cooperative Authentication: Architecture

I got my location. Can you guys check if I was spoofed?

A snippet of baseband GNSS signal

Your snippet matches mine. You are not spoofed! A high correlation! You are good, bro. It doesn’t match mine. You might be spoofed. User receiver Cross-check receiver #1 Cross-check receiver #2 Cross-check receiver #N

Merits: network and geographical redundancy

slide-7
SLIDE 7

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

7

Pair-wise Checking: Cross-correlation of P(Y) Code

Psiaki, Humphreys et al., 2013 Lo et al., 2009

slide-8
SLIDE 8

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

8

Outline

– GPS Cooperative Authentication

  • Pairwise check
  • Decision aggregation

– Position-Information-Aided Vector Tracking

  • Approach
  • Implementation
  • Experimental Results

– Conclusions

slide-9
SLIDE 9

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

9

Pairwise Check

slide-10
SLIDE 10

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

10

Pairwise Check – Ideal Results

–

Not Spoofed Spoofed 40 ms 40 Correlation peaks Single Correlation peak No Correlation peak Spoofer cannot generate In-phase Baseband Correlation (C/A) Quadrature- phase Baseband Correlation (P(Y))

slide-11
SLIDE 11

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

11

Modeling Pairwise Check

P(Y) codes don’t match

slide-12
SLIDE 12

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

12

Experiments with Different Scenarios

3000km 22km

San Francisco CA and Champaign IL, static Rantoul IL, moving at ~45 mph and Champaign IL, static

slide-13
SLIDE 13

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

13

Experiments: San Francisco & UIUC Everitt Lab

–

  • –
  • – SiGe Sampler
  • –
slide-14
SLIDE 14

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

14

3000km separation 22km separation

Near ideal Correlation Could detect spoofing Could detect spoofing Some Residual Correlation Almost no Residual Correlation

Pairwise Results for Different Separations

slide-15
SLIDE 15

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

15

SNR Affects Pair-wise Check Performance

slide-16
SLIDE 16

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

16

Outline

– GPS Cooperative Authentication

  • Pairwise check
  • Decision aggregation

– Position-Information-Aided Vector Tracking

  • Approach
  • Implementation
  • Experimental Results

– Conclusions

slide-17
SLIDE 17

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

17

Modeling Unreliable Cross-Check Receivers

slide-18
SLIDE 18

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

18

Authentication Performance, Theoretical Results

  • Authentication performance improves exponentially with

increasing number of cross-check receivers.

  • PSS causes twice as great performance deterioration as PSD

does. – Choose a cross-check receiver far from the user receiver.

Pair-wise false alarm rate Pair-wise missed detection rate Probability of being spoofed by the same spoofer Probability of being spoofed by a different spoofer

slide-19
SLIDE 19

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

19

Receiver Operating Characteristic (ROC) Curves

slide-20
SLIDE 20

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

20

Performance of Cooperative Authentication

2 3 4 5 6 7 8 10

  • 4

10

  • 3

10

  • 2

10

  • 1

10 PMD = 0.15 Number of cross-check receivers (N) Probability of missed detection (PMD = 1 - PD) PSS = 0, PSD = 0 PSS = 0.02, PSD = 0.18 PSS = 0.1, PSD = 0.1 PSS = 0.18, PSD = 0.02 2 3 4 5 6 7 8 10

  • 8

10

  • 7

10

  • 6

10

  • 5

10

  • 4

10

  • 3

10

  • 2

10

  • 1

PFA = 0.001 Number of cross-check receivers (N) Probability of false alarm (PFA) PSS = 0, PSD = 0 PSS = 0.02, PSD = 0.18 PSS = 0.1, PSD = 0.1 PSS = 0.18, PSD = 0.02

Assume 20% of the cross-check receivers are spoofed (an extremely challenging assumption) Probability of false alarm Probability of missed detection

  • Robustness grows exponentially with the number of

cross-check receivers

  • A small number of unreliable cross-check receivers are
  • n par with a reliable cross-check receiver.
slide-21
SLIDE 21

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

21

Outline

– GPS Cooperative Authentication

  • Pairwise check
  • Decision aggregation

– Position-Information-Aided Vector Tracking

  • Approach
  • Implementation
  • Experimental Results

– Conclusions

slide-22
SLIDE 22

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

22

Approach: Position-Information-Aided (P.I.A.) Vector Tracking

Approach: – Vector tracking – Reduces the search space

  • Aided by the true position

– Kalman filtering

  • Recursively predict and update the errors

– Narrowband loop filter

slide-23
SLIDE 23

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

23

Scalar Tracking

GPS Front-end Correlator Code and Carrier Discriminators Navigation Processing Incoming Signal NCO Channel 1-N 𝑔

𝑒

, 𝜚 Position and Time Solutions (𝑦, 𝑧, 𝑨, 𝑢)

slide-24
SLIDE 24

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

24

Implementation: P.I.A. Vector Tracking

GPS Front-end Correlator Code and Carrier Discriminators Kalman Filter: Navigation Prediction Position analysis Incoming Signal Known True Position (𝑦, 𝑧, 𝑨) Position, Velocity, Timing, Code, and Carrier Correction Navigation Prediction LOS Projection Code and Carrier Predictions NCO Timing Errors Channel 1-N 𝑔

𝑒

, 𝜚 Time Solution (𝑢)

slide-25
SLIDE 25

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

25

Implementation: Kalman Filter

– States: 𝜀𝑌, 𝜀𝑊, 𝜀𝑢 , 𝜀𝑢 – State Transition Matrix – Predictions: – 𝜀𝑌 = 𝑌 − (𝑌 + 𝑊 Δ 𝑢) – 𝜀𝑊 = 𝑊 − 𝑊 – Calculation of receiver clock bias: 𝑢 = 1 ∑ 𝜕 𝜕 (𝜍 − 𝑦 − 𝑦 )

𝐺 = Δ 𝑢 Δ 𝑢 Δ 𝑢 Δ 𝑢 Psuedorange Satellite Position Known true position 1/𝑤𝑏𝑠 𝜗 𝑌 = 𝜀𝑦 𝜀𝑧 𝜀𝑨 𝜀𝑤 𝜀𝑤 𝜀𝑤 𝜀𝑢 𝜀𝑢

slide-26
SLIDE 26

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

26

P.I.A. Vector Tracking Improves Accuracy

– Loop filter bandwidth of 5Hz for both scalar and P.I.A tracking loops. – 9 satellites in view Maximum errors: – Traditional tracking

  • ~50ns

– Proposed vector tracking

  • ~15ns

No Noise Added

slide-27
SLIDE 27

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

27

P.I.A. Tracking Increases Noise Tolerance

– Increased noise leads to loss of lock in scalar tracking. – At 4 dB of additional noise, the scalar tracking was able to produce navigation bits for 4 satellites.

1 dB Noise Added 4 dB Noise Added

Noise Added # of Satellites Tracked 0 dB 9 1 dB 8 3 dB 5 4 dB 4

slide-28
SLIDE 28

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

28

P.I.A. Tracking is Robust Against Jamming

– Scalar tracking fails at 5 dB of added noise. – P.I.A. Vector Tracking continued to operate up until 9 dB of additional noise (5 dB more noise tolerance over scalar tracking) – Reduces a jammer’s effective radius.

5 dB Noise Added 9 dB Noise Added

Scalar tracking fails P.I.A. still tracking Scalar tracking fails P.I.A. still tracking

slide-29
SLIDE 29

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

29

P.I.A. Tracking Detects Meaconing

– Meaconing: record and replay legitimate GPS signal. – Meaconing attack simulated. – P.I.A. Vector Tracking loop fails to converge in the event of a meaconing attack. – 200 meter difference in known position and meaconing position.

Meaconing attack begins

slide-30
SLIDE 30

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

30

Outline

– GPS Cooperative Authentication

  • Pairwise check
  • Decision aggregation

– Position-Information-Aided Vector Tracking

  • Approach
  • Implementation
  • Experimental Results

– Conclusions

slide-31
SLIDE 31

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

31

Conclusions

– GPS cooperative authentication

  • A modest number of low-reliable cross-check receivers
  • utperform a high-quality reliable receiver.
  • Robustness grows exponentially with the number of cross-check

receivers. – Position-Information-Aided Vector

  • Robust against jamming (5dB more noise tolerance compared

with scalar tracking);

  • Successfully detects meaconing attacks;
  • Improves the accuracy of the timing solutions (15 ns vs 50 ns).
slide-32
SLIDE 32

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

32

Acknowledgement

– Prof. Jonathan Makela – TCIPG

References

– Daniel Chou, Liang Heng, and Grace Xingxin Gao , “Robust GPS-Based Timing for Phasor Measurement Units: A Position-Information-Aided Vector Tracking Approach,” ION GNSS+ 2014, Tampa FL, Sep 2014, Best Presentation of the Session Award. – Liang Heng, Daniel Chou, and Grace Xingxin Gao , “Cooperative GPS Signal Authentication from Unreliable Peers,” ION GNSS+ 2014, Tampa FL, Sep 2014, Best Presentation of the Session Award. – Liang Heng, Jonathan Makela, Alejandro Dominguez-Garcia, Rakesh Bobba, William Sanders, and Grace Xingxin Gao, “Reliable GPS-based Timing for Power System Applications: A multi-Layered Multi- receiver Approach,” the 2014 IEEE Power and Energy Conference at Illinois (IEEE PECI 2014), Champaign, IL, Feb 2014. – Liang Heng, Daniel B. Work, and Grace Xingxin Gao, “Reliability from Unreliable Peers: Cooperative GNSS Authentication,” Inside GNSS Magazine, September–October 2013. – Liang Heng, Daniel B. Work, and Grace Xingxin Gao, “GNSS Signal Authentication from Cooperative Peers,” IEEE Transactions on Intelligent Transportation Systems, submitted.

slide-33
SLIDE 33

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

33

Backup Slides

slide-34
SLIDE 34

TRUSTWORTHY CYBER INFRASTRUCTURE FOR THE POWER GRID | TCIPG.OR G

34

Multi-layer Countermeasures
