Reshaping a data frame Steve Bagley somgen223.stanford.edu 1 Reshaping data Sometimes data are organized in a way that makes it difficult to compute in a vector-oriented way. Sometimes data elements are included in the column names.

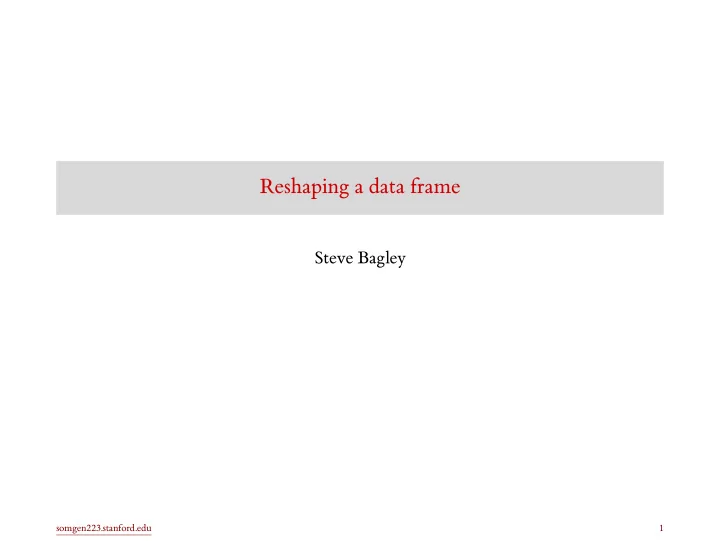

SLIDE 1

Reshaping a data frame

Steve Bagley

somgen223.stanford.edu 1

SLIDE 2

Reshaping data

Sometimes data are organized in a way that makes it difficult to compute in a

vector-oriented way.

Sometimes data elements are included in the column names.
The tidyr package (part of tidyverse) allows you to change the organization
f the data, keeping the content the same.

somgen223.stanford.edu 2

SLIDE 3

Reshaping example

(gene_exp1 <- read_csv(str_c(data_dir, "gene_exp1.csv"))) # A tibble: 3 x 3 gene control treatment <chr> <dbl> <dbl> 1 ABC123 1 2 DEF234 10 3 3 GKK7 12 13

This is in wide format: the column names contain data (the condition).
Adding another condition, such as treatment2, would create a new column.
In R, it is sometimes useful to set up the data frame so that new data are added as

rows (tall or long format).

somgen223.stanford.edu 3

SLIDE 4

Wide vs tall

gene_exp1 # A tibble: 3 x 3 gene control treatment <chr> <dbl> <dbl> 1 ABC123 1 2 DEF234 10 3 3 GKK7 12 13 gene_tall # A tibble: 6 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 DEF234 control 10 3 GKK7 control 12 4 ABC123 treatment 1 5 DEF234 treatment 3 6 GKK7 treatment 13

Convince yourself that the same information appears in these two data frames.
In gene_tall, the column names describe the data; they don’t contain any data.

somgen223.stanford.edu 4

SLIDE 5

Using gather

(gene_tall <- gather(gene_exp1, condition, expression_level, control:treatment)) # A tibble: 6 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 DEF234 control 10 3 GKK7 control 12 4 ABC123 treatment 1 5 DEF234 treatment 3 6 GKK7 treatment 13

The arguments to gather:
1. The data frame, here gene_exp1
2. The key, which is the name of the new column for the values from the old

column names, here condition

3. The value, which is the name of the new column for the data values, here

expression_level

4. The columns from which to gather the data. Here we use the : operator to name

a range of columns

somgen223.stanford.edu 5

SLIDE 6

Exercise: using tidy data

Filter the rows of gene_tall for gene ABC123 only.
Separately, filter to get only the control condition.

somgen223.stanford.edu 6

SLIDE 7

Answer: using tidy data

filter(gene_tall, gene == "ABC123") # A tibble: 2 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 ABC123 treatment 1 filter(gene_tall, condition == "control") # A tibble: 3 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 DEF234 control 10 3 GKK7 control 12

somgen223.stanford.edu 7

SLIDE 8

Exercise: compute change in gene expression

Compute the change (treatment - control) for each sample
Hint: think about what shape the data should have to enable this computation.

somgen223.stanford.edu 8

SLIDE 9

Answer: compute change in gene expression

We use the data in the original format because then we can subtract the columns.

mutate(gene_exp1, change = treatment - control) # A tibble: 3 x 4 gene control treatment change <chr> <dbl> <dbl> <dbl> 1 ABC123 1 1 2 DEF234 10 3

3 GKK7 12 13 1

somgen223.stanford.edu 9

SLIDE 10

Exercise: filtering the gene expression data

Produce a data frame that includes all data where the control or treatment

expression value is above 5.

somgen223.stanford.edu 10

SLIDE 11

Answer: filtering the gene expression data

gene_tall %>% filter(expression_level > 5) # A tibble: 3 x 3 gene condition expression_level <chr> <chr> <dbl> 1 DEF234 control 10 2 GKK7 control 12 3 GKK7 treatment 13

Note that this computation is very easy to do using the tall data format. In this

format, it is a single comparison that works for both treatment and control groups.

somgen223.stanford.edu 11

SLIDE 12

Example: what is the minimum expression level for each gene?

gene_tall %>% group_by(gene) %>% summarize(min_level = min(expression_level)) # A tibble: 3 x 2 gene min_level <chr> <dbl> 1 ABC123 2 DEF234 3 3 GKK7 12

This drops the condition column, which we might want to retain.

somgen223.stanford.edu 12

SLIDE 13

Keep the entire row with the minimum

gene_tall %>% group_by(gene) %>% arrange(expression_level) %>% slice(1) %>% ungroup() # A tibble: 3 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 DEF234 treatment 3 3 GKK7 control 12

slice(1) returns the first row in the group
ungroup removes the grouping attribute that was added by group_by.

somgen223.stanford.edu 13

SLIDE 14

Even better: which.min

gene_tall %>% group_by(gene) %>% slice(which.min(expression_level)) # A tibble: 3 x 3 # Groups: gene [3] gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 DEF234 treatment 3 3 GKK7 control 12

which.min returns the index of the vector element with the first occurrence of

the minimum value.

somgen223.stanford.edu 14

SLIDE 15

The opposite of gather

Suppose you started with the data in tall format.

gene_tall # A tibble: 6 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 control 2 DEF234 control 10 3 GKK7 control 12 4 ABC123 treatment 1 5 DEF234 treatment 3 6 GKK7 treatment 13

How would you convert it to the wide format?

somgen223.stanford.edu 15

SLIDE 16

spread is the opposite of gather

spread(gene_tall, condition, expression_level) # A tibble: 3 x 3 gene control treatment <chr> <dbl> <dbl> 1 ABC123 1 2 DEF234 10 3 3 GKK7 12 13

spread constructs wide data frames.
The second argument defines the column in the tall format to be used to make

new column names.

The third argument defines the column in the tall format to be used as the source
f data for those new columns.

somgen223.stanford.edu 16

SLIDE 17

How to get information out of the column names

somgen223.stanford.edu 17

SLIDE 18

Example of getting information out of column names

(gene_exp2 <- read_csv(str_c(data_dir, "gene_exp2.csv"))) # A tibble: 4 x 5 gene d1_g1 d1_g2 d2_g1 d2_g2 <chr> <dbl> <dbl> <dbl> <dbl> 1 ABC123 1 3 10 1 2 ABC123 3 4 20 1 3 DEF234 6 6 30 1 4 DEF234 2 5 40 12121

This data frame has useful information encoded in the column names

representing the number of the day and the group.

We want to move those data down into the contents of the data frame.

somgen223.stanford.edu 18

SLIDE 19

Convert from wide to tall format

gene_exp2 %>% gather(condition, expression_level, d1_g1:d2_g2) %>% head() # A tibble: 6 x 3 gene condition expression_level <chr> <chr> <dbl> 1 ABC123 d1_g1 1 2 ABC123 d1_g1 3 3 DEF234 d1_g1 6 4 DEF234 d1_g1 2 5 ABC123 d1_g2 3 6 ABC123 d1_g2 4

somgen223.stanford.edu 19

SLIDE 20

Getting data out of the condition column

gene_exp2 %>% gather(condition, expression_level, d1_g1:d2_g2) %>% separate(condition, into = c("day", "group"), sep = "_") %>% head() # A tibble: 6 x 4 gene day group expression_level <chr> <chr> <chr> <dbl> 1 ABC123 d1 g1 1 2 ABC123 d1 g1 3 3 DEF234 d1 g1 6 4 DEF234 d1 g1 2 5 ABC123 d1 g2 3 6 ABC123 d1 g2 4

The condition column has the compressed format for the values: d1_g1 means

“day 1, group 1”. We need to split the string apart at the "_" character using separate.

somgen223.stanford.edu 20

SLIDE 21

Clean up the data: strings

gene_exp2 %>% gather(condition, expression_level, d1_g1:d2_g2) %>% separate(condition, into = c("day", "group"), sep = "_") %>% mutate(day = str_remove(day, "d"), group = str_remove(group, "g")) %>% head() # A tibble: 6 x 4 gene day group expression_level <chr> <chr> <chr> <dbl> 1 ABC123 1 1 1 2 ABC123 1 1 3 3 DEF234 1 1 6 4 DEF234 1 1 2 5 ABC123 1 2 3 6 ABC123 1 2 4

If we want to get rid of the "d" and "g" prefixes, we need to do some string

manipulation.

somgen223.stanford.edu 21

SLIDE 22

str_remove: replace one occurrence of pattern in string

str_remove(c("d1", "d2", "ddddd3", "dxy"), "d") [1] "1" "2" "dddd3" "xy"

somgen223.stanford.edu 22

SLIDE 23

Clean up the data: numbers

gene_exp2 %>% gather(condition, expression_level, d1_g1:d2_g2) %>% separate(condition, into = c("day", "group"), sep = "_") %>% mutate(day = str_remove(day, "d"), group = str_remove(group, "g")) %>% mutate(day = as.integer(day), group = as.integer(group)) %>% head() # A tibble: 6 x 4 gene day group expression_level <chr> <int> <int> <dbl> 1 ABC123 1 1 1 2 ABC123 1 1 3 3 DEF234 1 1 6 4 DEF234 1 1 2 5 ABC123 1 2 3 6 ABC123 1 2 4

The values in the day and group columns are characters, not numbers, so coerce

to the desired type.

somgen223.stanford.edu 23

SLIDE 24

Reading

Read: 12 Tidy data | R for Data Science (sections 12.1 to 12.4)
Read: Tidy data • tidyr

somgen223.stanford.edu 24
