Predicting the Number of Reported Bugs in a Software Repository Hadi Jahanshahi Mucahit Cevik Aye Baar May 2020 33 rd Canadian Conference on Artificial Intelligence Data Science Laboratory Outline Data Science Laboratory

slide-1

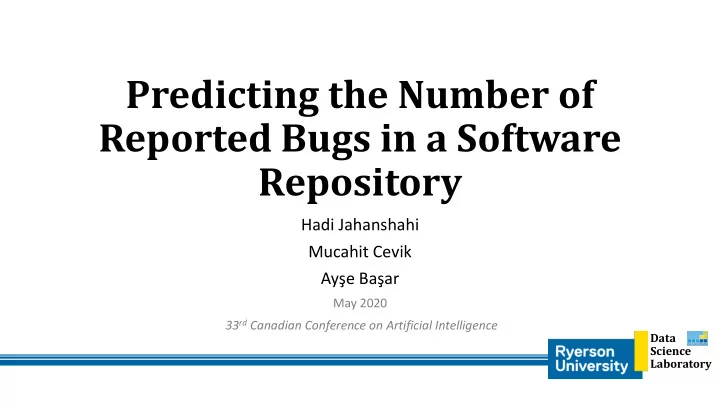

SLIDE 1

Hadi Jahanshahi Mucahit Cevik Ayşe Başar

May 2020 33rd Canadian Conference on Artificial Intelligence

Predicting the Number of Reported Bugs in a Software Repository

Data Science Laboratory

slide-2
SLIDE 2

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

2/20

Outline

  • Introduction
  • Contribution and Research Questions
  • Methodology
  • Result
  • Conclusion
slide-3
SLIDE 3

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

3/20

Reported bugs’ pattern

  • Why is predicting the number of bugs reported to a system important?
  • Bug prediction: binary classification
  • Predicting the number of bugs: Regression task
  • Predicting the number of reported bugs: Time series prediction
slide-4
SLIDE 4

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

4/20

General Idea

  • In this paper, the number of reported bugs to the Mozilla bug

repository during the last decade is extracted.

  • The release times of Mozilla updates is used as an exogenous variable.
  • Different time series prediction methods have been utilized to

investigate the performance of each model under different circumstances.

slide-5
SLIDE 5

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

5/20

Previous studies and our contributions [I]

  • Previous studies use generic time series models without having a

rational baseline to compare their models. [1, 2, 3, 4]

  • Another study [5] used time series analysis to determine seasonality

and trends of Affective Metrics for Software Development.

  • They consider the evolution of human aspects in SE while our study

focuses on the reported number of bugs in software as a metric which helps developers maintain the software quality

slide-6
SLIDE 6

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

6/20

Previous studies and our contributions [II]

  • Wang and Zhang [5] design Defect State Transition models and apply

the Markovian method to predict the number of defects at each state in the future.

  • There are also studies that consider software defect number prediction

in method-level and file-level [6, 7, 8].

slide-7
SLIDE 7

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

7/20

Research Questions

RQ1: How accurately the number of bugs in a project can be predicted using time series analysis? RQ2: How feasible is long-term bug number prediction?

slide-8
SLIDE 8

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

8/20

Data preparation

  • For time series prediction, we first check whether the given data is
  • stationary. As the p-value of the test is 0.012, there is no need to have

supplementary preprocessing.

  • Checking Auto-correlation function (ACF) and partial autocorrelation

function (PACF)

slide-9
SLIDE 9

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

9/20

Methodology

  • Rolling method is used for training the time series dataset.
slide-10
SLIDE 10

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

10/20

Data

  • We have extracted the number of reported bugs from the Mozilla bug

repository*. ____________________________

* Mozilla Bug Tracking System. https://bugzilla.mozilla.org/.

slide-11
SLIDE 11

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

11/20

Forecasting Models (I)

  • Naive Baseline: It assumes the number of bugs at time t is equal to

that at time t−1.

  • EXP: It considers two factors in its prediction: the forecast value at the

previous timestamp and its actual value. Therefore, it is defined as

  • WMA: Weighted Moving Average simply forecasts based on a

weighted average of the previous steps.

slide-12
SLIDE 12

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

12/20

Forecasting Models (II)

  • ARIMA: The general ARIMA model (p, q, d) is formulated as

Where .

  • RF: We applied RF Regressor as a new method that has not been used

in this domain.

slide-13
SLIDE 13

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

13/20

Forecasting Models (III)

  • LSTM: We use the LSTM cell architecture defined by [9] as follows:
  • All models’ parameters are shown in Table 1.
slide-14
SLIDE 14

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

14/20

Results (I)

slide-15
SLIDE 15

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

15/20

Results (II)

slide-16
SLIDE 16

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

16/20

Answer to the Research Questions

  • RQ1: How accurately the number of bugs in a project can be predicted

using time series analysis?

  • Surprisingly, the performance of a one-step prediction for all models is not

significantly different. Furthermore, the baseline seems as good as the others, a new finding which was not considered in previous studies.

  • RQ2: How feasible is long-term bug number prediction?
  • For the Mozilla project, LSTM shows a significant improvement compared to

traditional time series models.

slide-17
SLIDE 17

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

17/20

Conclusions

  • What we expect to see from our time series analyses:
  • to forecast the number of future defects
  • to identify the trends and abnormality in the system.
  • Our observations:
  • The number of bugs introduced to the system is stationary.
  • Considering eight different methods with five different performance metrics,

Random Forest with exogenous variables exceeds other methods.

  • Deep learning, especially LSTM in our case, significantly enhances the long-

term prediction.

slide-18
SLIDE 18

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

18/20

Main references (I)

[1] Kenmei, B., Antoniol, G., di Penta, M.: Trend analysis and issue prediction in large-scale open source systems. In: 2008 12th European Conference on Software Maintenance and Reengineering, pp. 73–82, April 2008 [2] Krishna, R., Agrawal, A., Rahman, A., Sobran, A., Menzies, T.: What is the connection between issues, bugs, and enhancements? Lessons learned from 800+ software projects. In: Proceedings of the 40th International Conference on Software Engineering: Software Engineering in Practice, ICSE-SEIP 2018, pp. 306–315. Association for Computing Machinery, New York (2018) [3] Wu, W., Zhang, W., Yang, Y., Wang, Q.: Time series analysis for bug number

  • prediction. In: The 2nd International Conference on Software Engineering and Data

Mining, pp. 589–596, June 2010

slide-19
SLIDE 19

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

19/20

Main references (II)

[4] Yazdi, H.S., Angelis, L., Kehrer, T., Kelter, U.: A framework for capturing, statistically modeling and analyzing the evolution of software models. J. Syst.

  • Softw. 118, 176–207 (2016)

[4] Destefanis, G., Ortu, M., Counsell, S., Swift, S., Tonelli, R., Marchesi, M.: On the randomness and seasonality of affective metrics for software development. In: Proceedings of the Symposium on Applied Computing, SAC 2017, pp. 1266–1271. Association for Computing Machinery, New York (2017) [5] Wang, J., Zhang, H.: Predicting defect numbers based on defect state transition

  • models. In: Proceedings of the 2012 ACM-IEEE International Symposium on

Empirical Software Engineering and Measurement, pp. 191–200, September 2012

slide-20
SLIDE 20

Data Science Laboratory

May 20

Predicting the Number of Reported Bugs in a Software Repository Jahanshahi et al.

20/20

Main references (II)

[6] Chen, X., Zhang, D., Zhao, Y., Cui, Z., Ni, C.: Software defect number prediction: unsupervised vs supervised methods. Inf. Softw. Technol. 106, 161–181 (2019) [7] Gao, K., Khoshgoftaar, T.M.: A comprehensive empirical study of count models for software fault prediction. IEEE Trans. Reliab. 56(2), 223–236 (2007) [8] Graves, T.L., Karr, A.F., Marron, J.S., Siy, H.: Predicting fault incidence using software change history. IEEE Trans. Softw. Eng. 26(7), 653–661 (2000) [9] Hochreiter, S., Schmidhuber, J.: Long short-term memory. Neural Comput. 9(8), 1735–1780 (1997). https://doi.org/10.1162/neco.1997.9.8.1735
